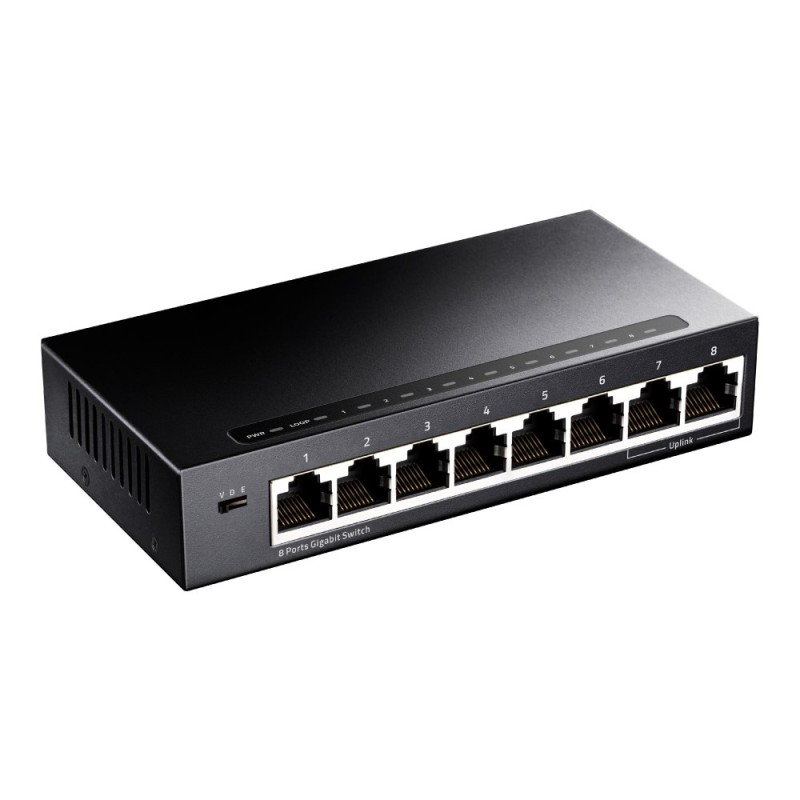

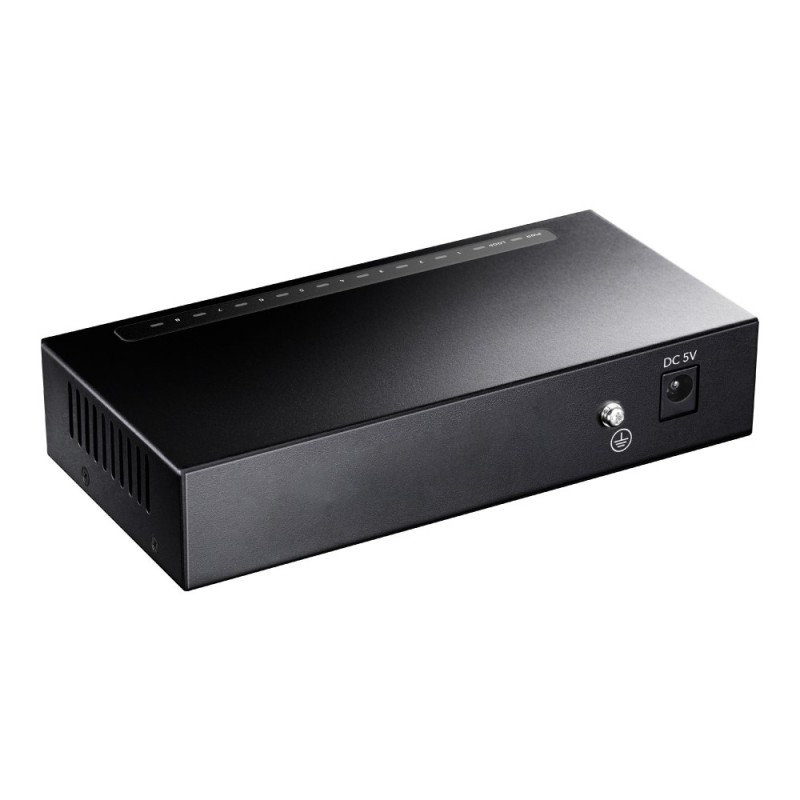

Cudy GS108 network switch Gigabit Ethernet (10/100/1000) Black

Περιγραφή

Design

Product colour: Black

LED indicators: Loop, Link, Power

Rack mounting: No

Power

DC input voltage: 5 V

AC input voltage: 100 - 240 V

Power supply included: Yes

Power source: AC/DC

Operational conditions

Operating temperature (T-T): -10 - 50 °C

Operating altitude: 0 - 3048 m

Storage relative humidity (H-H): 5 - 90%

Storage temperature (T-T): -40 - 70 °C

Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 137 mm

Weight: 300 g

Height: 25 mm

Depth: 77 mm

Network

Cable types supported: Cat6+, Cat6a, Cat7, Cat6e, Cat7e, Cat8, Cat5, Cat5e, Cat3, Cat4, Cat6, Cat8.1

MAC address auto-aging supported: Yes

Full duplex: Yes

Ethernet LAN data rates: 10,100,1000 Mbit/s

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3u

MAC address auto-learning supported: Yes

VLAN support: Yes

Copper ethernet cabling technology: 1000BASE-TX, 10BASE-T, 100BASE-TX

Flow control support: Yes

Half duplex: Yes

Auto-negotiation: Yes

Auto MDI/MDI-X: Yes

Performance

Mean time between failures (MTBF): 100000 h

Packaging data

Package height: 63 mm

Package weight: 500 g

Package width: 175 mm

Package depth: 120 mm

Package type: Box

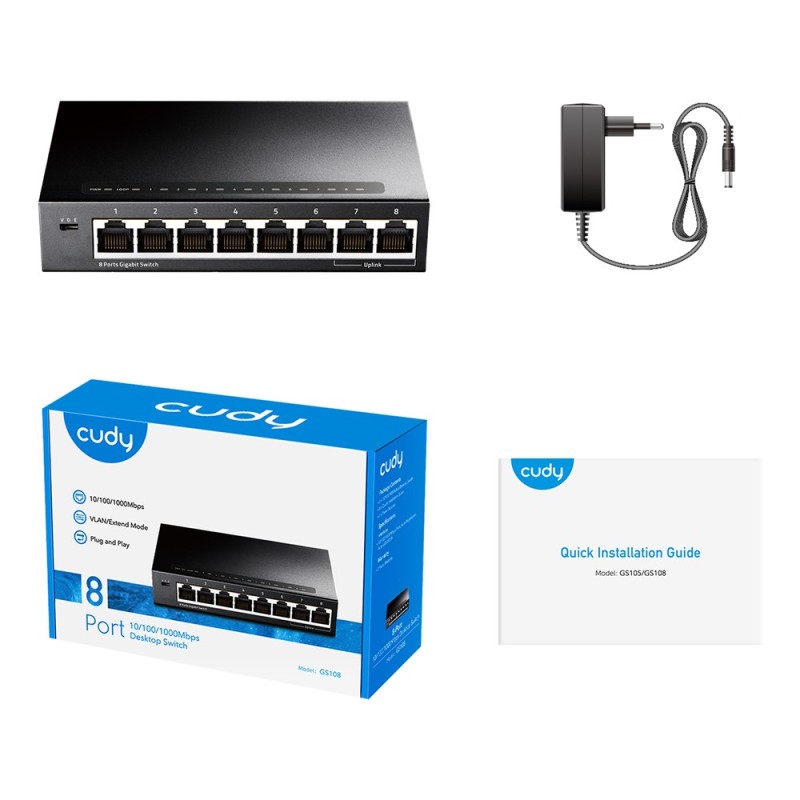

Packaging content

Quick start guide: Yes

Cables included: DC

Ports & interfaces

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity: 8

Logistics data

Master (outer) case gross weight: 21 kg

Master (outer) case width: 505 mm

Products per master (outer) case: 40 pc(s)

Master (outer) case height: 400 mm

Master (outer) case length: 320 mm

Data transmission

Throughput: 11.9 Mpps

Packet buffer memory: 2.5 MB

Jumbo frames support: Yes

MAC address table: 1000 entries

Switching capacity: 16 Gbit/s

Jumbo frames: 2000

Store-and-forward: Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Safety warning

Warnings: The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations., Do not open the case or try to repair it yourself.
