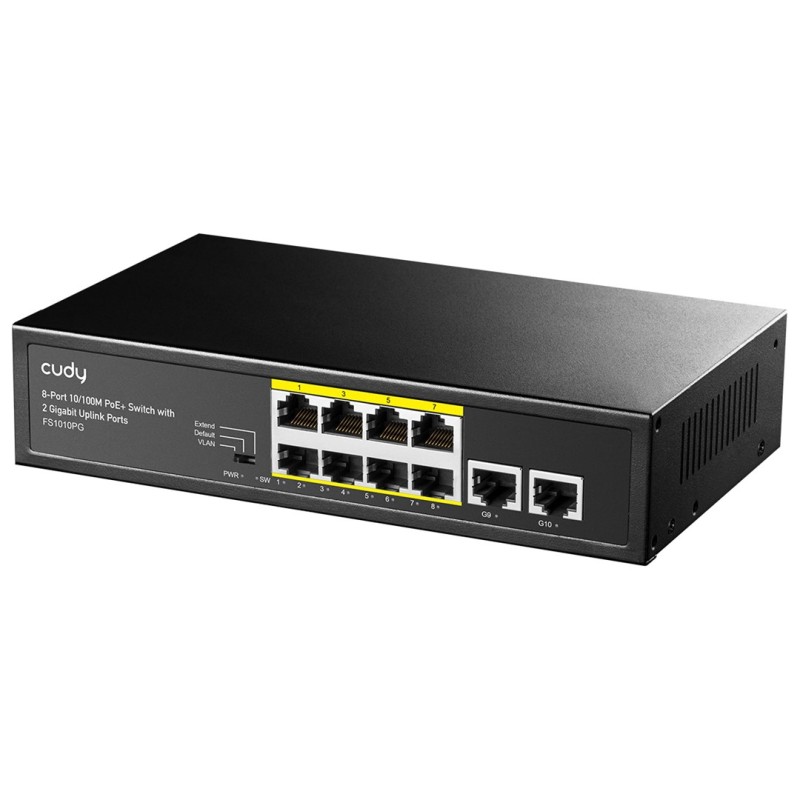

Cudy FS1010PG network switch Fast Ethernet (10/100) Power over Ethernet (PoE) Black

Περιγραφή

Design

Product colour: Black

Housing material: Metal

LED indicators: PoE, Power, Activity, Link

Power

AC input frequency: 50 - 60 Hz

Surge protection voltage: 4 kV

Power source: AC

Power supply included: Yes

Surge protection: Yes

AC input voltage: 100 - 240 V

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 10 - 90%

Storage relative humidity (H-H): 5 - 90%

Storage temperature (T-T): -40 - 70 °C

Weight & dimensions

Depth: 150 mm

Width: 220 mm

Height: 44 mm

Network

Networking standards: IEEE 802.3af, IEEE 802.3az, IEEE 802.3at, IEEE 802.3x

Full duplex: Yes

Copper ethernet cabling technology: 10BASE-T, 100BASE-TX

Cable types supported: Cat3, Cat4, Cat5, Cat5e

Ethernet LAN data rates: 10,100 Mbit/s

VLAN support: Yes

Flow control support: Yes

Half duplex: Yes

Performance

Fanless: Yes

Mean time between failures (MTBF): 50000 h

Plug and Play: Yes

Packaging content

Cables included: AC

Ports & interfaces

Uplink ports quantity: 2

Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)

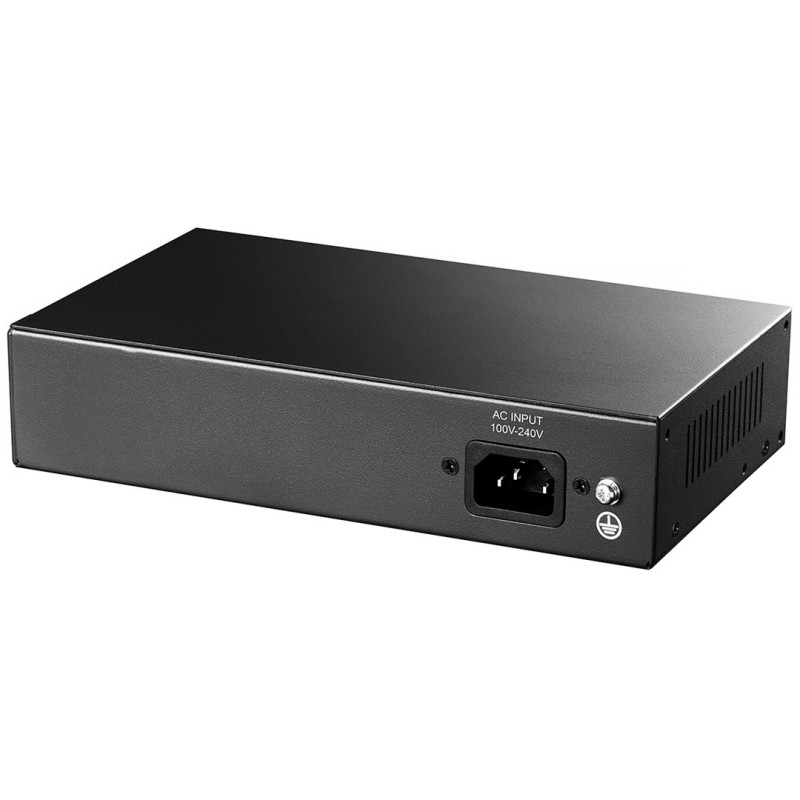

Power connector: AC-in jack

Basic switching RJ-45 Ethernet ports quantity: 8

Other features

Bandwidth: 2 Gbit/s

Data transmission

MAC address table: 8000 entries

Jumbo frames support: Yes

Jumbo frames: 1528

Forwarding rate: 1.48 Mpps

Packet buffer memory: 0.25 MB

Store-and-forward: Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE) ports quantity: 8

Power over Ethernet (PoE): Yes

Total Power over Ethernet (PoE) budget: 120 W

Power over Ethernet plus (PoE+) ports quantity: 1

Power over Ethernet (PoE) power per port: 30 W

Safety warning

Warnings: The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations., Do not open the case or try to repair it yourself.
