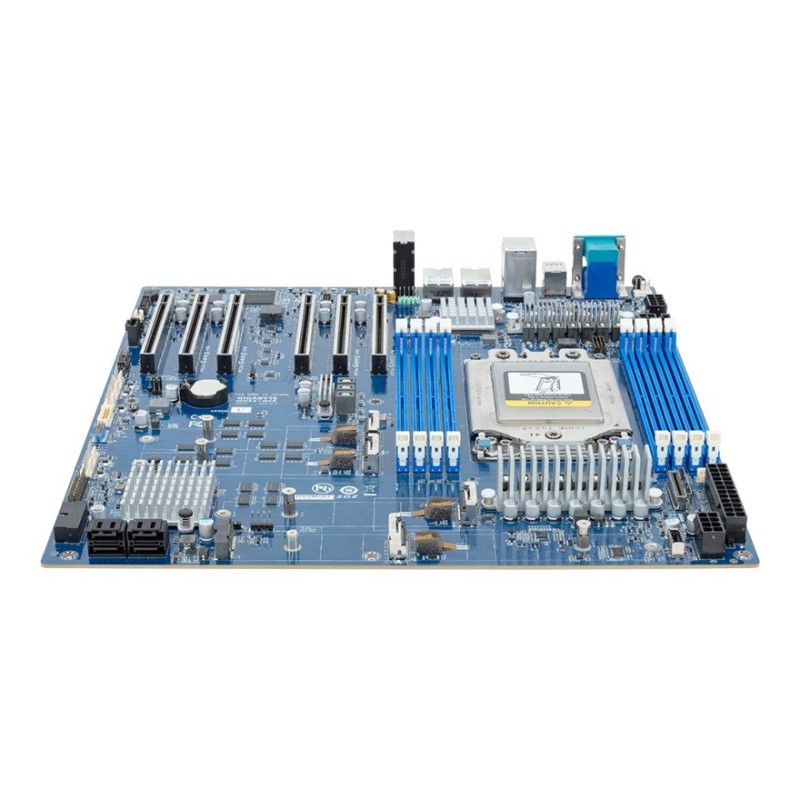

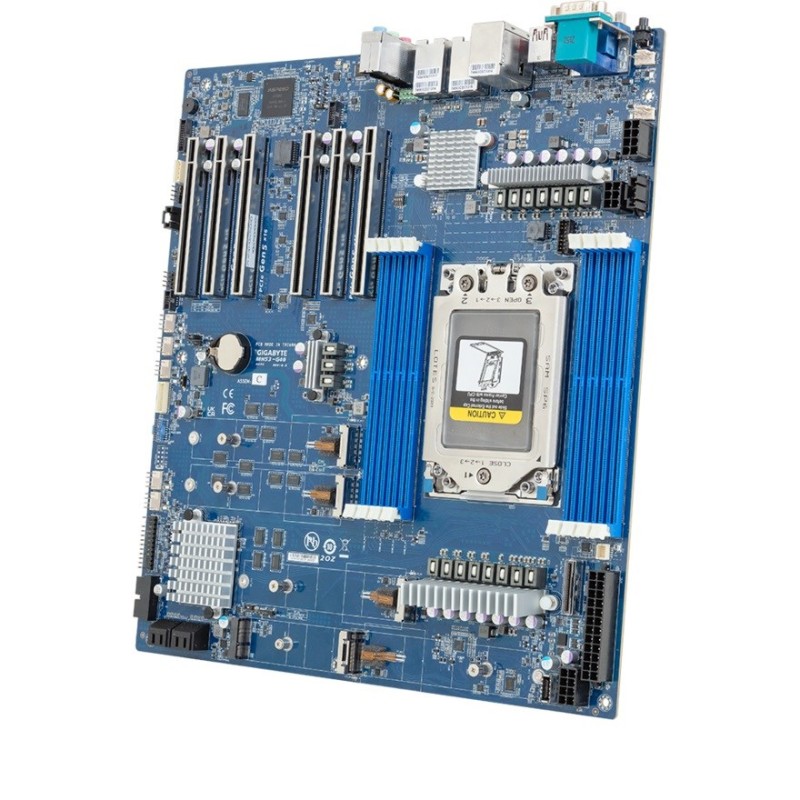

Płyta główna Gigabyte MH53-G40 1x sTR5 AMD ryzen Threadripper PRO 7000 WRX90 (8X DIMM, 4x SATA, 1x MCIO 8i, 4xM.2, 2x 10Gbe, E-ATX)

Περιγραφή

Processor

Processor manufacturer: AMD

Maximum number of SMP processors: 1

Supported processor sockets: Socket sTR5

Processor socket: Socket sTR5

Compatible processor series: AMD Ryzen Threadripper PRO 7000 WX-Series

Graphics

Parallel processing technology support: Not supported

Features

Motherboard chipset: AMD WRX90

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Motherboard form factor: EATX

Motherboard chipset family: AMD

Component for: Server/workstation

Product colour: Blue

Memory

Memory slots type: DIMM

Memory channels: Octa-channel

Supported memory clock speeds: 5200

Number of memory slots: 8

Supported memory types: DDR5 ECC RDIMM

ECC сompatibility: ECC

Weight & dimensions

Depth: 330.2 mm

Width: 304.8 mm

Network

Wi-Fi: No

Ethernet LAN: Yes

Ethernet interface type: 10 Gigabit Ethernet

Internal I/O

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Number of chassis fan connectors: 6

12V power connector: Yes

ATX Power connector (24-pin): Yes

Number of SATA III connectors: 4

USB 3.2 Gen 2 (3.1 Gen 2) ports quantity: 1

Number of MCIO connectors: 1

CPU fan connector: Yes

Packaging data

Package height: 78 mm

Package depth: 355 mm

Package width: 409 mm

Packaging content

DFU / User manual: Y

Storage controllers

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

RAID support: Yes

RAID levels: 10, 1, 0, 5

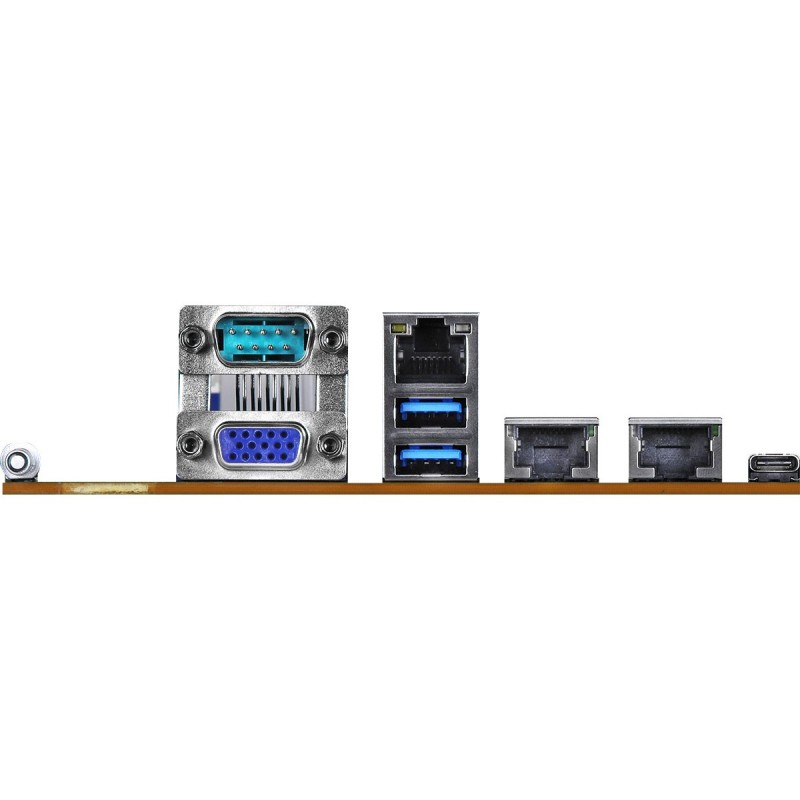

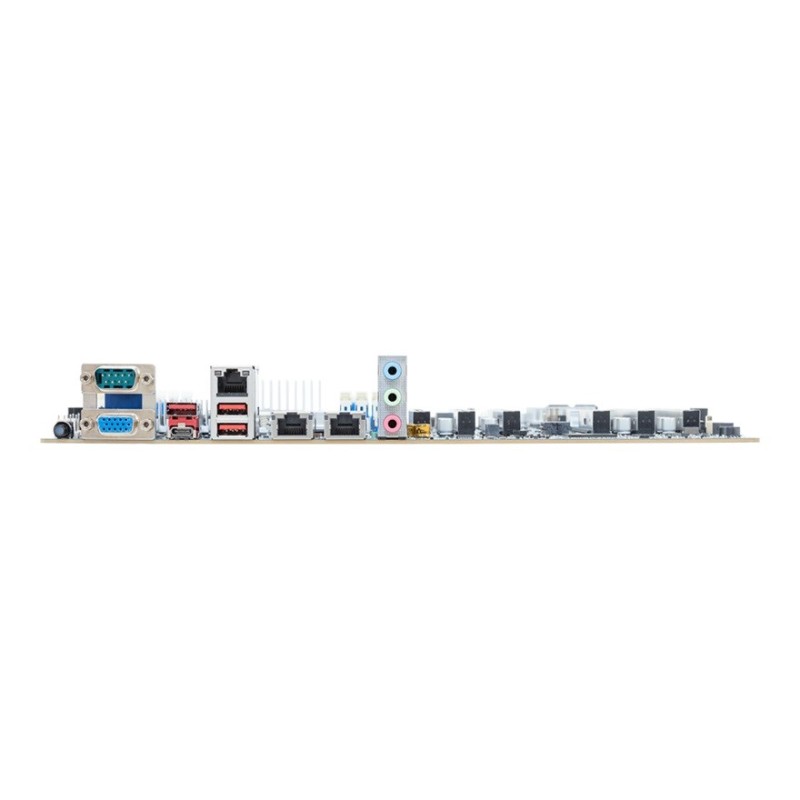

Rear panel I/O ports

COM ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3

VGA (D-Sub) ports quantity: 1

Port Management LAN: Yes, 1

Ethernet LAN (RJ-45) ports: 2

Number of audio jack connectors: 3

USB 3.2 Gen 2x2 Type-C ports quantity: 1

Expansion slots

PCI Express x16 (Gen 5.x) slots: 6

Safety warning

Warnings: Do not open or disassemble the motherboard., Do not disassemble to avoid damage to internal components and loss of warranty., The motherboard may contain electronic components hazardous to health - avoid direct contact.

Τρόποι Αποστολής

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

Σχετικά Προϊόντα

Asrock B650D4U motherboard AMD B650 Express Socket AM5 micro ATX

ProcessorCompatible processor series: AMD Ryzen™ 5, AMD Ryzen™ 3Processor socket: Socket AM5Maximum number of SMP processors: 1Processor manufacturer:..

400,79€

Χωρίς ΦΠΑ:323,22€

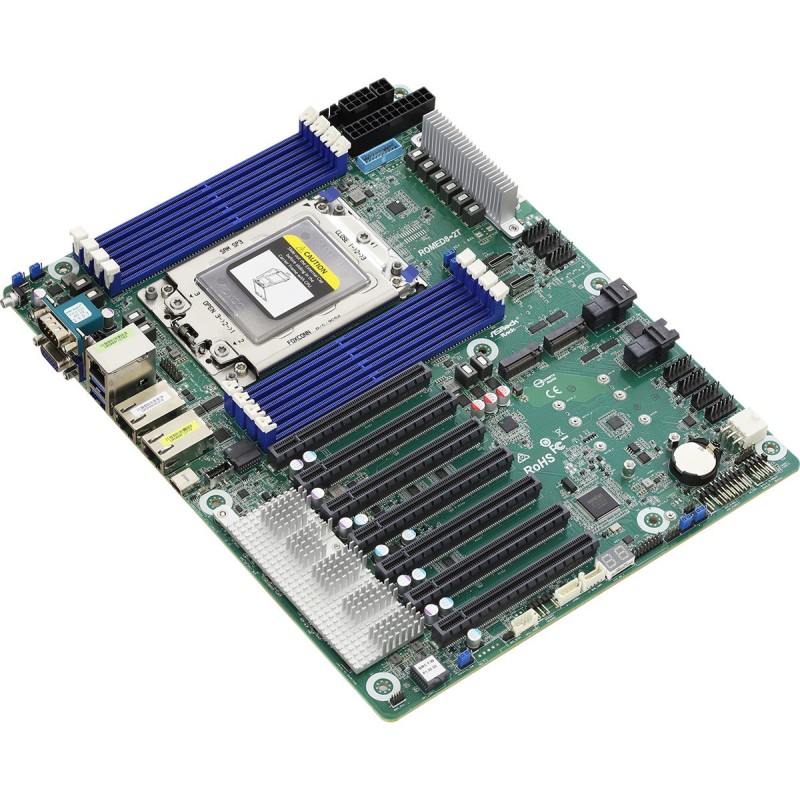

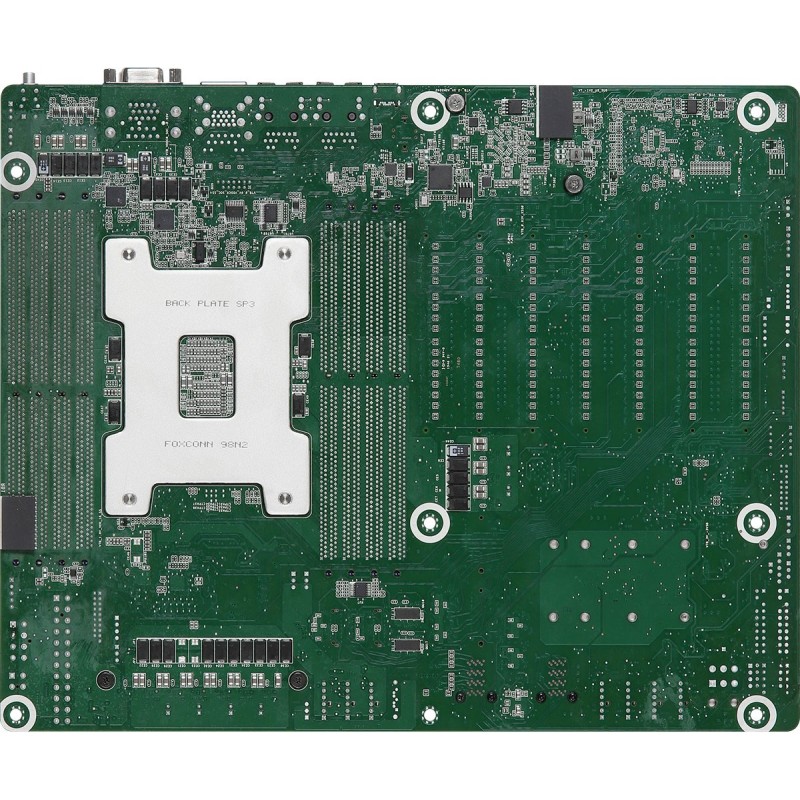

Asrock ROME2D16-2T motherboard LGA 4094 EEB
