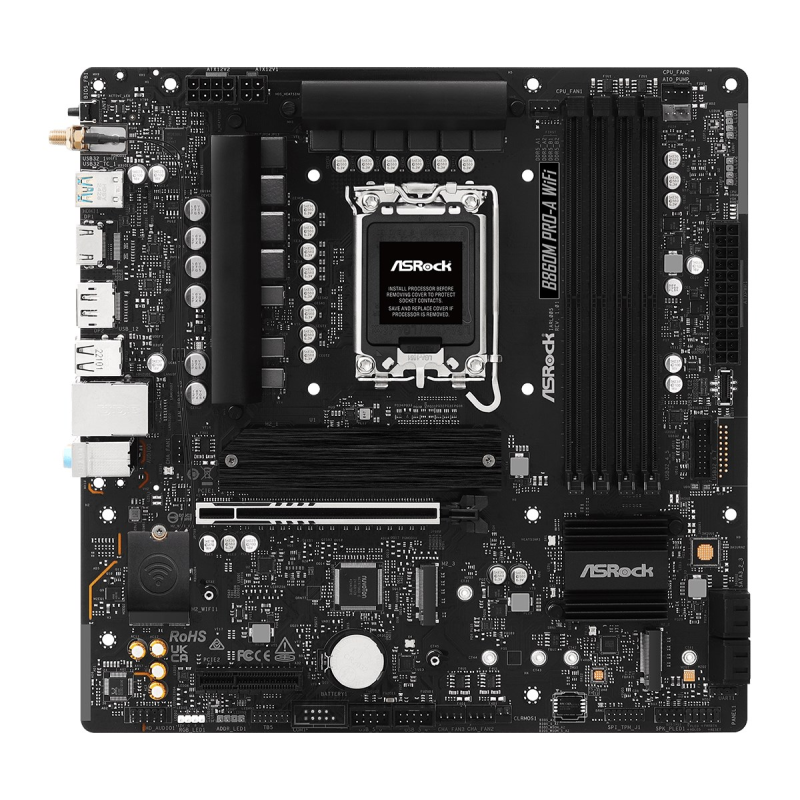

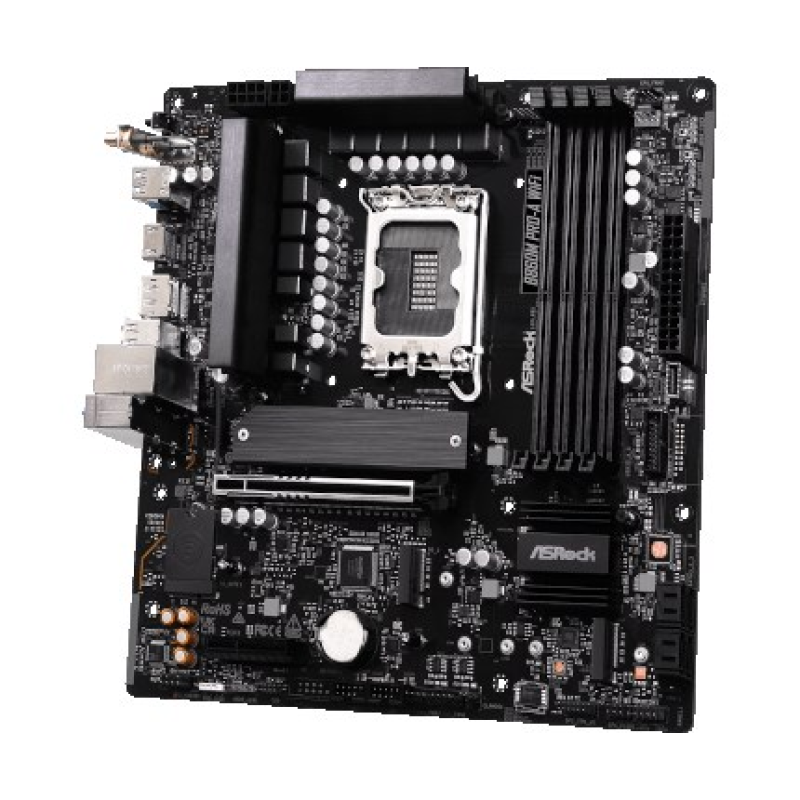

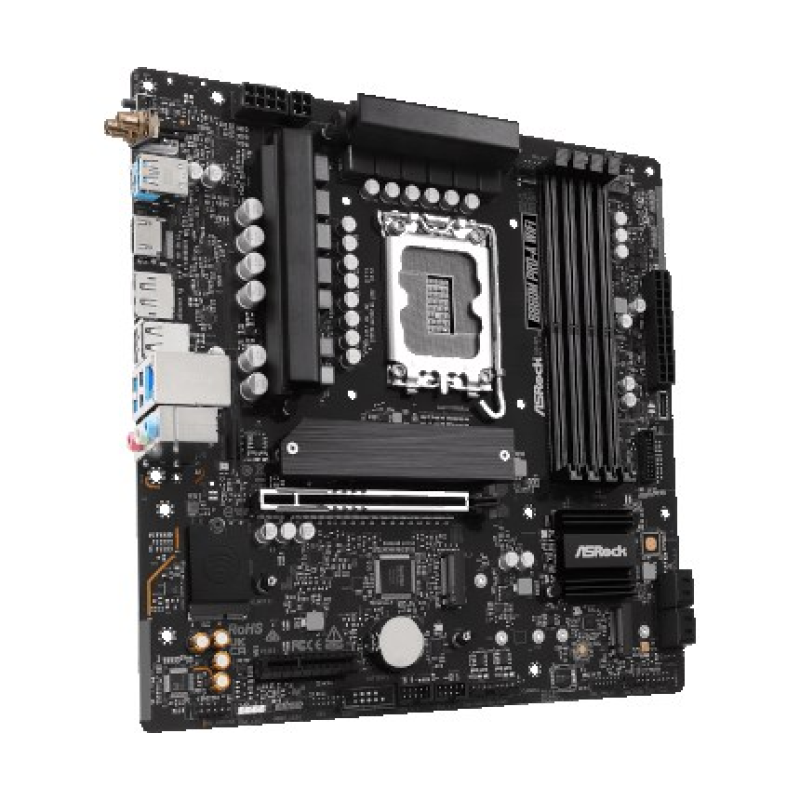

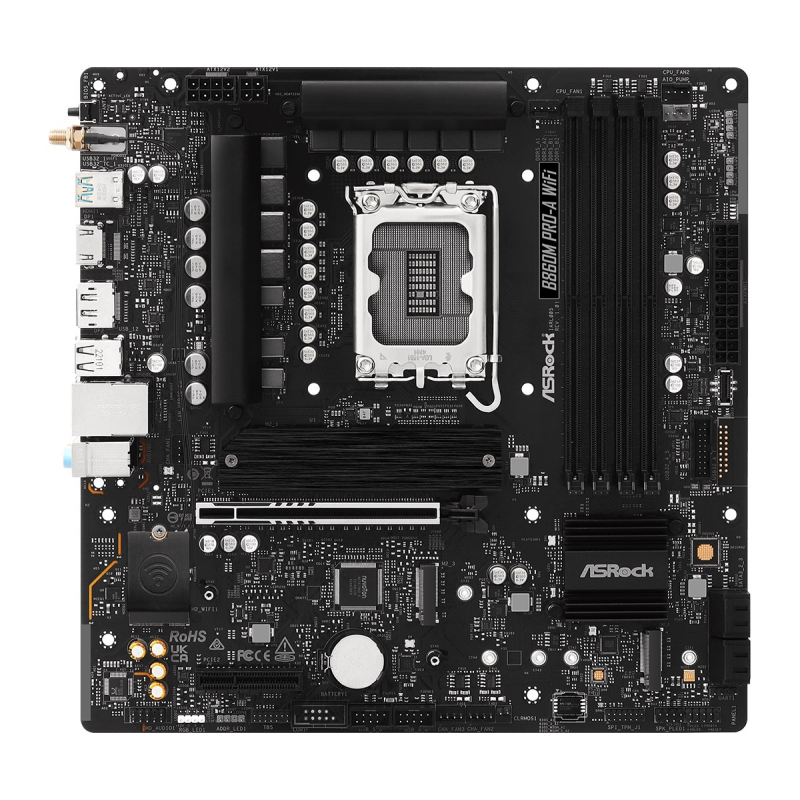

ASRock B860M Pro-A WiFi Motherboard

Περιγραφή

Processor

Processor manufacturer: Intel

Supported processor sockets: LGA 1851

Processor socket: LGA 1851 (Socket V1)

Features

Motherboard form factor: micro ATX

Motherboard chipset family: Intel

Audio output channels: 7.1 channels

Audio chip: Realtek ALC897

Motherboard chipset: Intel B860

Windows operating systems supported: Windows 11 x64

Memory

ECC сompatibility: Non-ECC

Memory channels: Dual-channel

Unbuffered memory: Yes

Maximum internal memory: 256 GB

Memory slots type: DIMM

Supported memory types: DDR5-SDRAM

Number of memory slots: 4

Weight & dimensions

Width: 244 mm

Depth: 244 mm

Network

LAN controller: Dragon RTL8125BG

Ethernet LAN data rates: 10,100,1000,2500 Mbit/s

Wi-Fi: Yes

Bluetooth: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Ethernet LAN: Yes

Internal I/O

Number of CPU fan connectors: 2

Number of water pump connectors: 1

CPU fan connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Number of SATA III connectors: 4

ATX Power connector (24-pin): Yes

TPM connector: Yes

USB 2.0 connectors: 2

Number of chassis fan connectors: 3

RGB LED pin header: Yes

12V power connector: Yes

BIOS

BIOS type: UEFI AMI

Storage controllers

Supported storage drive types: HDD & SSD

RAID levels: 1, 0, 10, 5

RAID support: Yes

Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III

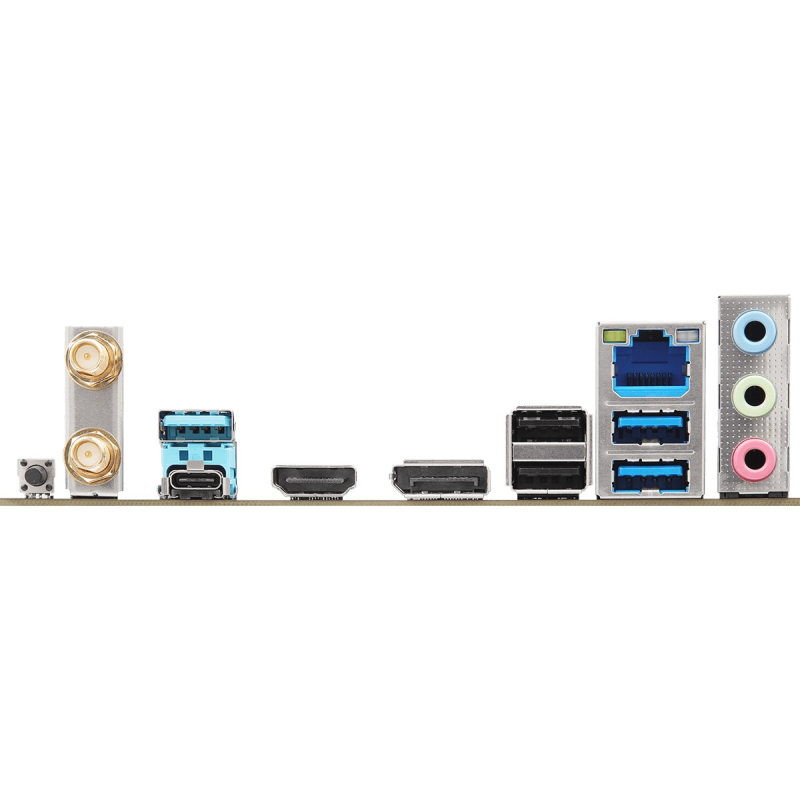

Rear panel I/O ports

Number of USB 3.2 Gen 1 ports: 3

Antennas quantity: 2

USB 2.0 ports quantity: 2

Ethernet LAN (RJ-45) ports: 1

USB connector type: USB Type-A, USB Type-C

HDMI ports quantity: 2

HDMI version: 2.1

Flashback BIOS button: Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

Expansion slots

Number of M.2 (M) slots: 3

Number of SATA III connectors: 4

1st M.2 highest PCI Express generation: 5.0

1st M.2 largest key size: 2280

Safety warning

Warnings: In case of installation problems, contact a qualified service technician., When disposing of the product, follow local regulations for the recycling of electronics., Do not open or modify the motherboard to prevent damage.

Τρόποι Αποστολής

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

Σχετικά Προϊόντα

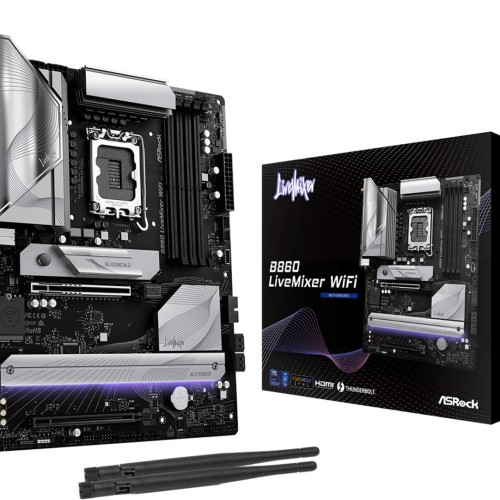

Asrock B860 LiveMixer WiFi Intel B860 LGA 1851 (Socket V1) ATX

ProcessorProcessor manufacturer: IntelCompatible processor series: Intel Core Ultra (Series 2)Processor socket: LGA 1851 (Socket V1)Supported processo..

179,37€

Χωρίς ΦΠΑ:144,65€

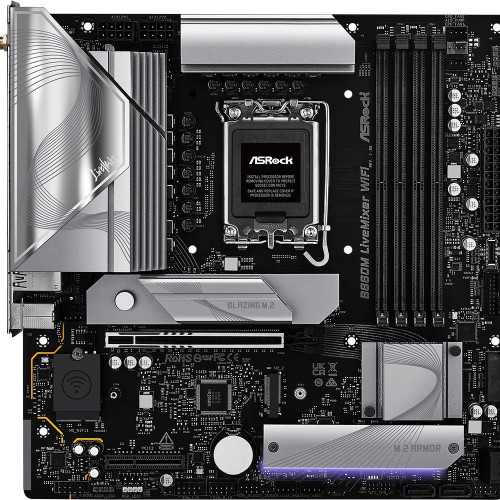

Asrock B860M LiveMixer WiFi Intel B860 LGA 1851 (Socket V1) micro ATX

ProcessorProcessor socket: LGA 1851 (Socket V1)Processor manufacturer: IntelGraphicsOn-board graphics card: YesGraphics card family: IntelFeaturesAudi..

179,80€

Χωρίς ΦΠΑ:145,00€

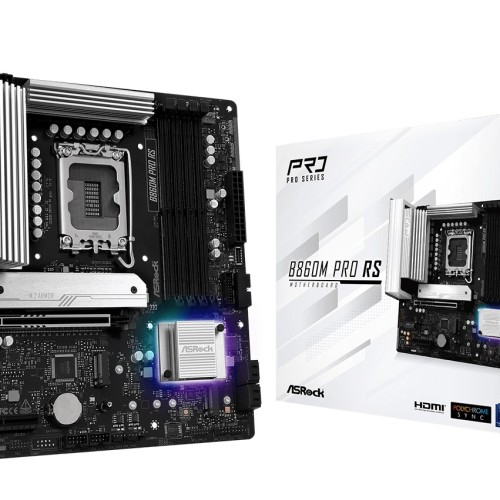

Asrock B860M Pro RS Intel B860 LGA 1851 (Socket V1) micro ATX

ProcessorProcessor socket: LGA 1851 (Socket V1)Processor manufacturer: IntelFeaturesAudio output channels: 7.1 channelsMotherboard chipset: Intel B860..

152,17€

Χωρίς ΦΠΑ:122,72€

ASRock B860M-X Motherboard

ProcessorProcessor manufacturer: IntelProcessor socket: LGA 1851 (Socket V1)GraphicsGraphics card family: IntelFeaturesAudio output channels: 7.1 chan..

126,82€

Χωρίς ΦΠΑ:102,28€

ASRock H810M-X Motherboard

ProcessorProcessor socket: LGA 1851 (Socket V1)Processor manufacturer: IntelGraphicsGraphics card family: IntelFeaturesWindows operating systems suppo..

101,45€

Χωρίς ΦΠΑ:81,81€

ASRock H810M-X WIFI Motherboard

ProcessorProcessor manufacturer: IntelProcessor socket: LGA 1851 (Socket V1)GraphicsGraphics card family: IntelFeaturesAudio chip: Realtek ALC897Windo..

107,79€

Χωρίς ΦΠΑ:86,93€

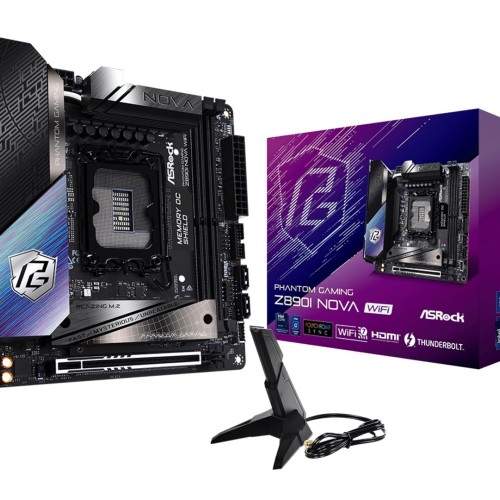

Asrock Phantom Gaming Z890I Nova WiFi Intel Z890 LGA 1851 (Socket V1) mini ITX

ProcessorProcessor socket: LGA 1851 (Socket V1)Compatible processor series: Intel Core Ultra (Series 2)Supported processor sockets: LGA 1851Processor ..

325,92€

Χωρίς ΦΠΑ:262,84€

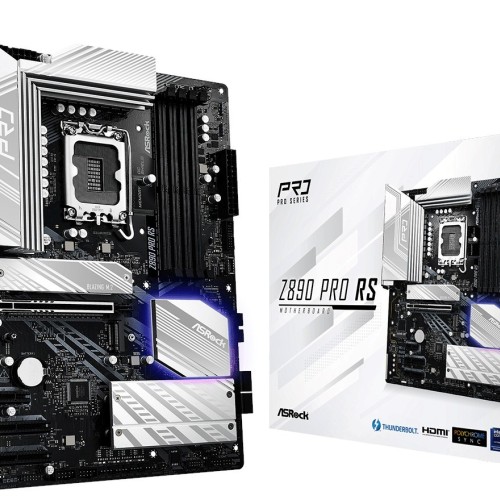

ASRock Z890 Pro RS - Motherboard

ProcessorCompatible processor series: Intel Core Ultra (Series 2)Processor socket: LGA 1851 (Socket V1)Processor manufacturer: IntelFeaturesMotherboar..

239,44€

Χωρίς ΦΠΑ:193,09€

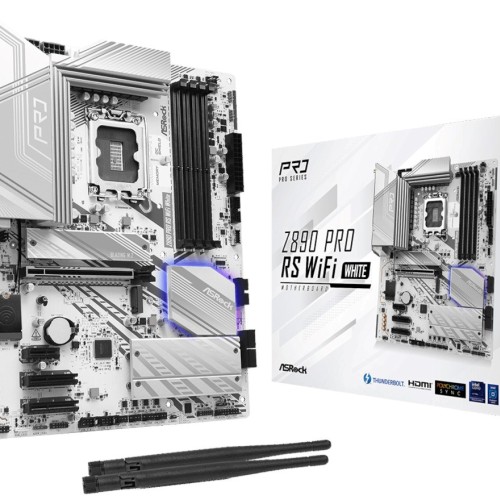

ASRock Z890 Pro RS WiFi White - Motherboard

ProcessorProcessor manufacturer: IntelProcessor socket: LGA 1851 (Socket V1)Compatible processor series: Intel Core Ultra (Series 2)FeaturesMotherboar..

228,44€

Χωρίς ΦΠΑ:184,22€

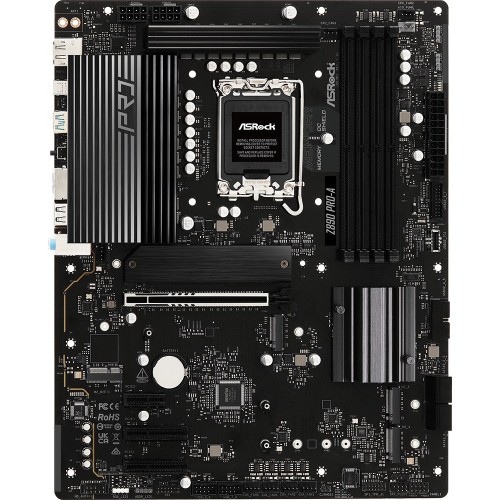

ASRock Z890 Pro-A Intel Z890 LGA 1851 (Socket V1) ATX motherboard

Technical detailsCompliance certificates: CE, Federal Communications Commission (FCC)ProcessorProcessor socket: LGA 1851 (Socket V1)Compatible process..

202,66€

Χωρίς ΦΠΑ:163,43€

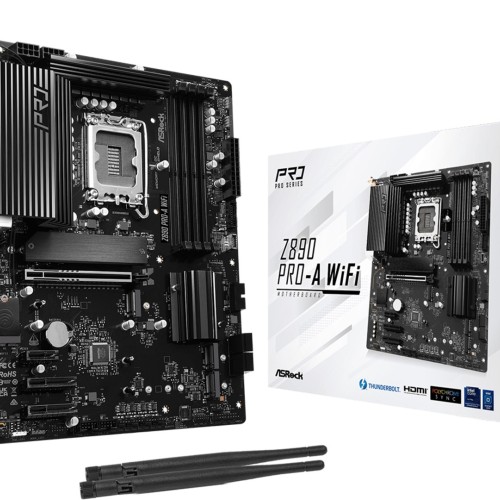

Asrock Z890 Pro-A WiFi Intel Z890 LGA 1851 (Socket V1) ATX

Technical detailsCompliance certificates: CE, Federal Communications Commission (FCC)ProcessorProcessor socket: LGA 1851 (Socket V1)Supported processo..

217,77€

Χωρίς ΦΠΑ:175,62€

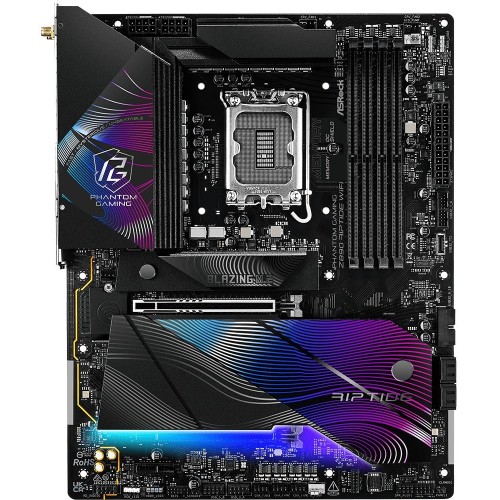

ASRock Z890 Riptide WiFi Motherboard
