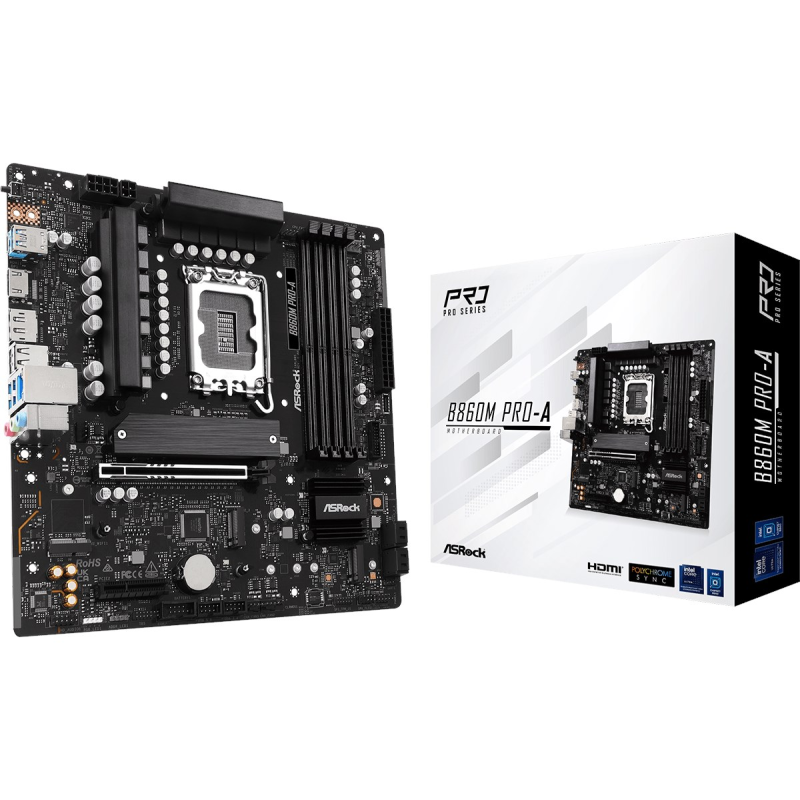

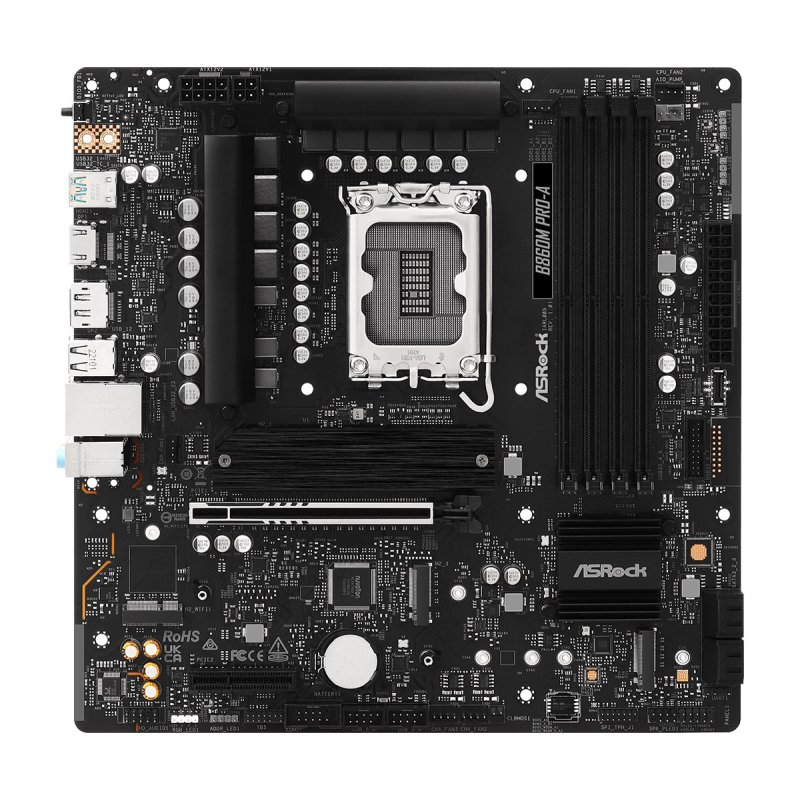

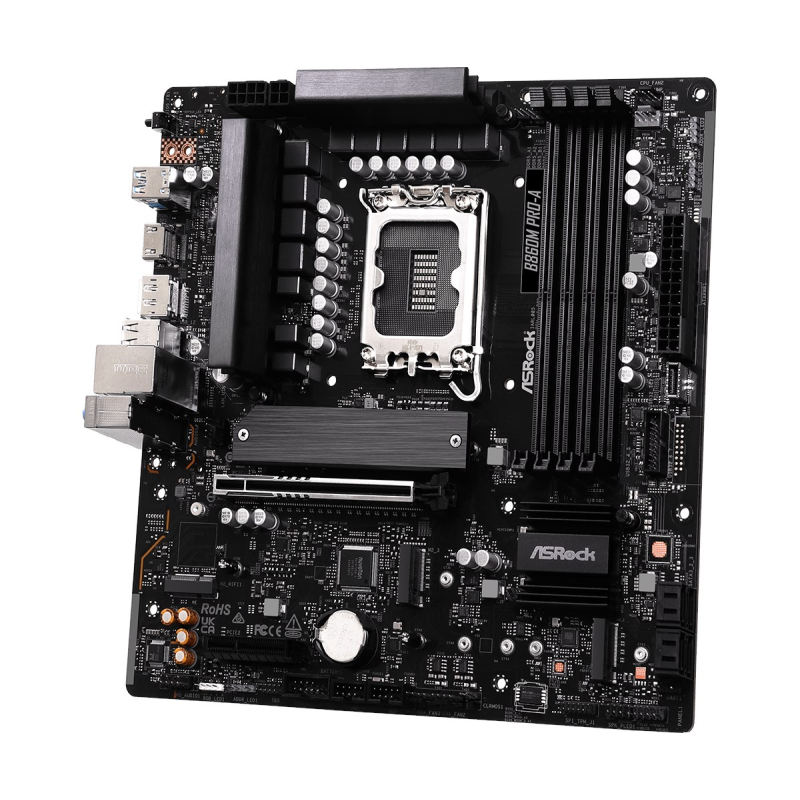

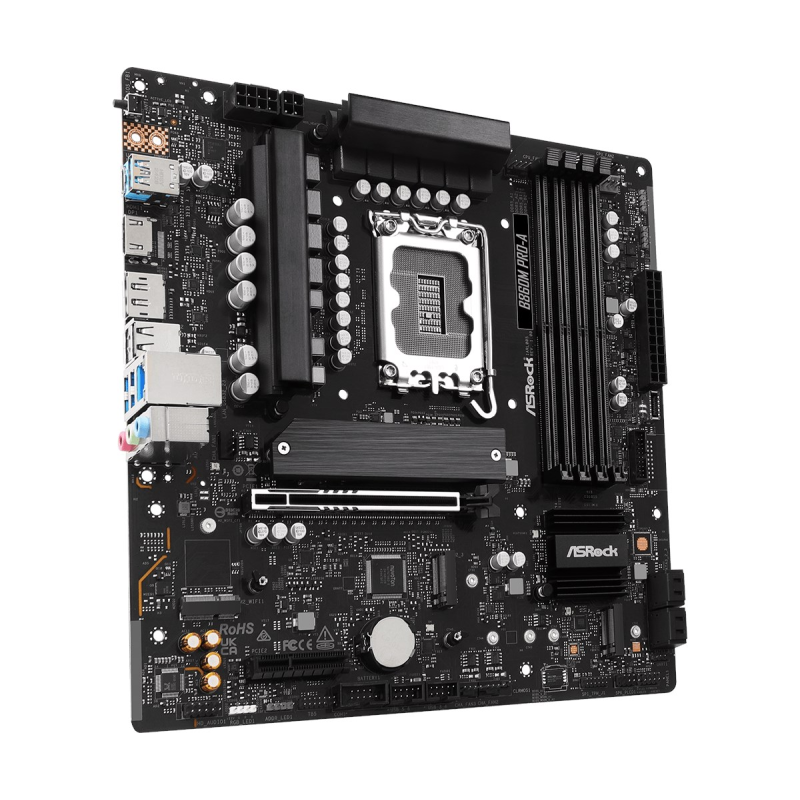

ASRock B860M Pro-A motherboard

Περιγραφή

Processor

Processor manufacturer: Intel

Supported processor sockets: LGA 1851

Processor socket: LGA 1851 (Socket V1)

Features

Motherboard form factor: micro ATX

Audio chip: Realtek ALC897

Windows operating systems supported: Windows 11 x64

Motherboard chipset: Intel B860

Motherboard chipset family: Intel

Audio output channels: 7.1 channels

Memory

ECC сompatibility: Non-ECC

Supported memory types: DDR5-SDRAM

Memory slots type: DIMM

Number of memory slots: 4

Memory channels: Dual-channel

Maximum internal memory: 256 GB

Unbuffered memory: Yes

Weight & dimensions

Width: 244 mm

Depth: 244 mm

Network

Bluetooth: No

Ethernet LAN: Yes

LAN controller: Dragon RTL8125BG

Ethernet interface type: 2.5 Gigabit Ethernet

Ethernet LAN data rates: 10,100,1000,2500 Mbit/s

Wi-Fi: No

Internal I/O

RGB LED pin header: Yes

12V power connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

TPM connector: Yes

Number of SATA III connectors: 4

Number of chassis fan connectors: 3

ATX Power connector (24-pin): Yes

Number of CPU fan connectors: 2

Number of RGB LED pin headers: 1

CPU fan connector: Yes

Number of water pump connectors: 1

USB 2.0 connectors: 2

BIOS

BIOS type: UEFI AMI

Storage controllers

RAID levels: 5, 10, 0, 1

Supported storage drive types: HDD & SSD

RAID support: Yes

Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III

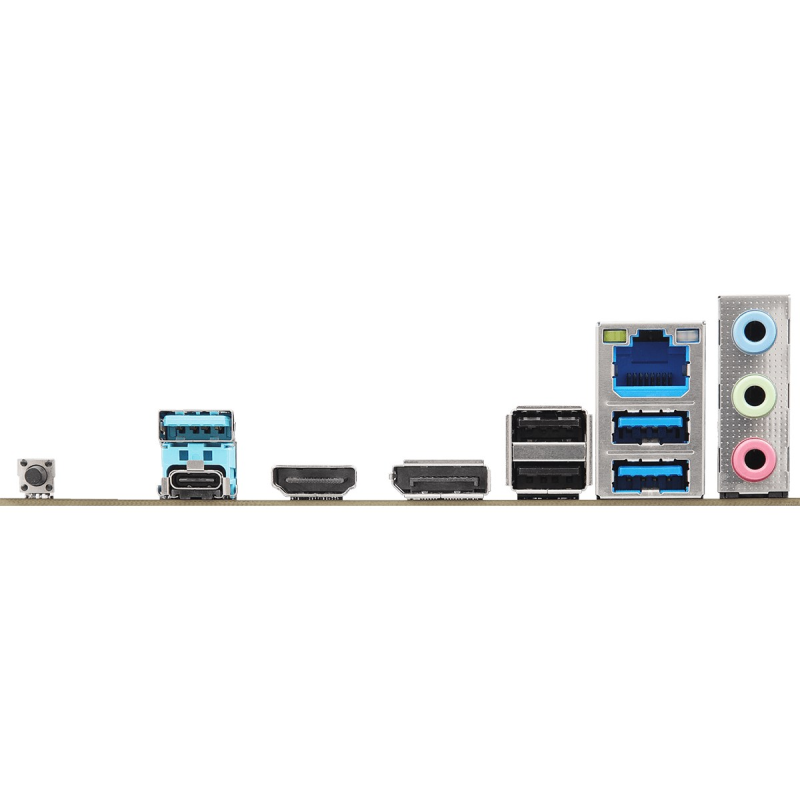

Rear panel I/O ports

Flashback BIOS button: Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

DisplayPorts quantity: 1

USB connector type: USB Type-A, USB Type-C

Number of USB 3.2 Gen 1 ports: 3

HDMI ports quantity: 1

HDMI version: 2.1

USB 2.0 ports quantity: 2

Antennas quantity: 2

Ethernet LAN (RJ-45) ports: 1

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1

Number of SATA III connectors: 4

1st M.2 largest key size: 2280

Number of M.2 (M) slots: 3

PCI Express x16 (Gen 5.x) slots: 1

Safety warning

Warnings: Do not open or modify the motherboard to prevent damage., In case of installation problems, contact a qualified service technician., When disposing of the product, follow local regulations for the recycling of electronics.
