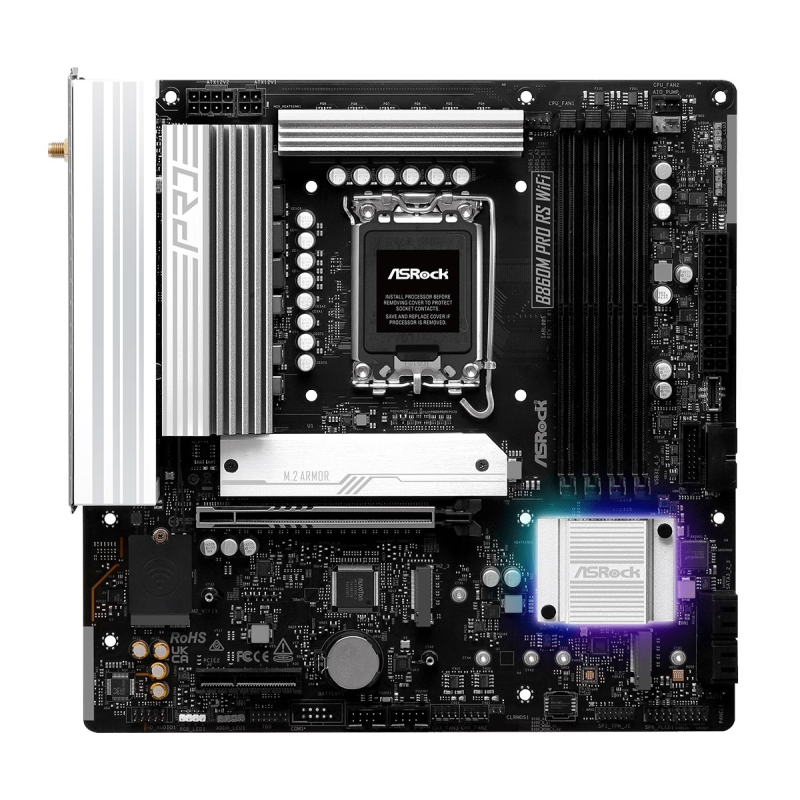

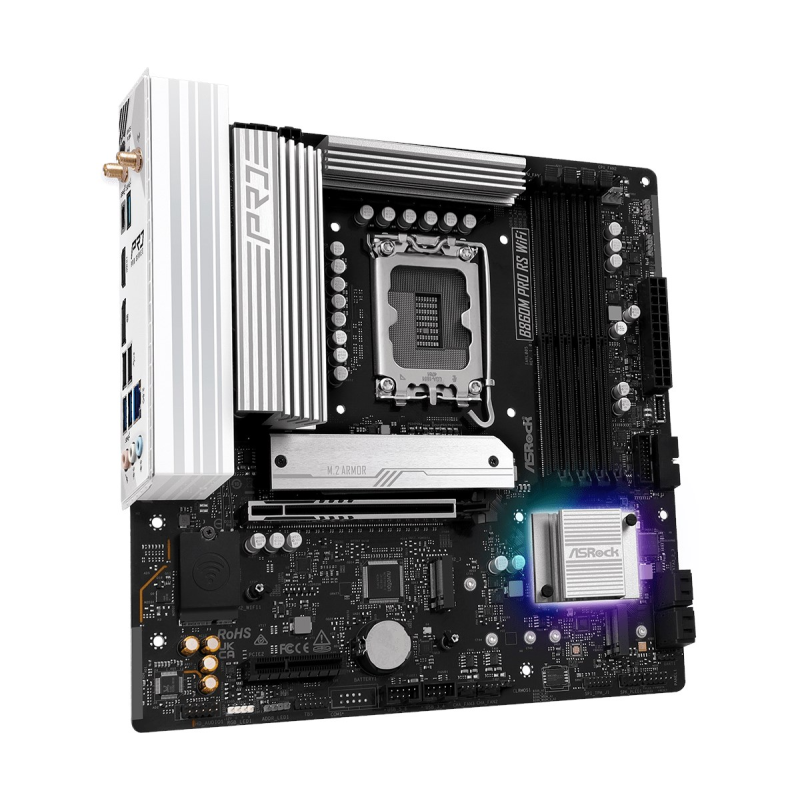

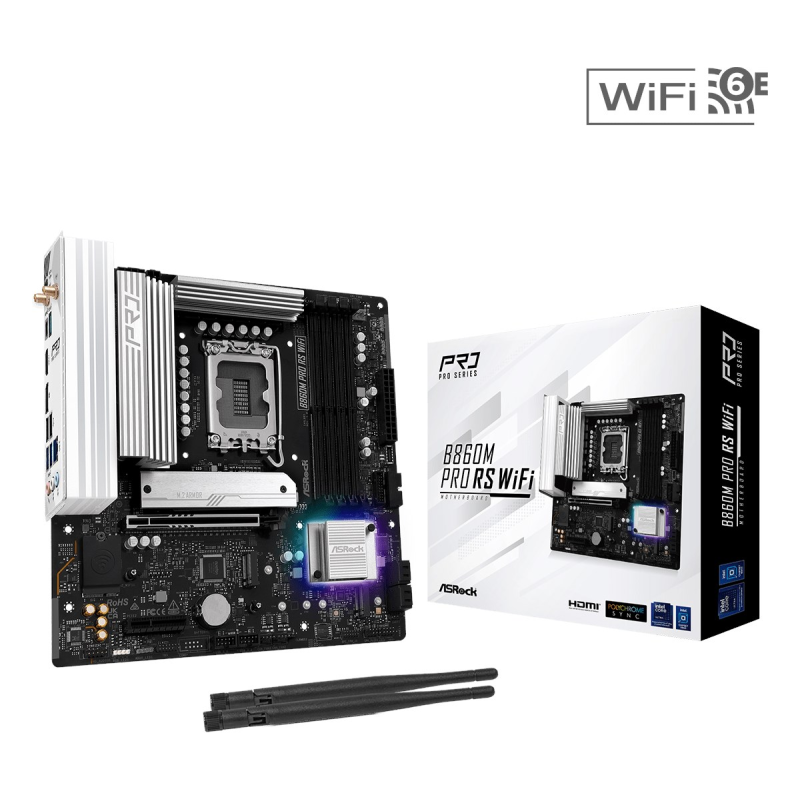

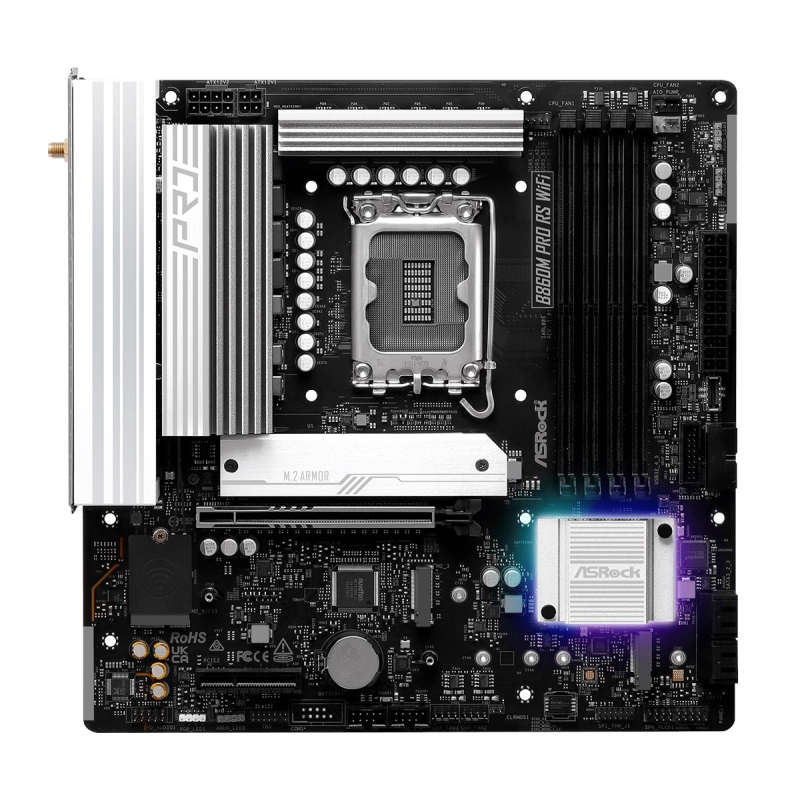

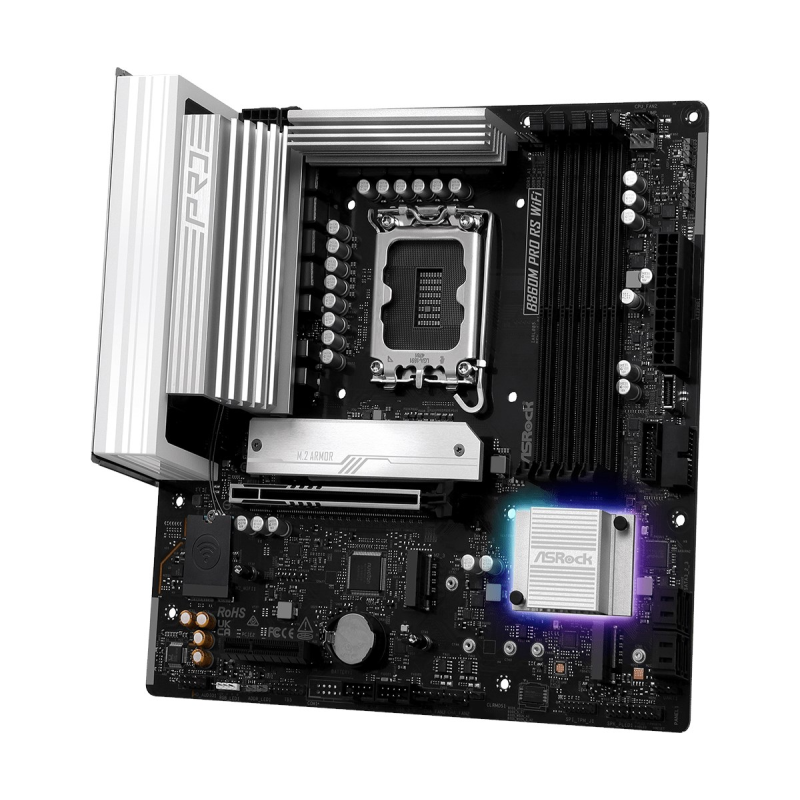

Płyta główna ASRock B860M Pro RS WiFi

Περιγραφή

Processor

Processor manufacturer: Intel

Processor socket: LGA 1851 (Socket V1)

Supported processor sockets: LGA 1851

Features

Audio output channels: 7.1 channels

Motherboard form factor: micro ATX

Audio chip: Realtek ALC897

Motherboard chipset: Intel B860

Windows operating systems supported: Windows 11 x64

Motherboard chipset family: Intel

Memory

Memory channels: Dual-channel

Unbuffered memory: Yes

Maximum internal memory: 256 GB

Supported memory types: DDR5-SDRAM

ECC сompatibility: Non-ECC

Memory slots type: DIMM

Number of memory slots: 4

Weight & dimensions

Depth: 244 mm

Width: 244 mm

Network

Ethernet LAN data rates: 10,100,1000,2500 Mbit/s

LAN controller: Dragon RTL8125BG

Ethernet LAN: Yes

Wi-Fi: Yes

Bluetooth: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Internal I/O

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

CPU fan connector: Yes

TPM connector: Yes

Number of SATA III connectors: 4

USB 2.0 connectors: 2

ATX Power connector (24-pin): Yes

Number of chassis fan connectors: 3

Number of water pump connectors: 1

Number of CPU fan connectors: 2

Number of RGB LED pin headers: 1

RGB LED pin header: Yes

12V power connector: Yes

BIOS

BIOS type: UEFI AMI

Storage controllers

RAID levels: 0, 10, 1, 5

Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III

Supported storage drive types: HDD & SSD

RAID support: Yes

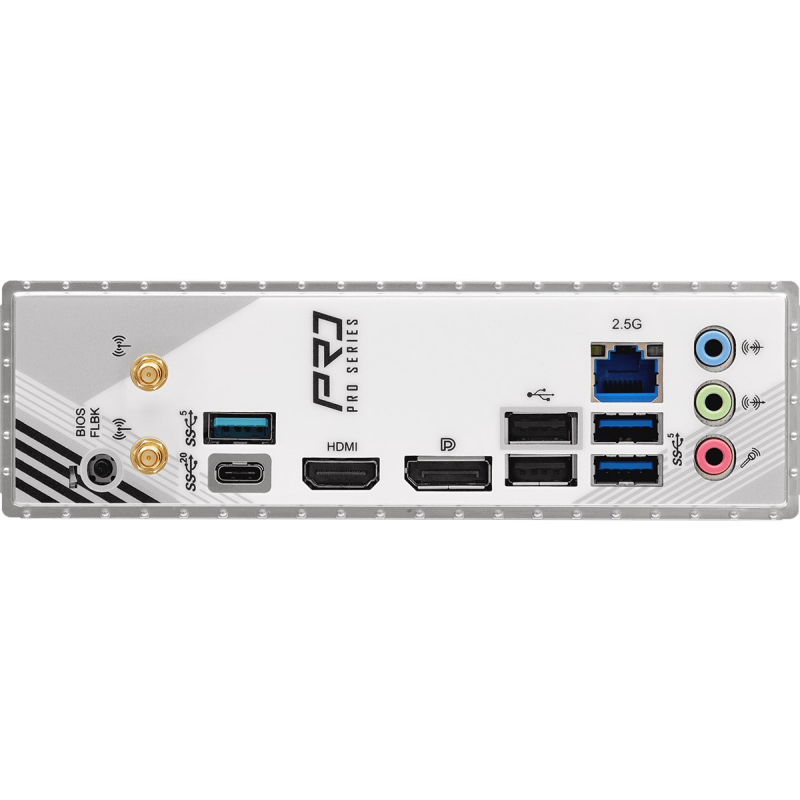

Rear panel I/O ports

USB 2.0 ports quantity: 2

Antennas quantity: 2

USB connector type: USB Type-A, USB Type-C

HDMI ports quantity: 2

HDMI version: 2.1

Ethernet LAN (RJ-45) ports: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

Number of USB 3.2 Gen 1 ports: 3

Flashback BIOS button: Yes

Expansion slots

Number of SATA III connectors: 4

Number of M.2 (M) slots: 3

1st M.2 highest PCI Express generation: 4.0

1st M.2 largest key size: 2280

PCI Express x16 (Gen 5.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

Safety warning

Warnings: In case of installation problems, contact a qualified service technician., Do not open or modify the motherboard to prevent damage., When disposing of the product, follow local regulations for the recycling of electronics.

Τρόποι Αποστολής

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

Σχετικά Προϊόντα

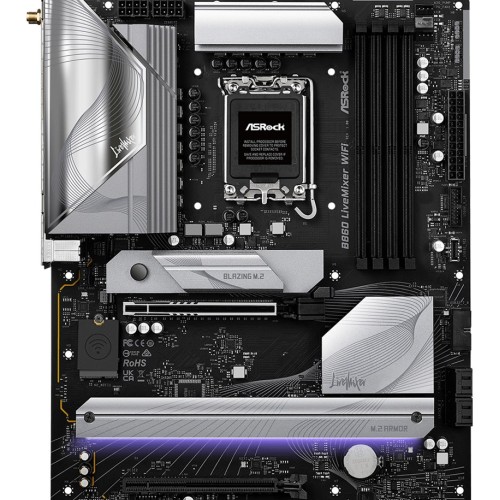

Asrock B860 LiveMixer WiFi Intel B860 LGA 1851 (Socket V1) ATX

ProcessorProcessor manufacturer: IntelCompatible processor series: Intel Core Ultra (Series 2)Processor socket: LGA 1851 (Socket V1)Supported processo..

179,37€

Χωρίς ΦΠΑ:144,65€

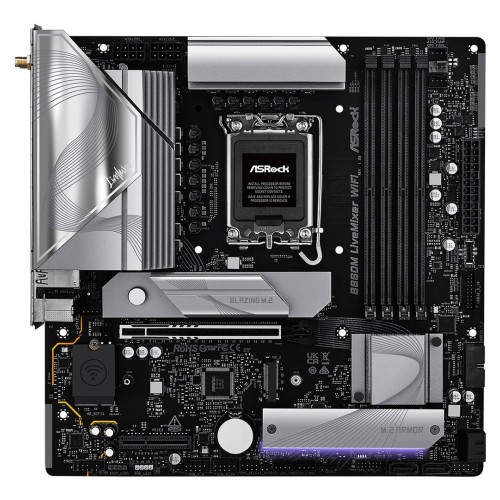

Asrock B860M LiveMixer WiFi Intel B860 LGA 1851 (Socket V1) micro ATX
