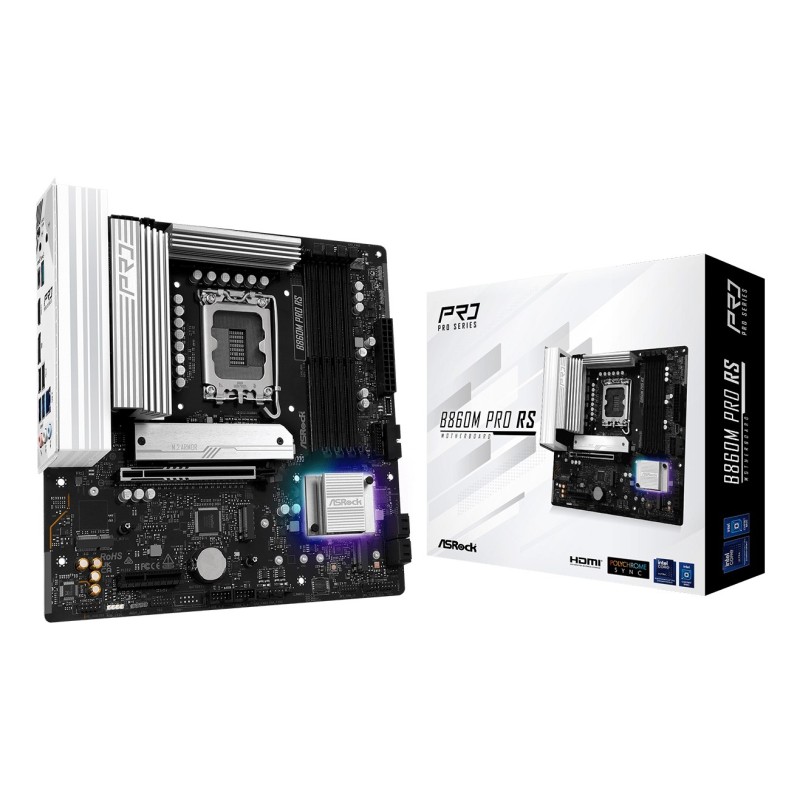

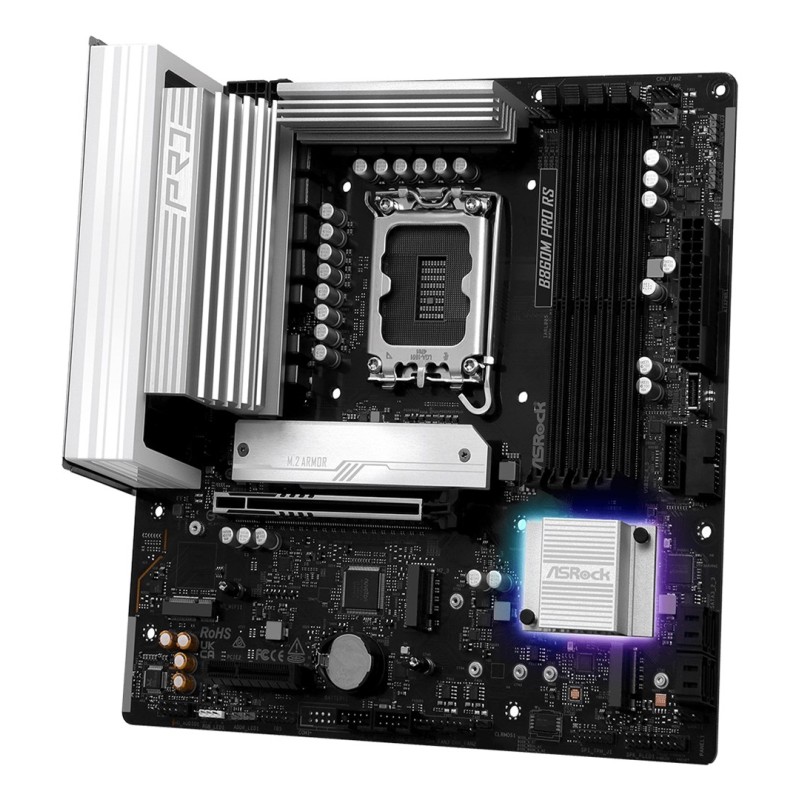

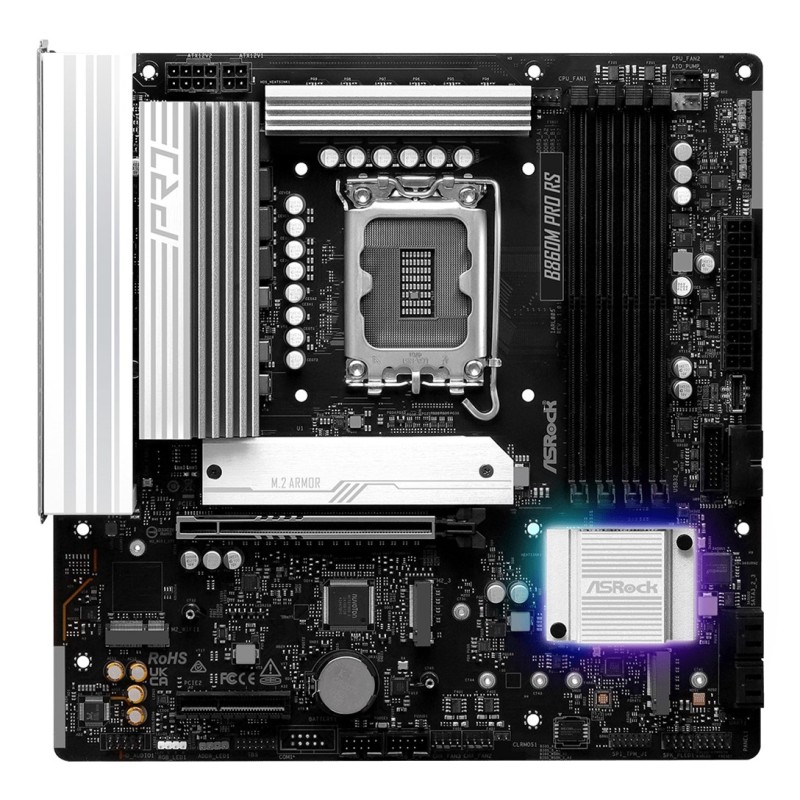

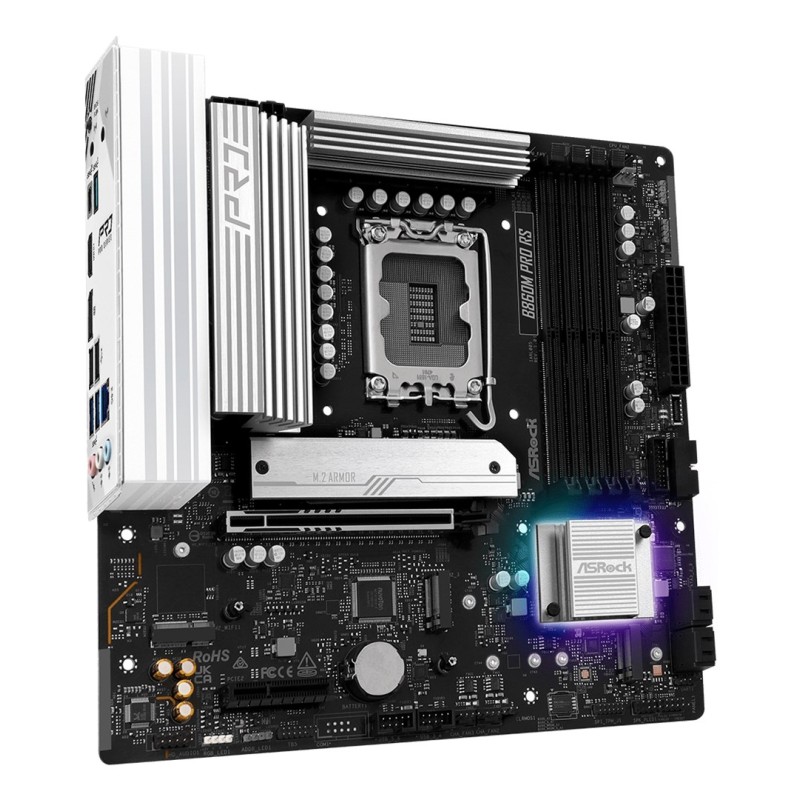

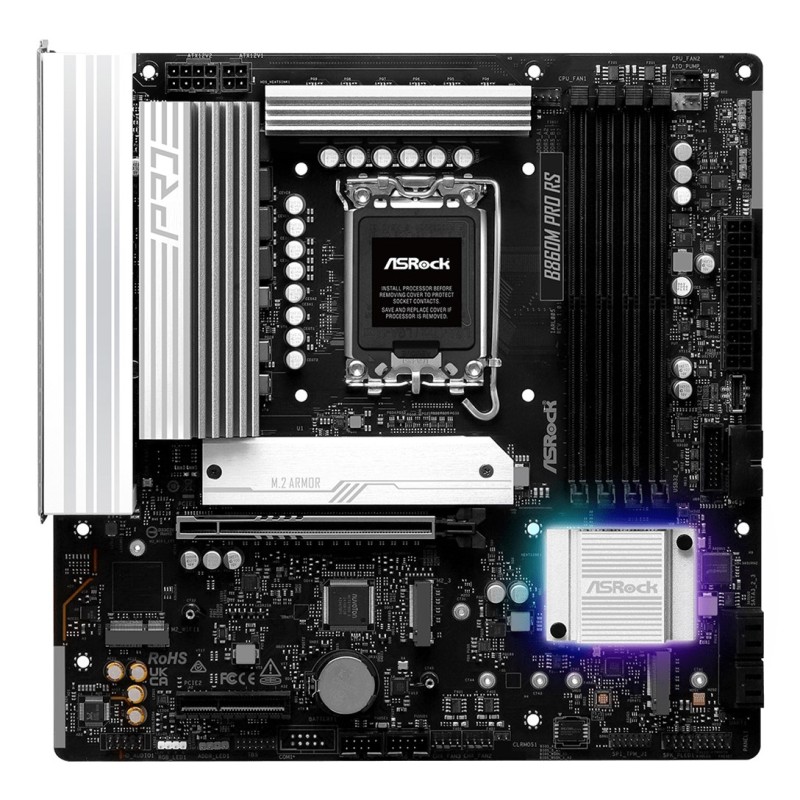

Asrock B860M Pro RS Intel B860 LGA 1851 (Socket V1) micro ATX

Περιγραφή

Processor

Processor socket: LGA 1851 (Socket V1)

Processor manufacturer: Intel

Features

Audio output channels: 7.1 channels

Motherboard chipset: Intel B860

Audio chip: Realtek ALC897

Windows operating systems supported: Windows 11 x64

Motherboard form factor: micro ATX

Motherboard chipset family: Intel

Memory

Supported memory types: DDR5-SDRAM

Memory slots type: DIMM

Number of memory slots: 4

Memory channels: Dual-channel

Unbuffered memory: Yes

Maximum internal memory: 256 GB

Weight & dimensions

Width: 244 mm

Depth: 244 mm

Network

Ethernet LAN: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Wi-Fi: No

LAN controller: Dragon RTL8125BG

Internal I/O

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

RGB LED pin header: Yes

USB 2.0 connectors: 2

EPS power connector (8-pin): Yes

Number of SATA III connectors: 4

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Number of EPS power connectors (8-pin): 1

TPM connector: Yes

ATX Power connector (24-pin): Yes

Number of CPU fan connectors: 2

Number of chassis fan connectors: 3

Front panel audio connector: Yes

Number of RGB LED pin headers: 4

CPU fan connector: Yes

BIOS

BIOS type: EFI AMI

Packaging content

Cables included: SATA

Storage controllers

Supported storage drive interfaces: M.2, SATA III

RAID levels: 10, 1, 5, 0

Number of storage drives supported: 7

RAID support: Yes

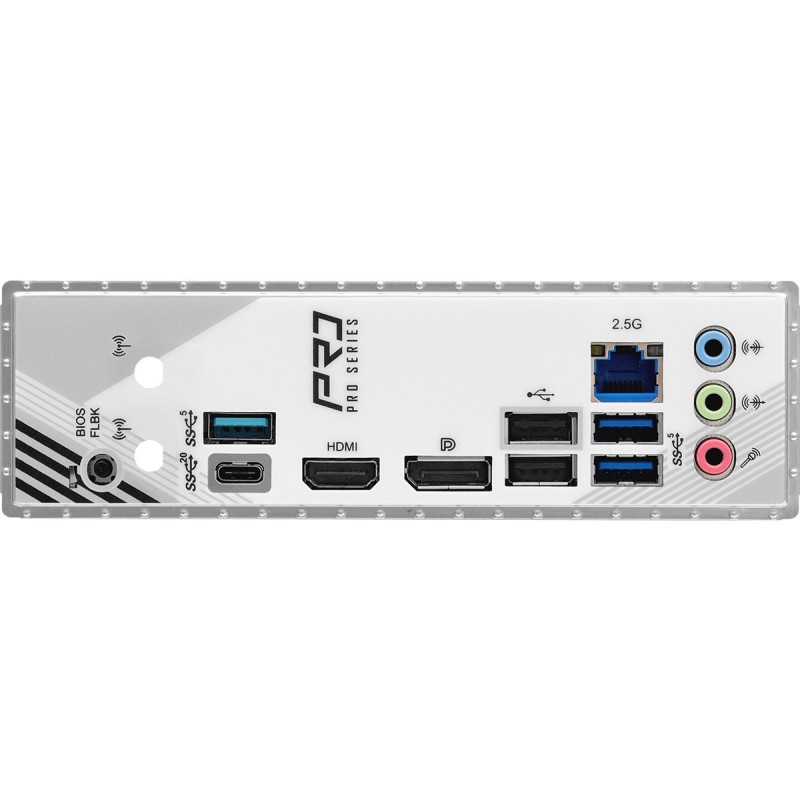

Rear panel I/O ports

USB 3.2 Gen 2x2 Type-C ports quantity: 1

Line-in: Yes

Microphone in: Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

DisplayPorts quantity: 1

DisplayPort version: 1.4

Ethernet LAN (RJ-45) ports: 1

USB 2.0 ports quantity: 2

HDMI ports quantity: 2

Expansion slots

PCI Express x4 (Gen 4.x) slots: 1

Number of M.2 (M) slots: 1

PCI Express x16 (Gen 5.x) slots: 1

Safety warning

Warnings: Do not open or modify the motherboard to prevent damage., When disposing of the product, follow local regulations for the recycling of electronics., In case of installation problems, contact a qualified service technician.
