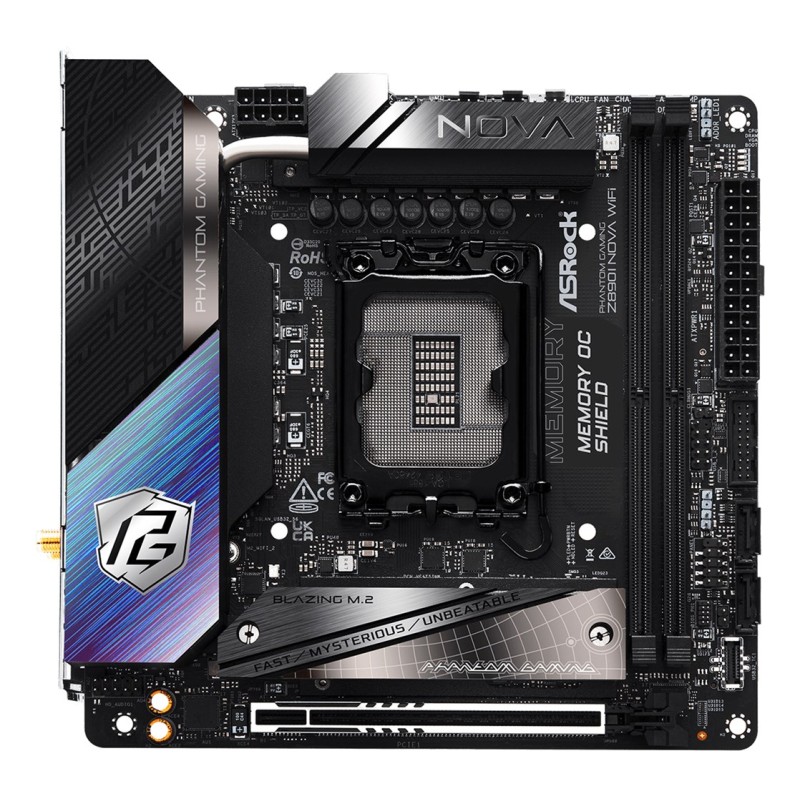

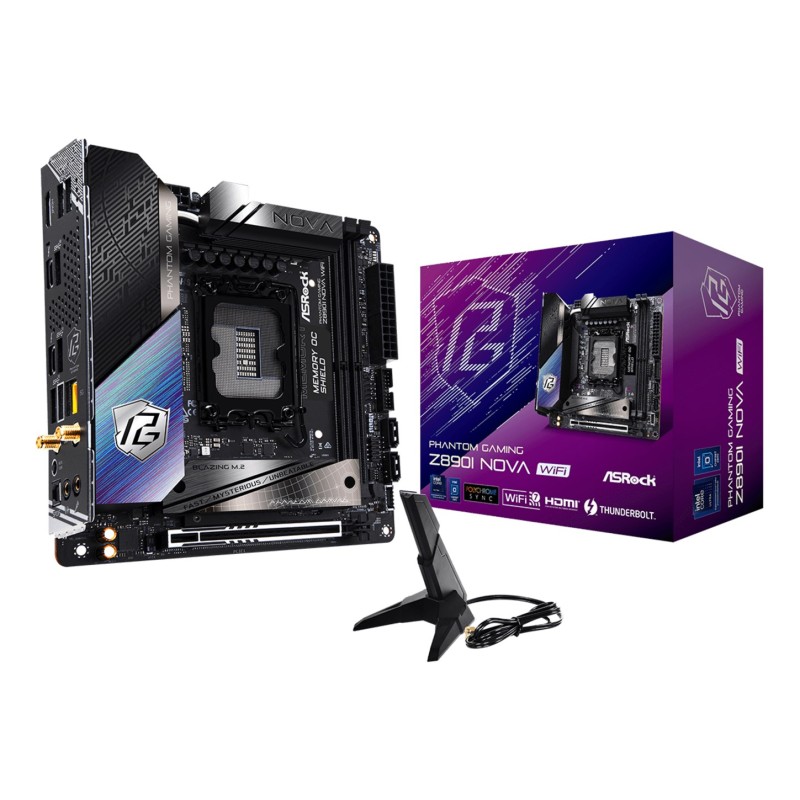

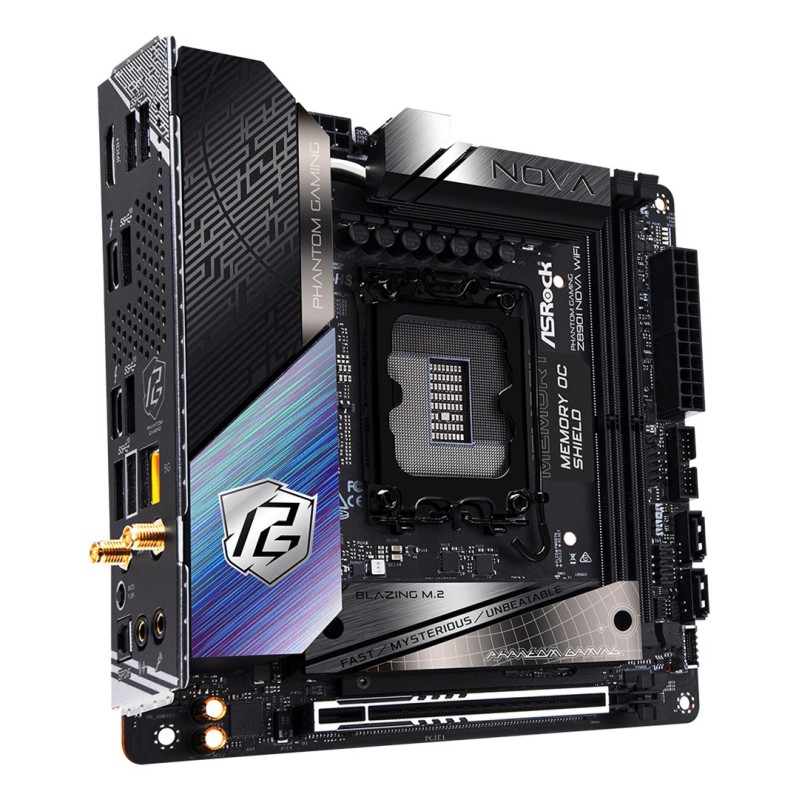

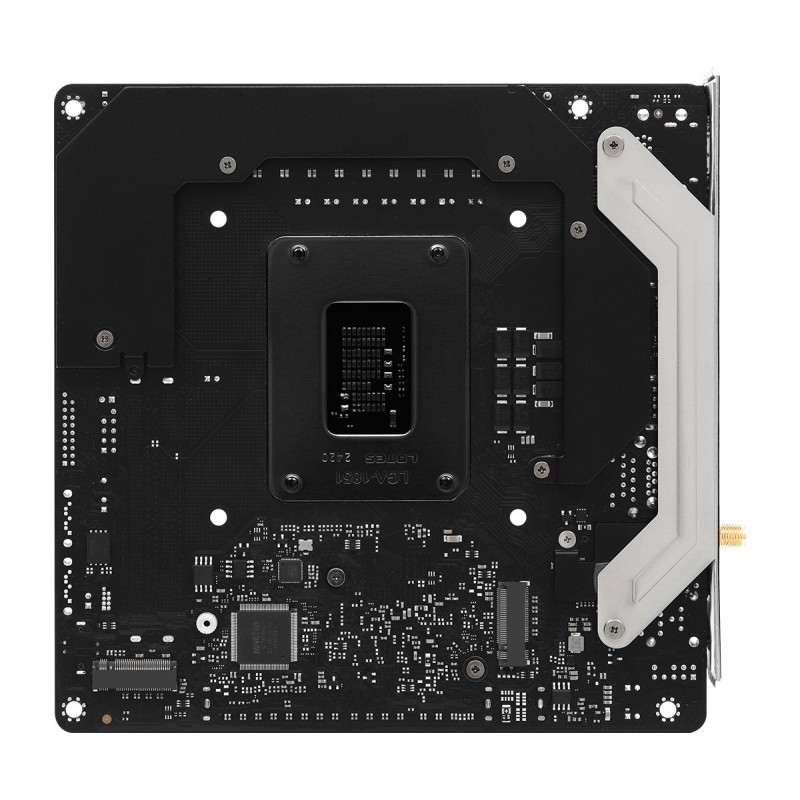

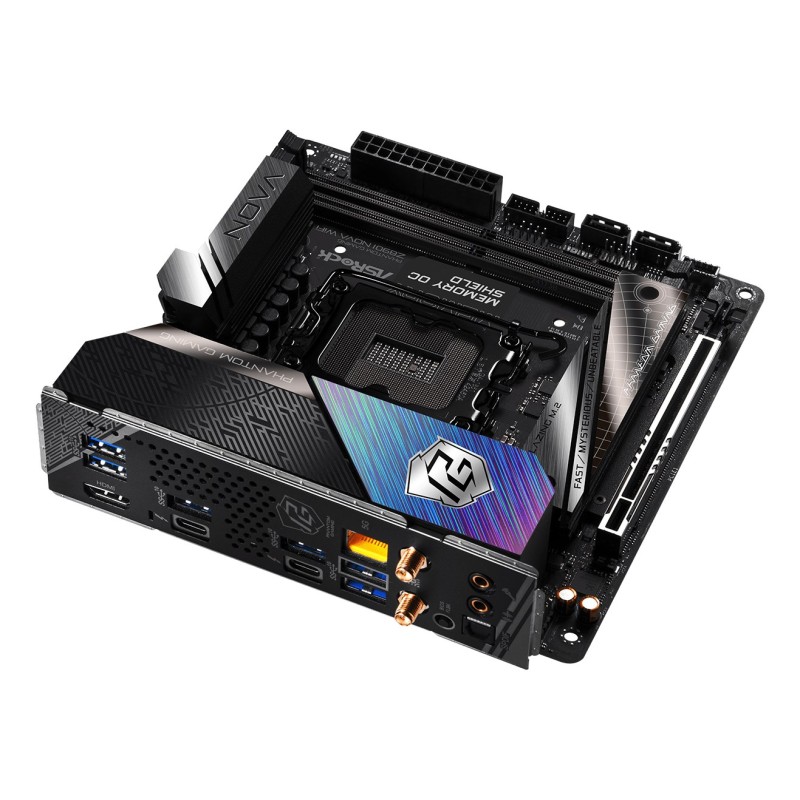

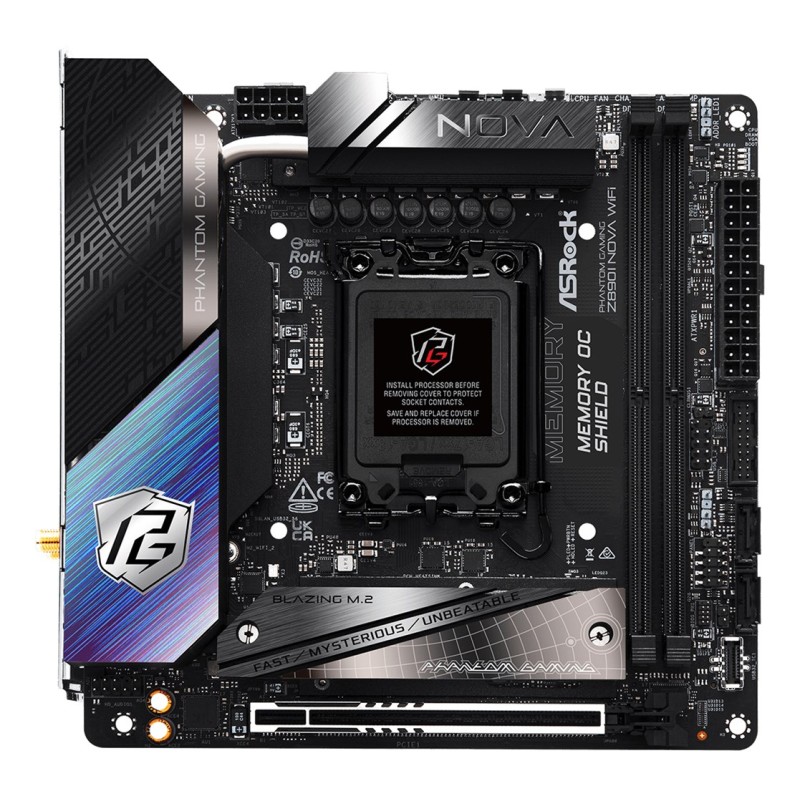

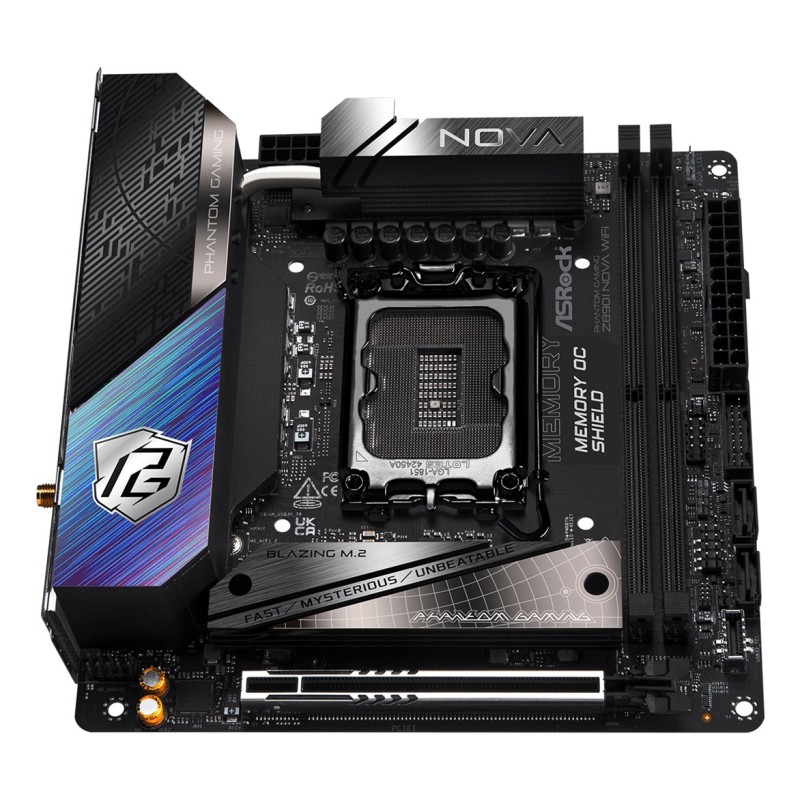

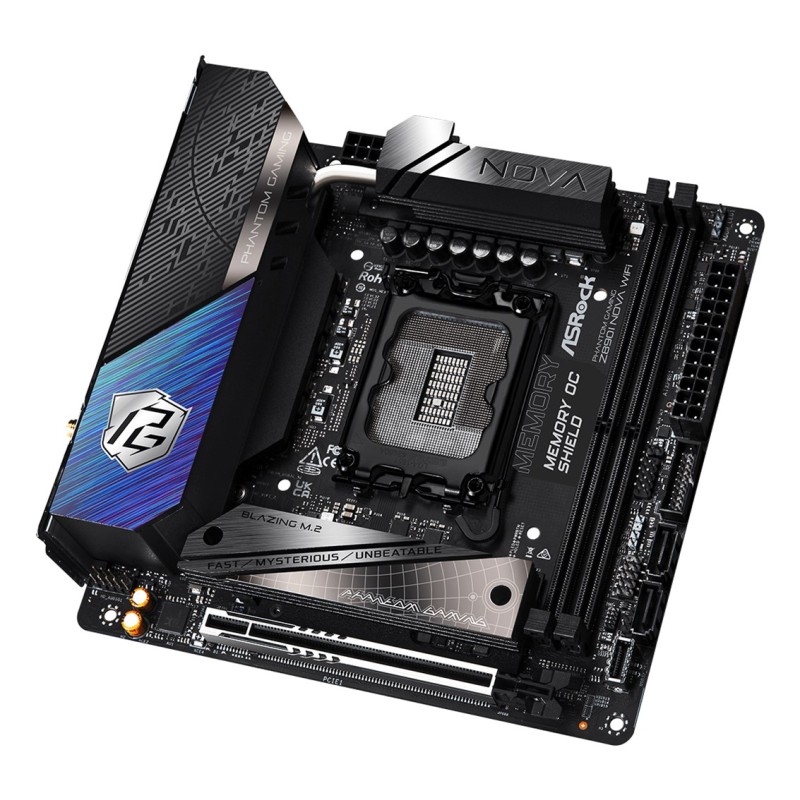

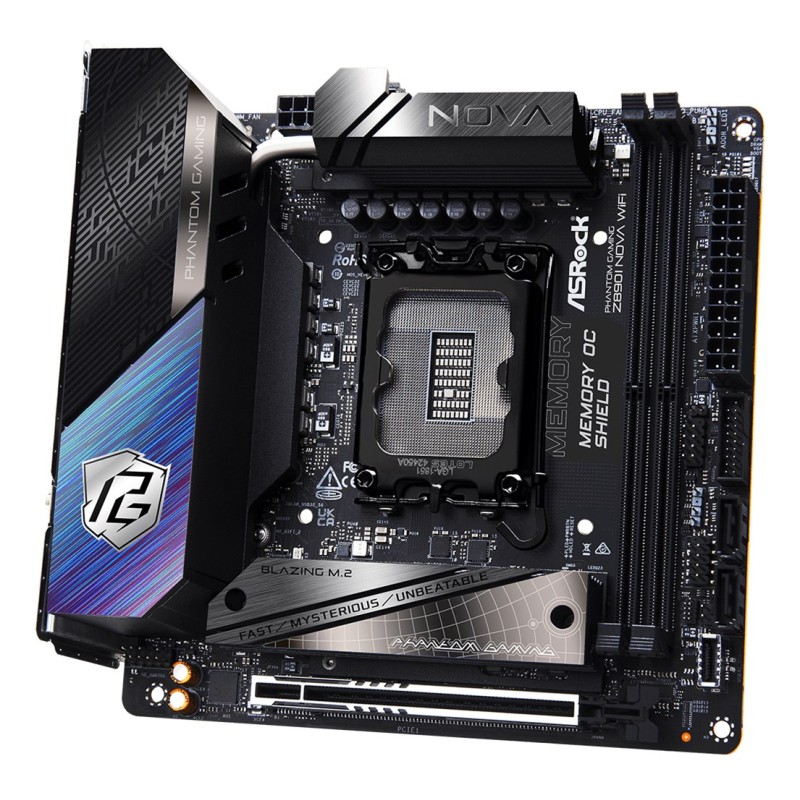

Asrock Phantom Gaming Z890I Nova WiFi Intel Z890 LGA 1851 (Socket V1) mini ITX

Περιγραφή

Processor

Supported processor sockets: LGA 1851

Compatible processor series: Intel Core Ultra (Series 2)

Processor manufacturer: Intel

Processor socket: LGA 1851 (Socket V1)

Graphics

HDCP: Yes

Maximum resolution: 7680 x 4320 pixels

Parallel processing technology support: Not supported

Features

Motherboard chipset family: Intel

Audio output channels: 7.1 channels

Motherboard form factor: mini ITX

Motherboard chipset: Intel Z890

Product colour: Black

Audio chip: Realtek ALC4082

Windows operating systems supported: Windows 11 x64

Memory

Maximum internal memory: 128 GB

Unbuffered memory: Yes

ECC сompatibility: Non-ECC

Memory channels: Dual-channel

Supported memory types: DDR5-SDRAM

Number of memory slots: 2

Memory slots type: DIMM

Weight & dimensions

Depth: 170 mm

Width: 170 mm

Network

Bluetooth: Yes

LAN controller: Realtek RTL8126

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Wi-Fi standards: 802.11b, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11g, Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)

Ethernet LAN: Yes

Bluetooth version: 5.4

Wi-Fi: Yes

Ethernet interface type: 5 Gigabit Ethernet

Internal I/O

Front panel audio connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Number of SATA III connectors: 2

USB 2.0 connectors: 1

ATX Power connector (24-pin): Yes

Number of CPU fan connectors: 1

USB 3.2 Gen 2x2 connectors: 1

Number of water pump connectors: 1

Number of EPS power connectors (8-pin): 1

CPU fan connector: Yes

Number of chassis fan connectors: 1

EPS power connector (8-pin): Yes

12V power connector: Yes

BIOS

BIOS type: UEFI AMI

Packaging content

Cables included: SATA

Screws included: Yes

Antenna included: Yes

Storage controllers

RAID support: Yes

Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III

Supported storage drive types: HDD & SSD

RAID levels: 0, 1, 10, 5

Number of storage drives supported: 5

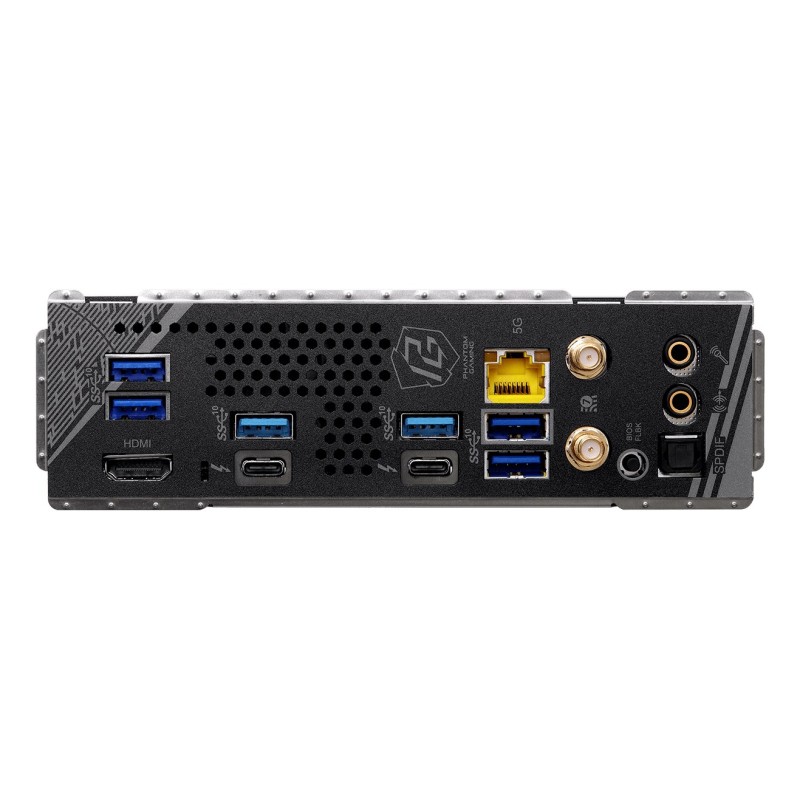

Rear panel I/O ports

USB connector type: USB Type-A, USB Type-C

Ethernet LAN (RJ-45) ports: 1

S/PDIF out port: Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 6

HDMI version: 2.1

HDMI ports quantity: 1

Microphone in: Yes

Headphone outputs: 1

WiFi-AP antenna jack: 2

Thunderbolt ports quantity: 2

Expansion slots

3rd M.2 largest key size: 2280

1st M.2 highest PCI Express generation: 5.0

2nd M.2 highest PCI Express generation: 4.0

2nd M.2 largest key size: 2280

1st M.2 largest key size: 2280

PCI Express x16 (Gen 5.x) slots: 1

3rd M.2 highest PCI Express generation: 4.0

Number of M.2 (M) slots: 3
