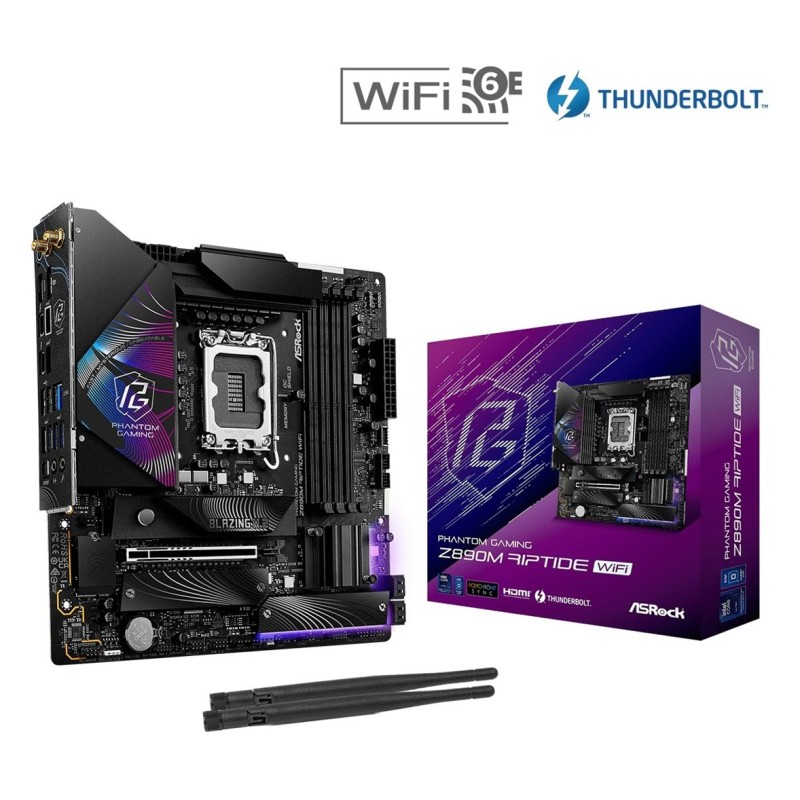

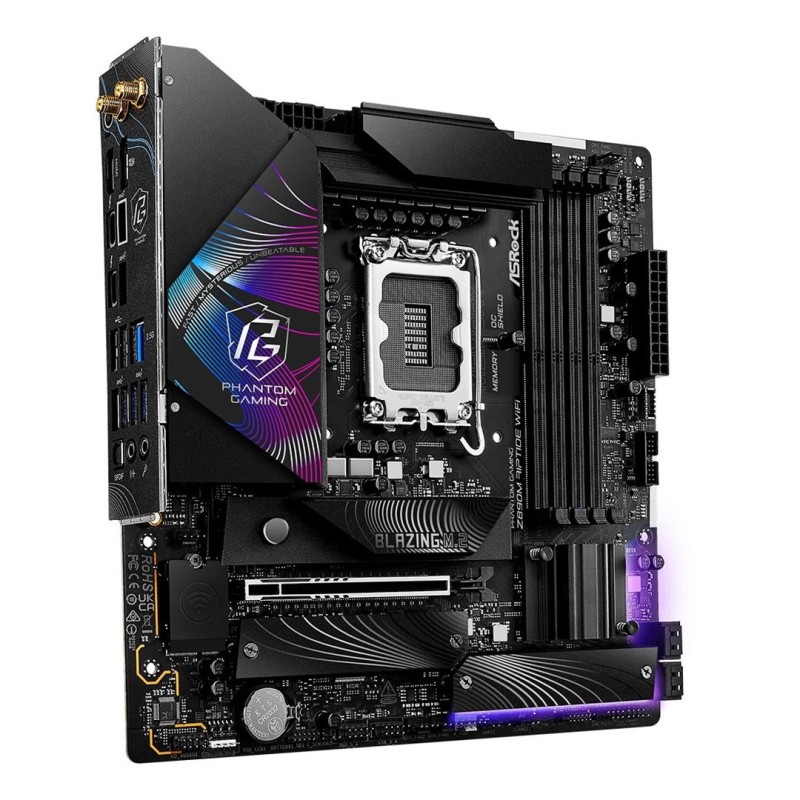

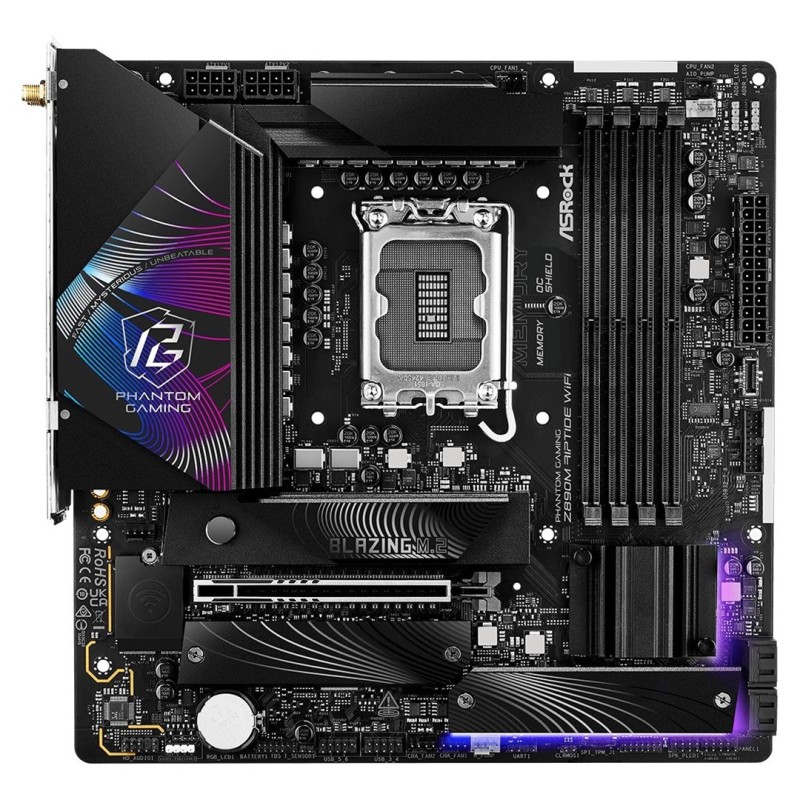

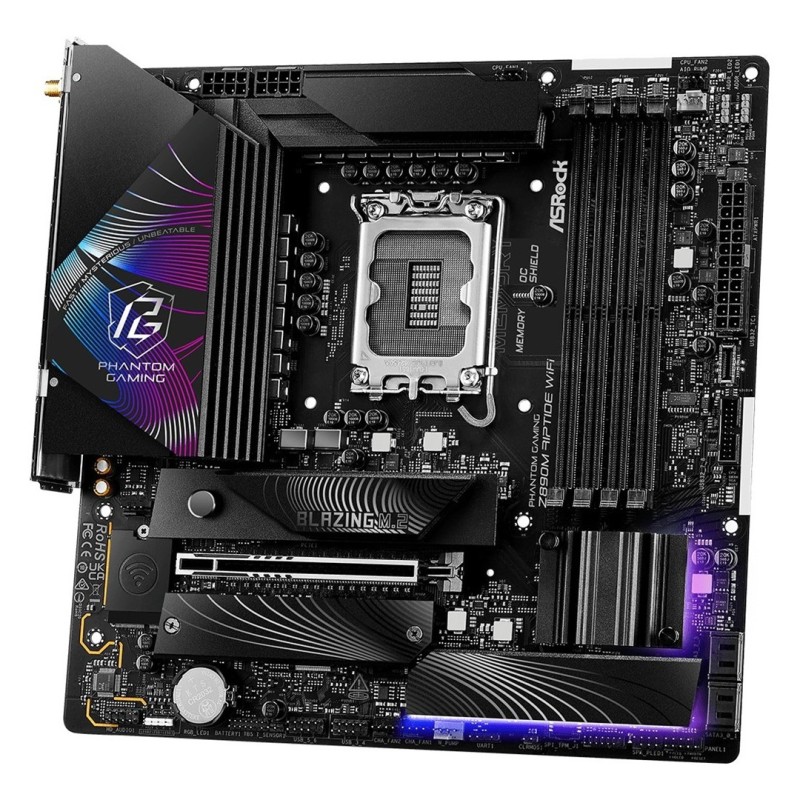

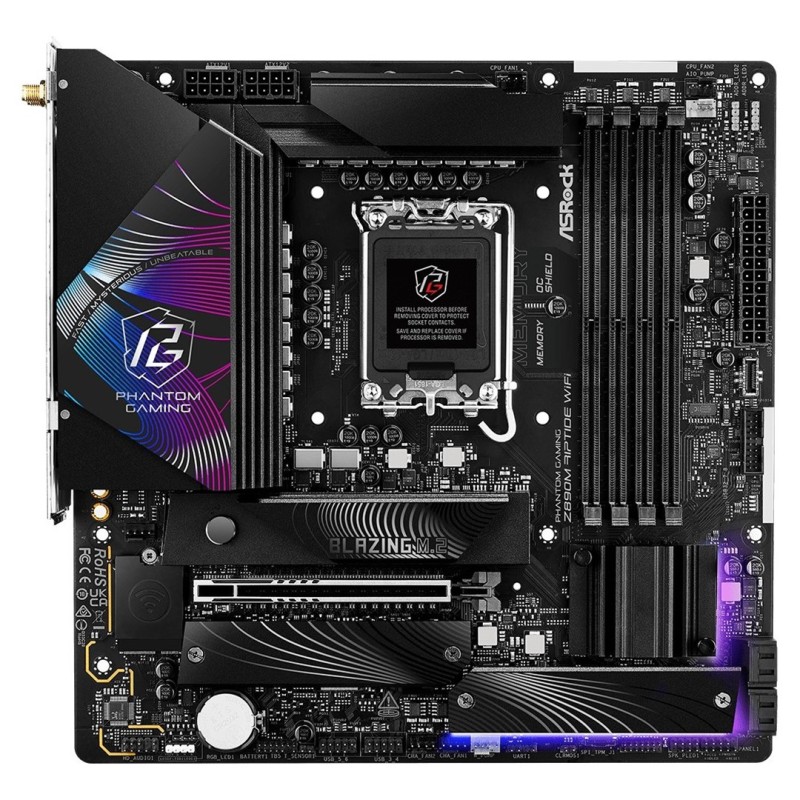

ASRock Z890M Riptide WiFi Motherboard

Περιγραφή

Processor

Compatible processor series: Intel Core Ultra (Series 2)

Intel® Turbo Boost Technology: 3.0

Processor manufacturer: Intel

Maximum number of SMP processors: 1

Processor socket: LGA1851RL-ILM

Features

Motherboard chipset: Intel Z890

Windows operating systems supported: Windows 11 x64

Audio chip: Realtek ALC897

Graphics card: Intel Xe LPG

Motherboard chipset family: Intel

Motherboard form factor: micro ATX

Audio output channels: 7.1 channels

Memory

Unbuffered memory: Yes

Memory channels: Dual-channel

Memory slots type: DIMM

Maximum internal memory: 256 GB

Number of memory slots: 4

Supported memory types: DDR5 DIMM

Intel Extreme Memory Profile (XMP) version: 3.0

Memory speed (max): 9466 MHz

ECC сompatibility: Non-ECC

Weight & dimensions

Depth: 244 mm

Width: 244 mm

Network

LAN controller: Killer E3100G

Wi-Fi standards: 802.11g, 802.11 ax, 802.11b, 802.11ac, 802.11 axe, 802.11n, 802.11a

Wi-Fi: Yes

Ethernet LAN: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Top Wi-Fi standard: Wi-Fi 6E (802.11axe)

Bluetooth: Yes

Bluetooth version: 5.3

Wi-Fi frequency: 2,4 Ghz / 5 GHz / 6 GHz

Wireless statistics: Yes

Internal I/O

Front panel audio connector: Yes

TPM connector: Yes

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

ATX Power connector (24-pin): Yes

CPU fan connector: 2

Pump connector: 1

AIO pump fan connector: 1

8-pin power connector 12 V: 2

Number of USB 3.2 Gen 2x2 (3.1 Gen 2x2) Type-C ports : 1

Termistora Header: Yes

Number of RGB LED pin headers: 1

Number of addressable LED slots: 2

Chassis fan connector (4-pin): 3

BIOS

BIOS type: UEFI AMI

Packaging content

Antennas quantity: 2

Cables included: Thermistor Cable x 1, SATA III 2 pcs., ARGB Splitter Cable x 1

Motherboard: Yes

Wi-Fi antenna: Yes

Storage controllers

Supported storage drive types: HDD & SSD

RAID levels: 10, 0, 1, 5

RAID support: Yes

Supported storage drive interfaces: M.2, SATA III

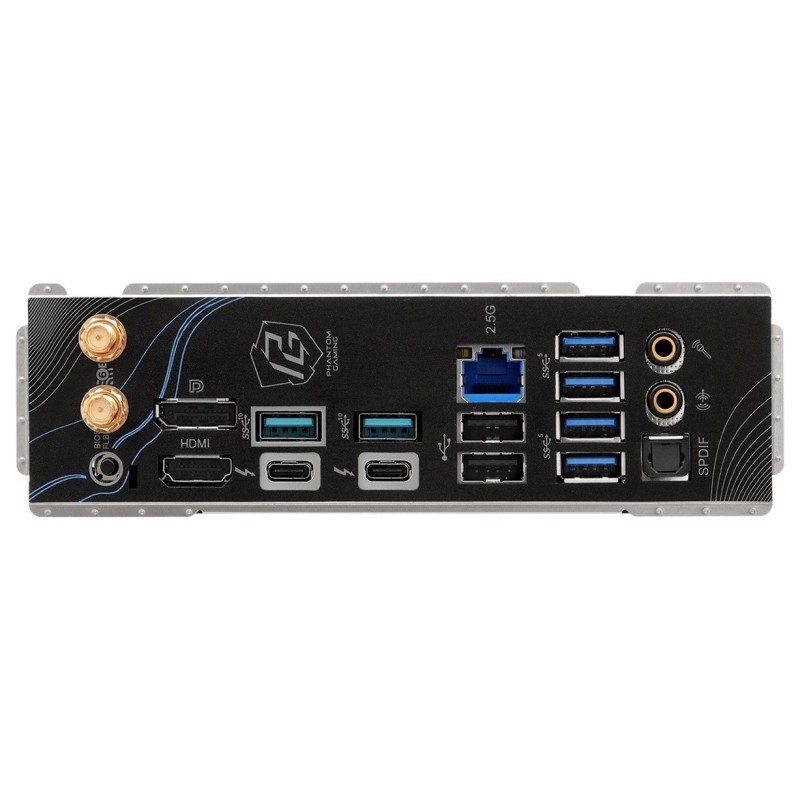

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

DisplayPort version: 1.4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

HDMI ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

Line-out: Yes

USB 2.0 Type-A ports quantity: 2

Number of microphone inputs: 1

SPDIF optical output: Y

DisplayPort out quantity: 1

Number of antenna connectors: 2

Number of Thunderbolt 4 USB-C ports: 2

Expansion slots

Number of M.2 (M) slots: 1

Number of SATA III connectors: 4

PCI Express x16 (Gen 5.x) slots: 1

Certificates

Certificates: CE, FCC, ErP/EuP ready
