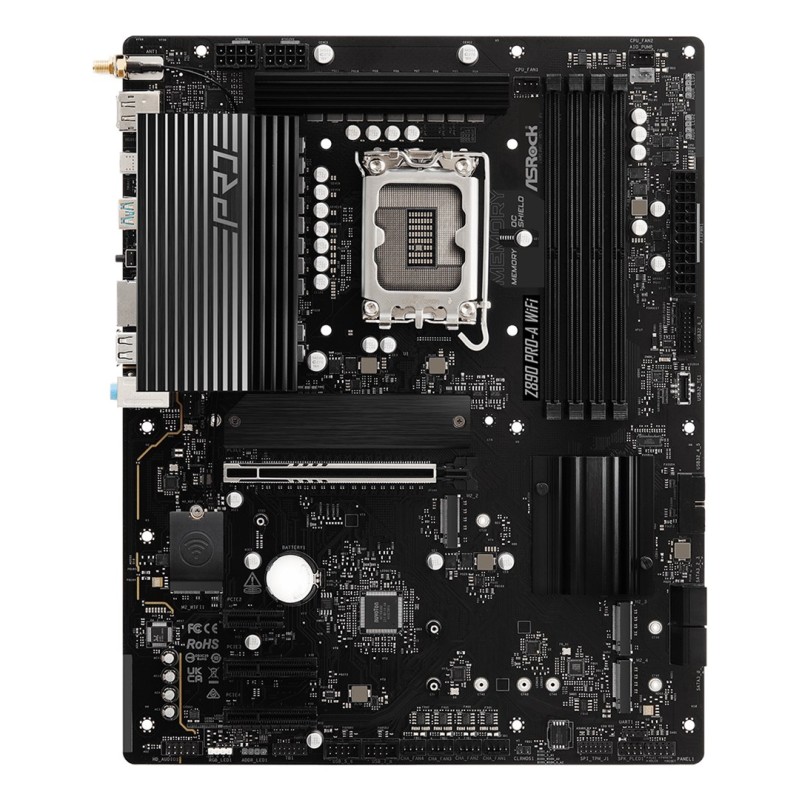

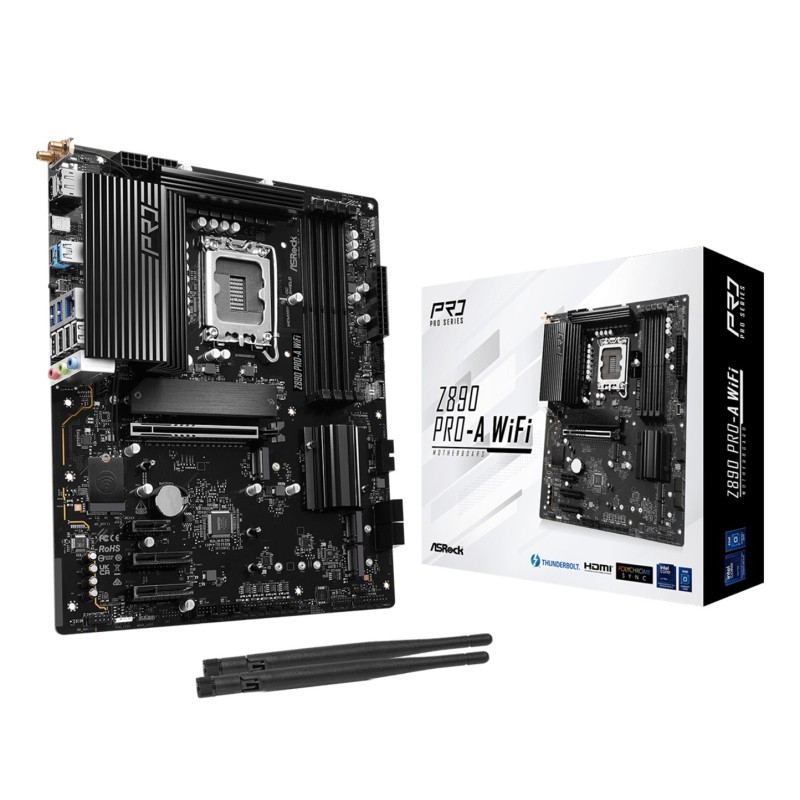

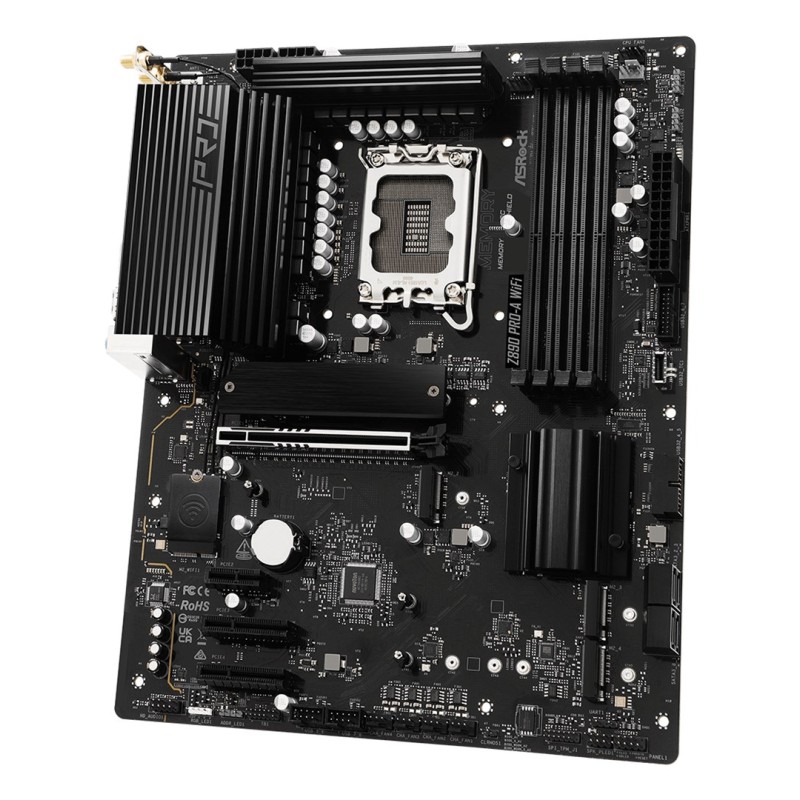

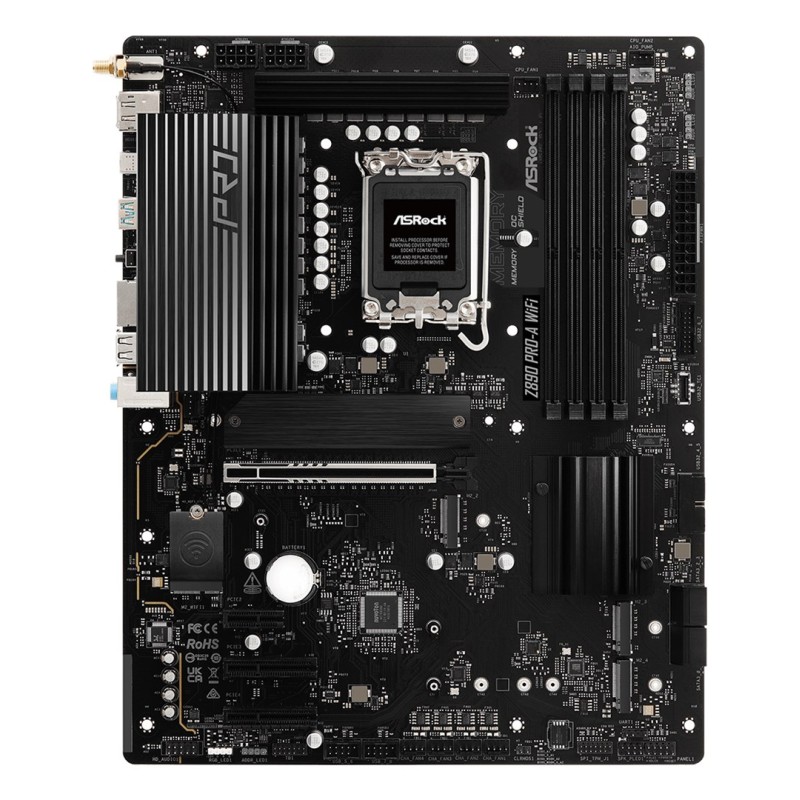

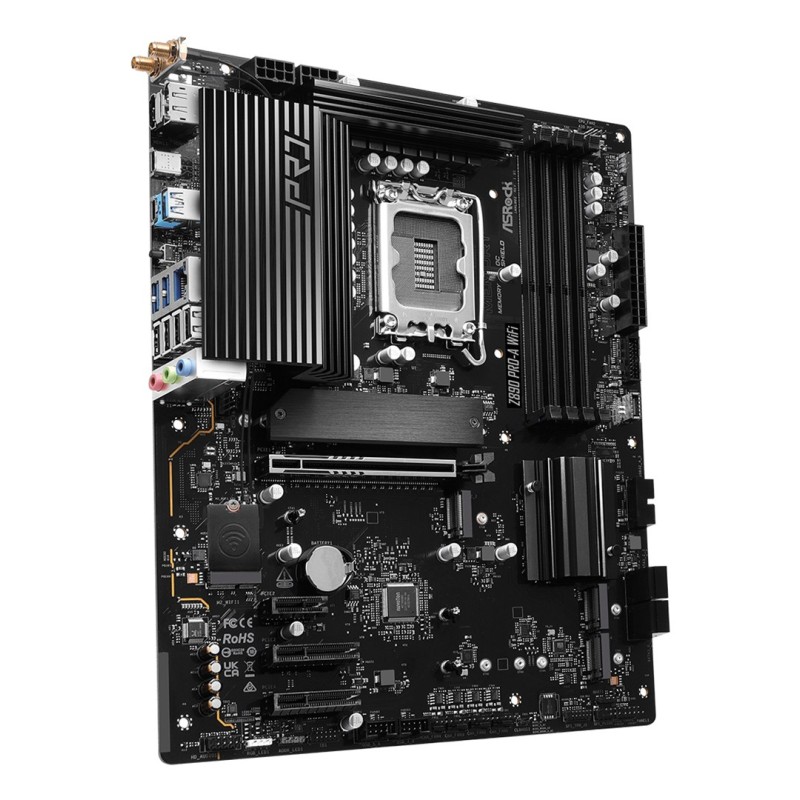

Asrock Z890 Pro-A WiFi Intel Z890 LGA 1851 (Socket V1) ATX

Περιγραφή

Technical details

Compliance certificates: CE, Federal Communications Commission (FCC)

Processor

Processor manufacturer: Intel

Supported processor sockets: LGA 1851

Processor socket: LGA 1851 (Socket V1)

Compatible processor series: Intel Core Ultra (Series 2)

Features

Windows operating systems supported: Windows 11 x64

Audio output channels: 7.1 channels

Audio chip: Realtek ALC897

Motherboard form factor: ATX

Motherboard chipset: Intel Z890

Motherboard chipset family: Intel

Memory

Memory channels: Dual-channel

Maximum internal memory: 256 GB

ECC сompatibility: Non-ECC

Unbuffered memory: Yes

Memory slots type: DIMM

Number of memory slots: 4

Supported memory types: DDR5-SDRAM

Supported memory clock speed (max): 9066 MHz

Weight & dimensions

Width: 305 mm

Depth: 244 mm

Network

Wi-Fi standards: 802.11g, 802.11a, Wi-Fi 6 (802.11ax), 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac)

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Bluetooth: Yes

LAN controller: Dragon RTL8125BG

Ethernet LAN: Yes

Wi-Fi: Yes

Bluetooth version: 5.3

Ethernet interface type: 2.5 Gigabit Ethernet

Internal I/O

USB 2.0 connectors: 2

TPM connector: Yes

Number of CPU fan connectors: 2

CPU fan connector: Yes

ATX Power connector (24-pin): Yes

Number of chassis fan connectors: 5

Number of SATA III connectors: 4

Front panel audio connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

USB 3.2 Gen 2x2 connectors: 1

Audio connector: Yes

RGB LED pin header: Yes

12V power connector: Yes

BIOS

BIOS type: UEFI AMI

Packaging content

Cables included: SATA

Screws included: Yes

Storage controllers

Supported storage drive interfaces: M.2, SATA III

RAID levels: 10, 0, 1, 5

RAID support: Yes

Supported storage drive types: HDD & SSD

Number of storage drives supported: 8

Number of HDDs supported: 4

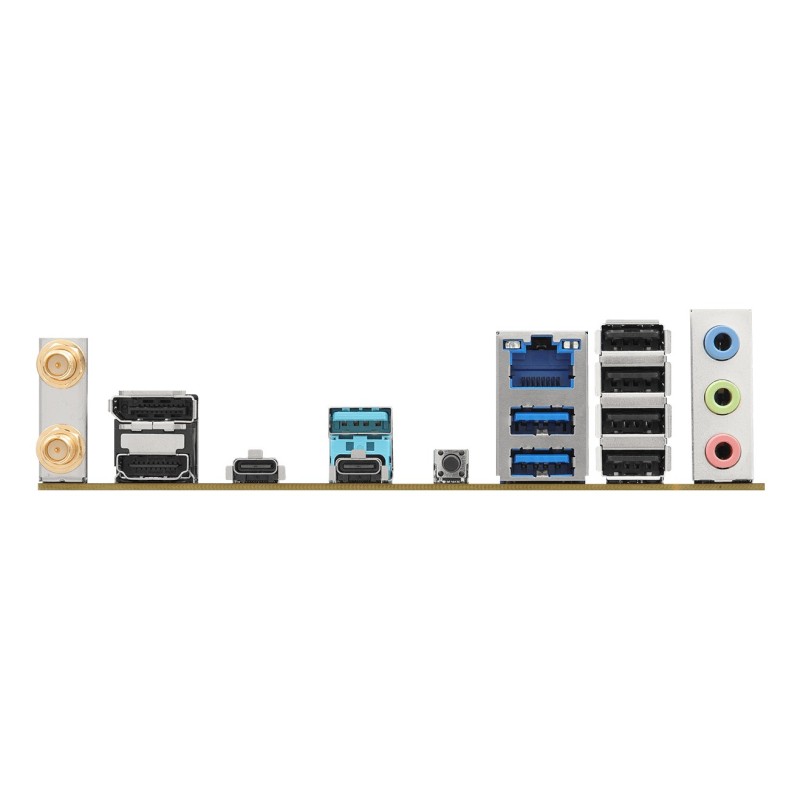

Rear panel I/O ports

DisplayPort version: 1.4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Ethernet LAN (RJ-45) ports: 1

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

DisplayPorts quantity: 1

USB 2.0 ports quantity: 4

Thunderbolt ports quantity: 1

Line-in: Yes

Microphone in: Yes

Headphone outputs: 1

USB 3.2 Gen 2x2 Type-C ports quantity: 1

Expansion slots

PCI Express x16 (Gen 5.x) slots: 1

PCI Express x4 (Gen 4.x) slots: 2

PCI Express x1 (Gen 4.x) slots: 1

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

Σχετικά Προϊόντα

Asrock B860 LiveMixer WiFi Intel B860 LGA 1851 (Socket V1) ATX

ProcessorCompatible processor series: Intel Core Ultra (Series 2)Processor manufacturer: IntelSupported processor sockets: LGA 1851Processor socket: L..

217,86€

Χωρίς ΦΠΑ:175,69€

Asrock B860 Steel Legend WiFi Intel B860 LGA 1851 (Socket V1) ATX

ProcessorSupported processor sockets: LGA 1851Processor manufacturer: IntelCompatible processor series: Intel Core Ultra (Series 2)Processor socket: L..

227,55€

Χωρίς ΦΠΑ:183,51€

Asrock B860M LiveMixer WiFi Intel B860 LGA 1851 (Socket V1) micro ATX

ProcessorProcessor manufacturer: IntelProcessor socket: LGA 1851 (Socket V1)GraphicsOn-board graphics card: YesGraphics card family: IntelFeaturesAudi..

187,25€

Χωρίς ΦΠΑ:151,01€

Asrock B860M Pro RS Intel B860 LGA 1851 (Socket V1) micro ATX

ProcessorProcessor socket: LGA 1851 (Socket V1)Processor manufacturer: IntelFeaturesAudio chip: Realtek ALC897Audio output channels: 7.1 channelsMothe..

158,45€

Χωρίς ΦΠΑ:127,79€

ASRock B860M Pro-A motherboard

ProcessorProcessor manufacturer: IntelSupported processor sockets: LGA 1851Processor socket: LGA 1851 (Socket V1)FeaturesMotherboard form factor: micr..

144,79€

Χωρίς ΦΠΑ:116,77€

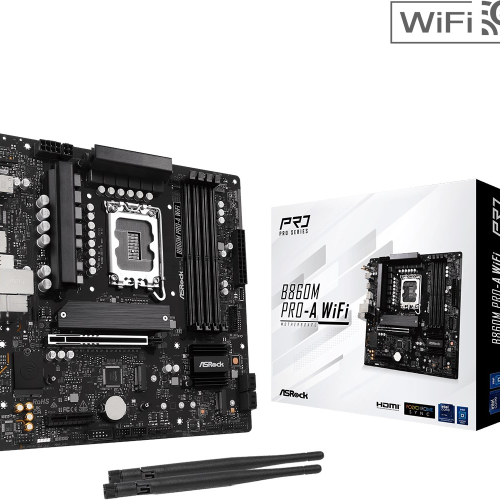

ASRock B860M Pro-A WiFi Motherboard
