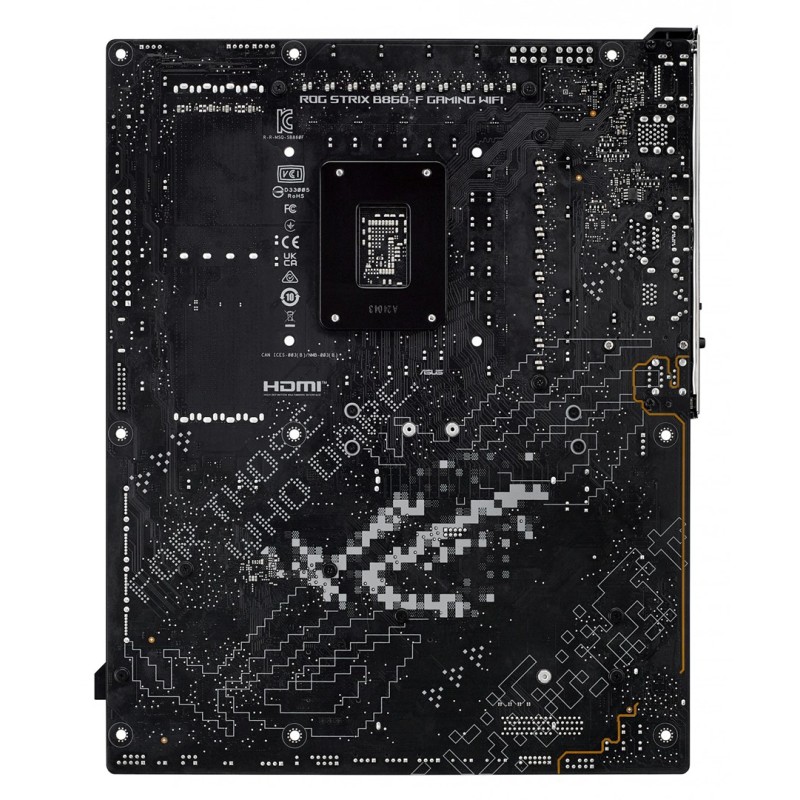

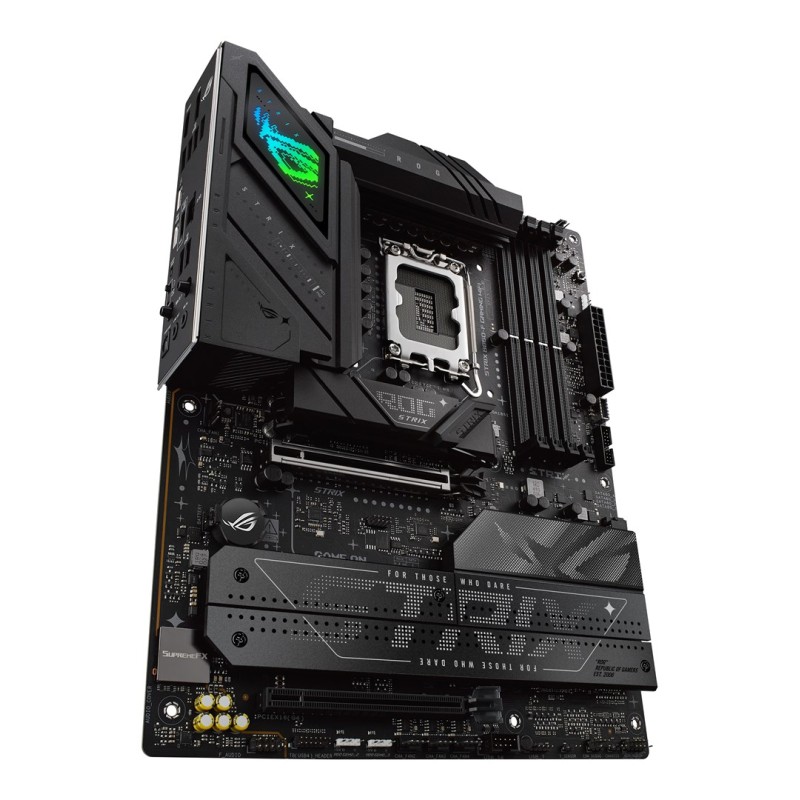

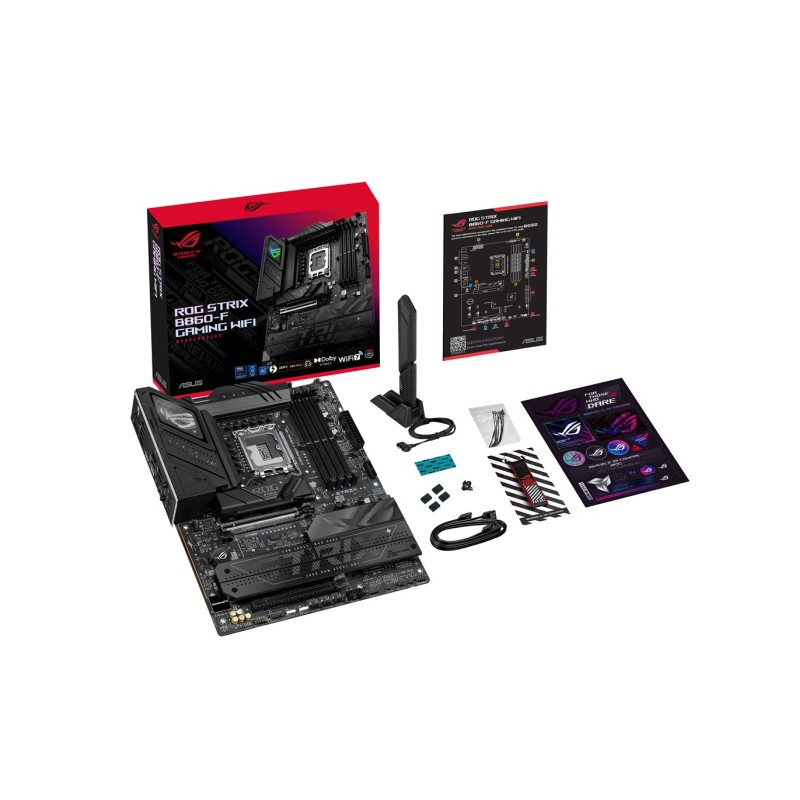

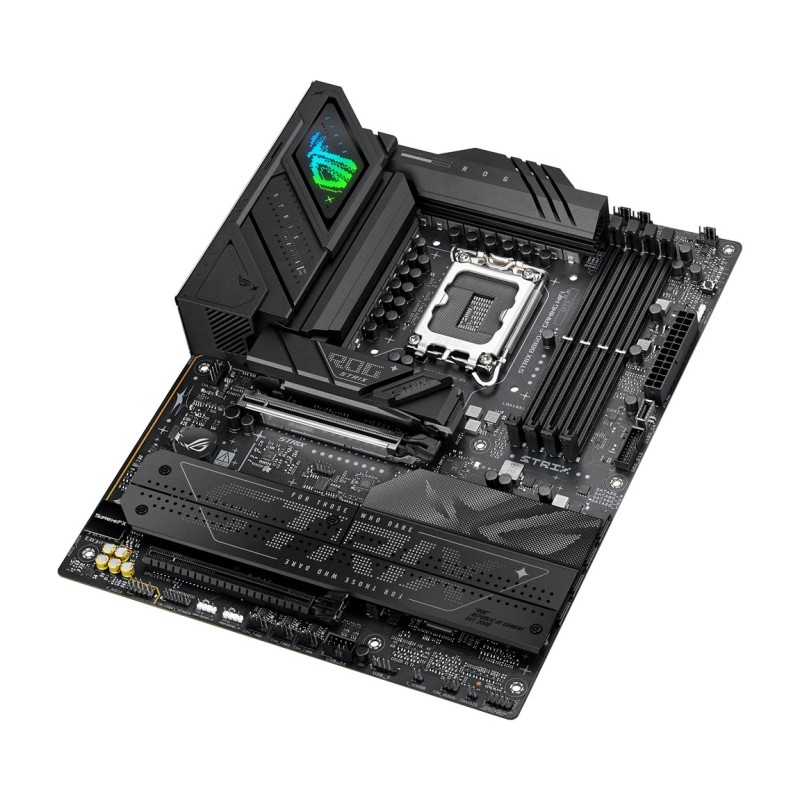

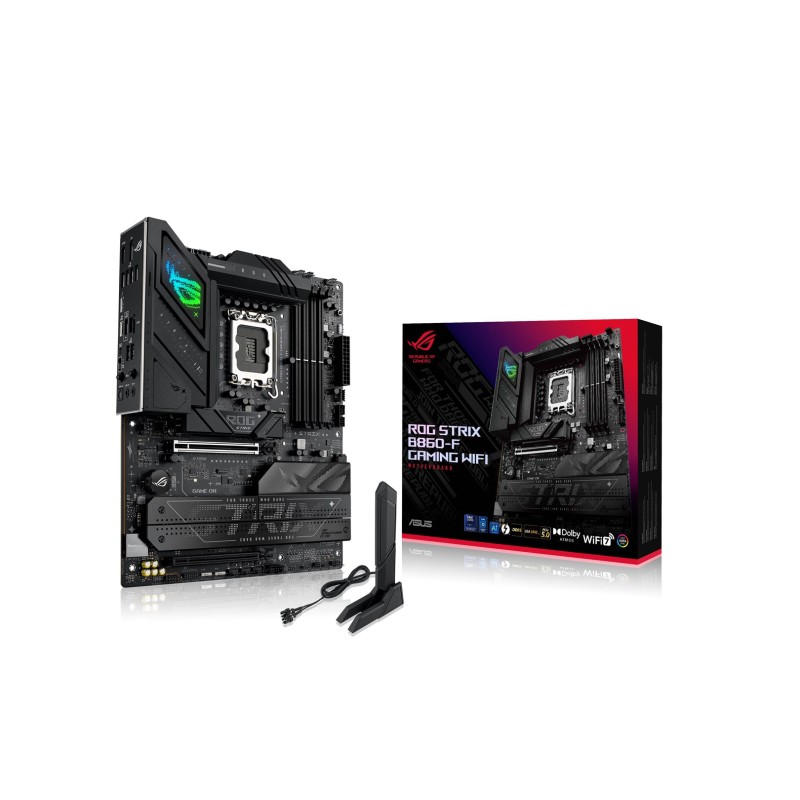

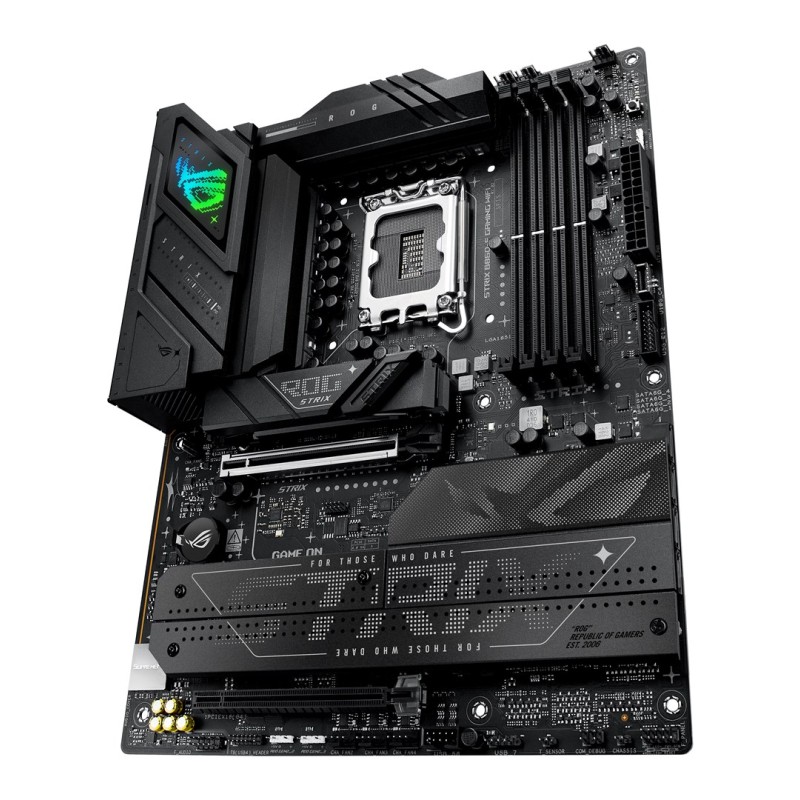

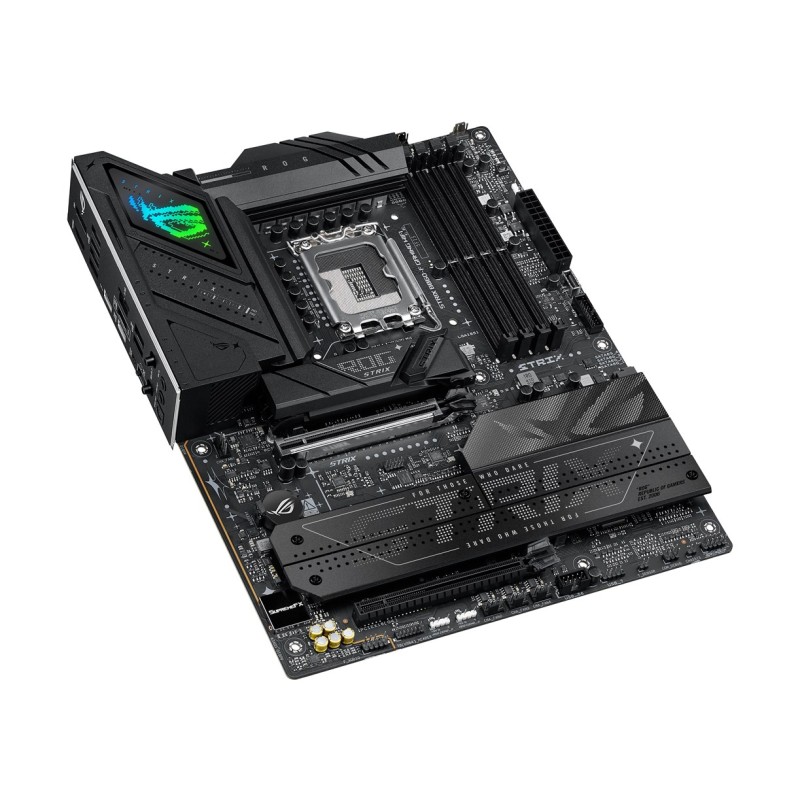

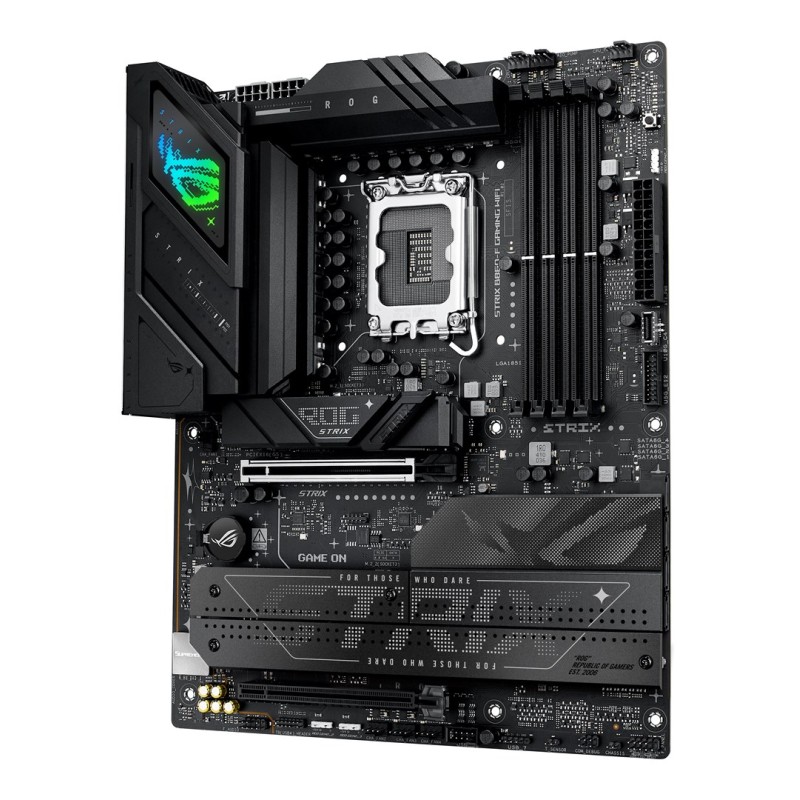

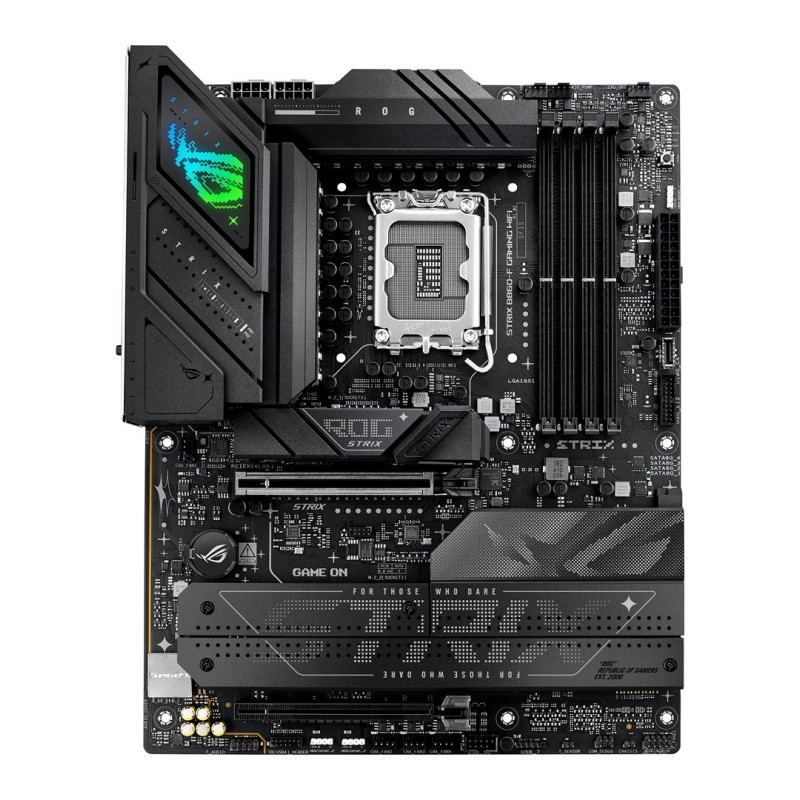

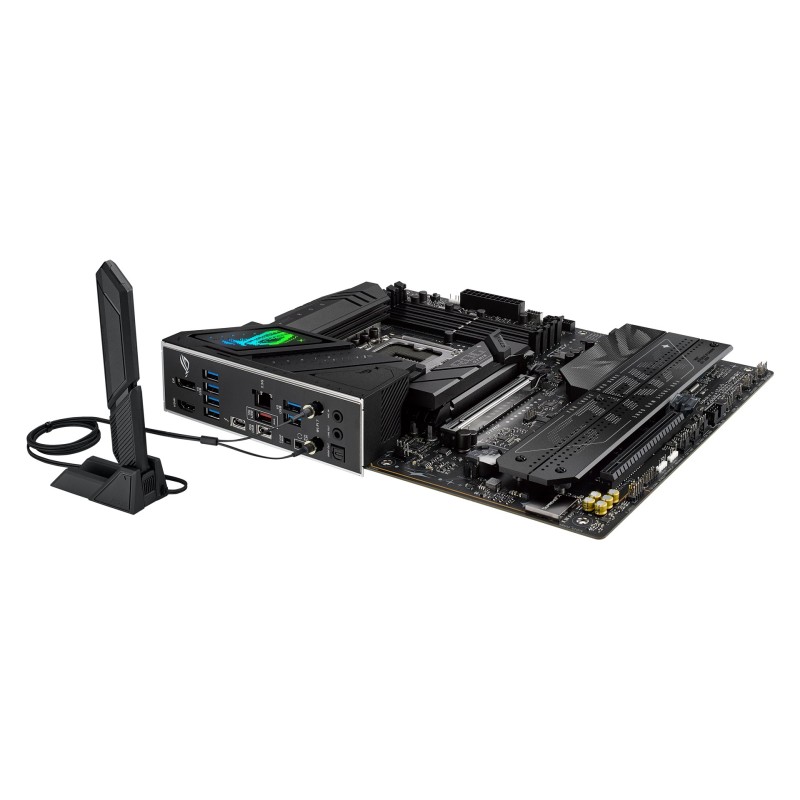

ASUS ROG STRIX B860-F GAMING WIFI Intel B860 LGA 1851 (Socket V1) ATX

Περιγραφή

Processor

Processor socket: LGA 1851 (Socket V1)

Compatible processor series: Intel Core Ultra (Series 2)

Processor manufacturer: Intel

Graphics

Parallel processing technology support: Not supported

Features

Windows operating systems supported: Windows 11

Audio output channels: 7.1 channels

Motherboard chipset: Intel B860

Product colour: Multicolour

Motherboard chipset family: Intel

Audio chip: Realtek ALC4080

Motherboard form factor: ATX

Memory

Memory channels: Dual-channel

Memory slots type: DIMM

Number of memory slots: 4

Unbuffered memory: Yes

Maximum internal memory: 256 GB

Supported memory types: DDR5-SDRAM

ECC сompatibility: Non-ECC

Supported memory clock speed (max): 9066 MHz

Weight & dimensions

Width: 305 mm

Height: 50 mm

Depth: 244 mm

Network

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Ethernet interface type: 2.5 Gigabit Ethernet

Wi-Fi: Yes

Ethernet LAN: Yes

Bluetooth: Yes

Bluetooth version: 5.4

Internal I/O

Chassis intrusion connector: Yes

EPS power connector (8-pin): Yes

Number of chassis fan connectors: 4

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

CPU fan connector: Yes

USB 2.0 connectors: 2

Thunderbolt headers: 1

Number of SATA III connectors: 4

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

ATX Power connector (24-pin): Yes

Front panel audio connector: Yes

12V power connector: Yes

Number of CPU fan connectors: 1

BIOS

Clear CMOS button: Yes

BIOS type: UEFI AMI

Packaging data

Package height: 71 mm

Package width: 350 mm

Package depth: 265 mm

Package weight: 2.29 kg

Storage controllers

RAID levels: 1, 0, 5, 10

Number of HDDs supported: 4

Number of storage drives supported: 8

RAID support: Yes

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

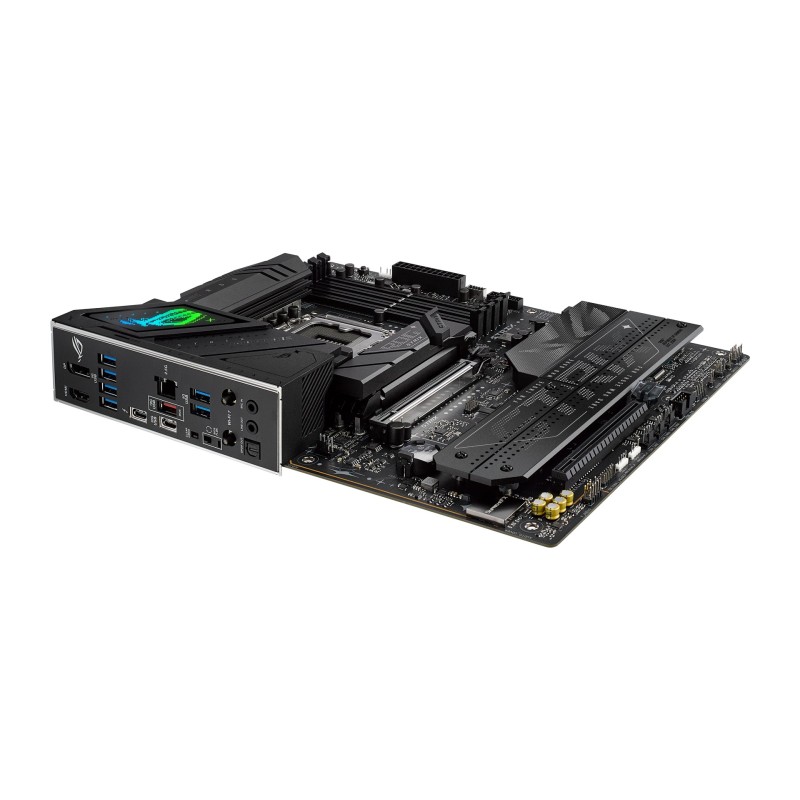

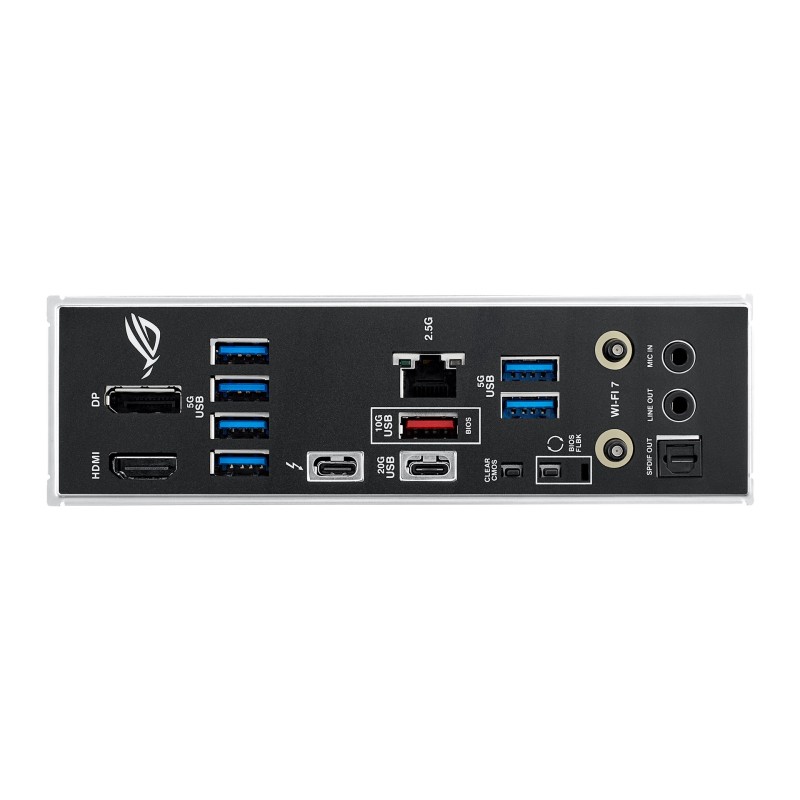

Rear panel I/O ports

HDMI ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

S/PDIF out port: Yes

DisplayPorts quantity: 1

Microphone in: Yes

Ethernet LAN (RJ-45) ports: 1

Thunderbolt ports quantity: 1

USB 3.2 Gen 2x2 Type-C ports quantity: 1

Expansion slots

Number of M.2 (M) slots: 4

PCI Express x16 (Gen 4.x) slots: 1

Other features

Weight: 1.51 kg

Safety warning

Warnings: When disposing of the product, follow local regulations for the recycling of electronics., In case of installation problems, contact a qualified service technician., Do not open or modify the motherboard to prevent damage.
