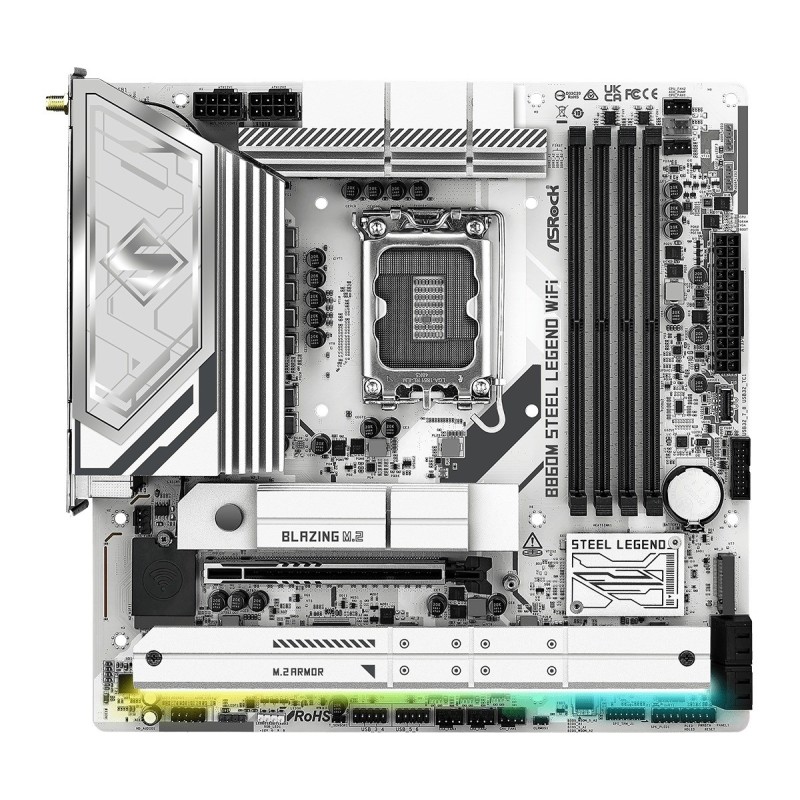

Płyta główna ASRock B860M Steel Legend WiFi

Περιγραφή

Processor

Processor manufacturer: Intel

Compatible processor series: Intel Core Ultra (Series 2)

Processor socket: LGA 1851 (Socket V1)

Supported processor sockets: LGA 1851

Graphics

Maximum resolution: 7680 x 4320 pixels

HDCP: Yes

On-board graphics card family: Intel Iris Xe Graphics

Features

Audio chip: Realtek ALC1220

Product colour: White

Motherboard chipset: Intel B860

Motherboard form factor: micro ATX

Motherboard chipset family: Intel

Audio output channels: 7.1 channels

Windows operating systems supported: Windows 11 x64

Memory

Maximum internal memory: 256 GB

Unbuffered memory: Yes

Memory slots type: DIMM

Supported memory types: DDR5-SDRAM

Memory channels: Dual-channel

Number of memory slots: 4

ECC сompatibility: Non-ECC

Weight & dimensions

Width: 244 mm

Depth: 244 mm

Network

LAN controller: Dragon RTL8125BG

Bluetooth: Yes

Ethernet LAN data rates: 10,100,1000,2500 Mbit/s

Bluetooth version: 5.3

Wi-Fi standards: Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11g, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), 802.11b

Wi-Fi: Yes

Ethernet LAN: Yes

MU-MIMO: Yes

Top Wi-Fi standard: Wi-Fi 6E (802.11axe)

Ethernet interface type: 2.5 Gigabit Ethernet

Internal I/O

Number of SATA III connectors: 4

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

USB 2.0 connectors: 4

Front panel audio connector: Yes

12V power connector: Yes

EPS power connector (8-pin): Yes

Number of chassis fan connectors: 4

TPM connector: Yes

Number of USB 3.2 Gen 2 Type-C ports : 1

Number of EPS power connectors (8-pin): 2

ATX Power connector (24-pin): Yes

Number of CPU fan connectors: 2

Number of RGB LED pin headers: 1

CPU fan connector: Yes

RGB LED pin header: Yes

Number of water pump connectors: 1

Addressable LED connectors: 3

BIOS

BIOS type: UEFI AMI

Storage controllers

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III

RAID support: Yes

RAID levels: 10, 1, 5, 0

Number of storage drives supported: 8

Rear panel I/O ports

DisplayPort version: 1.4

DisplayPorts quantity: 1

S/PDIF out port: Yes

Thunderbolt ports quantity: 1

HDMI version: 2.1

Ethernet LAN (RJ-45) ports: 1

USB 2.0 ports quantity: 2

MIC input: 1

USB connector type: USB Type-C, USB Type-A

Number of USB 3.2 Gen 1 ports: 4

Headphone outputs: 1

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

Antennas quantity: 2

Flashback BIOS button: Yes

Expansion slots

Number of SATA III connectors: 4

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x16 (Gen 5.x) slots: 1

3rd M.2 highest PCI Express generation: 4.0

4th M.2 highest PCI Express generation: 4.0

3rd M.2 largest key size: 2280

4th M.2 largest key size: 2280

Number of M.2 (M) slots: 4

1st M.2 largest key size: 2280

2nd M.2 largest key size: 2280

2nd M.2 highest PCI Express generation: 4.0

1st M.2 highest PCI Express generation: 5.0

Safety warning

Warnings: In case of installation problems, contact a qualified service technician., Do not open or modify the motherboard to prevent damage., When disposing of the product, follow local regulations for the recycling of electronics.
