GIGABYTE B860M AORUS ELITE WF6E ICE Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4

Περιγραφή

Technical details

Warranty period: 3 year(s)

Processor

Supported processor sockets: LGA 1851

Processor socket: LGA 1851 (Socket V1)

Compatible processor series: Intel Core Ultra (Series 2), Intel® Core™ Ultra (Series 1)

Processor manufacturer: Intel

Graphics

DirectX version: 12.0

HDCP: Yes

Parallel processing technology support: Not supported

Maximum resolution: 4096 x 2160 pixels

Features

Audio output channels: 7.1 channels

Windows operating systems supported: Windows 11 x64

Motherboard chipset: Intel B860

PC health monitoring: Voltage, Temperature, Fan, Water cooling

Motherboard form factor: micro ATX

Power source type: ATX

Motherboard chipset family: Intel

Product colour: White

Audio chip: Realtek ALC897

Memory

Supported memory clock speeds: 5600, 9200, 6400

Maximum internal memory: 256 GB

Number of memory slots: 4

Memory channels: Dual-channel

Supported memory types: DDR5-SDRAM

Memory slots type: DIMM

Unbuffered memory: Yes

Maximum internal memory per slot: 64 GB

ECC сompatibility: ECC & Non-ECC

Supported memory clock speed (max): 9200 MHz

Weight & dimensions

Depth: 244 mm

Height: 35 mm

Width: 244 mm

Network

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Ethernet LAN: Yes

WLAN controller model: Intel Wi-Fi 6E AX211

Bluetooth version: 5.3

Ethernet interface type: 2.5 Gigabit Ethernet

Wi-Fi standards: Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax), 802.11b, 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 5 (802.11ac)

Bluetooth: Yes

LAN controller: Realtek RTL8125

Wi-Fi: Yes

Internal I/O

Number of chassis fan connectors: 4

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

EPS power connector (8-pin): Yes

Front panel audio connector: Yes

Number of SATA III connectors: 4

RGB LED pin header: Yes

USB 2.0 connectors: 2

Number of CPU fan connectors: 2

Number of RGB LED pin headers: 4

ATX Power connector (24-pin): Yes

Number of water pump connectors: 2

Number of EPS power connectors (8-pin): 2

CPU fan connector: Yes

Front panel connector: Yes

TPM connector: Yes

BIOS

Clear CMOS jumper: Yes

Desktop Management Interface (DMI) version: 2.7

BIOS type: UEFI AMI

Packaging data

Package height: 68 mm

Package weight: 1.9 kg

Package width: 270 mm

Package depth: 268 mm

Packaging content

Batteries included: Yes

Screws included: Yes

Antenna included: Yes

Storage controllers

Supported storage drive interfaces: M.2, SATA III

RAID levels: 1, 10, 0, 5

Number of storage drives supported: 7

Number of HDDs supported: 4

RAID support: Yes

Supported storage drive types: HDD & SSD

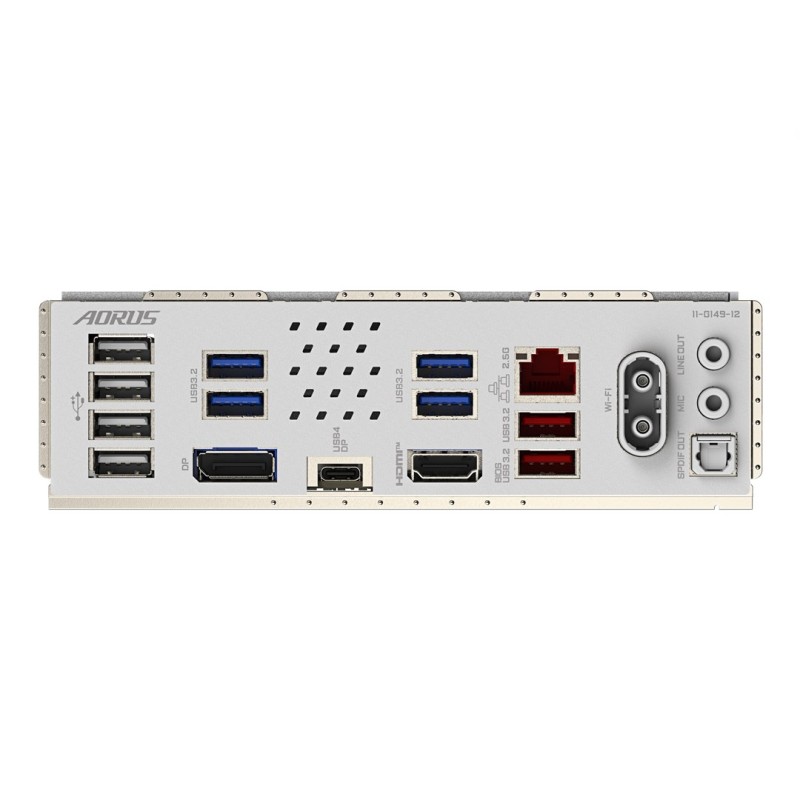

Rear panel I/O ports

USB 2.0 ports quantity: 4

DisplayPort version: 2.1

S/PDIF out port: Yes

WiFi-AP antenna jack: 2

HDMI version: 2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

Headphone outputs: 1

Ethernet LAN (RJ-45) ports: 1

HDMI ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

DisplayPorts quantity: 1

Digital audio optical out: 1

USB4 Gen 2x2 ports quantity: 1

Line-in: Yes

Expansion slots

Number of M.2 (M) slots: 3

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x16 (Gen 5.x) slots: 1

3rd M.2 largest key size: 25110

2nd M.2 highest PCI Express generation: 4.0

1st M.2 largest key size: 2280

2nd M.2 largest key size: 2580

3rd M.2 highest PCI Express generation: 4.0

1st M.2 highest PCI Express generation: 5.0

Battery

Battery weight: 3 g

Battery type: CR2032

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Lithium weight per battery: 0.07 g

Number of battery cells: 1

Other features

Weight: 1.7 kg

Logistics data

Products per shipping (inner) case: 1 pc(s)

Country of origin: China
