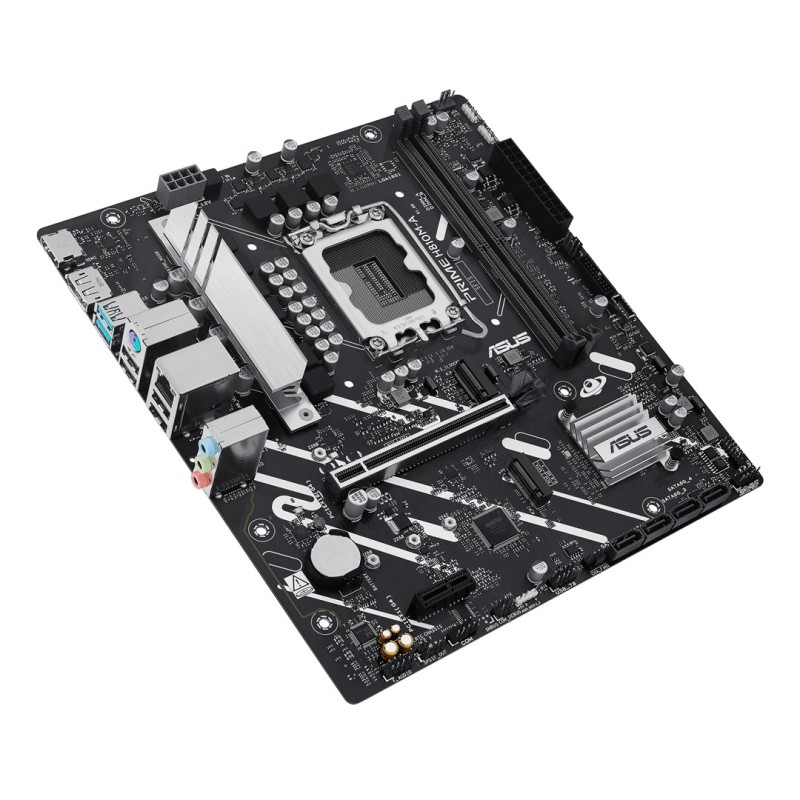

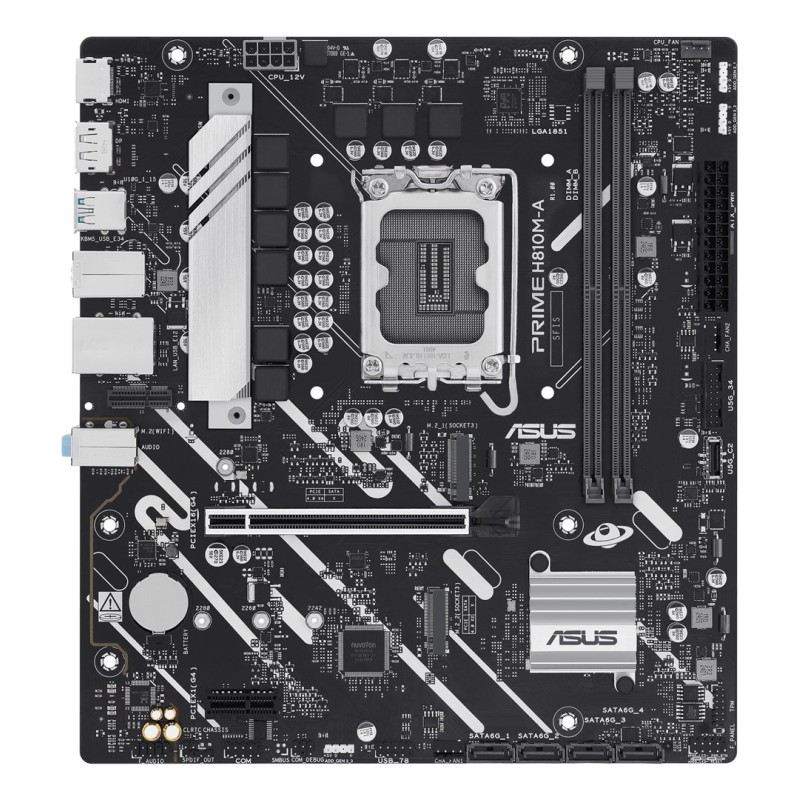

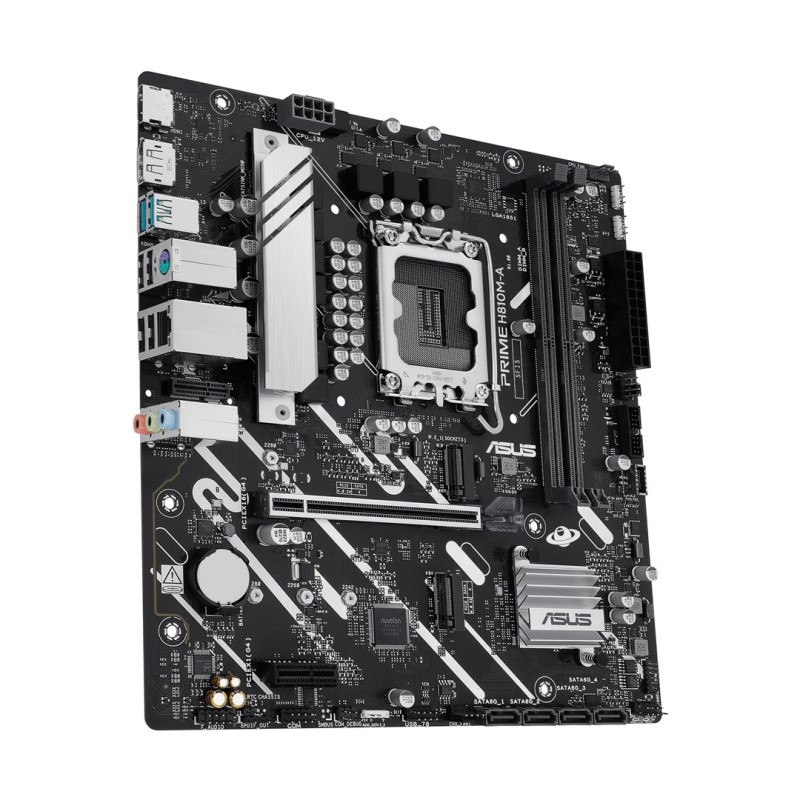

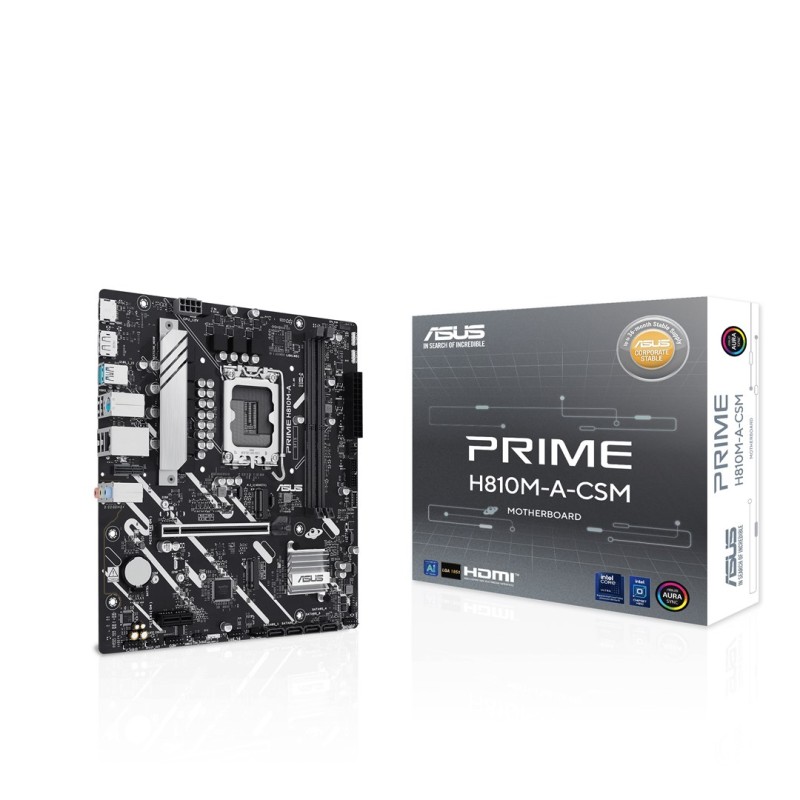

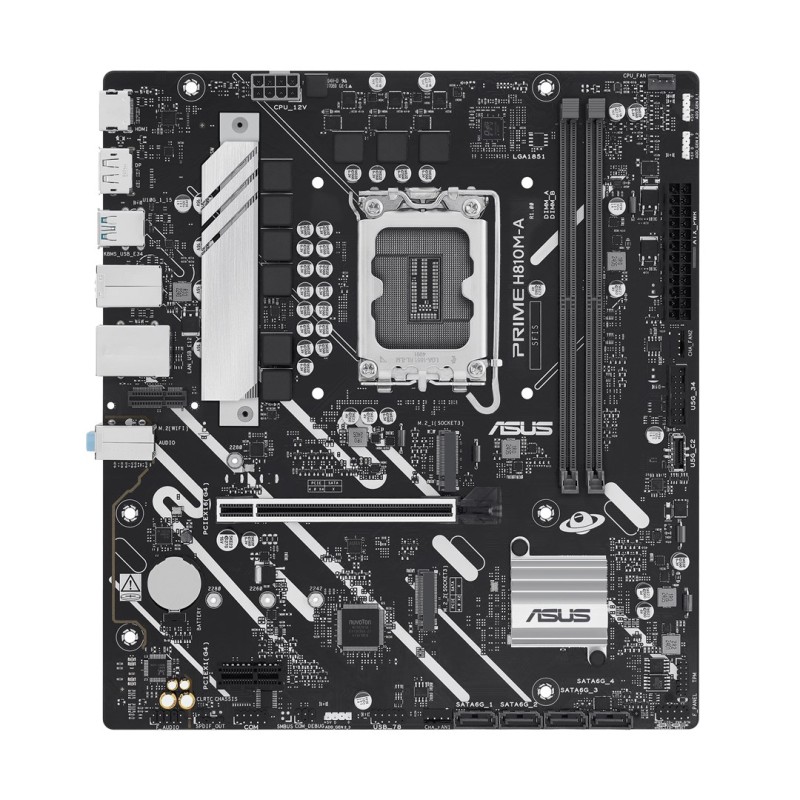

ASUS PRIME H810M-A-CSM Intel H810 LGA 1851 (Socket V1) micro ATX

Περιγραφή

Processor

Supported processor sockets: LGA 1851

Compatible processor series: Intel Core Ultra (Series 2)

Processor manufacturer: Intel

Processor socket: LGA 1851 (Socket V1)

Graphics

Parallel processing technology support: Not supported

On-board graphics card: No

Features

Windows operating systems supported: Windows 11, Windows 10 x64

Audio output channels: 7.1 channels

Motherboard chipset: Intel H810

Product colour: Black

Power source type: ATX

Motherboard form factor: micro ATX

Motherboard chipset family: Intel

Memory

Unbuffered memory: Yes

Maximum internal memory: 128 GB

Memory channels: Dual-channel

Number of memory slots: 2

Supported memory types: DDR5-SDRAM

Memory slots type: DIMM

Supported memory clock speed (max): 6400 MHz

ECC сompatibility: Non-ECC

Weight & dimensions

Width: 244 mm

Depth: 222 mm

Height: 37 mm

Network

Wake-on-LAN ready: Yes

LAN controller: Intel I219V

Ethernet LAN: Yes

Wi-Fi: No

Ethernet interface type: Gigabit Ethernet

Internal I/O

Front panel connector: Yes

EPS power connector (8-pin): Yes

S/PDIF out connector: Yes

Number of SATA III connectors: 4

CPU fan connector: Yes

Number of chassis fan connectors: 2

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

USB 2.0 connectors: 1

Number of COM connectors: 1

TPM connector: Yes

RGB LED pin header: Yes

Number of CPU fan connectors: 1

Number of EPS power connectors (8-pin): 1

Number of RGB LED pin headers: 3

BIOS

BIOS type: UEFI AMI

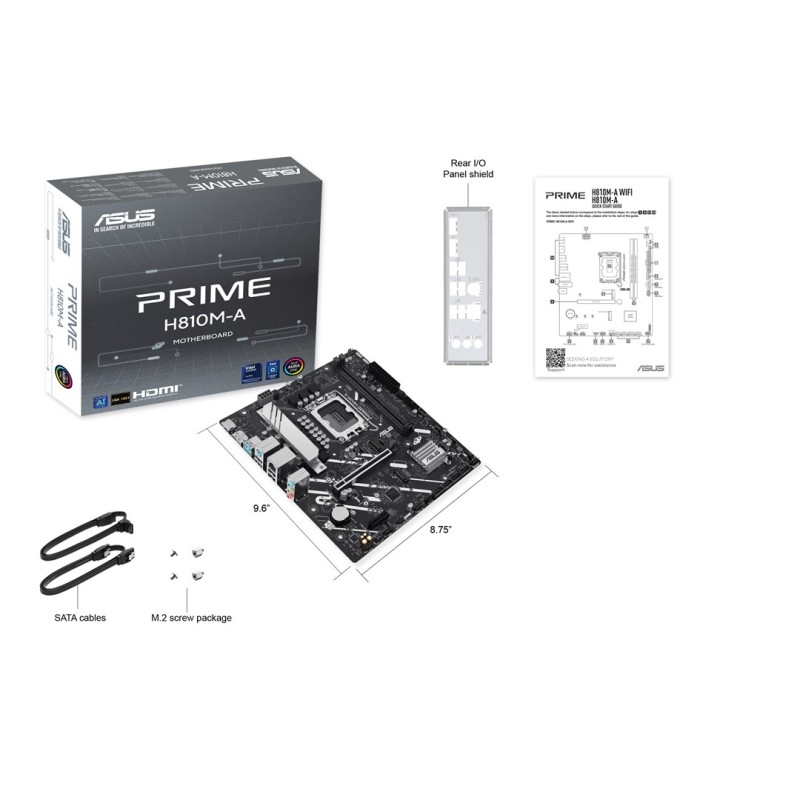

Packaging data

Package width: 270 mm

Package weight: 782 g

Package height: 51.5 mm

Package depth: 263 mm

Storage controllers

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III

Number of HDDs supported: 4

Number of storage drives supported: 6

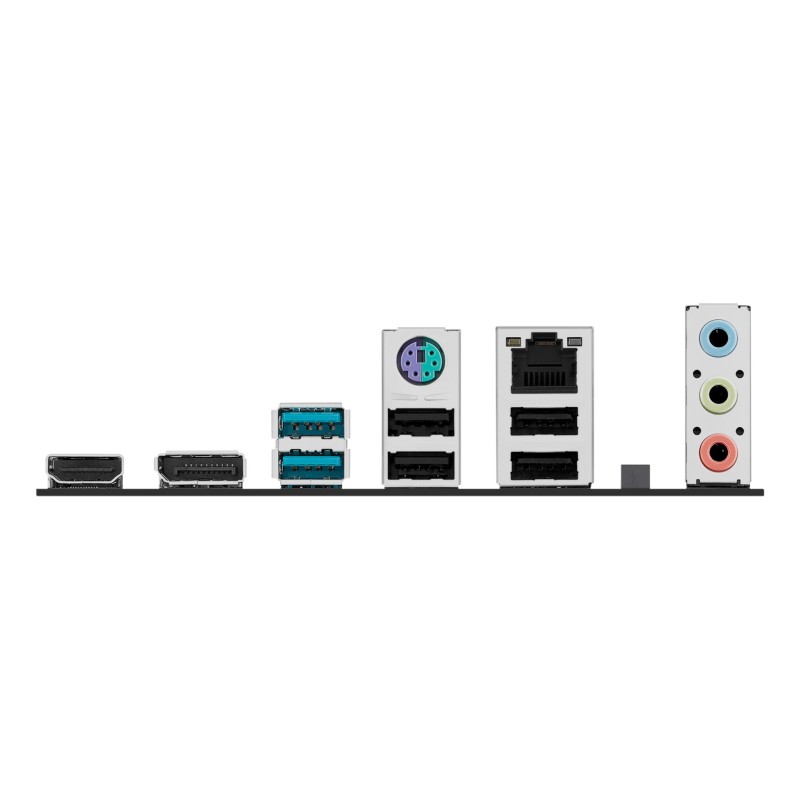

Rear panel I/O ports

DisplayPorts quantity: 1

DisplayPort version: 1.4

USB 2.0 ports quantity: 4

Ethernet LAN (RJ-45) ports: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

HDMI ports quantity: 1

Line-in: Yes

PS/2 ports quantity: 1

Microphone in: Yes

HDMI version: 2.1

Expansion slots

Number of M.2 (M) slots: 2

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x1 (Gen 4.x) slots: 1

1st M.2 largest key size: 2280

2nd M.2 largest key size: 2280

2nd M.2 highest PCI Express generation: 4.0

1st M.2 highest PCI Express generation: 4.0

Other features

Weight: 534 g

Number of M.2 (E) slots: 1

Safety warning

Warnings: In case of installation problems, contact a qualified service technician., Do not open or modify the motherboard to prevent damage., When disposing of the product, follow local regulations for the recycling of electronics.
