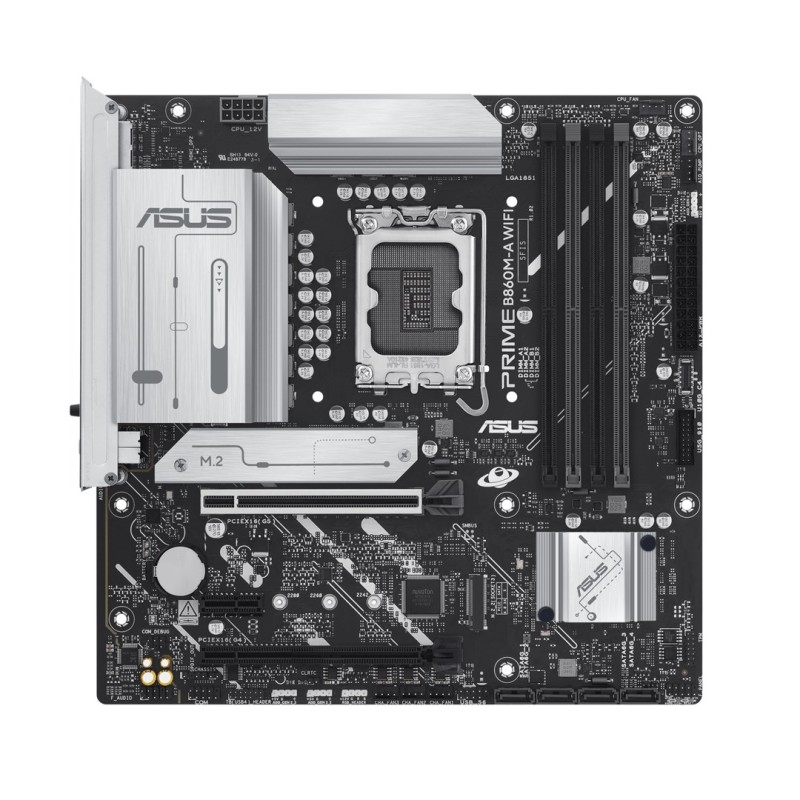

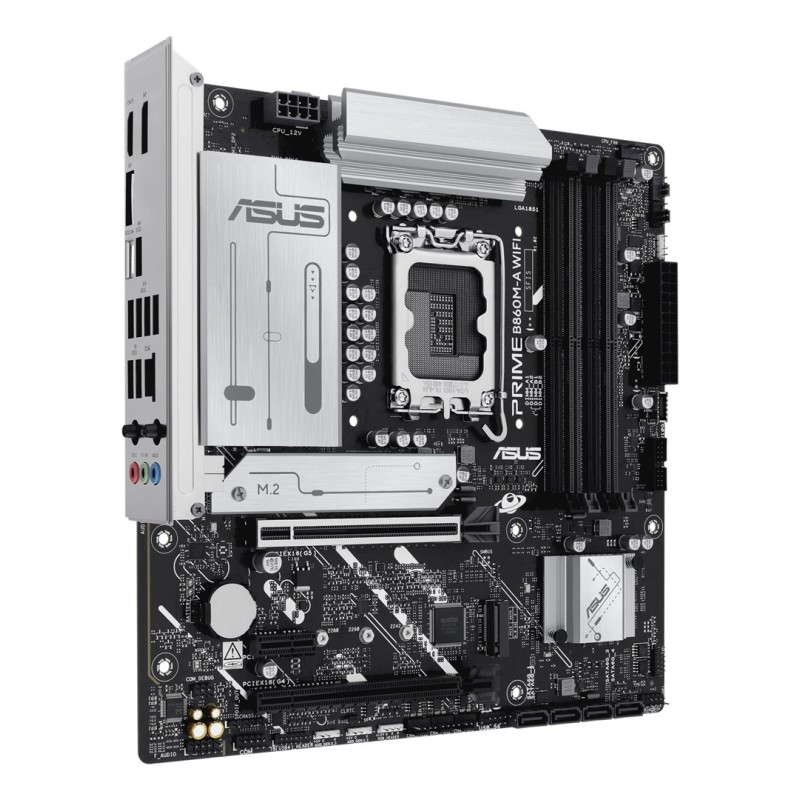

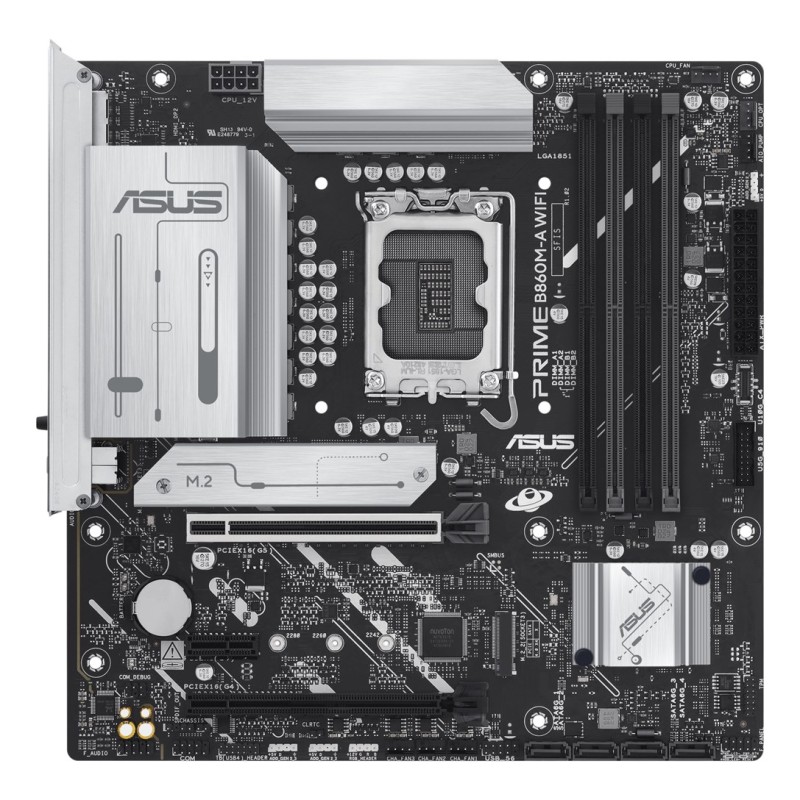

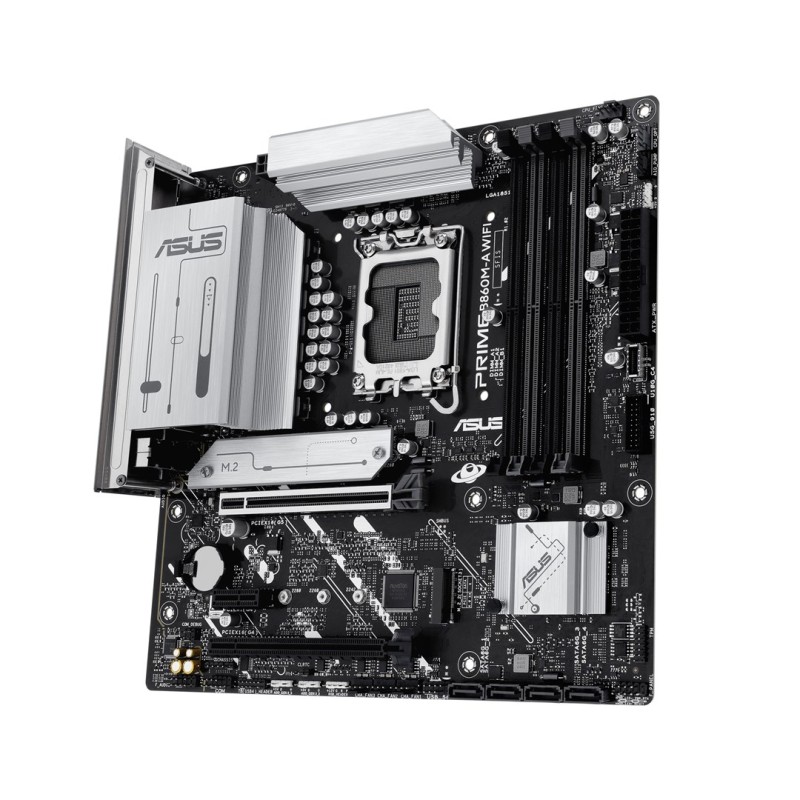

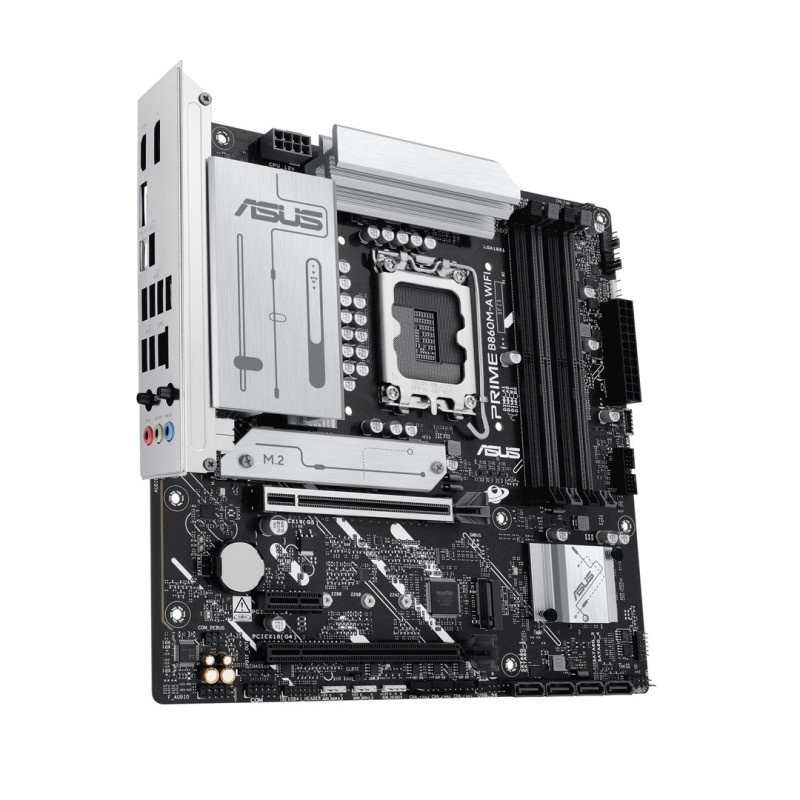

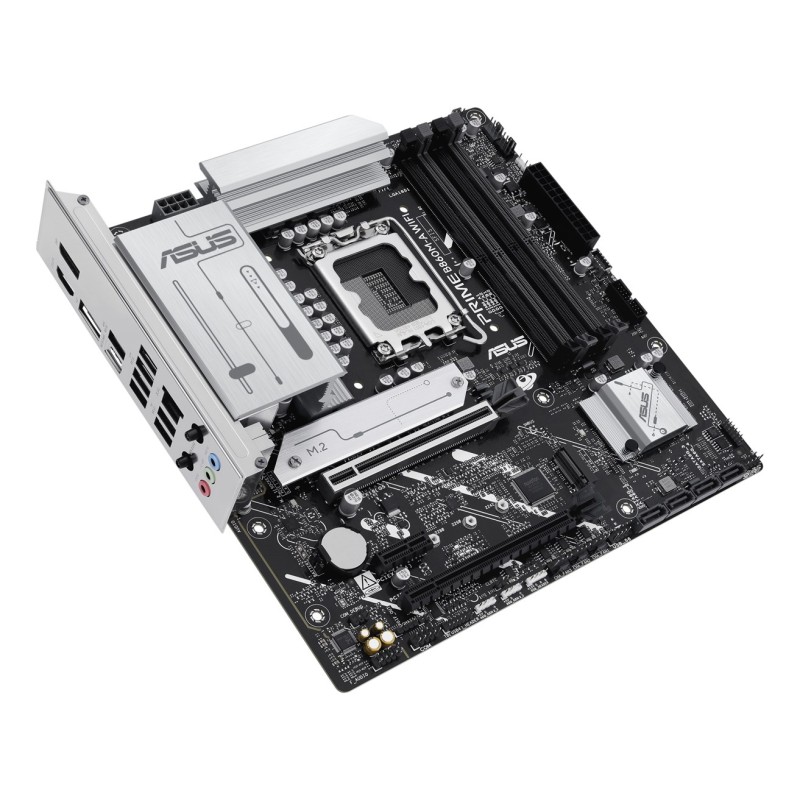

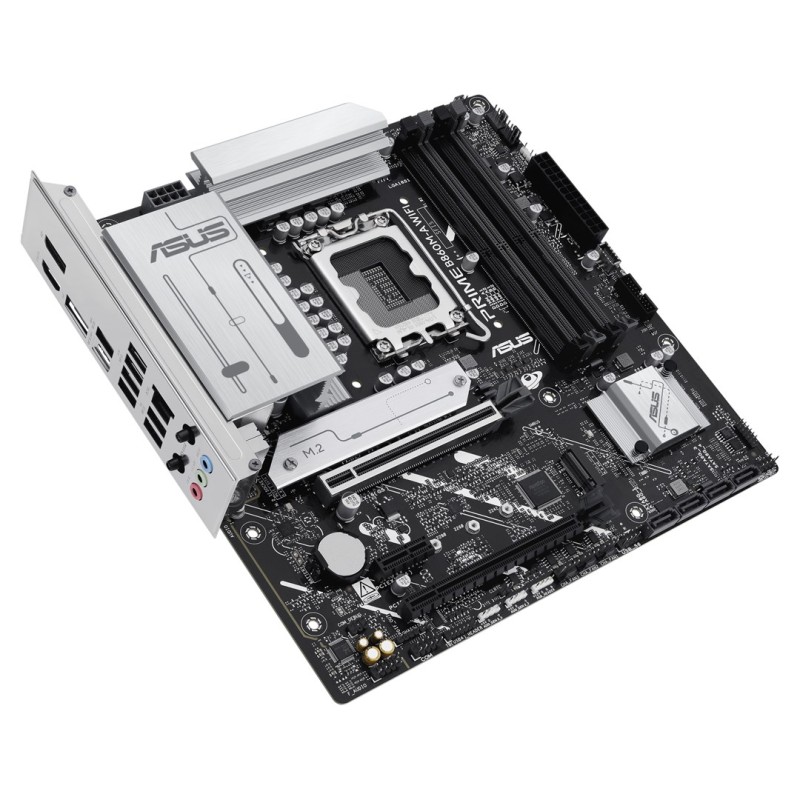

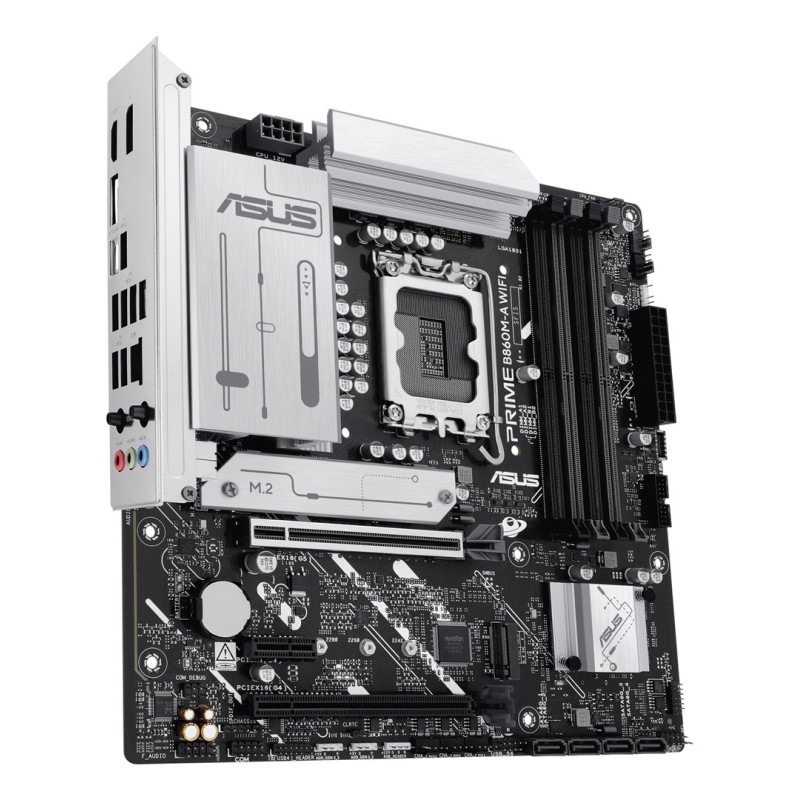

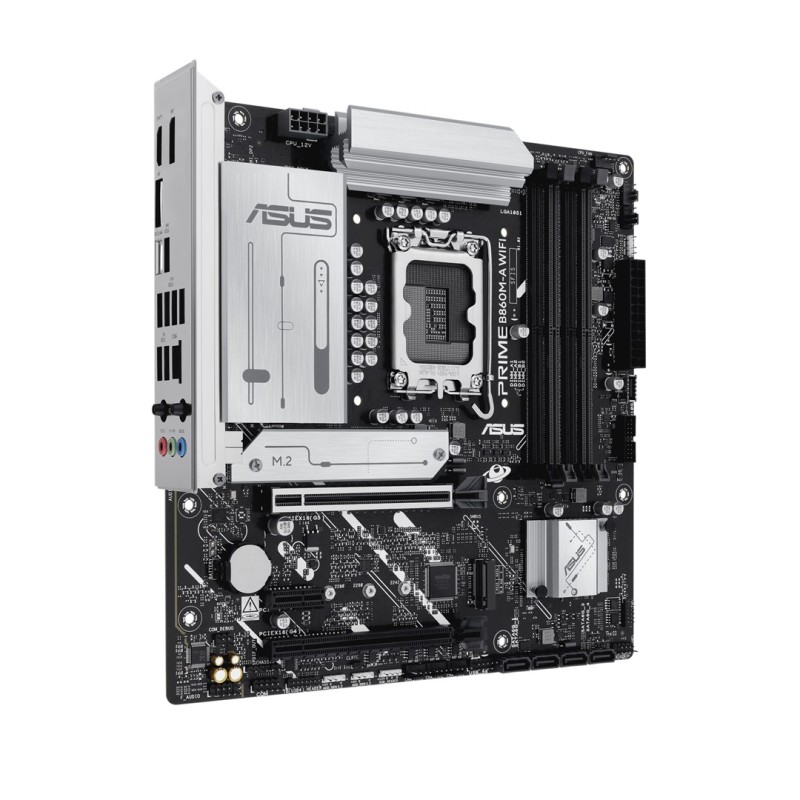

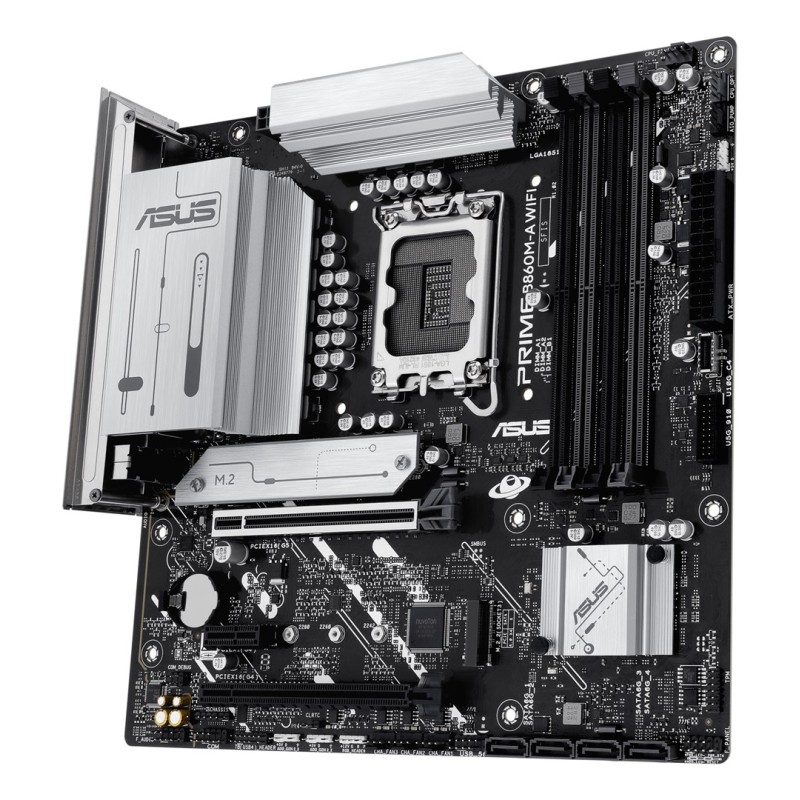

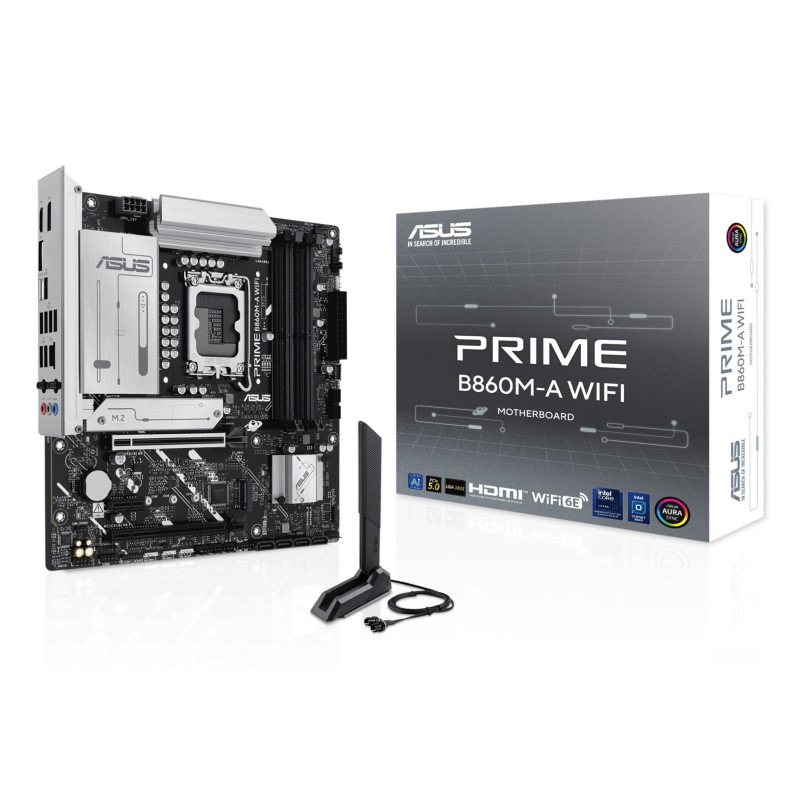

ASUS PRIME B860M-A WIFI Intel B860 LGA 1851 (Socket V1) micro ATX

Περιγραφή

Processor

Processor manufacturer: Intel

Supported processor sockets: LGA 1851

Compatible processor series: Intel Core Ultra (Series 2)

Processor socket: LGA 1851 (Socket V1)

Graphics

Parallel processing technology support: Not supported

Features

Motherboard chipset family: Intel

Motherboard form factor: micro ATX

Windows operating systems supported: Windows 10 x64, Windows 11

Audio output channels: 7.1 channels

Motherboard chipset: Intel B860

Memory

Maximum internal memory: 256 GB

Unbuffered memory: Yes

Memory channels: Dual-channel

Memory slots type: DIMM

Number of memory slots: 4

Supported memory types: DDR5-SDRAM

ECC сompatibility: Non-ECC

Weight & dimensions

Width: 244 mm

Depth: 244 mm

Network

Wi-Fi standards: Wi-Fi 6E (802.11ax)

Wi-Fi: Yes

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Bluetooth: Yes

Bluetooth version: 5.3

Ethernet interface type: 2.5 Gigabit Ethernet

Ethernet LAN: Yes

Internal I/O

CPU fan connector: Yes

S/PDIF out connector: Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

Chassis intrusion connector: Yes

Number of chassis fan connectors: 3

Number of COM connectors: 1

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

Number of SATA III connectors: 4

Thunderbolt headers: 1

TPM connector: Yes

Front panel connector: Yes

USB 2.0 connectors: 1

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

12V power connector: Yes

RGB LED pin header: Yes

BIOS

BIOS type: UEFI AMI

Packaging data

Package depth: 275 mm

Package width: 275 mm

Package height: 67.5 mm

Package weight: 1.44 kg

Packaging content

Cables included: SATA

Screws included: Yes

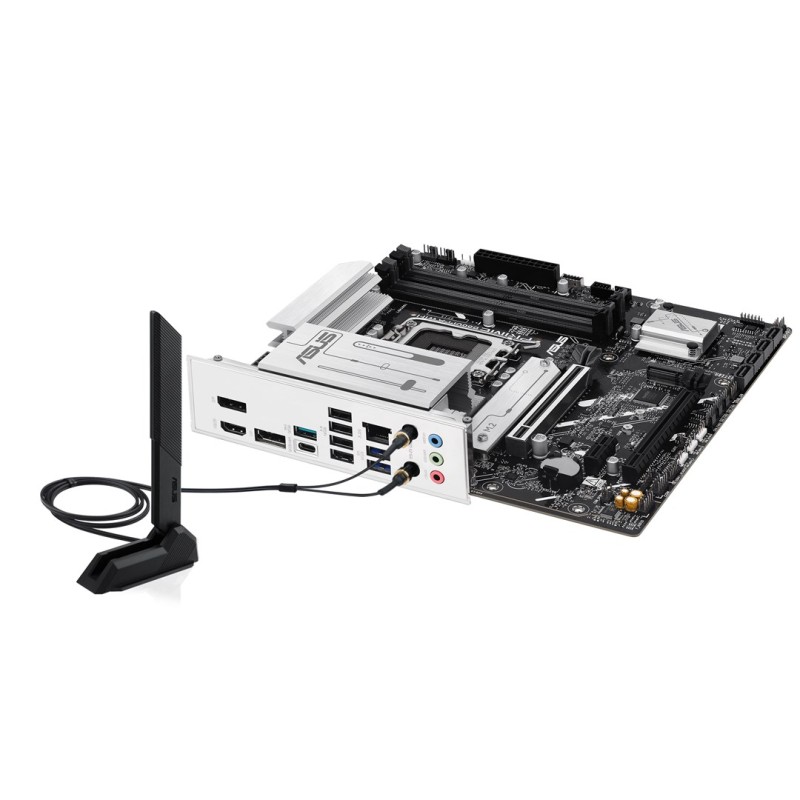

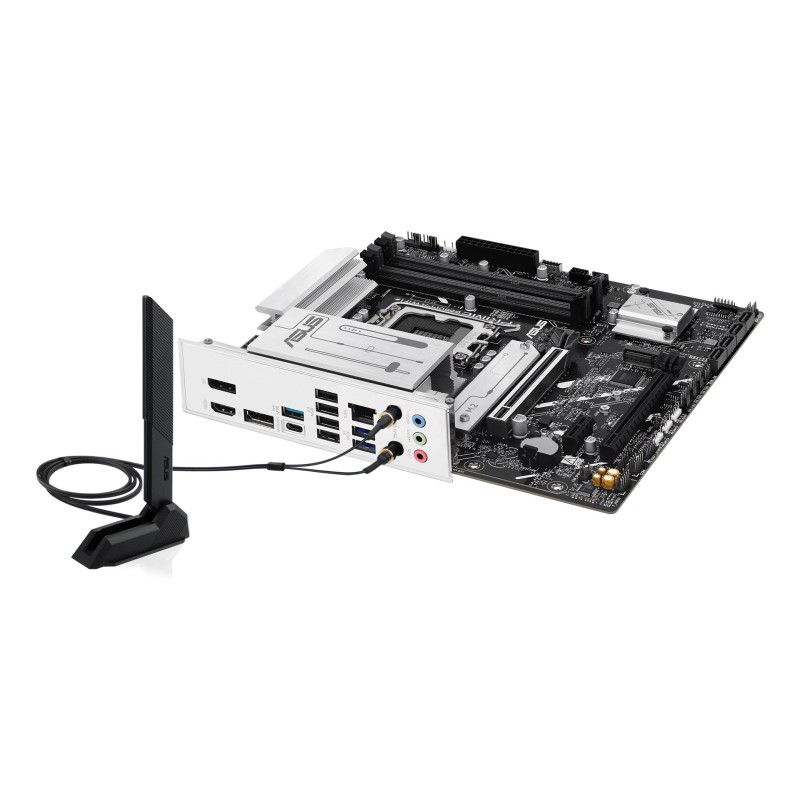

Antenna included: Yes

Storage controllers

RAID levels: 0, 1, 10, 5

RAID support: Yes

Number of storage drives supported: 6

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

Number of HDDs supported: 4

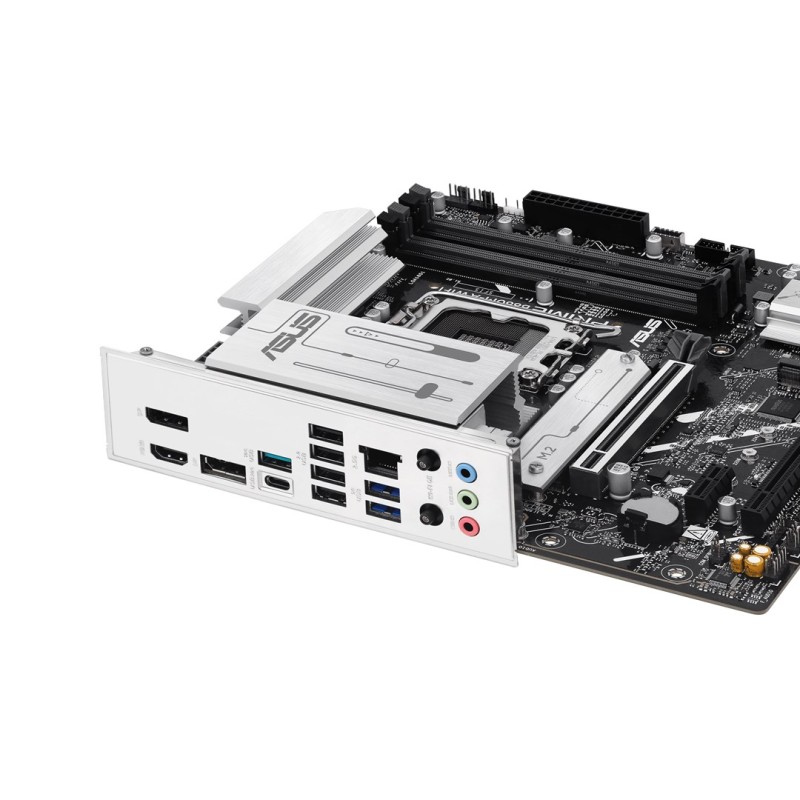

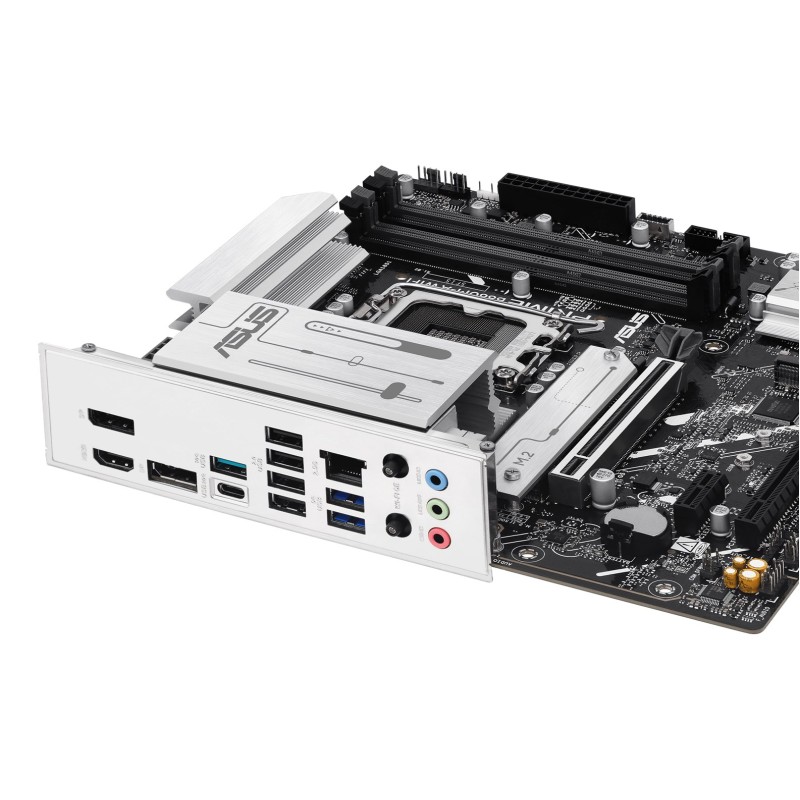

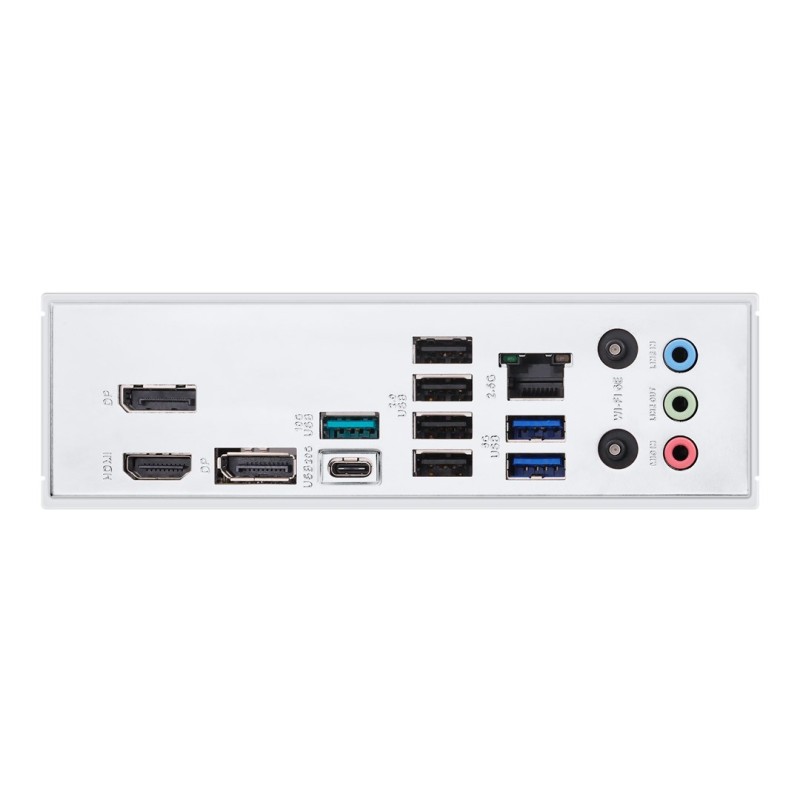

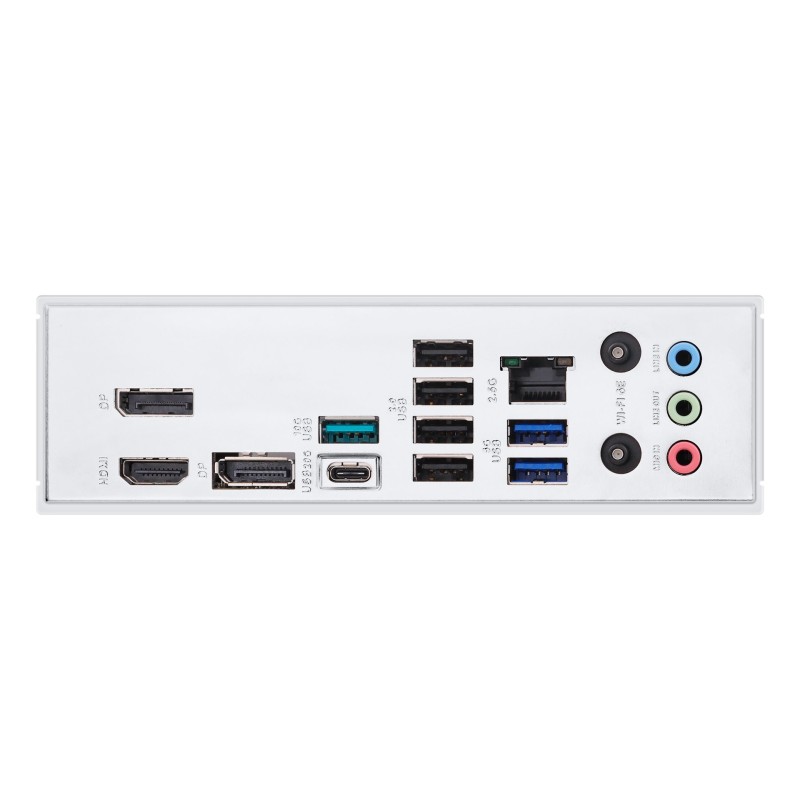

Rear panel I/O ports

HDMI ports quantity: 1

DisplayPorts quantity: 2

Ethernet LAN (RJ-45) ports: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

USB 2.0 ports quantity: 4

WiFi-AP antenna jack: 1

USB 3.2 Gen 2x2 Type-C ports quantity: 1

Expansion slots

Number of M.2 (M) slots: 2

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x1 (Gen 4.x) slots: 1

PCI Express x16 (Gen 5.x) slots: 1

2nd M.2 largest key size: 2280

2nd M.2 highest PCI Express generation: 4.0

1st M.2 largest key size: 2280

1st M.2 highest PCI Express generation: 5.0

Safety warning

Warnings: Do not open or modify the motherboard to prevent damage., In case of installation problems, contact a qualified service technician., When disposing of the product, follow local regulations for the recycling of electronics.
