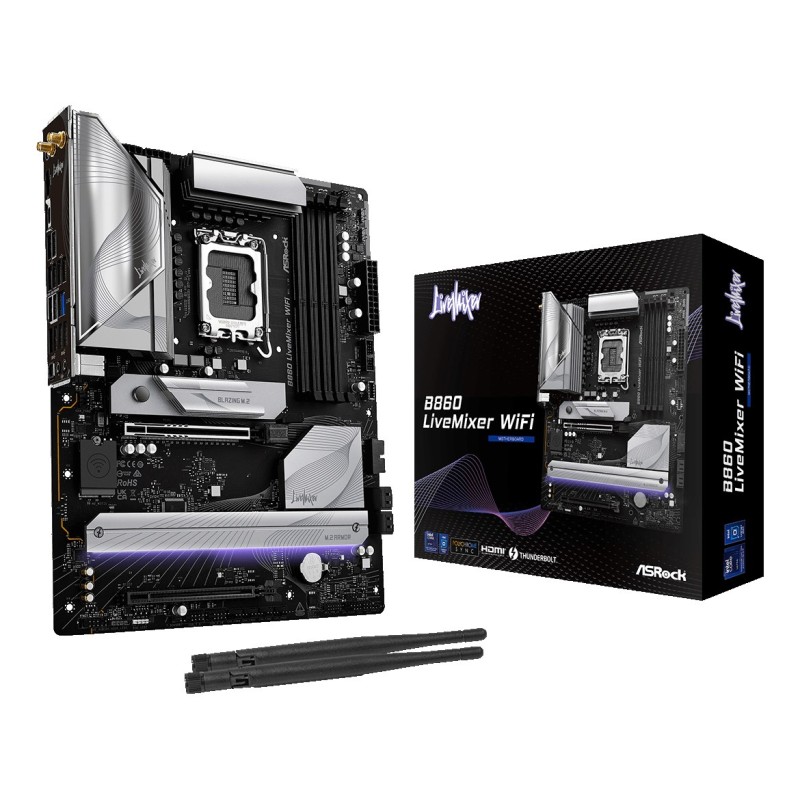

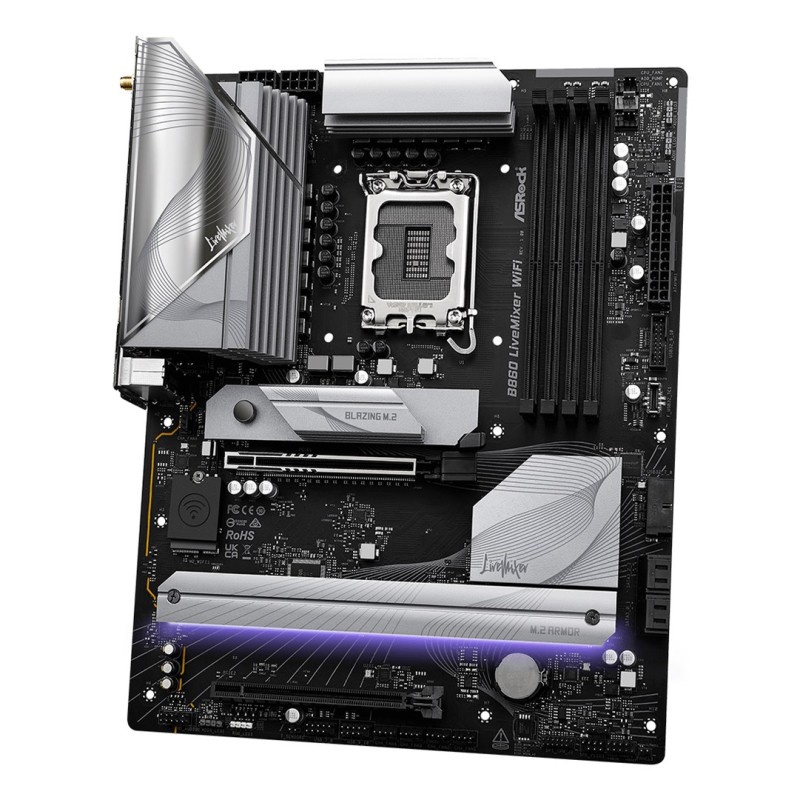

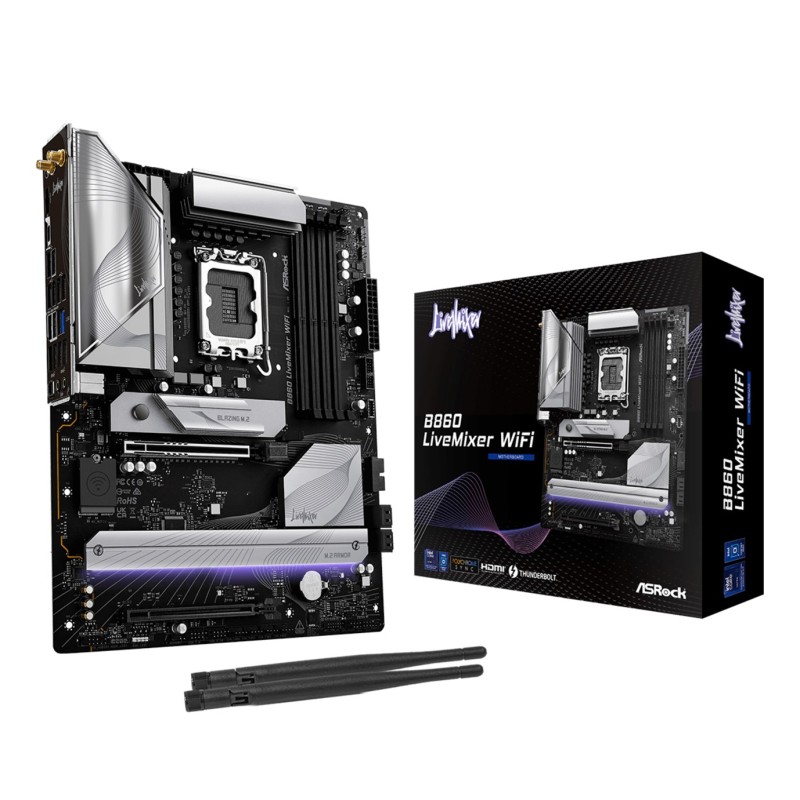

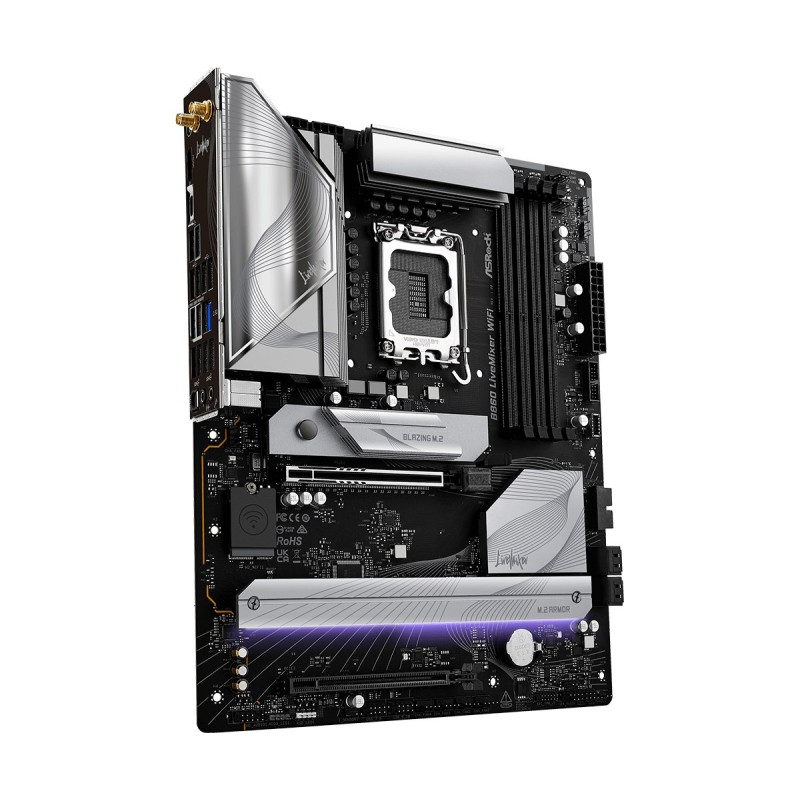

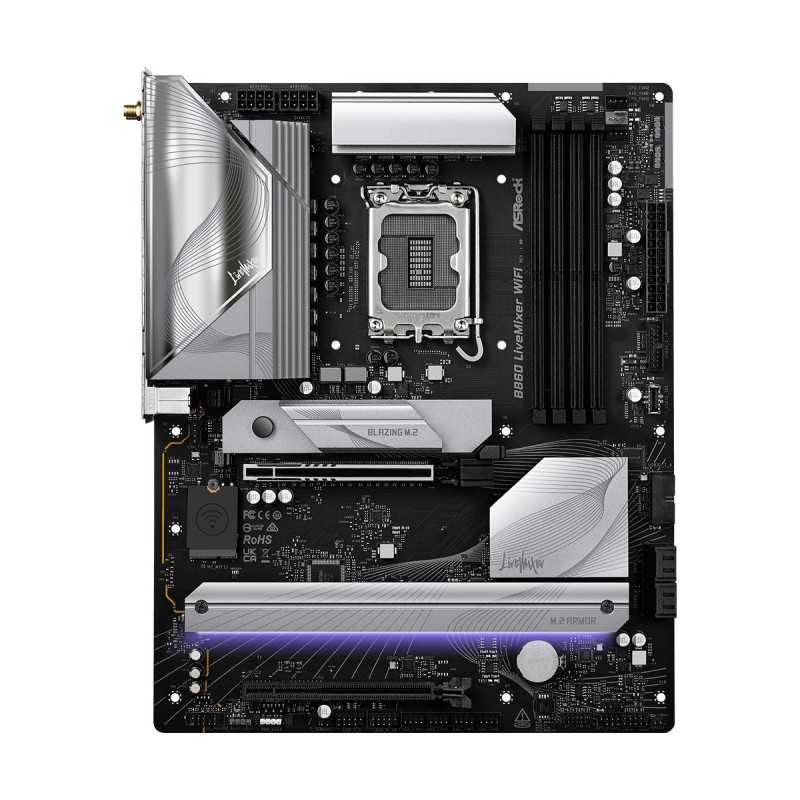

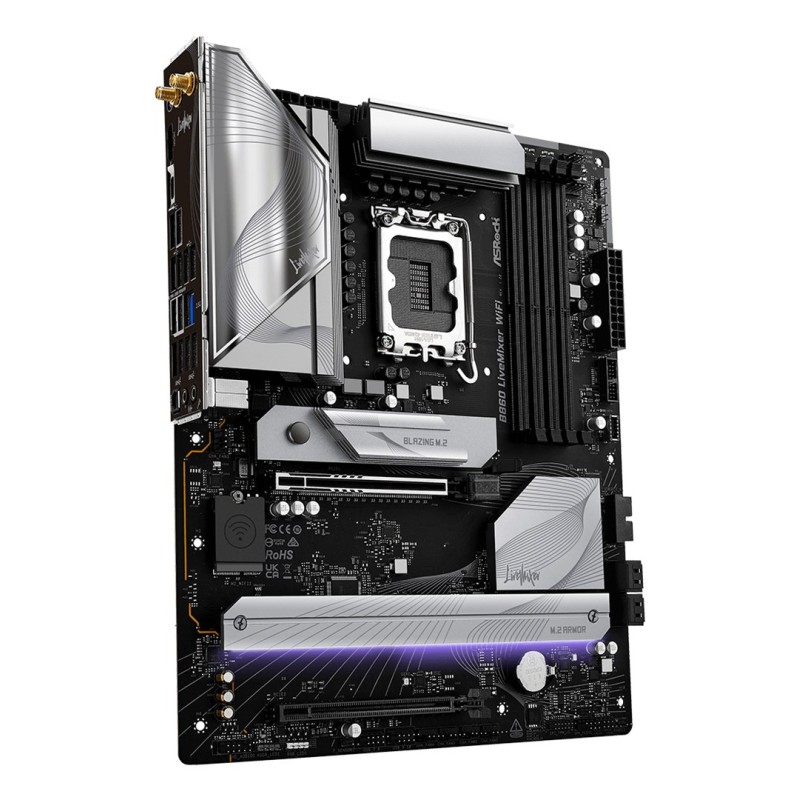

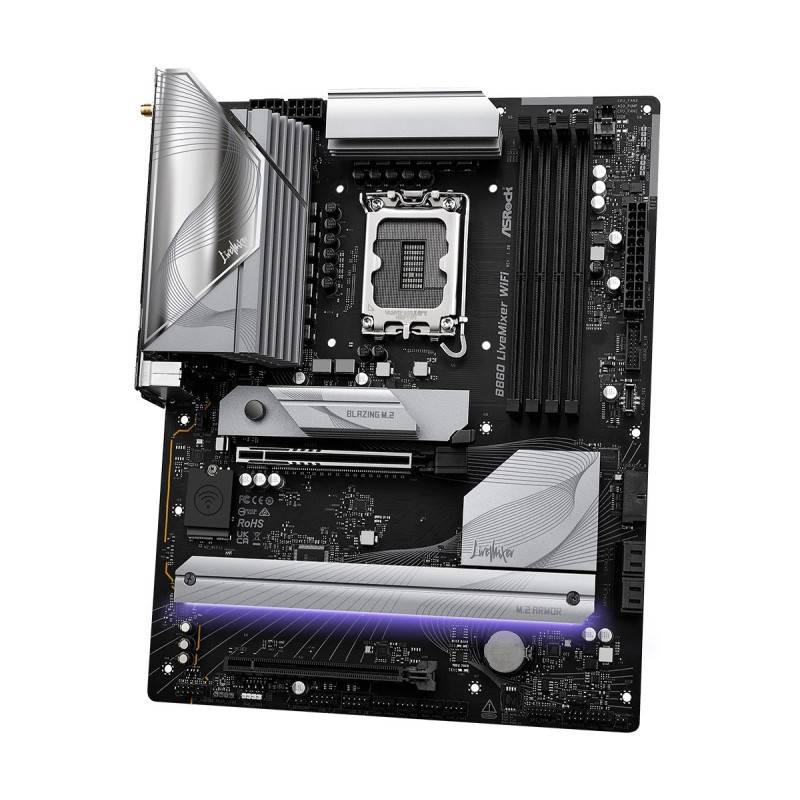

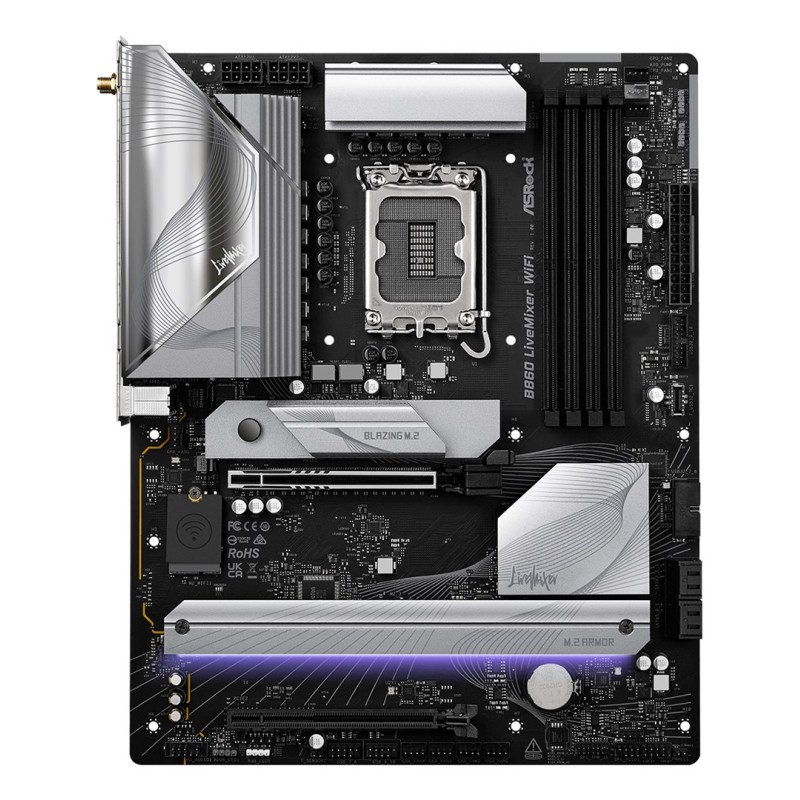

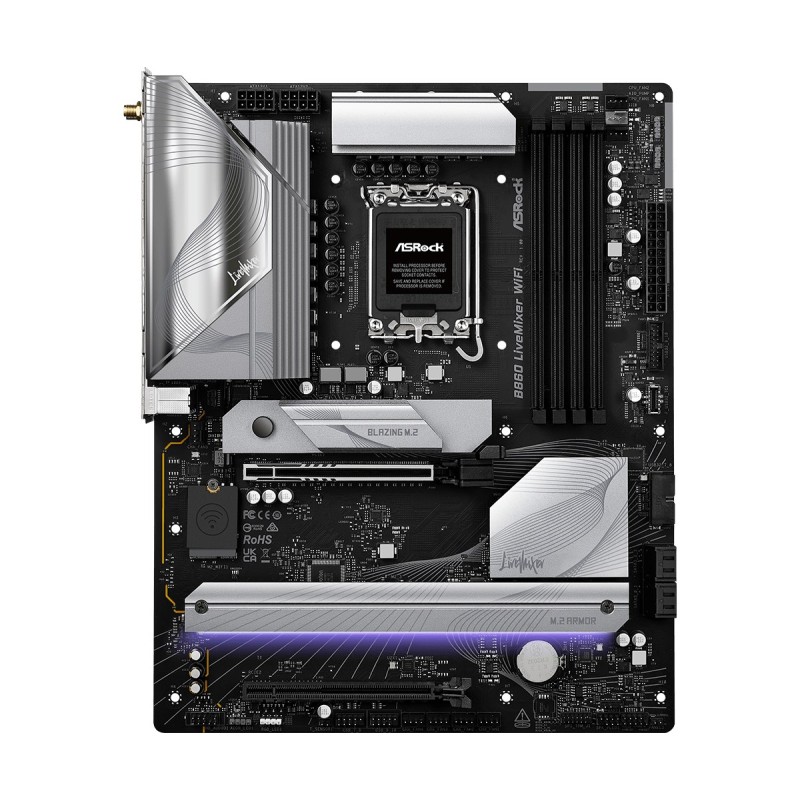

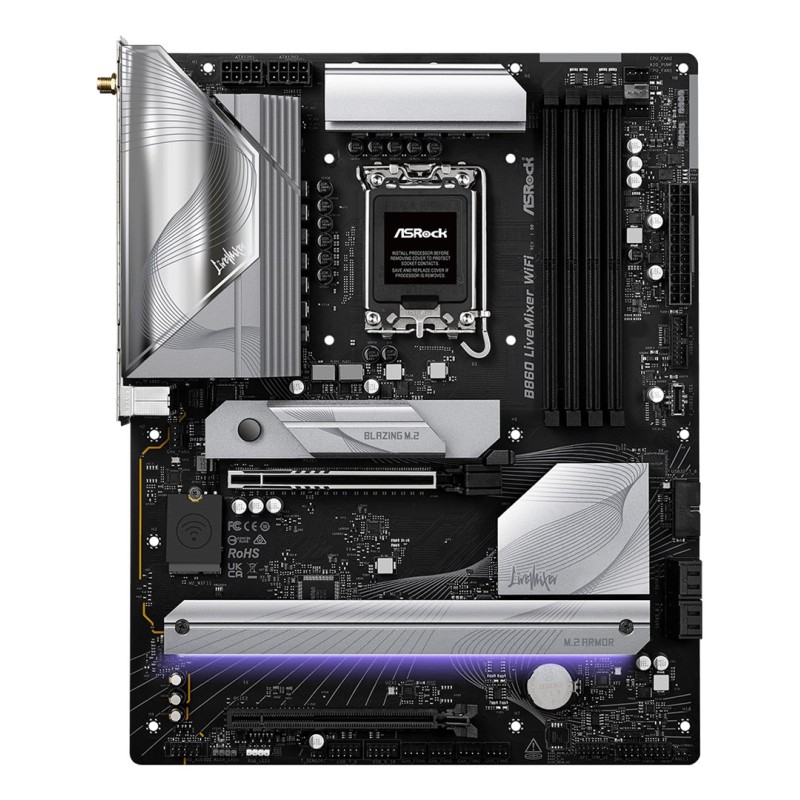

Asrock B860 LiveMixer WiFi Intel B860 LGA 1851 (Socket V1) ATX

Περιγραφή

Processor

Compatible processor series: Intel Core Ultra (Series 2)

Processor manufacturer: Intel

Supported processor sockets: LGA 1851

Processor socket: LGA 1851 (Socket V1)

Graphics

HDCP: Yes

Maximum resolution: 7680 x 4320 pixels

Parallel processing technology support: Not supported

Features

Windows operating systems supported: Windows 11 x64

Motherboard form factor: ATX

Audio chip: Realtek ALC1220

Product colour: Black

Motherboard chipset family: Intel

Audio output channels: 7.1 channels

Motherboard chipset: Intel B860

Memory

ECC сompatibility: Non-ECC

Memory channels: Dual-channel

Number of memory slots: 4

Supported memory types: DDR5-SDRAM

Memory slots type: DIMM

Maximum internal memory: 256 GB

Unbuffered memory: Yes

Weight & dimensions

Width: 305 mm

Depth: 244 mm

Network

Wi-Fi: Yes

Wi-Fi standards: 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), 802.11b

Ethernet LAN: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Bluetooth version: 5.3

LAN controller: Dragon RTL8125BG

Bluetooth: Yes

Internal I/O

Number of chassis fan connectors: 5

CPU fan connector: Yes

EPS power connector (8-pin): Yes

RGB LED pin header: Yes

Number of EPS power connectors (8-pin): 2

TPM connector: Yes

Number of CPU fan connectors: 2

Number of RGB LED pin headers: 1

12V power connector: Yes

Number of water pump connectors: 1

Number of SATA III connectors: 4

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3

Front panel audio connector: Yes

USB 2.0 connectors: 2

ATX Power connector (24-pin): Yes

BIOS

BIOS type: UEFI AMI

Packaging content

Cables included: SATA

Antenna included: Yes

Storage controllers

RAID levels: 10, 0, 5, 1

Number of storage drives supported: 7

Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III

Supported storage drive types: HDD & SSD

RAID support: Yes

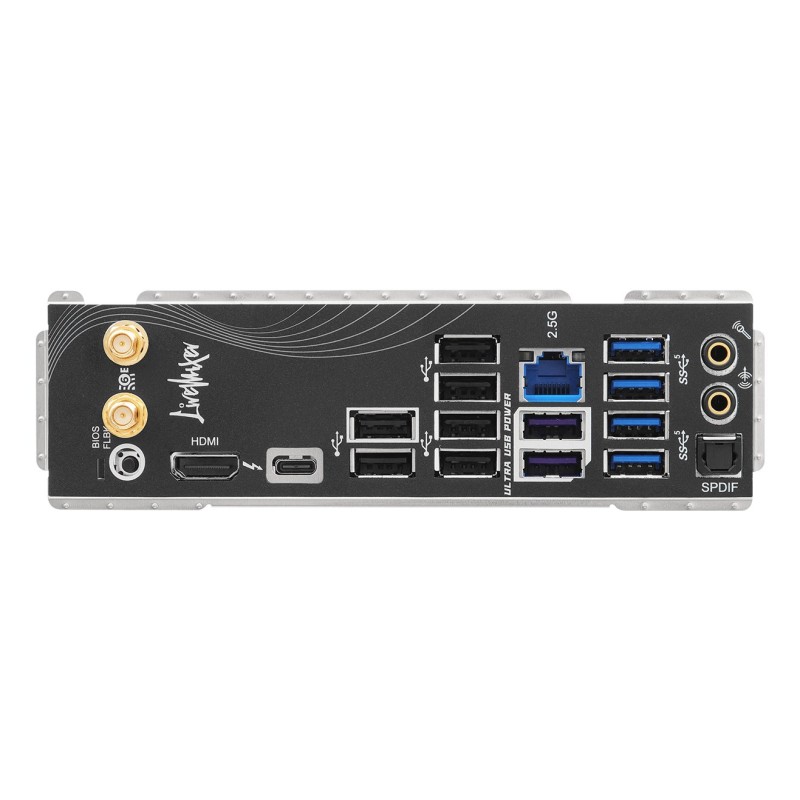

Rear panel I/O ports

Microphone in: Yes

Thunderbolt ports quantity: 1

HDMI version: 2.1

Headphone outputs: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6

WiFi-AP antenna jack: 2

HDMI ports quantity: 1

S/PDIF out port: Yes

Ethernet LAN (RJ-45) ports: 1

USB connector type: USB Type-C, USB Type-A

USB 2.0 ports quantity: 6

Expansion slots

1st M.2 highest PCI Express generation: 5.0

PCI Express x16 (Gen 4.x) slots: 1

3rd M.2 highest PCI Express generation: 4.0

2nd M.2 highest PCI Express generation: 4.0

Number of M.2 (M) slots: 3

1st M.2 largest key size: 2280

2nd M.2 largest key size: 2280

PCI Express x16 (Gen 5.x) slots: 1

3rd M.2 largest key size: 2280

Safety warning

Warnings: In case of installation problems, contact a qualified service technician., When disposing of the product, follow local regulations for the recycling of electronics., Do not open or modify the motherboard to prevent damage.
