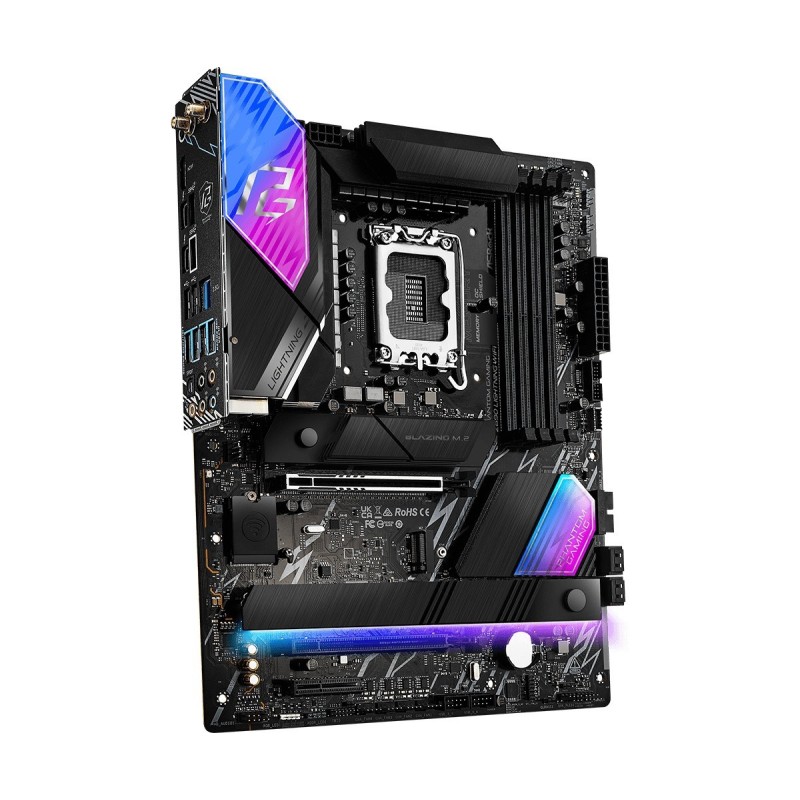

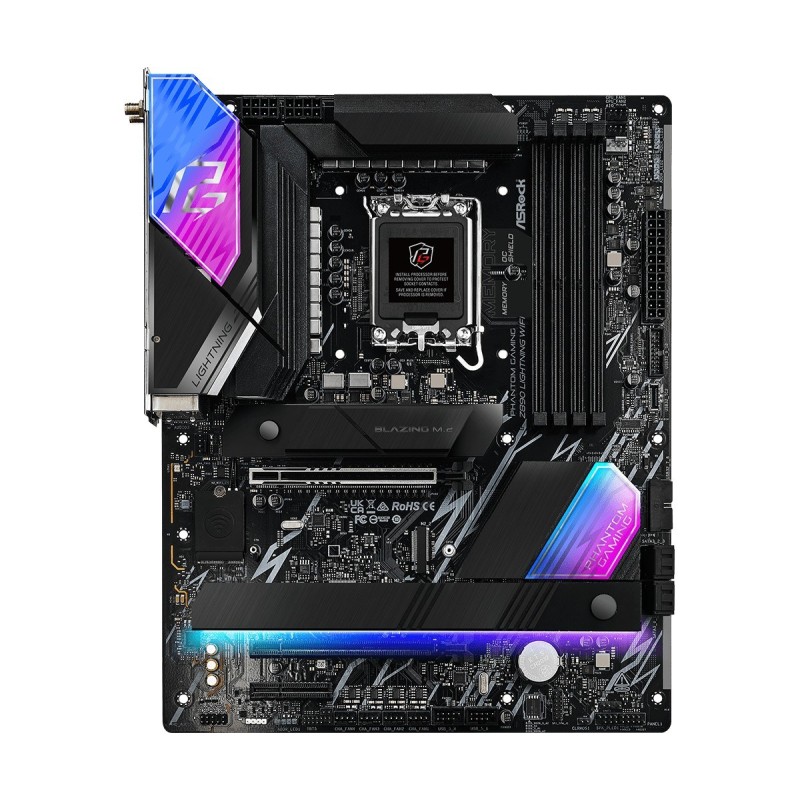

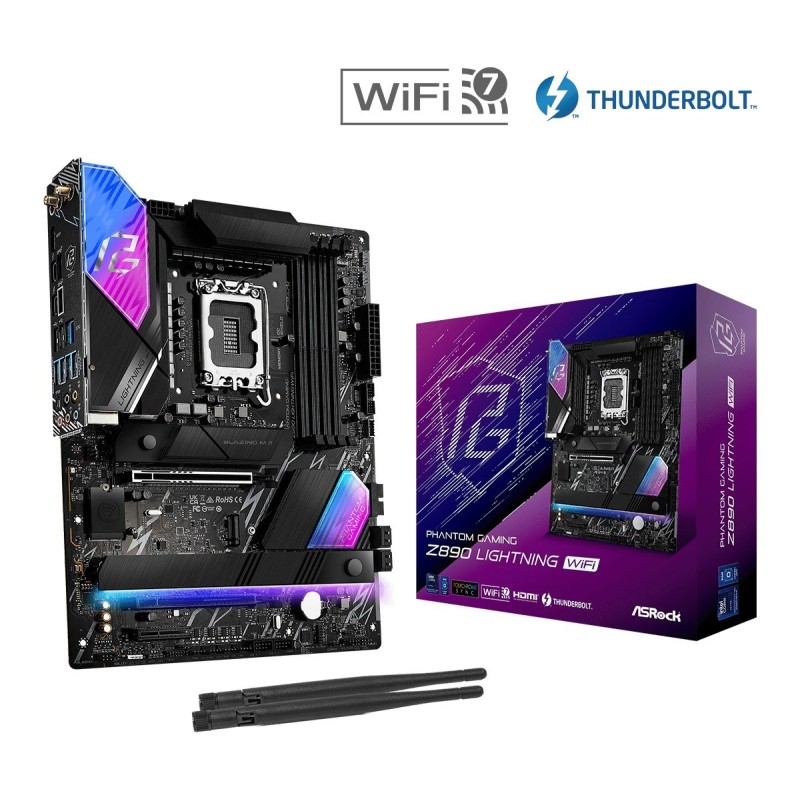

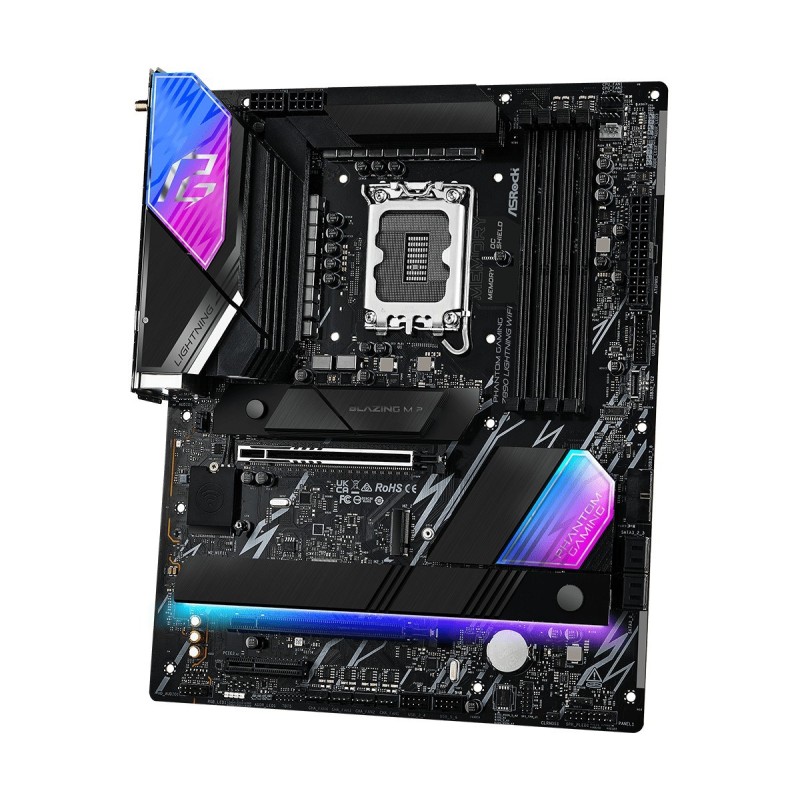

ASRock Z890 Z890 Lightning WiFi Motherboard

Περιγραφή

Processor

Maximum number of SMP processors: 1

Compatible processor series: Intel Core Ultra (Series 2)

Processor manufacturer: Intel

Processor socket: LGA1851

Features

Windows operating systems supported: Windows 11 x64, Windows 10 x64

Audio output channels: 7.1 channels

Motherboard form factor: ATX

Audio chip: Realtek ALC1220

Motherboard chipset: Intel Z890

Motherboard chipset family: Intel

Memory

Intel Extreme Memory Profile (XMP) version: 3.0

Memory channels: Dual-channel

Supported memory types: DDR5-SDRAM

Unbuffered memory: Yes

Memory slots type: DIMM

Number of memory slots: 4

Maximum internal memory: 256 GB

ECC сompatibility: Non-ECC

Weight & dimensions

Depth: 244 mm

Width: 305 mm

Network

Wi-Fi standards: IEEE 802.11g, IEEE 802.11a, IEEE 802.11be, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11n, 802.11 axe, IEEE 802.11ax

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Wi-Fi: Yes

Wi-Fi frequency: 2,4 Ghz / 5 GHz / 6 GHz

Ethernet LAN: Yes

LAN controller: Killer E3100G

Wireless statistics: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Internal I/O

Number of SATA III connectors: 4

TPM connector: Yes

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Thunderbolt headers: 1

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: 2

RGB LED pin header: Yes

Pump connector: 1

AIO pump fan connector: 1

Chassis fan connector (4-pin): 4

8-pin power connector 12 V: 2

Number of USB 3.2 Gen 2x2 (3.1 Gen 2x2) Type-C ports : 1

BIOS

BIOS type: UEFI AMI

Packaging content

Cables included: SATA III 2 pcs., ARGB Splitter Cable x 1, Thermistor Cable x 1

Motherboard: Yes

Wi-Fi antenna: Yes

Antennas quantity: 2

Storage controllers

Supported storage drive interfaces: M.2, SATA III

RAID levels: 10, 0, 1, 5

Supported storage drive types: HDD & SSD

RAID support: Yes

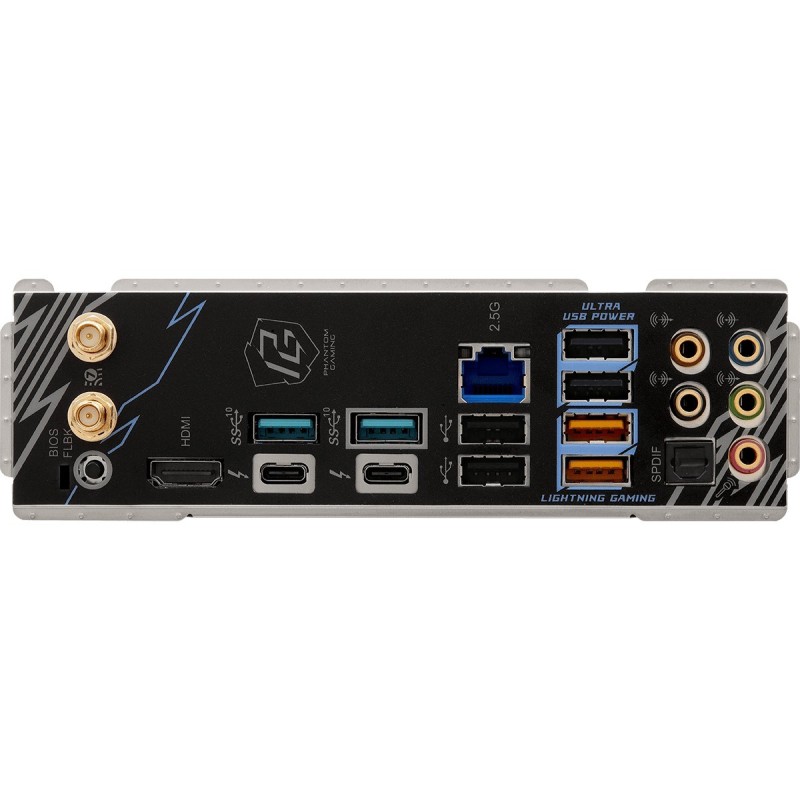

Rear panel I/O ports

Number of antenna connectors: 2

USB 2.0 Type-A ports quantity: 2

Headphone outputs: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

Ethernet LAN (RJ-45) ports: 1

HDMI ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

Microphone in: Yes

Number of Thunderbolt 4 USB-C ports: 2

SPDIF optical output: Y

Expansion slots

Number of M.2 (M) slots: 1

PCI Express x1 (Gen 3.x) slots: 1

PCI Express x16 (Gen 5.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

Certificates

Certificates: ErP/EuP ready, CE, FCC
