Płyta główna BIOSTAR TZ590-BTC DUO

Περιγραφή

Processor

Supported processor sockets: LGA 1200 (Socket H5)

Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®

Processor socket: LGA 1200 (Socket H5)

Processor manufacturer: Intel

Graphics

Parallel processing technology support: Not supported

Features

Motherboard chipset: Intel H510

Audio output channels: 7.1 channels

Motherboard form factor: micro ATX

Windows operating systems supported: Windows 10 x64

Motherboard chipset family: Intel

Memory

Number of memory slots: 2

Memory slots type: DIMM

Supported memory clock speed (max): 3200 MHz

Supported memory types: DDR4-SDRAM

Maximum internal memory: 64 GB

Unbuffered memory: Yes

Supported memory clock speeds: 2666, 2400, 2800, 3000, 2933, 2133, 3200 MHz

Memory channels: Dual-channel

ECC сompatibility: Non-ECC

Weight & dimensions

Width: 226 mm

Depth: 211 mm

Network

Ethernet interface type: Gigabit Ethernet

Ethernet LAN: Yes

Wi-Fi: No

Internal I/O

Audio connector: Yes

12V power connector: Yes

RGB LED pin header: Yes

Number of chassis fan connectors: 2

USB 2.0 connectors: 3

Number of SATA III connectors: 4

EPS power connector (8-pin): Yes

Front panel audio connector: Yes

TPM connector: Yes

Number of COM connectors: 1

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

ATX Power connector (24-pin): Yes

S/PDIF out connector: Yes

CPU fan connector: Yes

BIOS

BIOS type: UEFI AMI

Packaging data

Package weight: 1.03 kg

Package width: 260 mm

Package height: 51.5 mm

Package depth: 270 mm

Packaging content

Cables included: SATA

Storage controllers

Number of HDDs supported: 4

Supported storage drive types: HDD & SSD

Number of storage drives supported: 5

Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports

Line-in: Yes

DisplayPorts quantity: 1

PS/2 ports quantity: 2

Microphone in: Yes

Headphone outputs: 1

Ethernet LAN (RJ-45) ports: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

HDMI ports quantity: 1

VGA (D-Sub) ports quantity: 1

USB 2.0 ports quantity: 2

Expansion slots

Number of M.2 (M) slots: 1

PCI Express x1 (Gen 3.x) slots: 2

Safety warning

Warnings: Avoid contact with liquids to prevent damage to electronic components., Do not make changes or modifications to the appliance, which may void the warranty or cause damage., Be careful when assembling to avoid damage to electronic components caused by electrostatic discharge.

Τρόποι Αποστολής

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

Σχετικά Προϊόντα

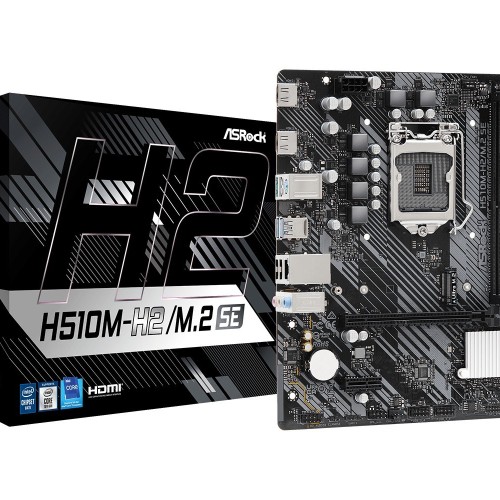

ASRock H510M-H2/M.2 SE motherboard

ProcessorProcessor manufacturer: IntelMaximum number of SMP processors: 1Compatible processor series: Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i..

60,78€

Χωρίς ΦΠΑ:49,02€

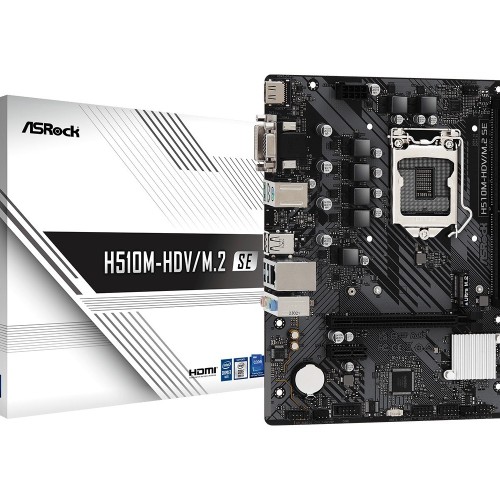

Asrock H510M-HDV/M.2 SE motherboard

ProcessorMaximum number of SMP processors: 1Processor manufacturer: IntelCompatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i..

62,02€

Χωρίς ΦΠΑ:50,01€

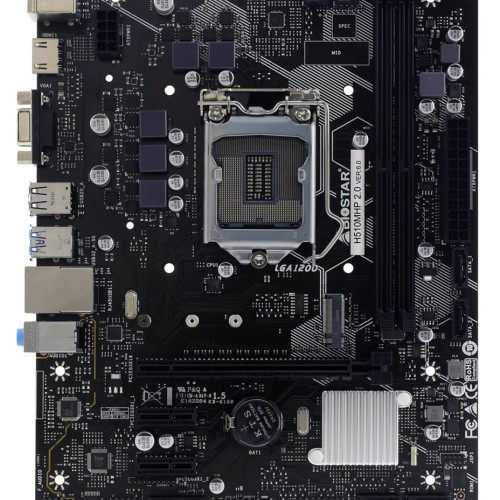

Biostar H510MHP 2.0 motherboard Intel H510 LGA 1200 (Socket H5) micro ATX

ProcessorProcessor socket: LGA 1200 (Socket H5)Compatible processor series: Intel® Core™ i5, Intel® Celeron®, Intel® Pentium®, Intel® Core™ i7, Intel®..

58,65€

Χωρίς ΦΠΑ:47,30€

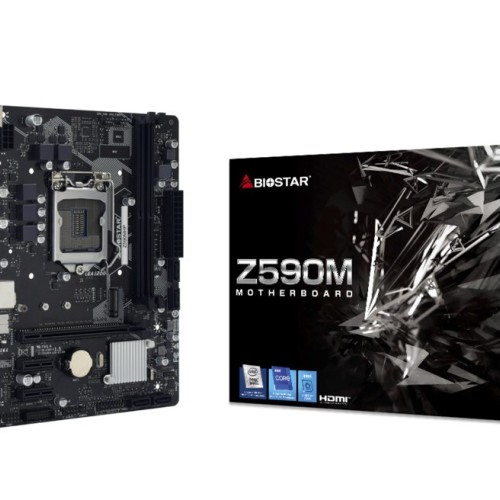

Biostar Z590MHP Intel Z590 LGA 1200 (Socket H5) micro ATX
