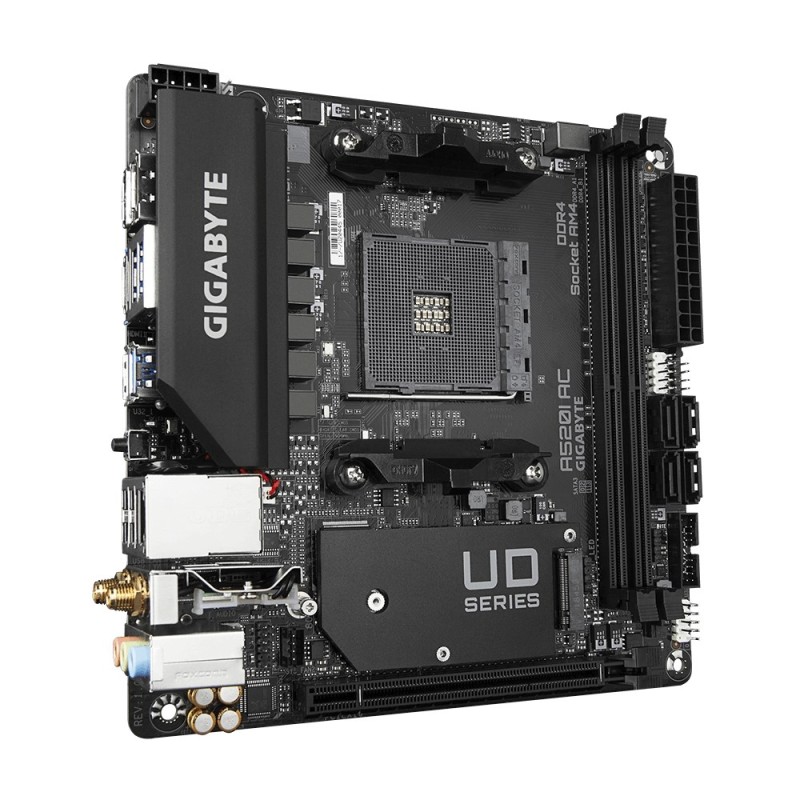

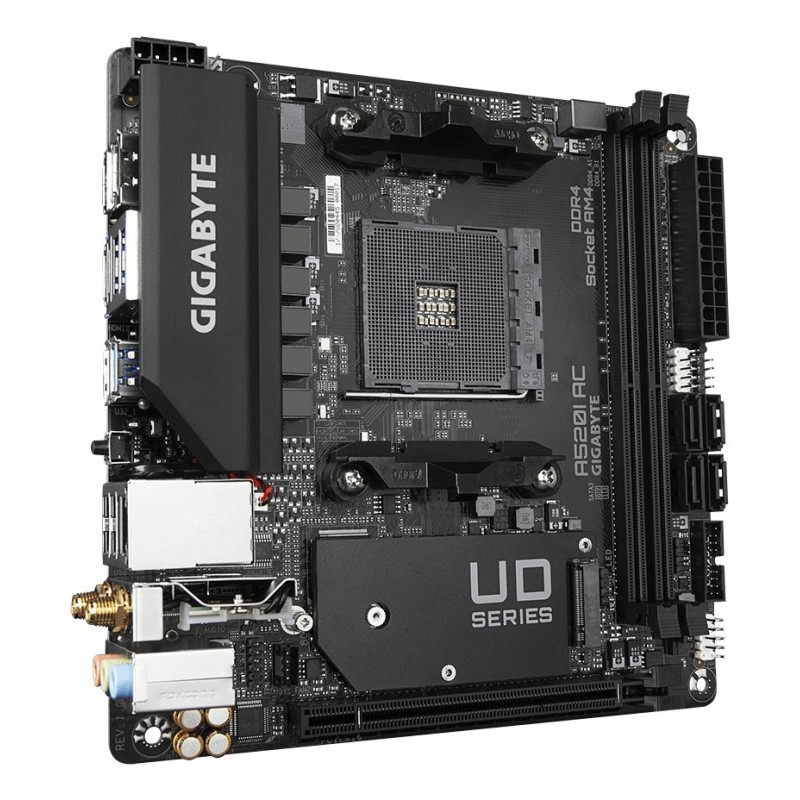

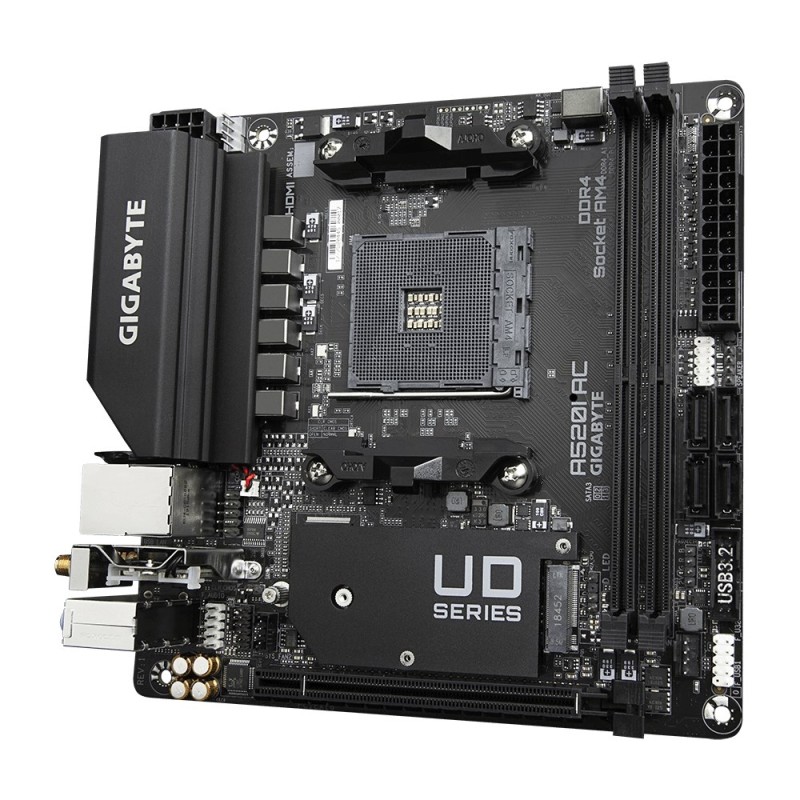

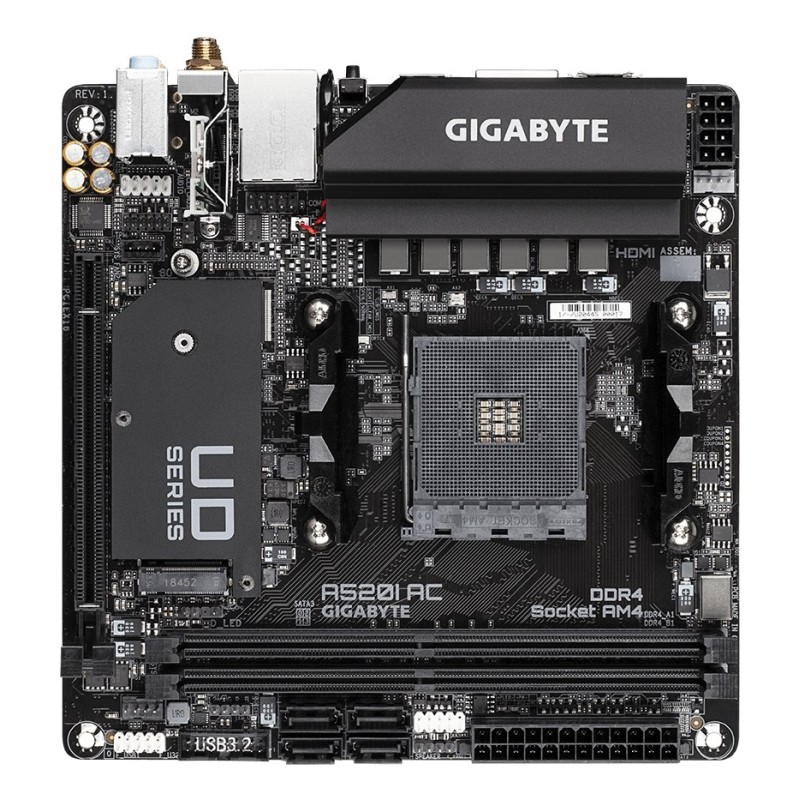

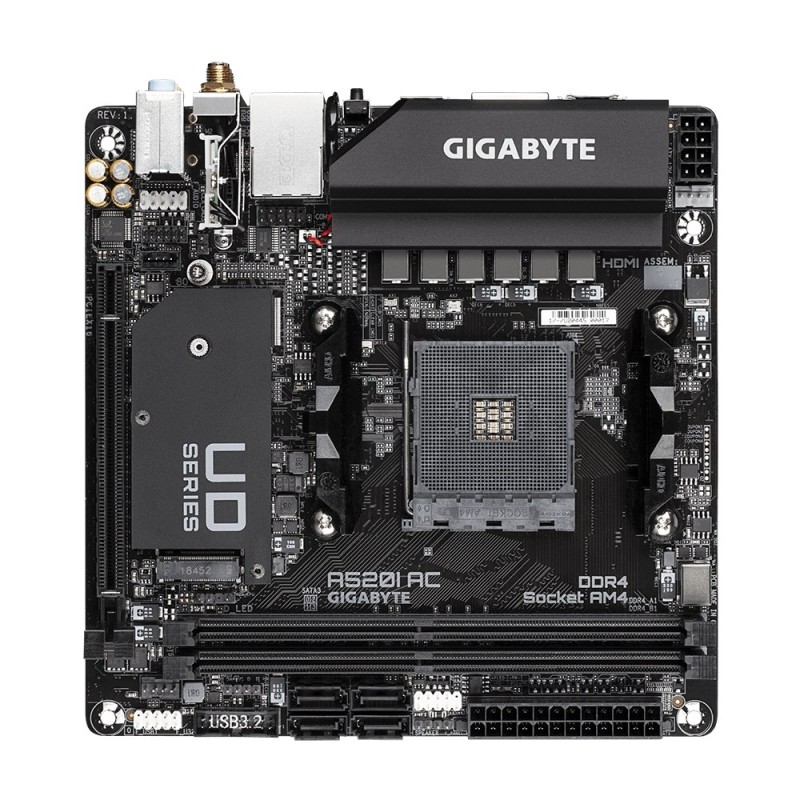

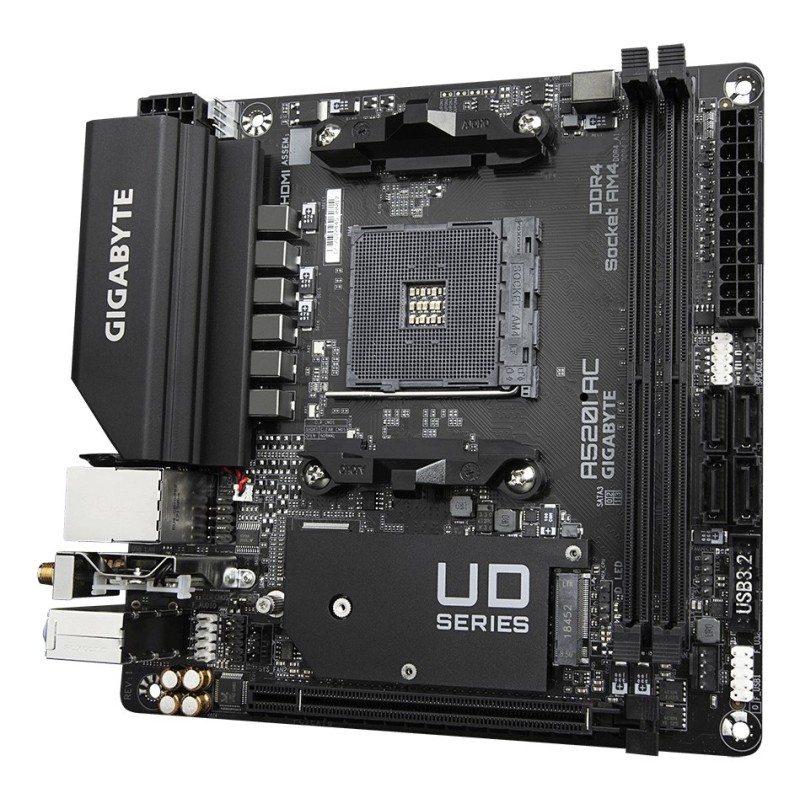

GIGABYTE A520I AC Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 6 Phases Digital VRM, up to 5300MHz DDR4 (OC), 1xPCIe 3.0 M.2, WIFI, GbE LAN, USB 3.2 Gen1

Περιγραφή

Technical details

Warranty period: 3 year(s)

Processor

Maximum internal memory supported by processor: 64 GB

Processor socket: Socket AM4

Compatible processor series: AMD Ryzen 3000 Series

Processor manufacturer: AMD

Supported processor sockets: Socket AM4

Graphics

Number of displays supported: 3

On-board graphics card: No

Maximum resolution: 5120 x 2880 pixels

DirectX version: 12.0

HDCP: Yes

Parallel processing technology support: Not supported

Features

Windows operating systems supported: Windows 11 x64, Windows 10 x64

Product colour: Black

Motherboard form factor: mini ITX

PC health monitoring: Temperature, Voltage, Fan

Audio chip: Realtek ALC887

Motherboard chipset: AMD A520

Motherboard chipset family: AMD

Audio output channels: 7.1 channels

Memory

Memory channels: Dual-channel

Memory slots type: DIMM

Supported memory types: DDR4-SDRAM

Number of memory slots: 2

Unbuffered memory: Yes

Supported memory module capacities: 16GB, 8GB, 32GB, 1GB, 2GB, 4GB, 12GB

Supported memory clock speeds: 4866, 3200 MHz, 4000, 5100, 2667, 4400, 5000, 2400, 2133, 3333, 4600, 5200, 2933, 3600

Maximum internal memory: 64 GB

Supported memory clock speed (max): 5300 MHz

ECC сompatibility: ECC & Non-ECC

Weight & dimensions

Height: 35 mm

Depth: 170 mm

Width: 170 mm

Network

Wi-Fi: Yes

Ethernet interface type: Gigabit Ethernet

Top Wi-Fi standard: Wi-Fi 5 (802.11ac)

Wi-Fi standards: 802.11b, Wi-Fi 4 (802.11n), 802.11g, Wi-Fi 5 (802.11ac), 802.11a

Ethernet LAN: Yes

Bluetooth version: 4.2

Bluetooth: Yes

Internal I/O

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Total number of SATA connectors: 4

Serial port headers: 1

RGB LED pin header: Yes

Audio connector: Yes

ATX Power connector (24-pin): Yes

Power fan connector: Yes

TPM connector: Yes

Front panel connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

USB 2.0 connectors: 1

Front panel audio connector: Yes

Number of SATA III connectors: 4

BIOS

BIOS type: UEFI AMI

Desktop Management Interface (DMI) version: 2.7

Clear CMOS jumper: Yes

Packaging data

Package width: 222 mm

Package depth: 189 mm

Package height: 78 mm

Package weight: 800 g

Packaging content

Batteries included: Yes

Storage controllers

Number of HDDs supported: 4

RAID levels: 1, 10, 0

Number of storage drives supported: 5

Supported storage drive interfaces: M.2, SATA III

RAID support: Yes

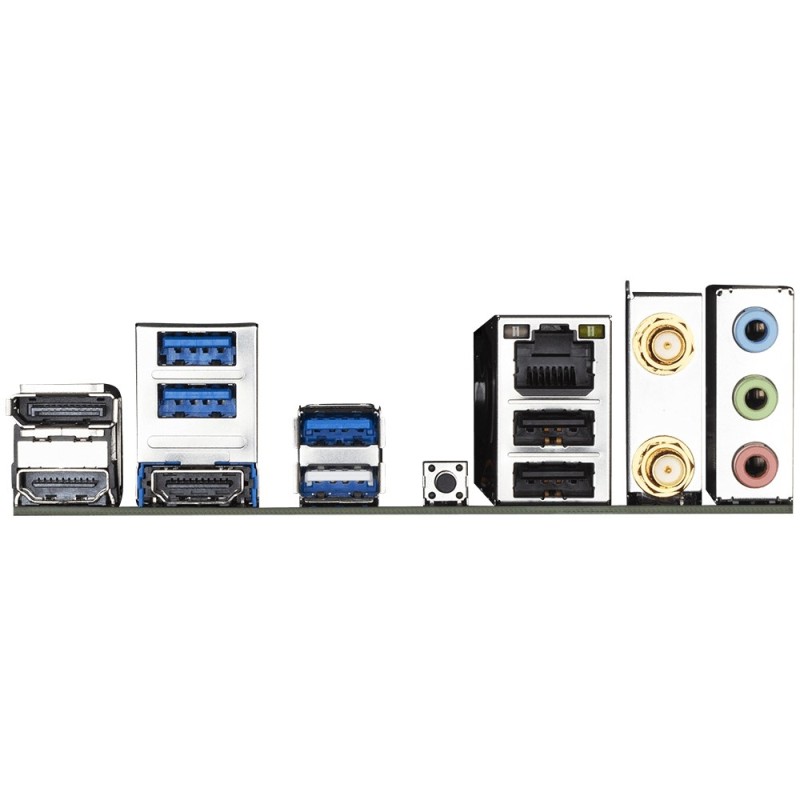

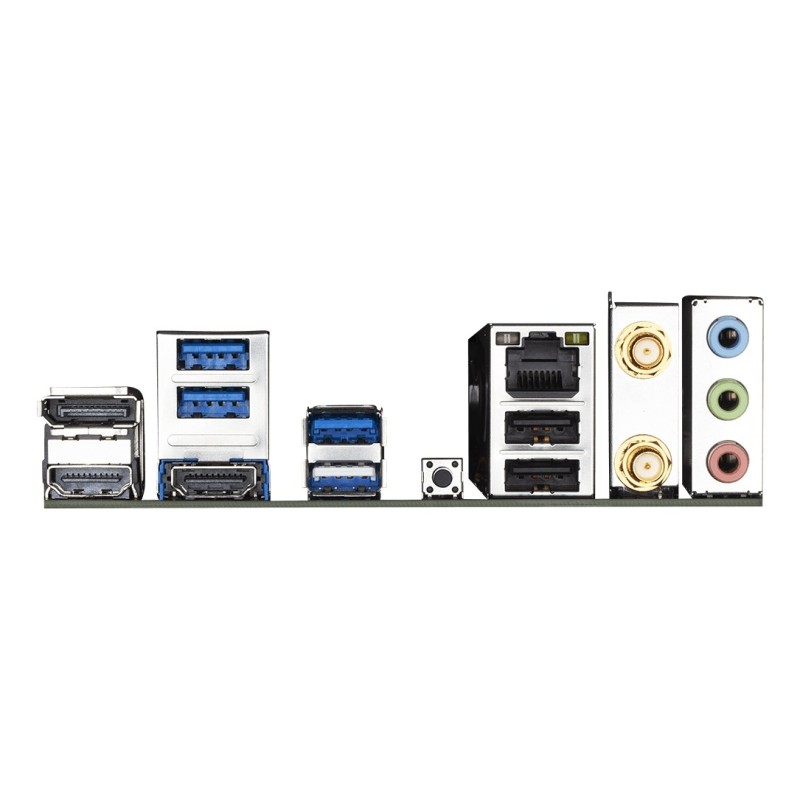

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

Headphone outputs: 3

WiFi-AP antenna jack: 2

HDMI version: 2.1

HDMI ports quantity: 2

USB 2.0 ports quantity: 2

DisplayPort version: 1.4

DisplayPorts quantity: 1

Ethernet LAN (RJ-45) ports: 1

Expansion slots

Number of M.2 (M) slots: 1

PCI Express x16 slots: 1

Battery

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

Battery weight: 3 g

Number of battery cells: 1

Lithium weight per battery: 0.07 g

Logistics data

Products per shipping (inner) case: 1 pc(s)

Country of origin: China

Safety warning

Warnings: Avoid direct contact with sensitive electronic components., Dispose of according to local electro-waste regulations., Store away from water and sources of moisture.
