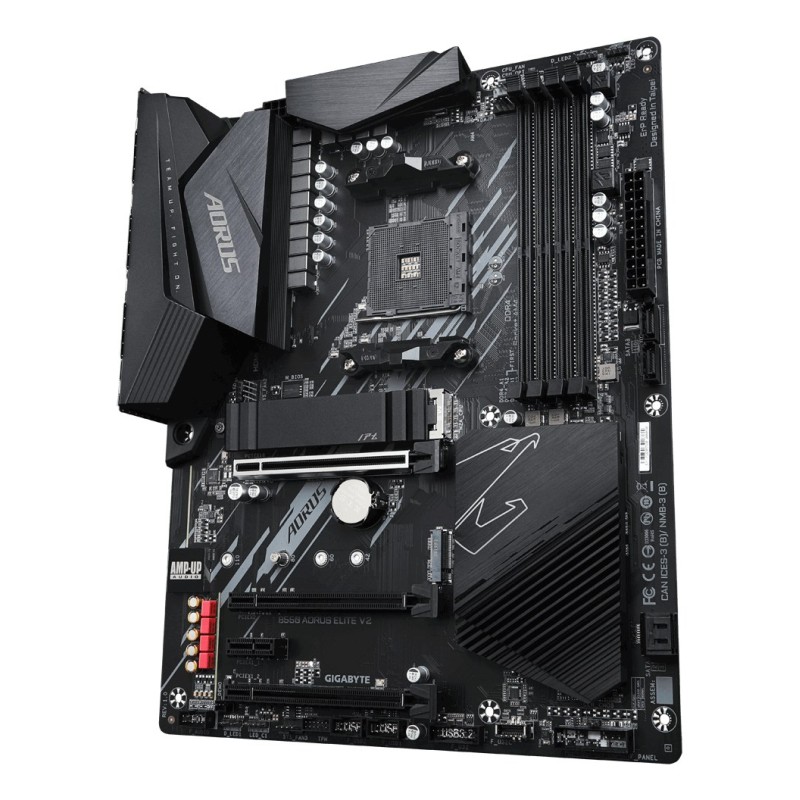

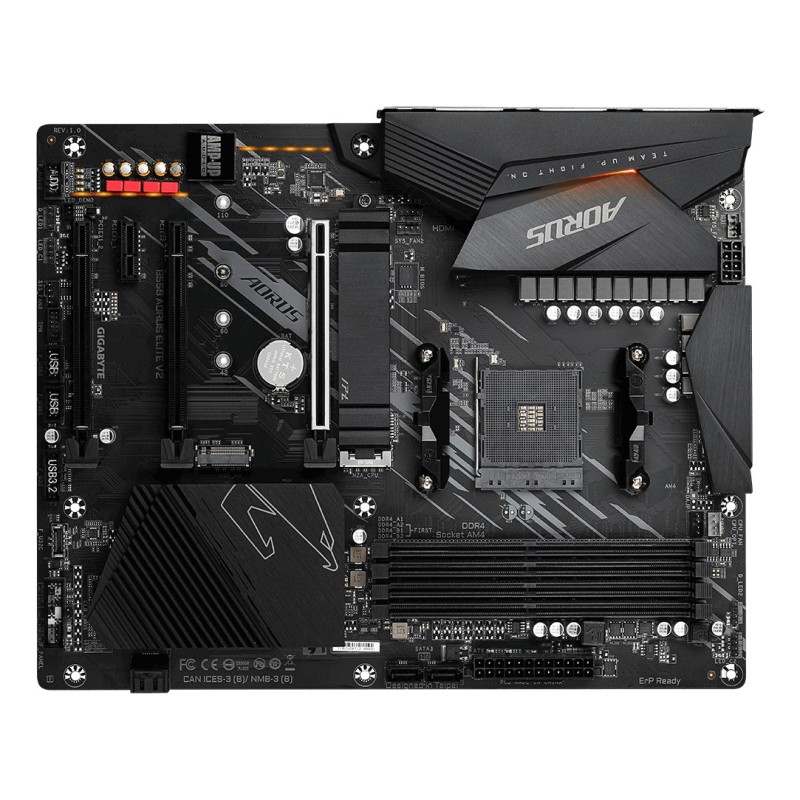

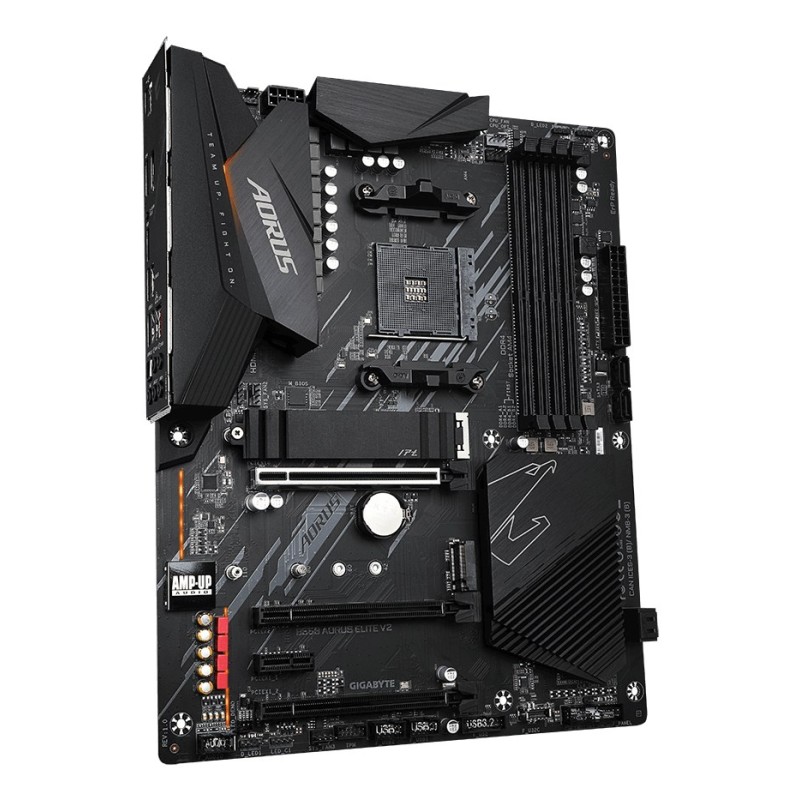

GIGABYTE B550 AORUS ELITE V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 12+2 Phases Digital Twin Power Design, up to 4733MHz DDR4 (OC), 2xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen1

Περιγραφή

Technical details

Warranty period: 3 year(s)

Processor

Processor manufacturer: AMD

Compatible processor series: AMD Ryzen 3000 Series

Supported processor sockets: Socket AM4

Maximum number of SMP processors: 1

Maximum internal memory supported by processor: 128 GB

Processor socket: Socket AM4

Graphics

Parallel processing technology support: Not supported

DirectX version: 12.0

Graphics card family: AMD

Features

Motherboard chipset family: AMD

Audio output channels: 7.1 channels

Audio chip: Realtek ALC1200

Motherboard chipset: AMD B550

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Product colour: Black

Motherboard form factor: ATX

Memory

Supported memory module capacities: 8GB, 2GB, 4GB, 16GB, 12GB, 1GB, 32GB

Unbuffered memory: Yes

Supported memory clock speeds: 2667, 2400, 2133, 3200, 2933

Memory channels: Dual-channel

Maximum internal memory: 128 GB

ECC сompatibility: ECC & Non-ECC

Number of memory slots: 4

Memory slots type: DIMM

Supported memory types: DDR4-SDRAM

Supported memory clock speed (max): 4733 MHz

Weight & dimensions

Width: 305 mm

Height: 35 mm

Depth: 244 mm

Network

LAN controller: Realtek RTL8125

Ethernet LAN: Yes

Ethernet interface type: Gigabit Ethernet, 2.5 Gigabit Ethernet

Wi-Fi: No

Internal I/O

CPU fan connector: Yes

Front panel audio connector: Yes

Total number of SATA connectors: 4

TPM connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

ATX Power connector (24-pin): Yes

Number of SATA III connectors: 4

EPS power connector (8-pin): Yes

Front panel connector: Yes

USB 2.0 connectors: 2

RGB LED pin header: Yes

12V power connector: Yes

BIOS

Clear CMOS jumper: Yes

BIOS type: UEFI AMI

Desktop Management Interface (DMI) version: 2.7

Packaging data

Package weight: 1.8 kg

Package width: 335 mm

Package depth: 270 mm

Package height: 80 mm

Packaging content

Batteries included: Yes

Storage controllers

RAID support: Yes

Supported storage drive interfaces: M.2, SATA III

RAID levels: 10, 0, 1

Number of storage drives supported: 6

Supported storage drive types: HDD & SSD

Number of HDDs supported: 4

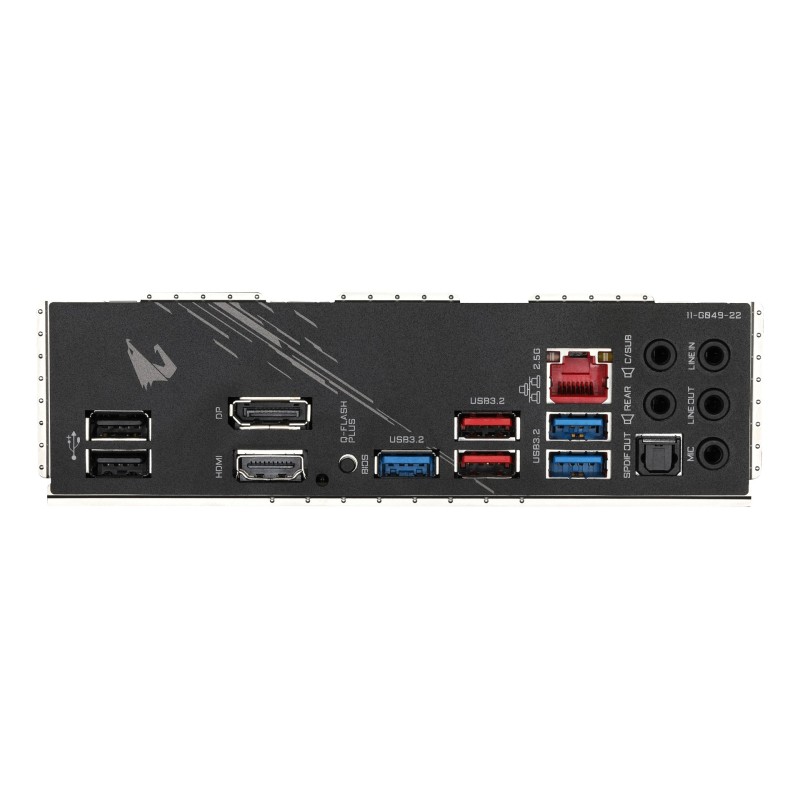

Rear panel I/O ports

Ethernet LAN (RJ-45) ports: 1

USB 2.0 ports quantity: 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

S/PDIF out port: Yes

DisplayPorts quantity: 1

Microphone in: Yes

Headphone outputs: 1

Expansion slots

Number of M.2 (M) slots: 2

PCI Express x16 slots: 2

PCI Express x1 (Gen 2.x) slots: 1

PCI Express x1 (Gen 3.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

Battery

Battery type: CR2032

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Number of battery cells: 1

Other features

Weight: 1.12 kg

Logistics data

Country of origin: China

Harmonized System (HS) code: 84733020

Products per shipping (inner) case: 1 pc(s)
