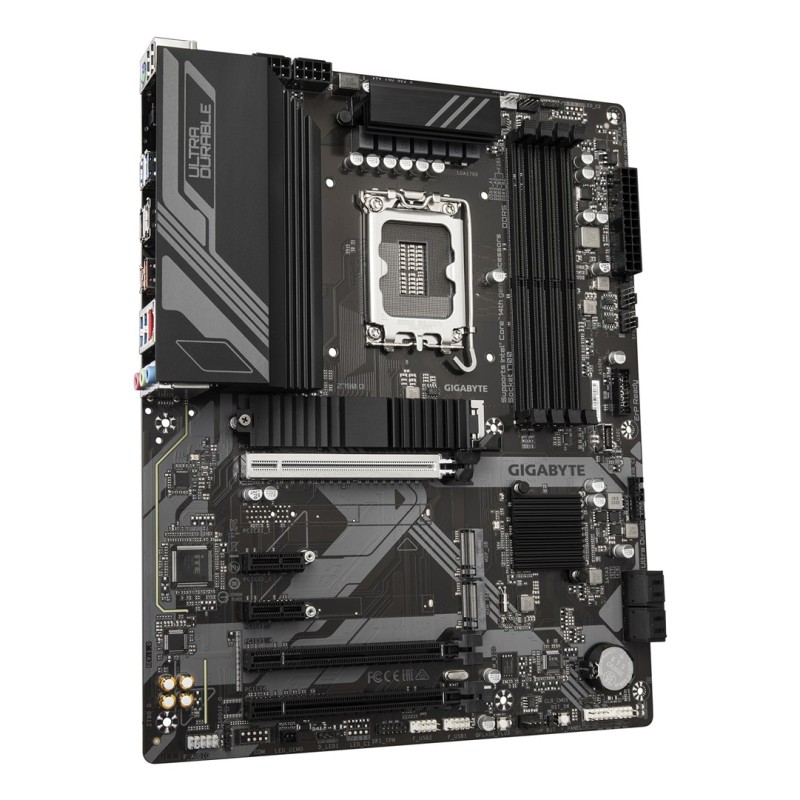

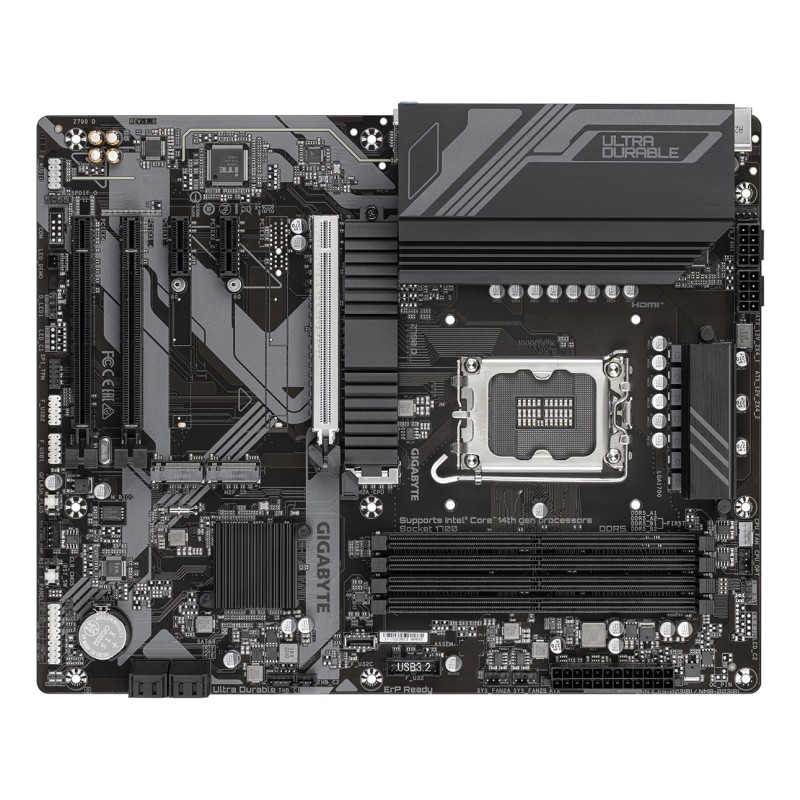

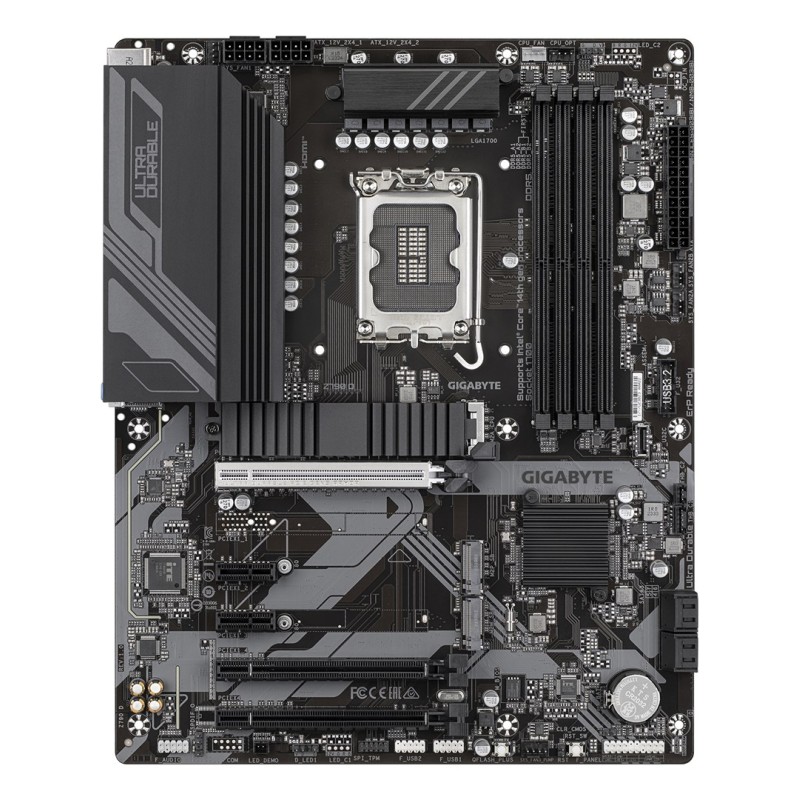

GIGABYTE Z790 D Motherboard - Supports Intel Core 14th Gen CPUs, 12+1+１ Phases Digital VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2

Περιγραφή

Technical details

Warranty period: 3 year(s)

Processor

Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®

Maximum number of SMP processors: 1

Maximum internal memory supported by processor: 192 GB

Supported processor sockets: LGA 1700

Processor socket: LGA 1700

Processor manufacturer: Intel

Graphics

Maximum resolution: 4096 x 2304 pixels

Parallel processing technology support: Not supported

HDCP: Yes

DirectX version: 12.0

Features

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Motherboard form factor: ATX

Motherboard chipset family: Intel

Power source type: ATX

PC health monitoring: Voltage, Water cooling, Temperature, Fan

Audio output channels: 7.1 channels

Audio chip: Realtek ALC897

Motherboard chipset: Intel Z790 Express

Product colour: Bronze

Memory

Memory slots type: DIMM

Supported memory clock speed (max): 7600 MHz

Supported memory types: DDR5-SDRAM

Memory channels: Dual-channel

Number of memory slots: 4

ECC сompatibility: ECC & Non-ECC

Supported memory module capacities: 32GB, 16GB, 12GB, 48GB, 8GB, 1GB, 2GB, 4GB

Supported memory clock speeds: 4800, 7400, 6800, 6000, 7000, 6400, 4400, 7600, 5800, 5400, 6200, 5200, 6600, 5600, 7200

Unbuffered memory: Yes

Maximum internal memory: 192 GB

Weight & dimensions

Depth: 244 mm

Width: 305 mm

Height: 35 mm

Network

Wi-Fi: No

Ethernet interface type: 2.5 Gigabit Ethernet

Ethernet LAN: Yes

Internal I/O

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

RGB LED pin header: Yes

Front panel audio connector: Yes

Front panel connector: Yes

Number of SATA III connectors: 4

Number of EATX power connectors: 2

Total number of SATA connectors: 4

12V power connector: Yes

TPM connector: Yes

EPS power connector (8-pin): Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

CPU fan connector: Yes

USB 2.0 connectors: 2

ATX Power connector (24-pin): Yes

Thunderbolt headers: 2

BIOS

Desktop Management Interface (DMI) version: 2.7

Clear CMOS jumper: Yes

Clear CMOS button: Yes

BIOS type: UEFI AMI

Packaging data

Package weight: 1.8 kg

Package depth: 270 mm

Package width: 335 mm

Package height: 80 mm

Packaging content

Batteries included: Yes

Cables included: SATA

Antenna included: Yes

Storage controllers

Number of HDDs supported: 4

RAID levels: 5, 1, 0, 10

RAID support: Yes

Number of storage drives supported: 7

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III

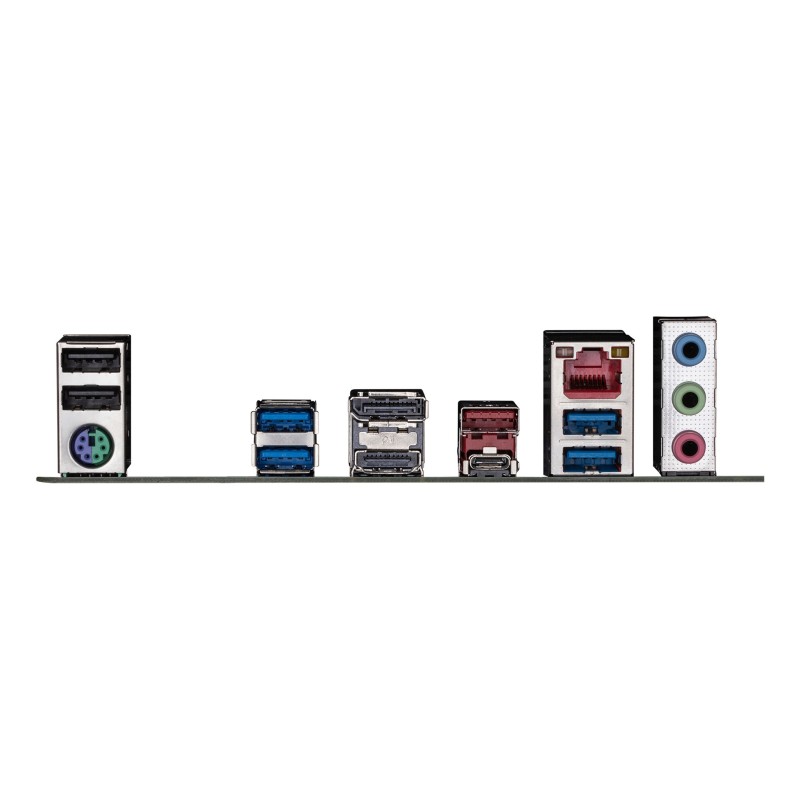

Rear panel I/O ports

USB 3.2 Gen 2x2 Type-C ports quantity: 1

Microphone in: Yes

USB connector type: USB Type-C, USB Type-A

Headphone outputs: 1

WiFi-AP antenna jack: 2

Ethernet LAN (RJ-45) ports: 1

DisplayPorts quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

HDMI ports quantity: 1

USB 2.0 ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

HDMI version: 2.1

DisplayPort version: 1.2

S/PDIF out port: Yes

Expansion slots

Number of M.2 (M) slots: 3

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x16 (Gen 3.x) slots: 1

PCI Express x1 (Gen 3.x) slots: 2

PCI Express x16 (Gen 5.x) slots: 1

Battery

Battery weight: 3 g

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Number of battery cells: 1

Battery type: CR2032

Lithium weight per battery: 0.07 g

Logistics data

Products per shipping (inner) case: 1 pc(s)

Country of origin: China
