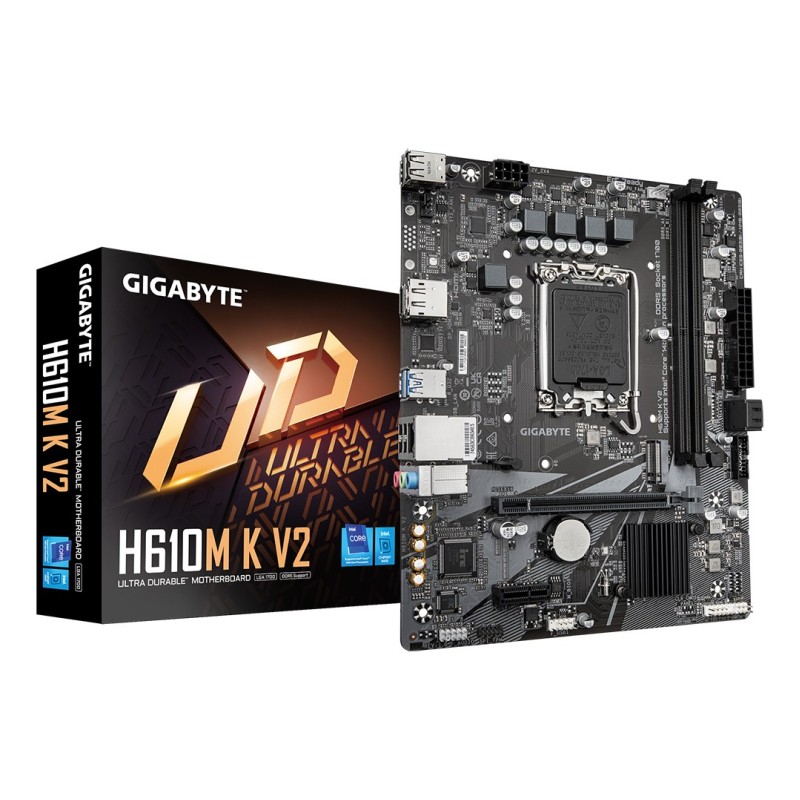

GIGABYTE H610M K V2 Motherboard - Intel Core 14th CPUs, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1

Περιγραφή

Technical details

Warranty period: 3 year(s)

Processor

Compatible processor series: Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i7 13th Gen, Intel Core i5 12th Gen, Intel Core i9 13th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen, Intel Core i7 14th Gen, Intel® Pentium® Gold, Intel Core i7 12th Gen, Intel Core i5 14th Gen, Intel® Celeron®, Intel Core i9 14th Gen, Intel Core i3 14th Gen

Processor manufacturer: Intel

Processor socket: LGA 1700

Supported processor sockets: LGA 1700

Graphics

HDCP: Yes

DirectX version: 12.0

Parallel processing technology support: Not supported

Maximum resolution: 4096 x 2160 pixels

Features

Product colour: Dark brown

Audio chip: Realtek ALC897

PC health monitoring: Temperature, Fan, Water cooling, Voltage

Audio output channels: 7.1 channels

Windows operating systems supported: Windows 11 x64, Windows 10 x64

Cooling type: Passive

Power source type: ATX

Motherboard chipset family: Intel

Motherboard chipset: Intel H610

Motherboard form factor: micro ATX

Memory

Memory channels: Dual-channel

Memory slots type: DIMM

Maximum internal memory: 128 GB

Supported memory types: DDR5-SDRAM

Number of memory slots: 2

Supported memory clock speeds: 5200, 4800, 4400, 5600

Unbuffered memory: Yes

Supported memory clock speed (max): 5600 MHz

ECC сompatibility: ECC & Non-ECC

Maximum internal memory per slot: 64 GB

Weight & dimensions

Width: 226 mm

Height: 35 mm

Depth: 185 mm

Network

Ethernet interface type: Gigabit Ethernet

Wi-Fi: No

Ethernet LAN: Yes

LAN controller: Realtek RTL8111H

Internal I/O

Front panel audio connector: Yes

Front panel connector: Yes

TPM connector: Yes

EPS power connector (8-pin): Yes

ATX Power connector (24-pin): Yes

Number of SATA III connectors: 2

CPU fan connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

USB 2.0 connectors: 1

Number of CPU fan connectors: 1

Number of EPS power connectors (8-pin): 1

BIOS

Desktop Management Interface (DMI) version: 2.7

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

Packaging data

Package weight: 723 g

Package width: 265 mm

Package height: 52 mm

Package depth: 235 mm

Packaging content

Batteries included: Yes

Screws included: Yes

Storage controllers

Number of storage drives supported: 3

Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III

Number of HDDs supported: 2

Supported storage drive types: HDD & SSD

Rear panel I/O ports

Ethernet LAN (RJ-45) ports: 1

DisplayPort version: 1.2

Headphone outputs: 1

HDMI ports quantity: 1

HDMI version: 2.1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

DisplayPorts quantity: 1

Line-in: Yes

USB 2.0 ports quantity: 4

Microphone in: Yes

Expansion slots

Number of M.2 (M) slots: 1

PCI Express x1 (Gen 3.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

1st M.2 largest key size: 2280

1st M.2 highest PCI Express generation: 3.0

Battery

Battery type: CR2032

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery weight: 3 g

Lithium weight per battery: 0.07 g

Other features

Weight: 650 g

Logistics data

Products per shipping (inner) case: 1 pc(s)
