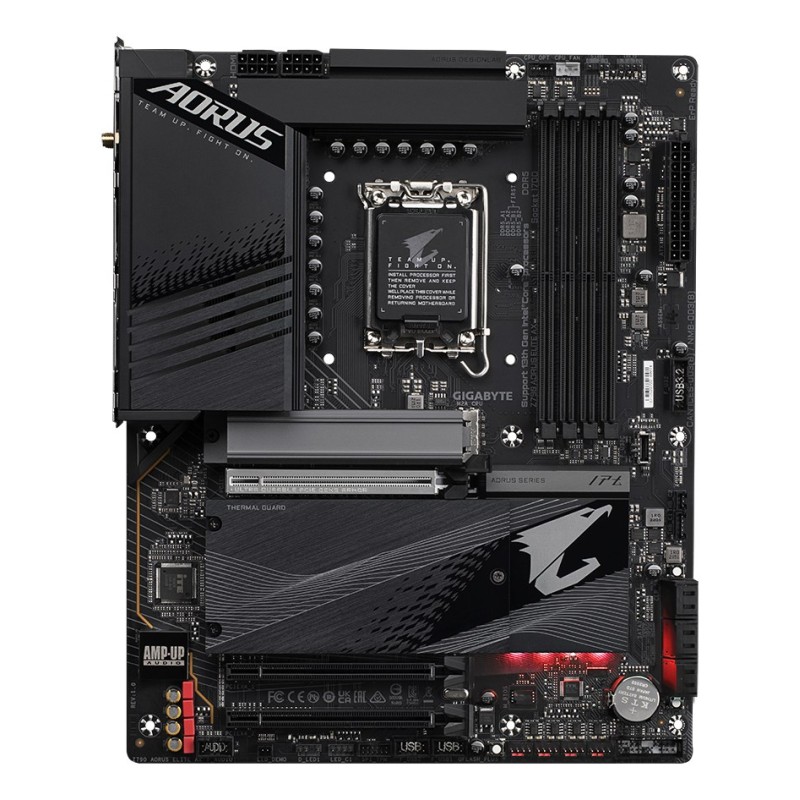

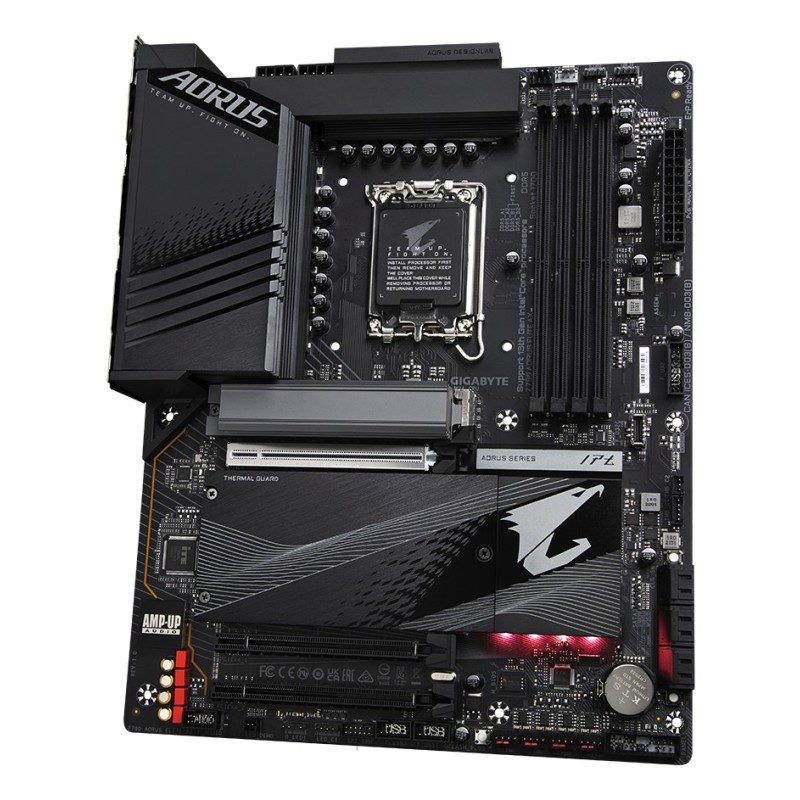

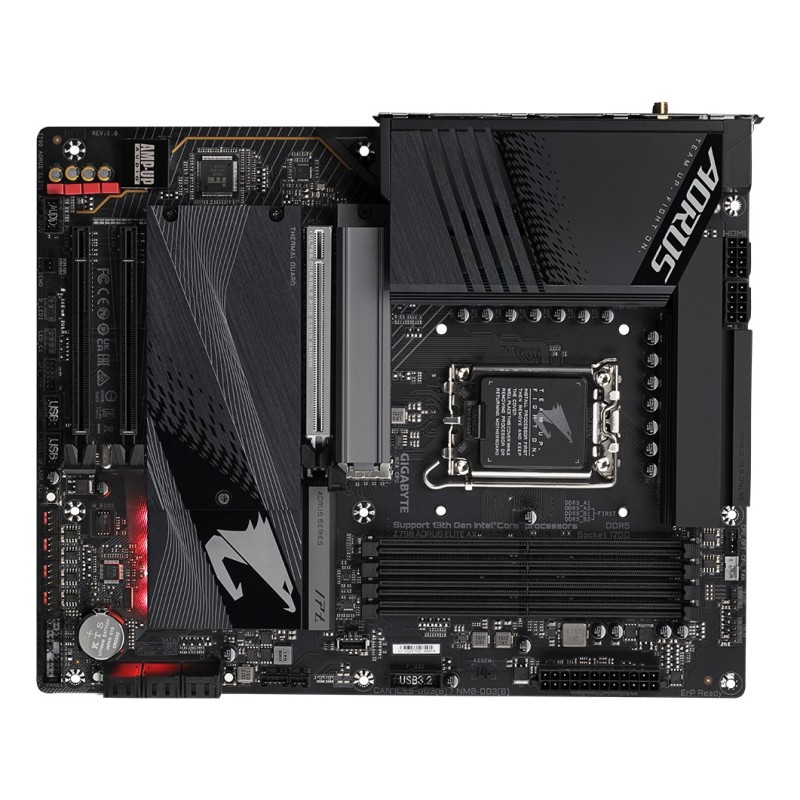

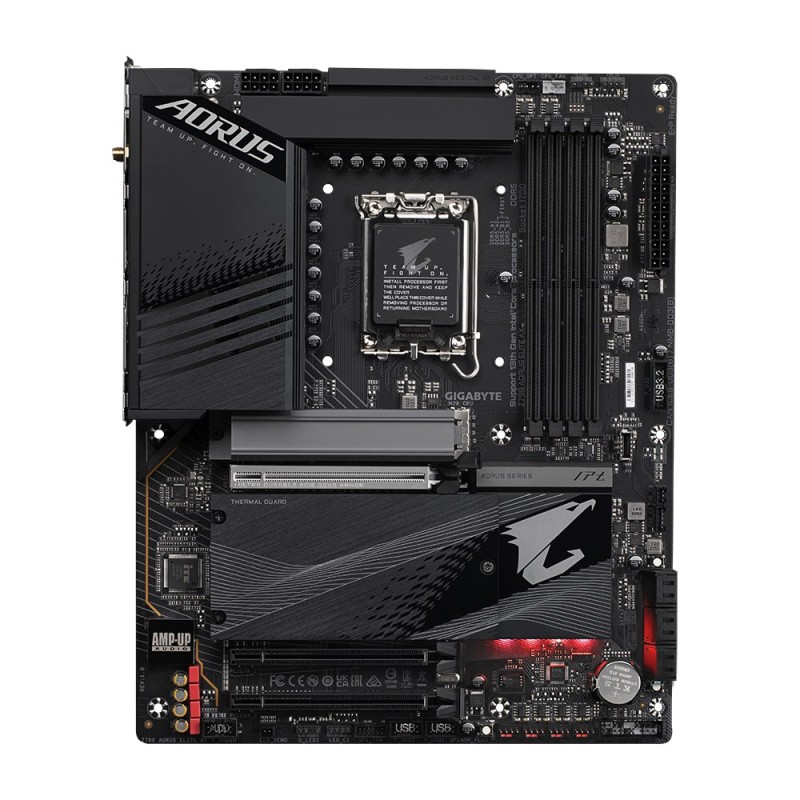

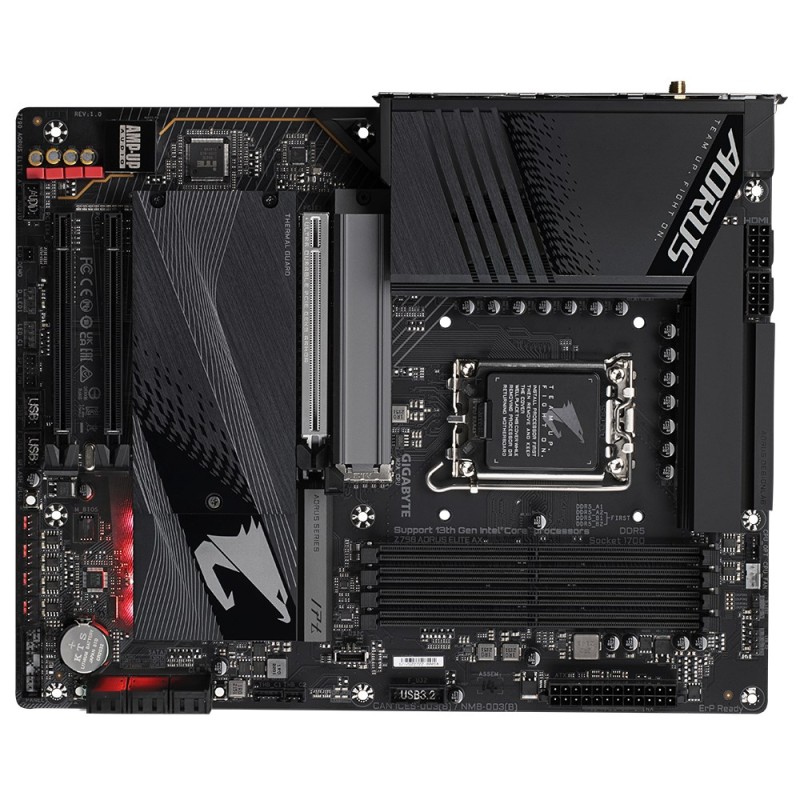

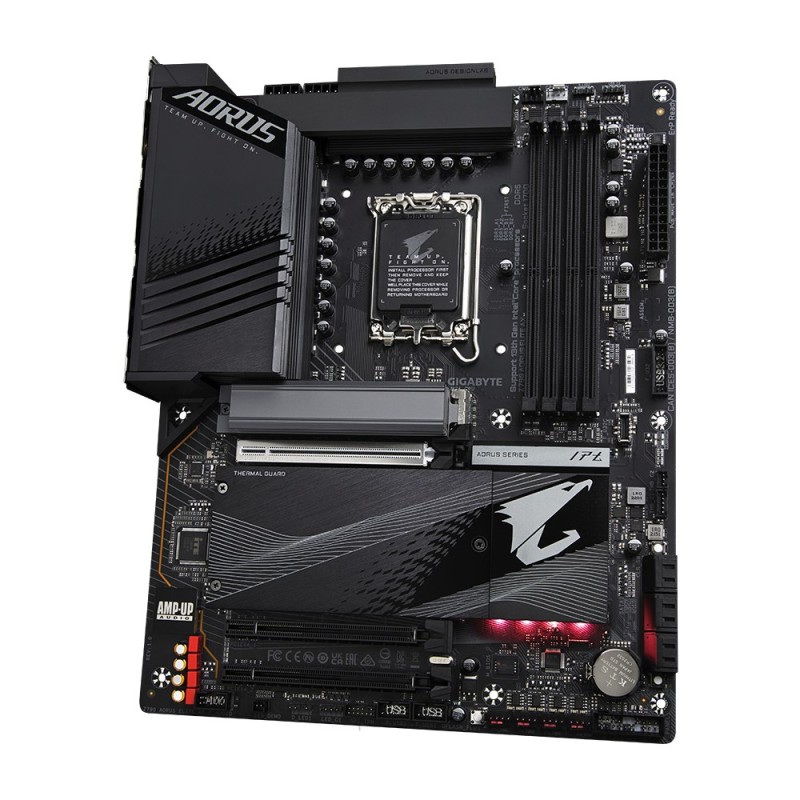

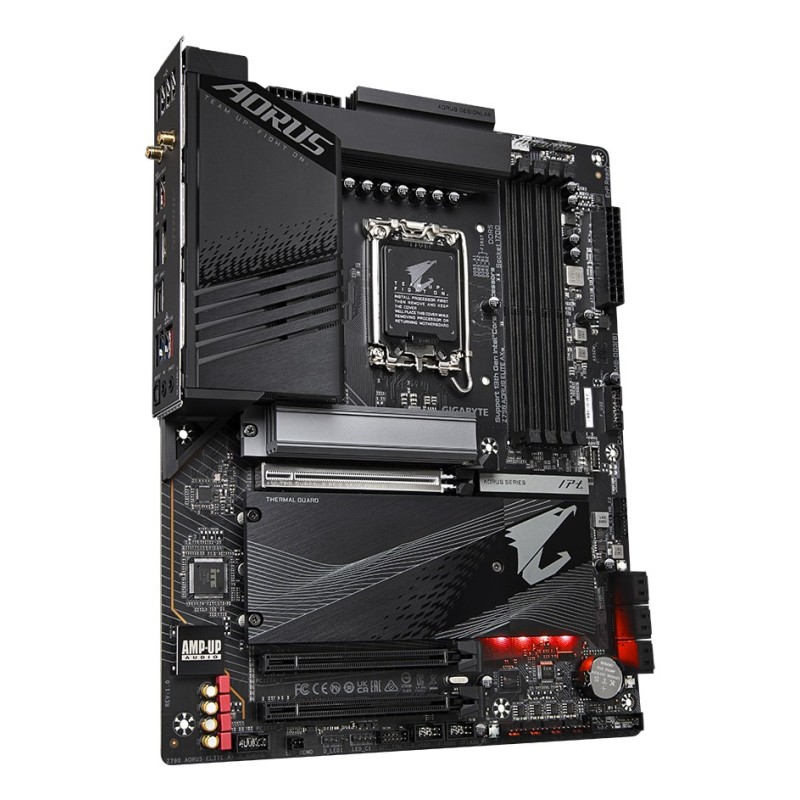

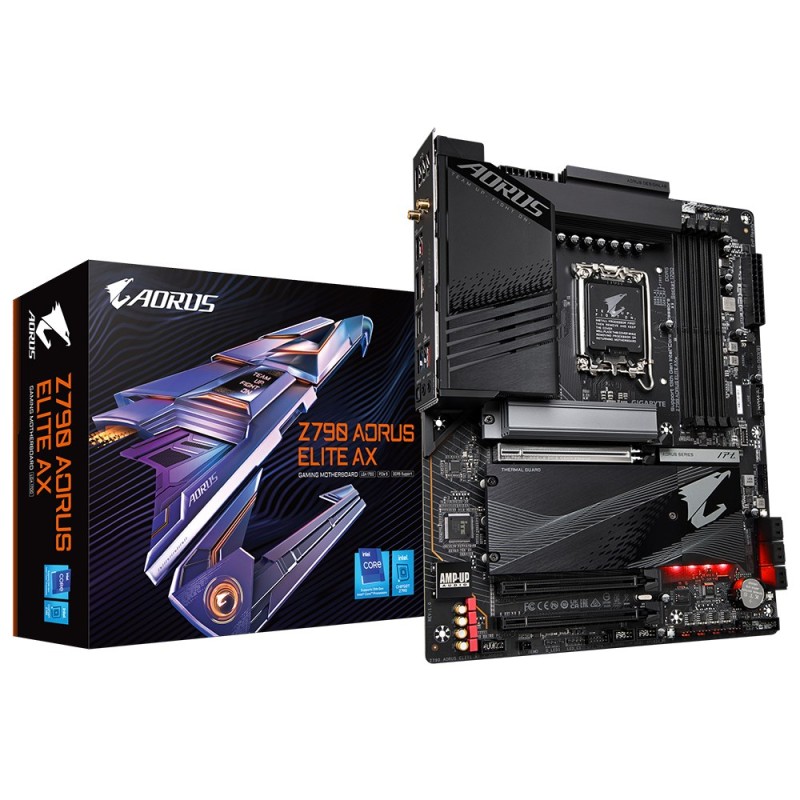

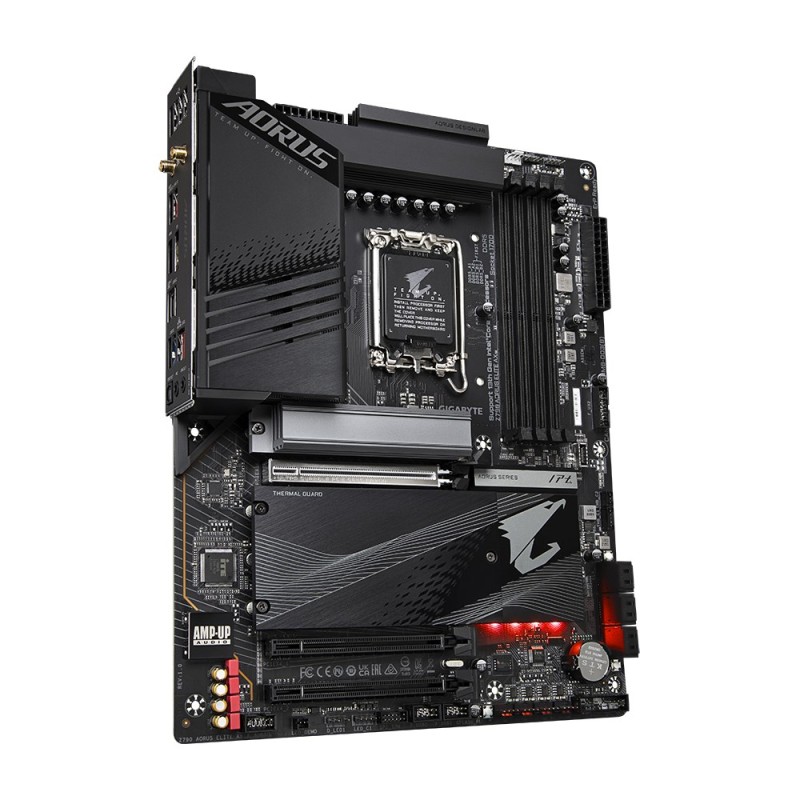

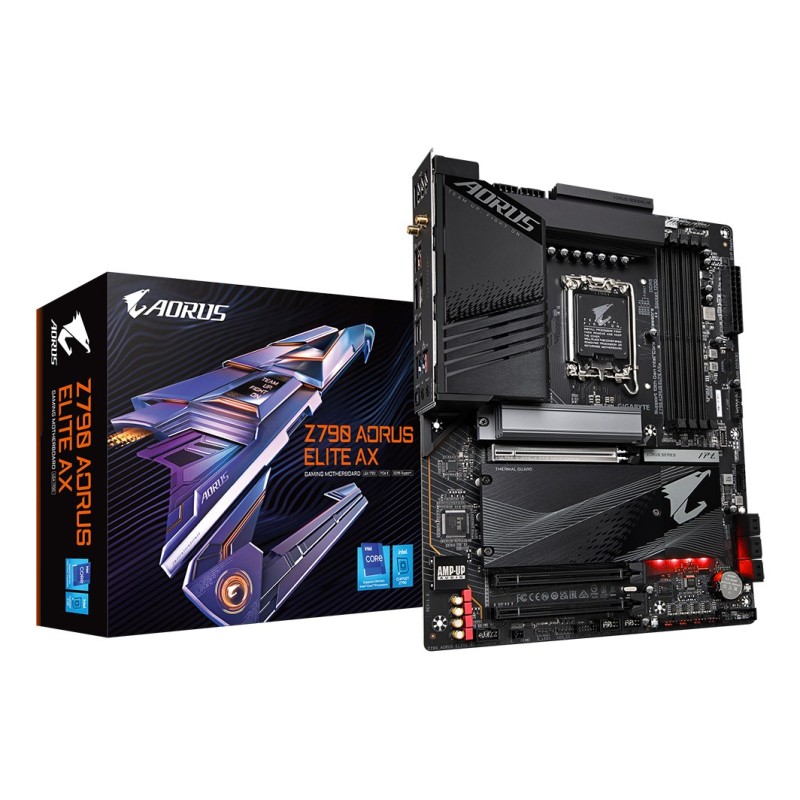

GIGABYTE Z790 AORUS ELITE AX Motherboard - Supports Intel Core 14th CPUs, 16*+2+１ Phases Digital VRM, up to 7600MHz DDR5 (OC), 4xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2x2

Περιγραφή

Technical details

Warranty period: 3 year(s)

Processor

Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®

Supported processor sockets: LGA 1700

Processor manufacturer: Intel

Maximum internal memory supported by processor: 192 GB

Processor socket: LGA 1700

Graphics

Maximum resolution: 4096 x 2304 pixels

HDCP: Yes

DirectX version: 12.0

On-board graphics card: No

Parallel processing technology support: CrossFire

Features

Product colour: Black

PC health monitoring: Water cooling, Voltage, Temperature, Fan

Motherboard form factor: ATX

Motherboard chipset family: Intel

Motherboard chipset: Intel Z790

Audio output channels: 7.1 channels

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Memory

Supported memory clock speeds: 6200, 7400, 5200, 4000, 4800, 7600, 6000, 7000, 6600, 5600, 7200, 6800, 6400, 5800, 5400

Unbuffered memory: Yes

Maximum internal memory: 192 GB

Number of memory slots: 4

Supported memory types: DDR5-SDRAM

Memory channels: Dual-channel

Memory slots type: DIMM

ECC сompatibility: ECC & Non-ECC

Supported memory clock speed (max): 7600 MHz

Weight & dimensions

Height: 35 mm

Width: 305 mm

Depth: 244 mm

Network

Bluetooth: Yes

Wi-Fi standards: Wi-Fi 6E (802.11ax), 802.11g, 802.11b, Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac)

WLAN controller model: Intel Wi-Fi 6E AX211

Wi-Fi: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Ethernet LAN: Yes

Bluetooth version: 5.3

Internal I/O

Number of SATA III connectors: 6

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Thunderbolt headers: 2

USB 2.0 connectors: 2

12V power connector: Yes

ATX Power connector (24-pin): Yes

EPS power connector (8-pin): Yes

Front panel audio connector: Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

Total number of SATA connectors: 6

RGB LED pin header: Yes

Front panel connector: Yes

CPU fan connector: Yes

TPM connector: Yes

BIOS

Clear CMOS jumper: Yes

BIOS type: UEFI AMI

Clear CMOS button: Yes

Desktop Management Interface (DMI) version: 2.7

Packaging data

Package height: 80 mm

Package weight: 2.32 kg

Package width: 335 mm

Package depth: 270 mm

Packaging content

Cables included: SATA

Batteries included: Yes

Storage controllers

Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III

RAID support: Yes

Supported storage drive types: HDD & SSD

RAID levels: 10, 0, 5, 1

Number of storage drives supported: 10

Number of HDDs supported: 6

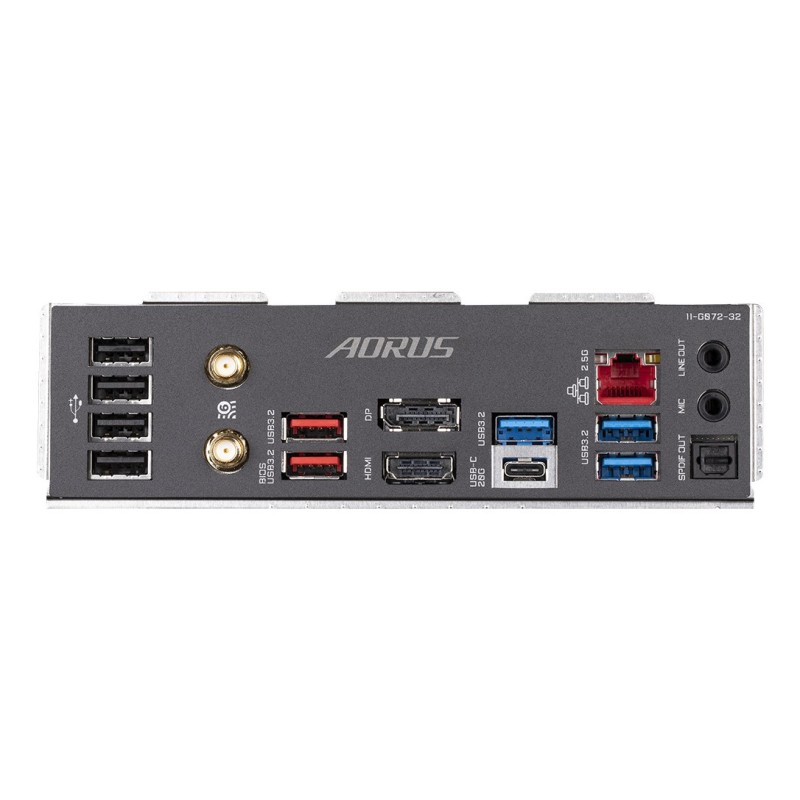

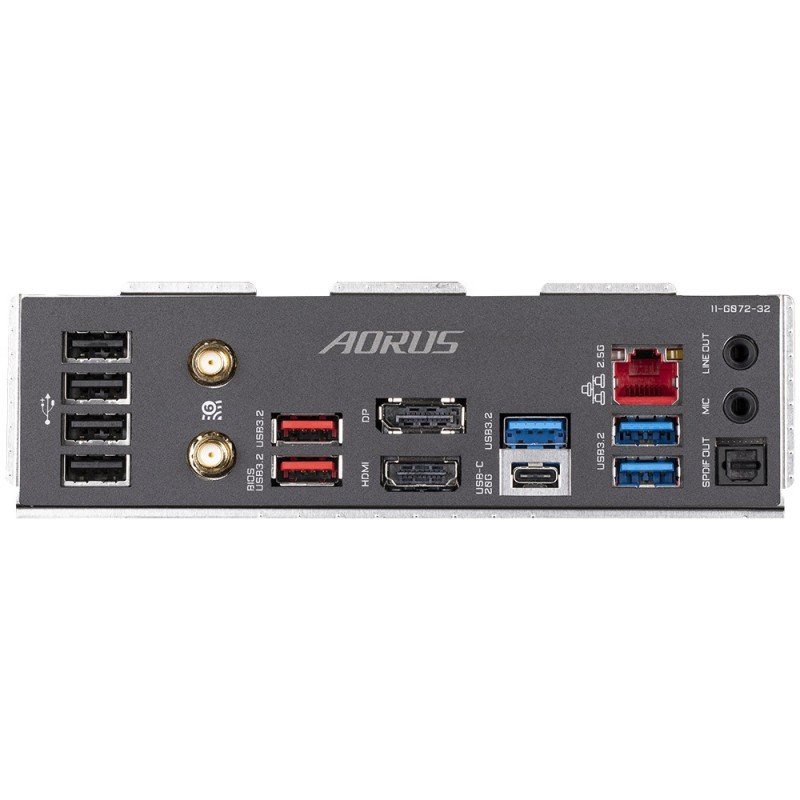

Rear panel I/O ports

DisplayPorts quantity: 1

DisplayPort version: 1.2

S/PDIF out port: Yes

HDMI ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

WiFi-AP antenna jack: 2

USB 3.2 Gen 2x2 Type-C ports quantity: 1

HDMI version: 2.0

USB 2.0 ports quantity: 4

USB connector type: USB Type-C, USB Type-A

Headphone outputs: 2

Ethernet LAN (RJ-45) ports: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

Microphone in: Yes

Expansion slots

PCI Express x16 slots: 3

Number of M.2 (M) slots: 4

Battery

Battery weight: 3 g

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Number of battery cells: 1

Battery type: CR2032

Lithium weight per battery: 0.07 g

Logistics data

Country of origin: China

Products per shipping (inner) case: 1 pc(s)
