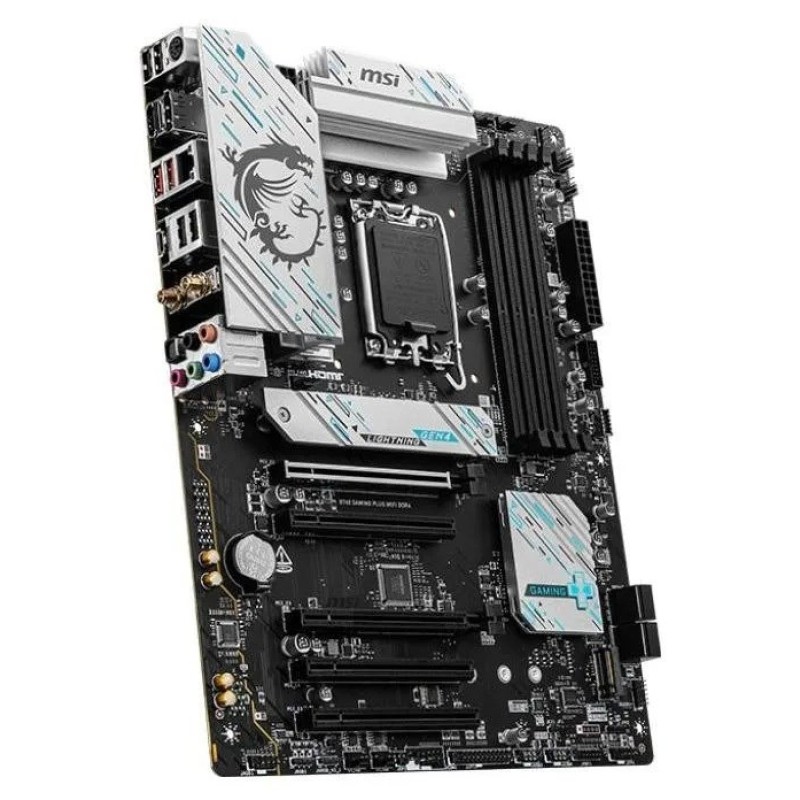

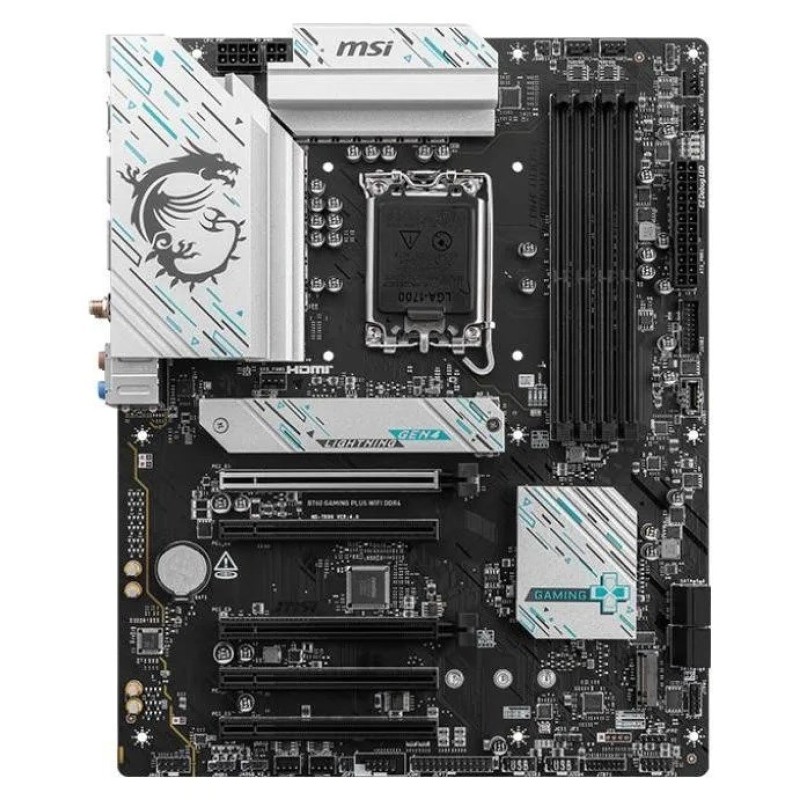

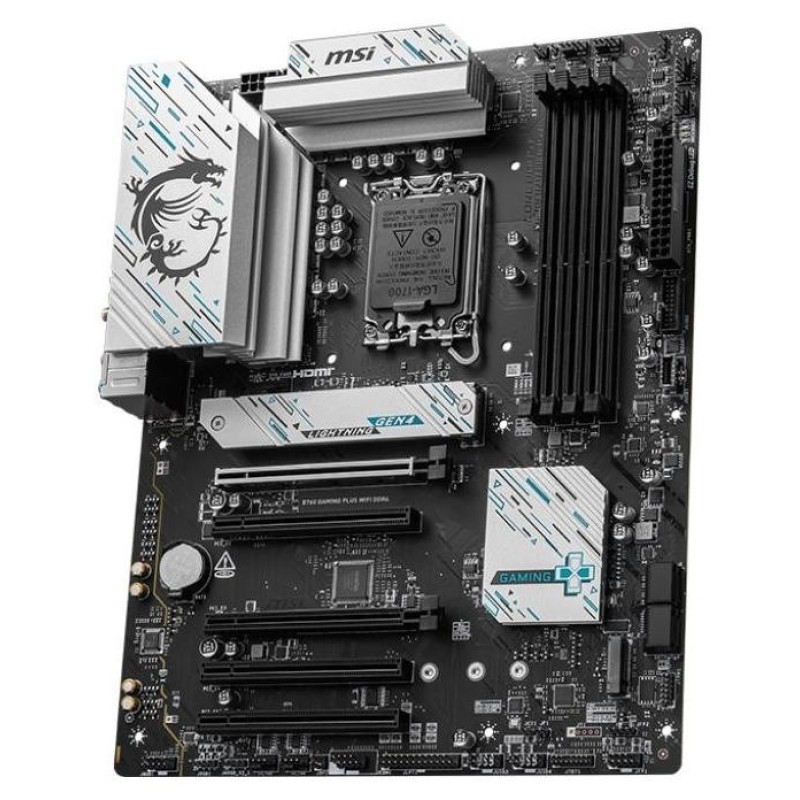

MSI B760 GAMING PLUS WIFI DDR4 motherboard Intel B760 LGA 1700 ATX

Περιγραφή

Processor

Supported processor sockets: LGA 1700

Maximum internal memory supported by processor: 128 GB

Compatible processor series: Intel® Pentium® Gold, Intel® Celeron®

Processor manufacturer: Intel

Processor socket: LGA 1700

Features

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Audio output channels: 7.1 channels

Audio chip: Realtek ALC897

Motherboard chipset: Intel B760

Motherboard chipset family: Intel

Motherboard form factor: ATX

Memory

Memory slots type: DIMM

Number of memory slots: 4

Memory channels: Dual-channel

Supported memory types: DDR4-SDRAM

Supported memory clock speeds: 4600, 3200 MHz, 2666, 4266, 2133, 4200, 3400, 3800, 3333, 5333 MHz, 3466, 2400, 5066, 3733, 4400, 5000, 5200, 2933, 3600, 4000, 4800

Maximum internal memory: 128 GB

ECC сompatibility: Non-ECC

Weight & dimensions

Width: 243.8 mm

Depth: 304.8 mm

Network

Wi-Fi standards: 802.11b, Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), 802.11g

Bluetooth version: 5.3

Top Wi-Fi standard: Wi-Fi 6 (802.11ax)

Wi-Fi: Yes

Ethernet LAN: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

LAN controller: Dragon RTL8125BG

Bluetooth: Yes

Internal I/O

RGB LED pin header: Yes

Total number of SATA connectors: 4

TPM connector: Yes

Number of SATA III connectors: 4

USB 2.0 connectors: 4

S/PDIF out connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3

BIOS

BIOS type: UEFI AMI

Storage controllers

RAID levels: 10, 5, 1, 0

Number of HDDs supported: 4

Number of storage drives supported: 6

Supported storage drive interfaces: M.2, SATA

RAID support: Yes

Rear panel I/O ports

Ethernet LAN (RJ-45) ports: 1

HDMI version: 2.1

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

USB 2.0 ports quantity: 4

DisplayPorts quantity: 1

S/PDIF out port: Yes

DisplayPort version: 1.4

Expansion slots

PCI Express x16 (Gen 4.x) slots: 2

Number of M.2 (M) slots: 2

PCI Express x1 (Gen 3.x) slots: 3

PCI Express x1 slots: 3

PCI Express x16 slots: 2

Safety warning

Warnings: Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Avoid direct contact with electronics to prevent electrostatic damage.
