ASUS PRO H610M-C D4-CSM Intel H610 LGA 1700 micro ATX

Περιγραφή

Processor

Processor manufacturer: Intel

Maximum number of SMP processors: 1

Compatible processor series: Intel® Core™ i5, Intel® Celeron®, Intel® Pentium®, Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i3

Processor socket: LGA 1700

Graphics

Number of displays supported: 3

Parallel processing technology support: Not supported

Features

Motherboard chipset family: Intel

Audio output channels: 7.1 channels

Motherboard form factor: micro ATX

Motherboard chipset: Intel H610

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Memory

Maximum internal memory: 64 GB

Unbuffered memory: Yes

Supported memory clock speeds: 2933, 3200 MHz, 2666, 2133, 3000, 2400, 2800

ECC сompatibility: Non-ECC

Number of memory slots: 2

Memory slots type: DIMM

Supported memory types: DDR4-SDRAM

Weight & dimensions

Width: 244 mm

Depth: 220 mm

Network

Wake-on-LAN ready: Yes

Ethernet LAN: Yes

Wi-Fi: No

Ethernet interface type: Gigabit Ethernet

Internal I/O

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

12V power connector: Yes

ATX Power connector (24-pin): Yes

Chassis intrusion connector: Yes

CPU fan connector: Yes

Number of COM connectors: 1

Front panel audio connector: Yes

EPS power connector (8-pin): Yes

TPM connector: Yes

Number of chassis fan connectors: 1

BIOS

BIOS type: UEFI AMI

Packaging content

Drivers included: Yes

Cables included: SATA

Storage controllers

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

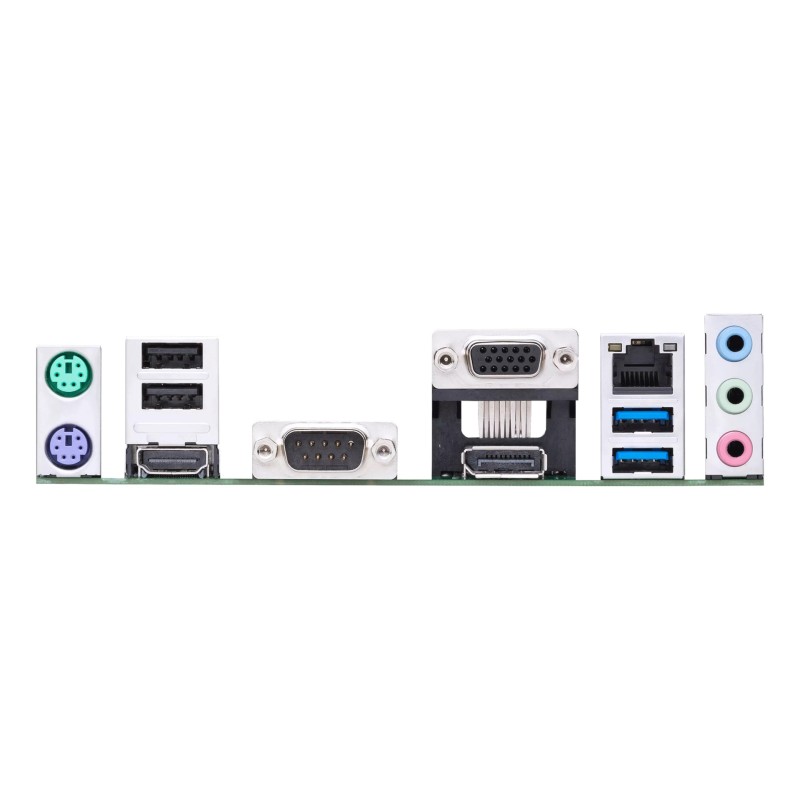

Rear panel I/O ports

DisplayPorts quantity: 1

DisplayPort version: 1.4

COM ports quantity: 1

PS/2 ports quantity: 2

HDMI version: 2.1

USB 2.0 ports quantity: 2

HDMI ports quantity: 1

VGA (D-Sub) ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1

Number of M.2 (M) slots: 1

PCI Express x1 (Gen 3.x) slots: 2

Logistics data

Harmonized System (HS) code: 84733020

Safety warning

Warnings: Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
