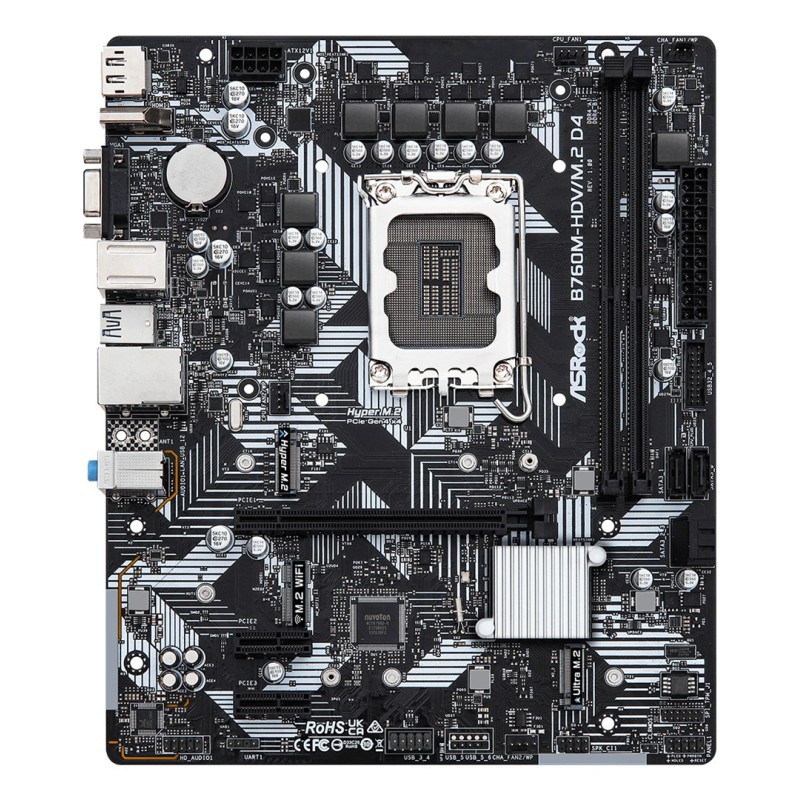

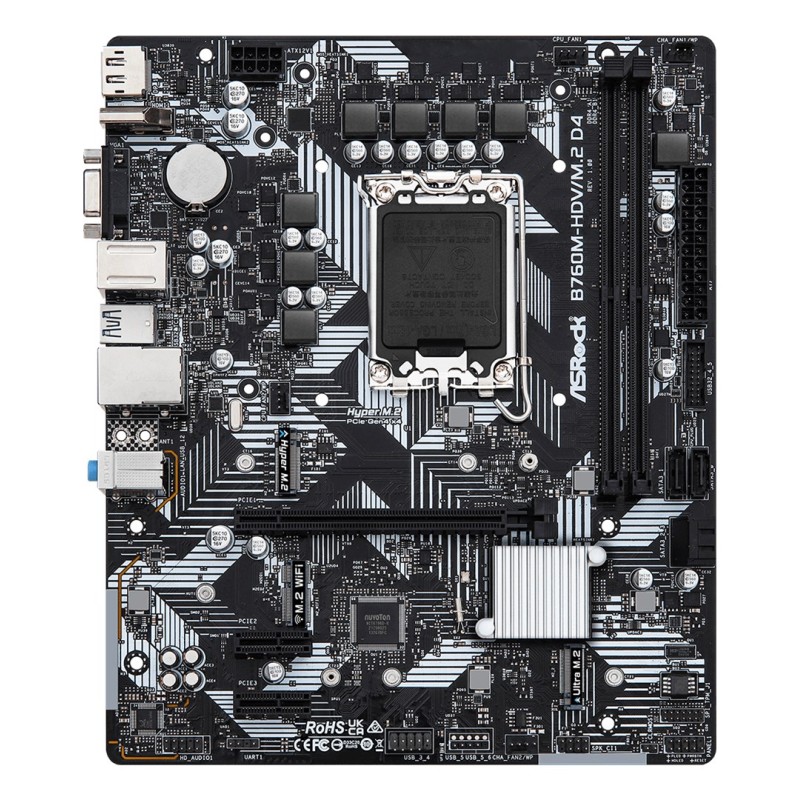

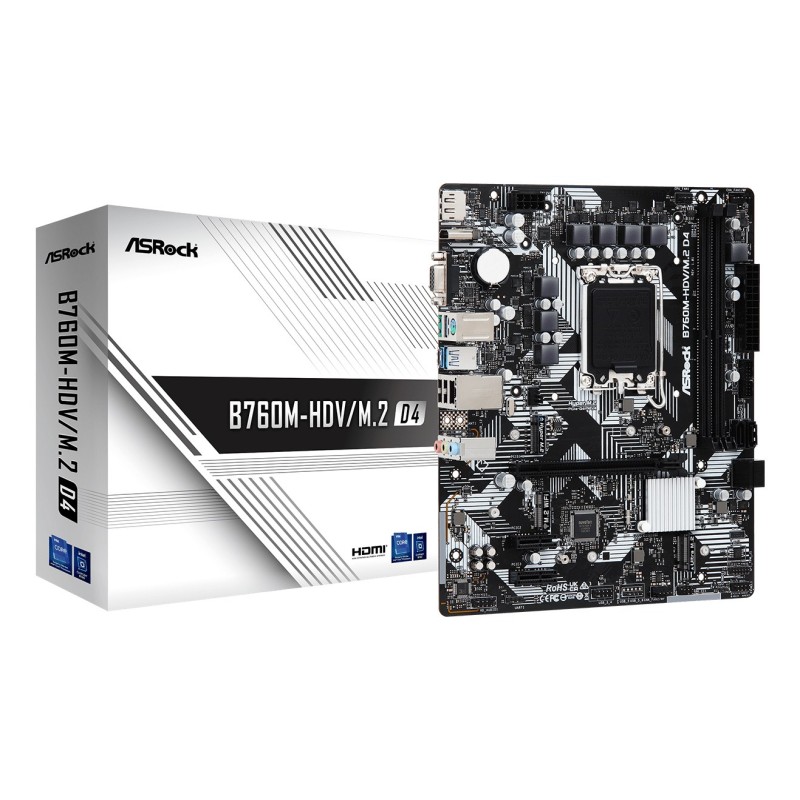

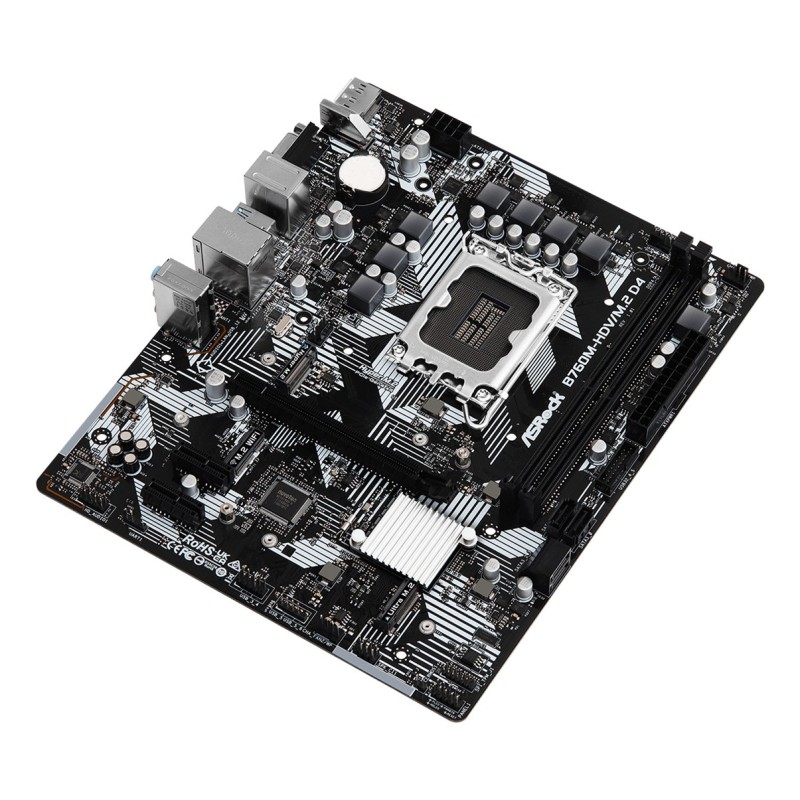

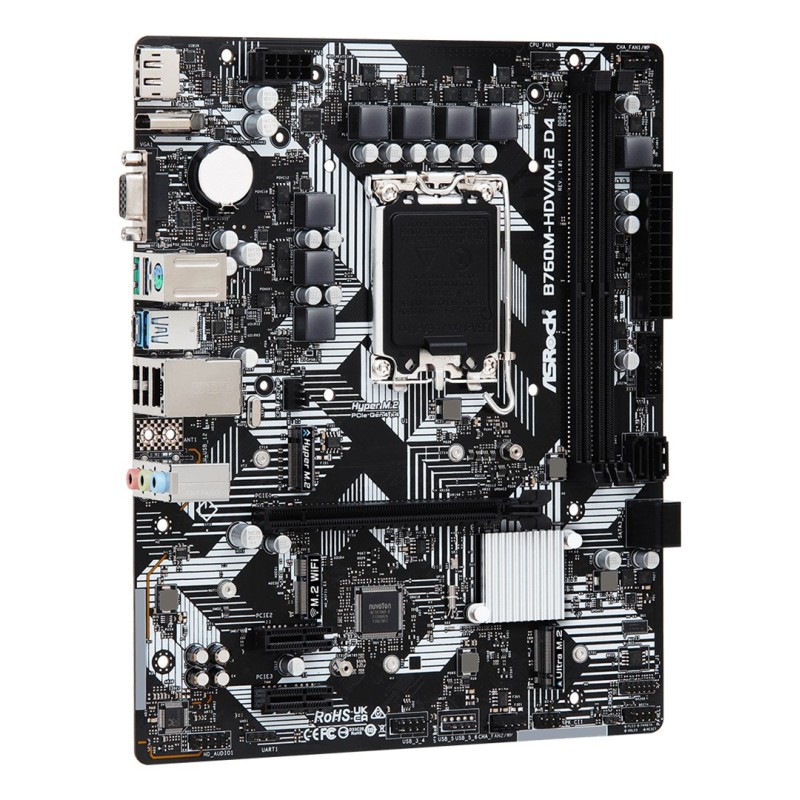

Asrock B760M-HDV/M.2 D4 Intel B760 LGA 1700 micro ATX

Περιγραφή

Processor

Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i3, Intel® Core™ i5

Maximum number of SMP processors: 1

Processor socket: LGA 1700

Processor manufacturer: Intel

Graphics

Parallel processing technology support: Not supported

HDCP: Yes

Features

Motherboard chipset: Intel B760

Audio chip: Realtek ALC897

Motherboard chipset family: Intel

Motherboard form factor: micro ATX

Windows operating systems supported: Windows 11 x64, Windows 10 Education x64

Audio output channels: 7.1 channels

Memory

Supported memory clock speeds: 3200 MHz, 5333 MHz, 4400

Maximum internal memory: 64 GB

ECC сompatibility: Non-ECC

Supported memory types: DDR4-SDRAM

Memory slots type: DIMM

Number of memory slots: 2

Memory channels: Dual-channel

Unbuffered memory: Yes

Weight & dimensions

Depth: 201 mm

Width: 244 mm

Network

LAN controller: Realtek RTL8111H

Ethernet interface type: Gigabit Ethernet

Ethernet LAN: Yes

Wi-Fi: No

Internal I/O

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

USB 2.0 connectors: 3

Front panel connector: Yes

TPM connector: Yes

ATX Power connector (24-pin): Yes

Number of SATA III connectors: 4

Chassis intrusion connector: Yes

EPS power connector (8-pin): Yes

CPU fan connector: Yes

BIOS

BIOS type: UEFI AMI

Packaging content

Cables included: SATA

Storage controllers

RAID levels: 0, 5, 10, 1

Supported storage drive interfaces: M.2, SATA III

RAID support: Yes

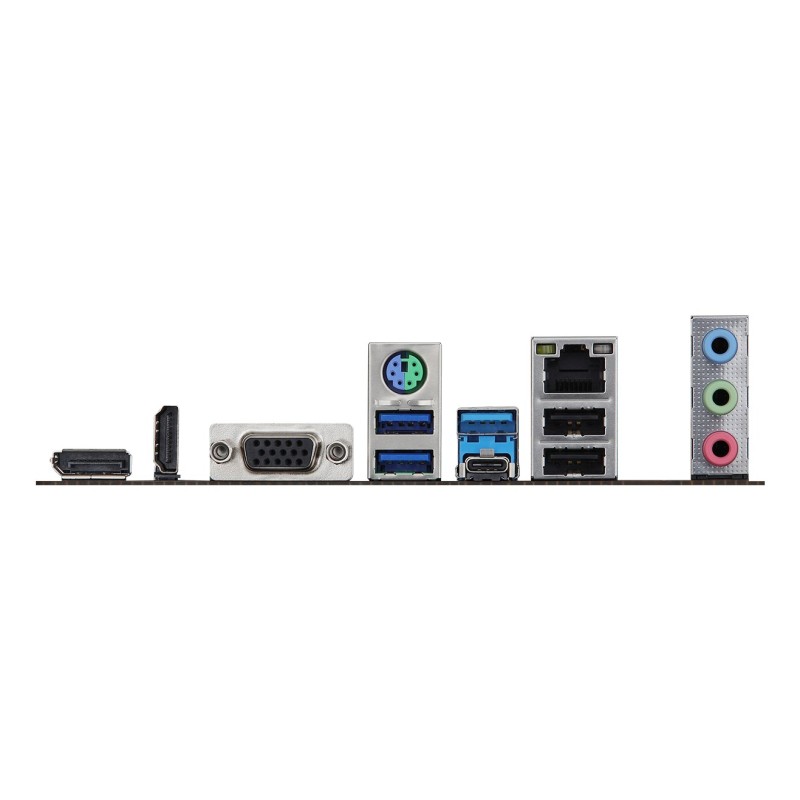

Rear panel I/O ports

Microphone in: Yes

DisplayPort version: 1.4

VGA (D-Sub) ports quantity: 1

DisplayPorts quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

USB 2.0 ports quantity: 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

HDMI ports quantity: 1

Line-in: Yes

PS/2 ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1

Number of M.2 (M) slots: 1

PCI Express x1 (Gen 3.x) slots: 2

Safety warning

Warnings: Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
