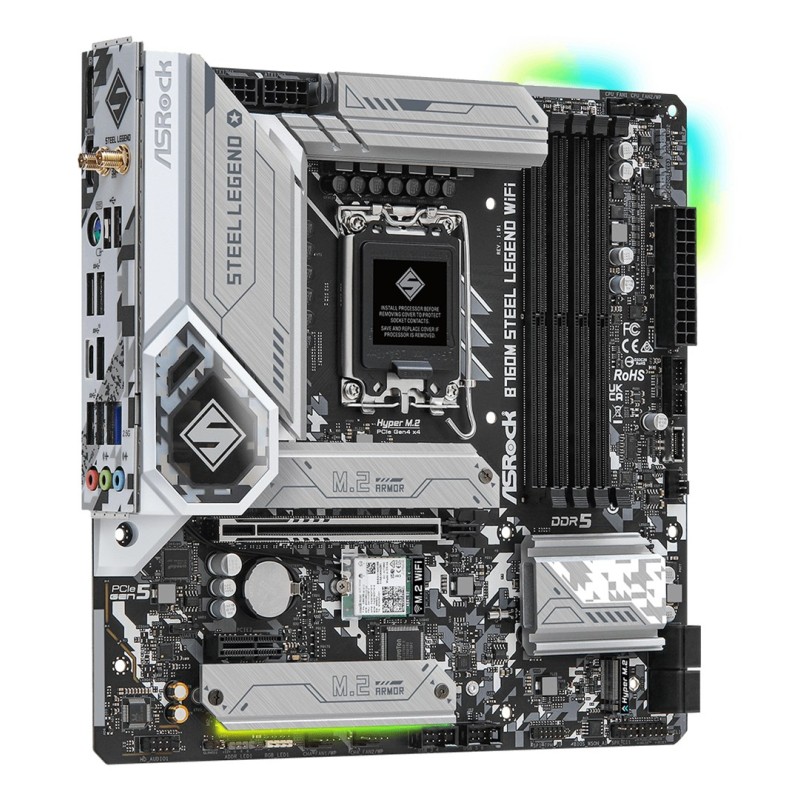

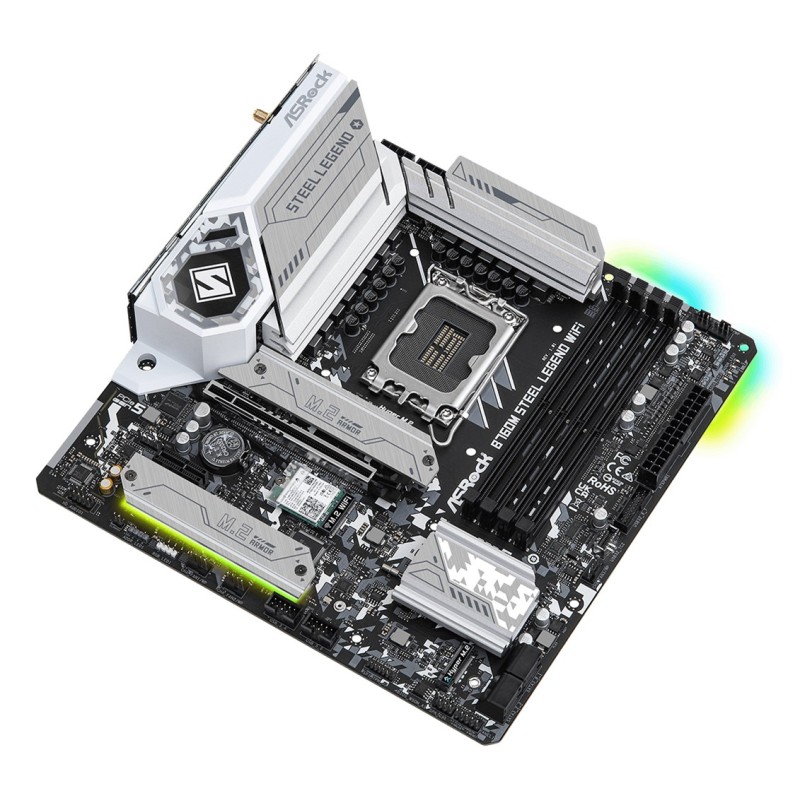

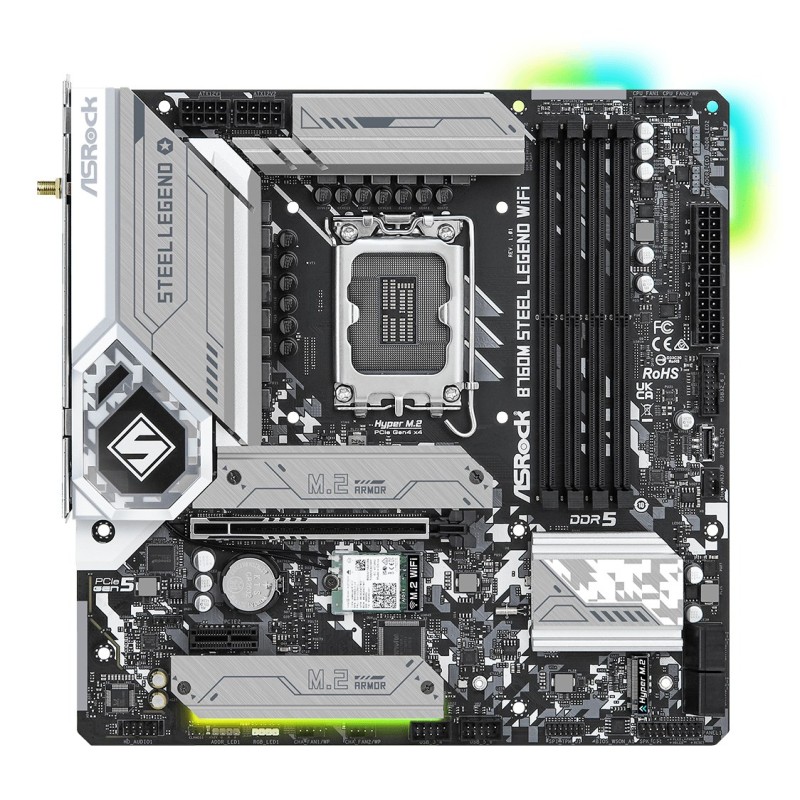

Asrock B760M Steel Legend WiFi Intel B760 LGA 1700 micro ATX

Περιγραφή

Processor

Processor manufacturer: Intel

Maximum number of SMP processors: 1

Processor socket: LGA 1700

Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i5

Features

Motherboard chipset: Intel B760

Motherboard form factor: micro ATX

Windows operating systems supported: Windows 11 x64, Windows 10 x64

Audio output channels: 7.1 channels

Audio chip: Realtek ALC897

Motherboard chipset family: Intel

Memory

Maximum internal memory: 128 GB

Memory channels: Dual-channel

Supported memory types: DDR5-SDRAM

Unbuffered memory: Yes

ECC сompatibility: Non-ECC

Number of memory slots: 4

Memory slots type: DIMM

Weight & dimensions

Depth: 244 mm

Width: 244 mm

Network

Wi-Fi standards: Wi-Fi 4 (802.11n), 802.11b, 802.11a, 802.11g, Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac)

Ethernet interface type: 2.5 Gigabit Ethernet

Ethernet LAN: Yes

LAN controller: Dragon RTL8125BG

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Bluetooth: Yes

Wi-Fi: Yes

Bluetooth version: 5.3

Internal I/O

ATX Power connector (24-pin): Yes

Number of SATA III connectors: 4

USB 2.0 connectors: 2

Front panel audio connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

TPM connector: Yes

CPU fan connector: Yes

RGB LED pin header: Yes

BIOS

BIOS type: UEFI AMI

Packaging content

Cables included: SATA

Storage controllers

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

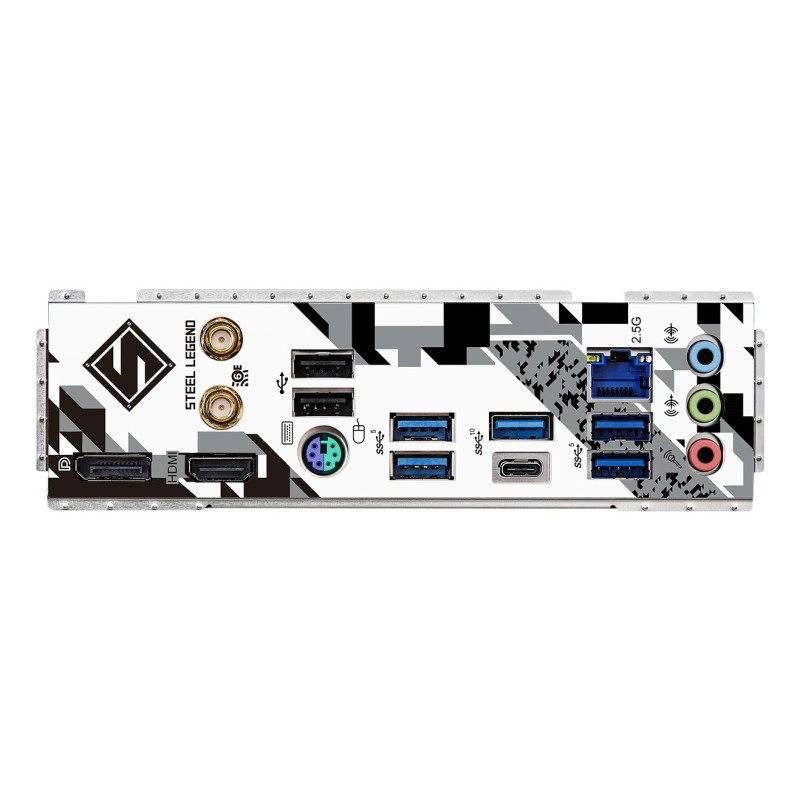

Rear panel I/O ports

Microphone in: Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

PS/2 ports quantity: 1

DisplayPorts quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

DisplayPort version: 1.4

Ethernet LAN (RJ-45) ports: 1

USB 2.0 ports quantity: 2

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

Line-in: Yes

Expansion slots

Number of M.2 (M) slots: 1

PCI Express x1 (Gen 4.x) slots: 1

PCI Express x16 (Gen 5.x) slots: 1

PCI Express x4 (Gen 1.x) slots: 1
