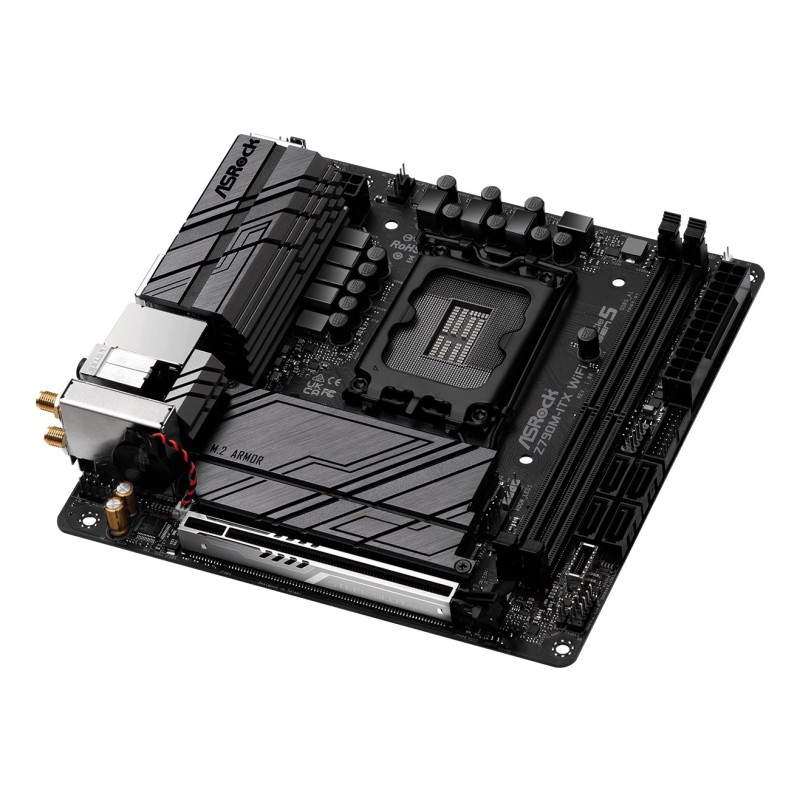

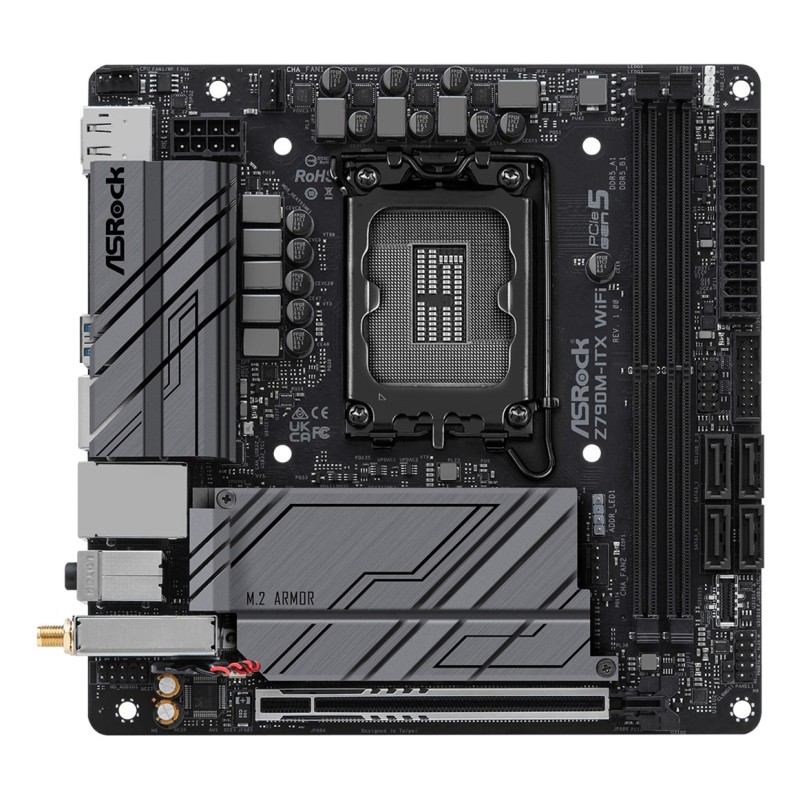

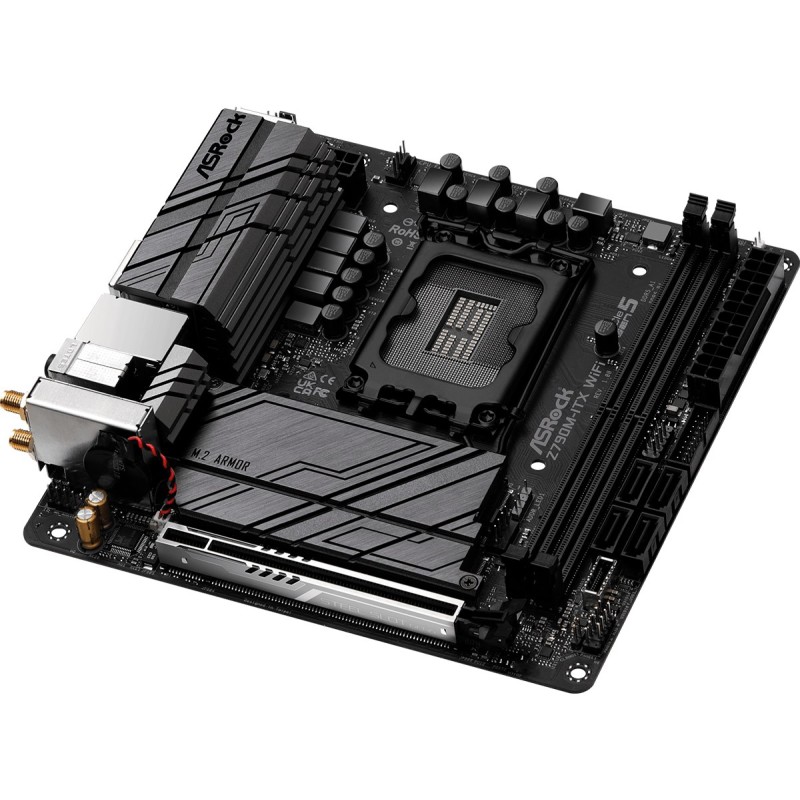

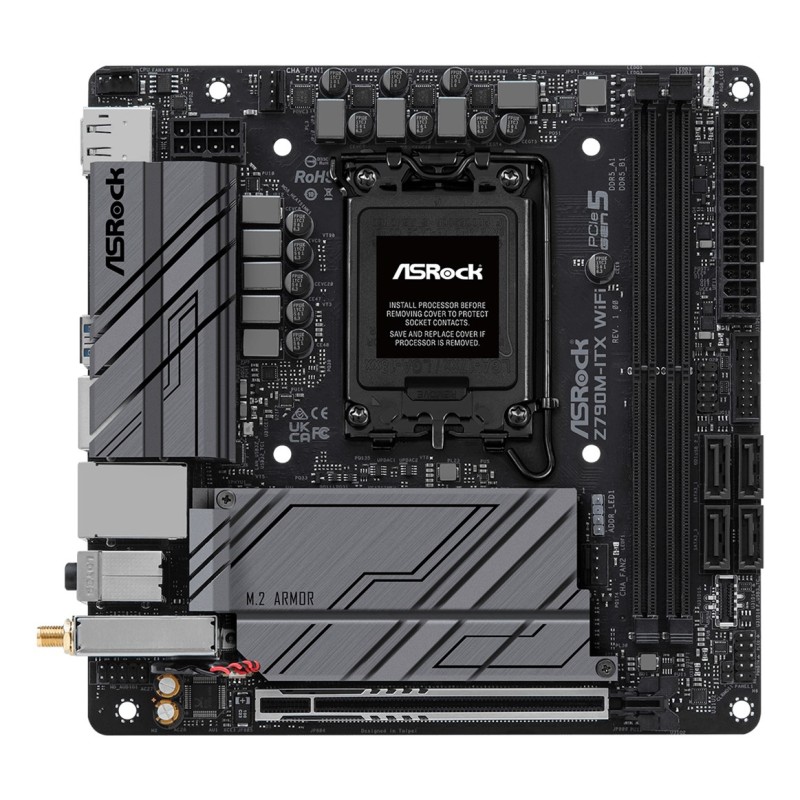

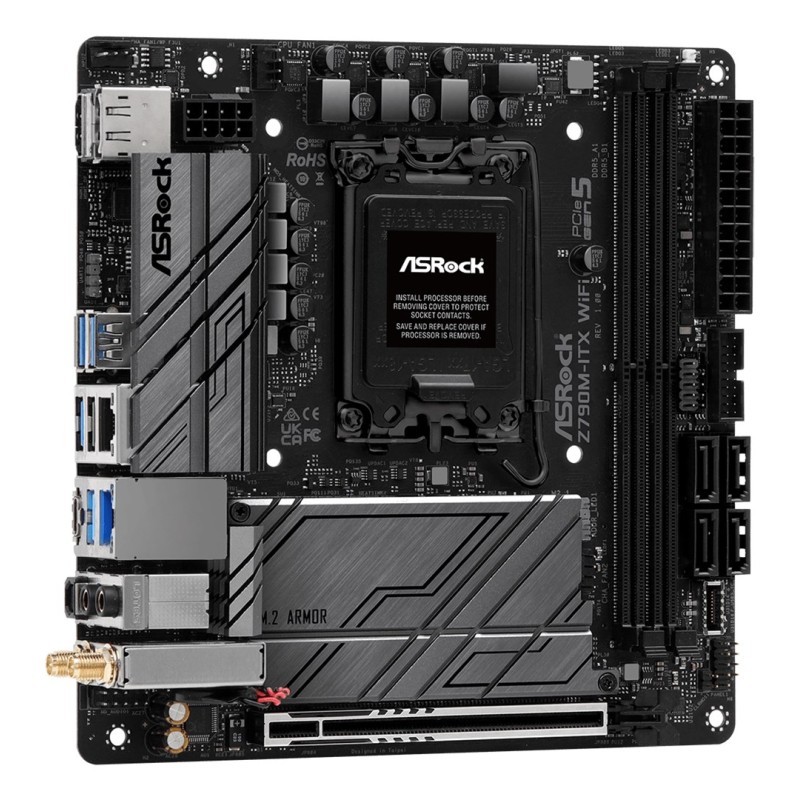

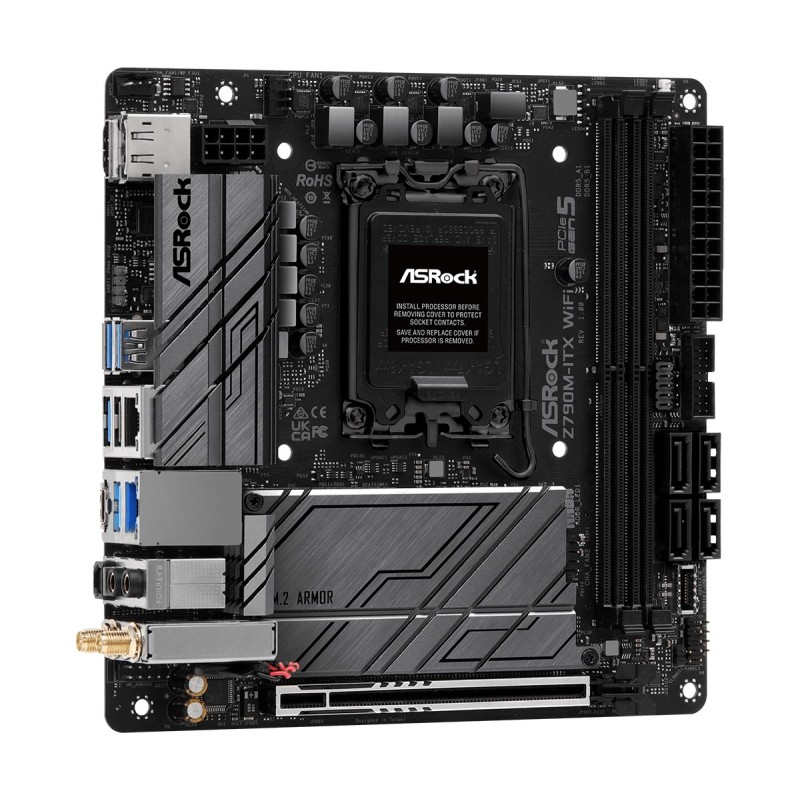

Asrock Z790M-ITX WiFi Intel Z790 LGA 1700 mini ITX

Περιγραφή

Processor

Processor socket: LGA 1700

Processor manufacturer: Intel

Maximum number of SMP processors: 1

Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i5

Features

Audio chip: Realtek ALC897

Motherboard form factor: mini ITX

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Motherboard chipset family: Intel

Audio output channels: 7.1 channels

Motherboard chipset: Intel Z790

Memory

ECC сompatibility: Non-ECC

Number of memory slots: 2

Memory channels: Dual-channel

Unbuffered memory: Yes

Memory slots type: DIMM

Maximum internal memory: 64 GB

Supported memory types: DDR5-SDRAM

Weight & dimensions

Width: 170 mm

Depth: 170 mm

Network

Wi-Fi standards: 802.11g, Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 6E (802.11ax), 802.11b, Wi-Fi 4 (802.11n)

Bluetooth: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Ethernet LAN: Yes

Wi-Fi: Yes

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Internal I/O

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

USB 2.0 connectors: 1

ATX Power connector (24-pin): Yes

Number of SATA III connectors: 4

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

RGB LED pin header: Yes

Front panel audio connector: Yes

BIOS

BIOS type: UEFI AMI

Storage controllers

RAID support: Yes

Supported storage drive interfaces: M.2, SATA III

RAID levels: 0, 10, 5, 1

Supported storage drive types: HDD & SSD

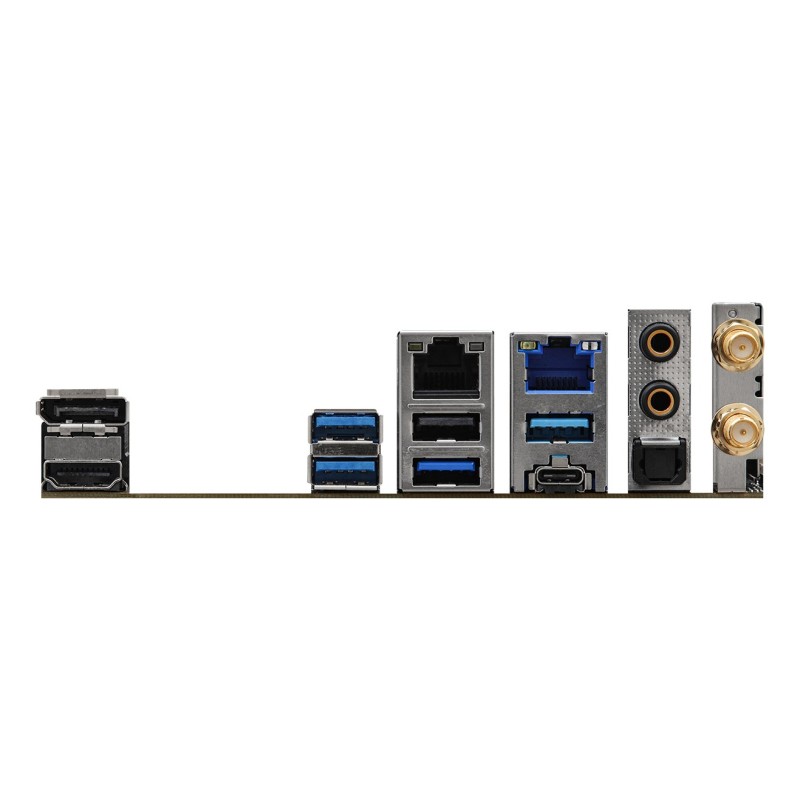

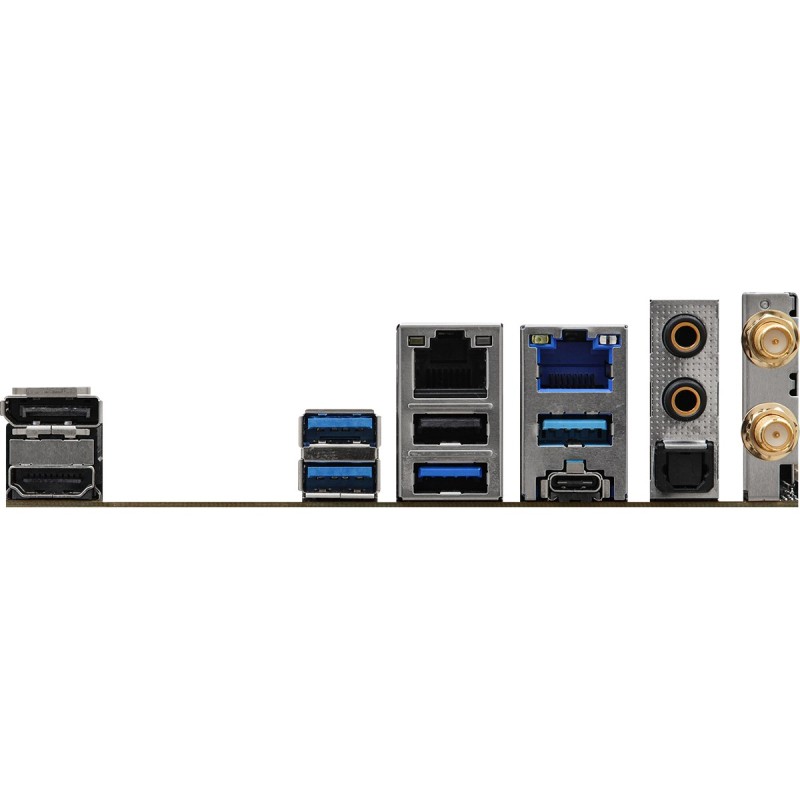

Rear panel I/O ports

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4

Ethernet LAN (RJ-45) ports: 2

HDMI ports quantity: 1

S/PDIF out port: Yes

Line-in: Yes

Headphone outputs: 1

USB 2.0 ports quantity: 1

DisplayPorts quantity: 1

DisplayPort version: 1.4

USB 3.2 Gen 2x2 Type-C ports quantity: 1

Expansion slots

PCI Express x16 (Gen 5.x) slots: 1

Safety warning

Warnings: Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
