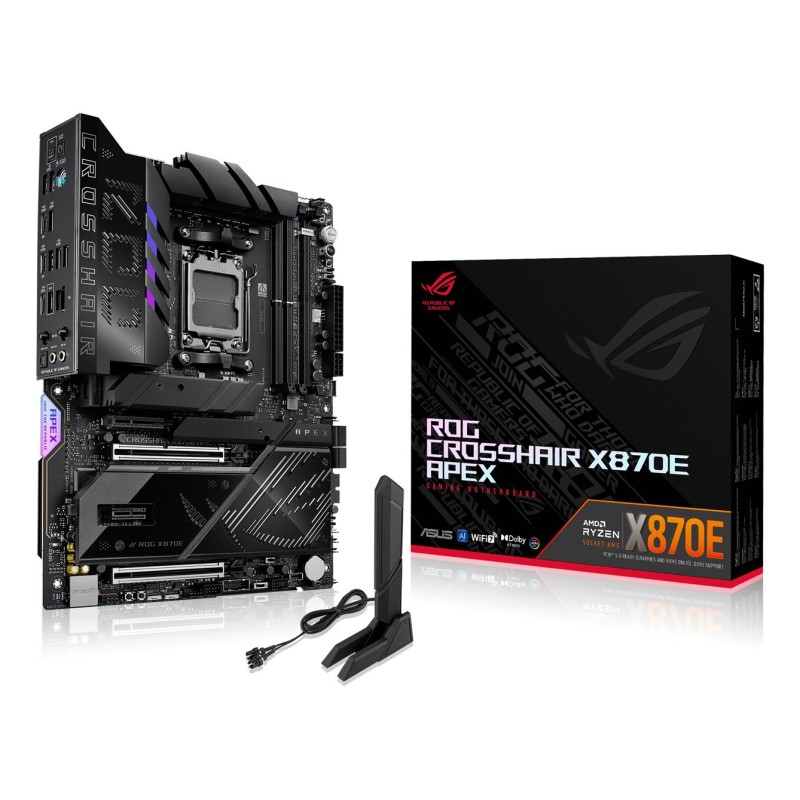

ASUS ROG CROSSHAIR X870E APEX AMD X870E Socket AM5 ATX

Περιγραφή

Processor

Supported processor sockets: Socket AM5

Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Processor manufacturer: AMD

Processor socket: Socket AM5

Graphics

Parallel processing technology support: Not supported

On-board graphics card: No

Features

Motherboard chipset: AMD X870E

Product colour: Black

Audio output channels: 7.1 channels

Motherboard form factor: ATX

Motherboard chipset family: AMD

Windows operating systems supported: Windows 11

Memory

Unbuffered memory: Yes

Maximum internal memory: 128 GB

Memory channels: Dual-channel

Memory slots type: DIMM

Supported memory types: DDR5-SDRAM

Number of memory slots: 2

ECC сompatibility: ECC & Non-ECC

Weight & dimensions

Depth: 244 mm

Width: 305 mm

Network

Bluetooth: Yes

Wi-Fi: Yes

Ethernet LAN: Yes

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Ethernet interface type: 5 Gigabit Ethernet

Wi-Fi standards: Wi-Fi 7 (802.11be)

Bluetooth version: 5.4

Internal I/O

ATX Power connector (24-pin): Yes

Number of SATA III connectors: 4

Front panel audio connector: Yes

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Number of chassis fan connectors: 2

Front panel connector: Yes

USB 3.2 Gen 2x2 connectors: 2

RGB LED pin header: Yes

Number of RGB LED pin headers: 3

12V power connector: Yes

BIOS

BIOS type: UEFI AMI

Packaging data

Package weight: 4.16 kg

Package width: 370 mm

Package depth: 312 mm

Package height: 108 mm

Packaging content

Drivers included: Yes

Cables included: SATA

Screws included: Yes

Antenna included: Yes

Storage controllers

RAID levels: 1, 0, 10, 5

RAID support: Yes

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

Number of HDDs supported: 4

Number of storage drives supported: 9

Rear panel I/O ports

Ethernet LAN (RJ-45) ports: 1

S/PDIF out port: Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

PS/2 ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 5

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

WiFi-AP antenna jack: 1

USB4 Gen 3x2 ports quantity: 2

Expansion slots

PCI Express x1 (Gen 3.x) slots: 1

Number of M.2 (M) slots: 5

1st M.2 largest key size: 2280

PCI Express x4 (Gen 4.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 2

PCI Express x16 (Gen 5.x) slots: 2

1st M.2 highest PCI Express generation: 5.0

5th M.2 largest key size: 22110

2nd M.2 largest key size: 2280

3rd M.2 largest key size: 2280

3rd M.2 highest PCI Express generation: 5.0

5th M.2 highest PCI Express generation: 4.0

4th M.2 largest key size: 22110

2nd M.2 highest PCI Express generation: 5.0

4th M.2 highest PCI Express generation: 4.0
