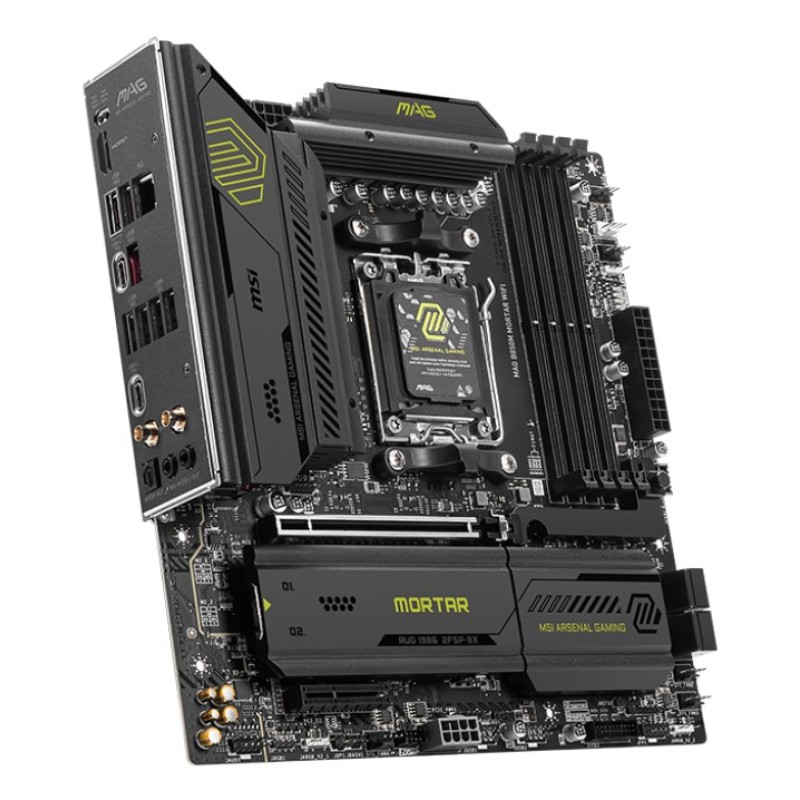

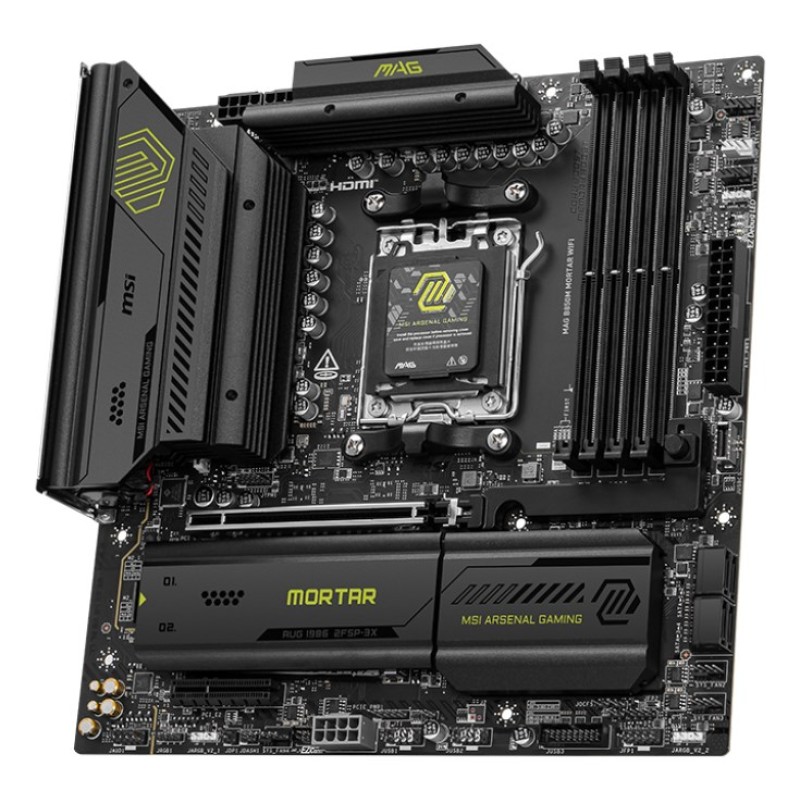

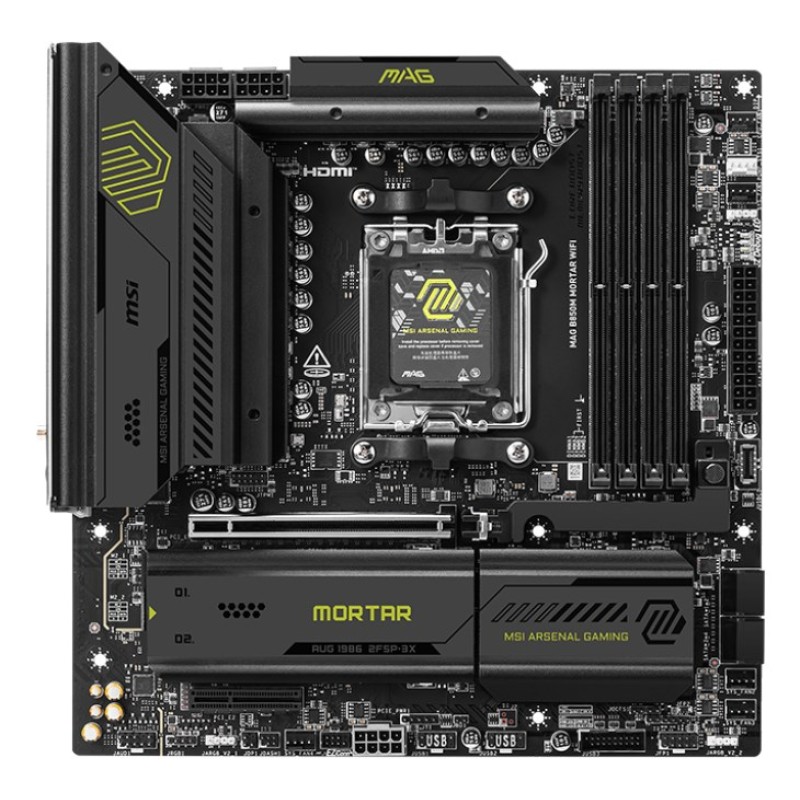

MSI MAG B850M MORTAR WIFI motherboard AMD B850 Socket AM5 micro ATX

Περιγραφή

Processor

Supported processor sockets: Socket AM5

Processor manufacturer: AMD

Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series

Processor socket: Socket AM5

Graphics

On-board graphics card: No

Features

Windows operating systems supported: Windows 11 x64

Product colour: Black

Motherboard chipset: AMD B850

Audio chip: Realtek ALC4080

Motherboard chipset family: AMD

Motherboard form factor: micro ATX

Audio output channels: 7.1 channels

Memory

Supported memory clock speed (max): 8200 MHz

ECC сompatibility: Non-ECC

Memory slots type: DIMM

Supported memory types: DDR5-SDRAM

Number of memory slots: 4

Memory channels: Dual-channel

Supported memory clock speeds: 6400, 5600, 8200 MHz, 4800

Maximum internal memory: 256 GB

Weight & dimensions

Depth: 243.8 mm

Width: 243.8 mm

Network

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Ethernet interface type: 5 Gigabit Ethernet

Ethernet LAN: Yes

Wi-Fi standards: 802.11a, Wi-Fi 6 (802.11ax), 802.11b, Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), Wi-Fi 4 (802.11n), 802.11g

Wi-Fi: Yes

Bluetooth version: 5.4

Bluetooth: Yes

Internal I/O

CPU fan connector: Yes

Front panel connector: Yes

Number of RGB LED pin headers: 3

Number of CPU fan connectors: 2

Number of water pump connectors: 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

Total number of SATA connectors: 4

RGB LED pin header: Yes

Number of SATA III connectors: 4

USB 2.0 connectors: 4

ATX Power connector (24-pin): Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Front panel audio connector: Yes

BIOS

BIOS type: UEFI AMI

Storage controllers

Number of storage drives supported: 7

Number of HDDs supported: 4

Supported storage drive types: HDD & SSD

RAID support: Yes

RAID levels: 1, 10, 0

Supported storage drive interfaces: M.2

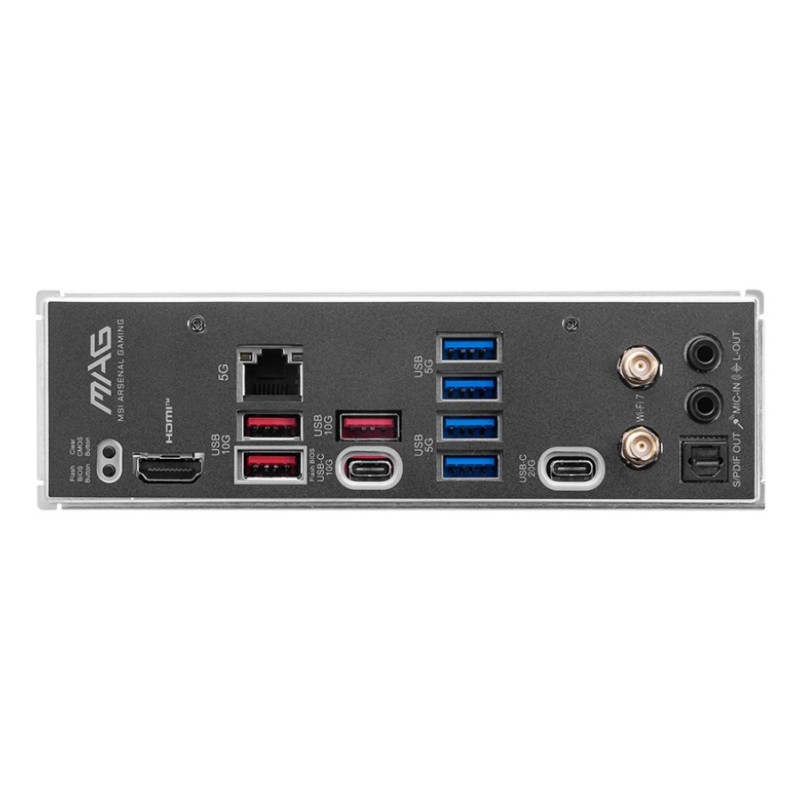

Rear panel I/O ports

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3

HDMI ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

HDMI version: 2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2

Ethernet LAN (RJ-45) ports: 1

Expansion slots

PCI Express x16 (Gen 5.x) slots: 1

3rd M.2 largest key size: 2280

1st M.2 highest PCI Express generation: 5.0

3rd M.2 highest PCI Express generation: 4.0

2nd M.2 highest PCI Express generation: 5.0

2nd M.2 largest key size: 2280

1st M.2 largest key size: 2280

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x4 slots: 1

PCI Express x16 slots: 1

Number of M.2 (M) slots: 3

PCI Express x16 (Gen 3.x) slots: 1
