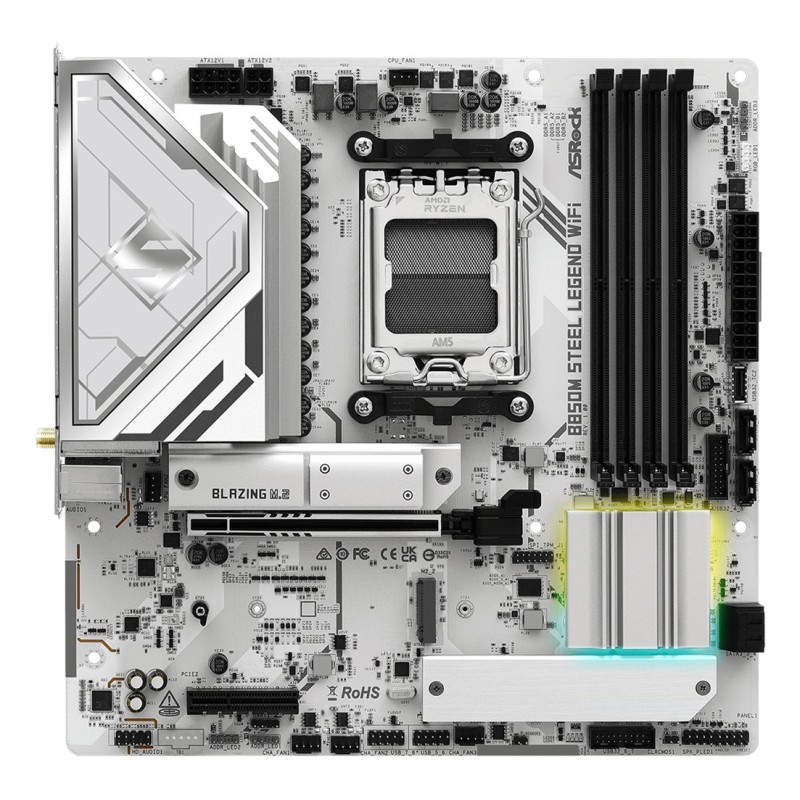

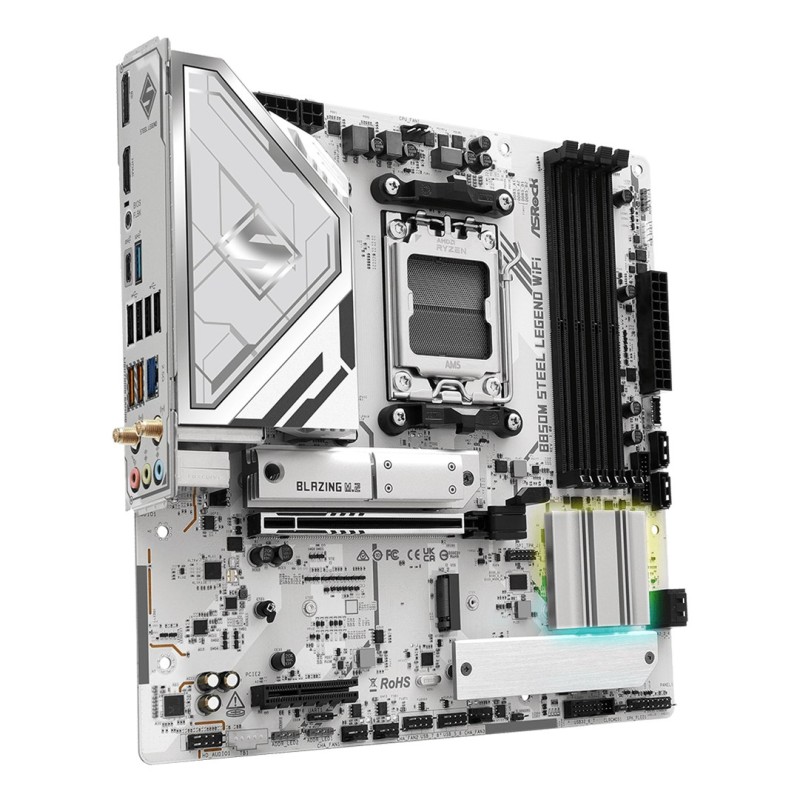

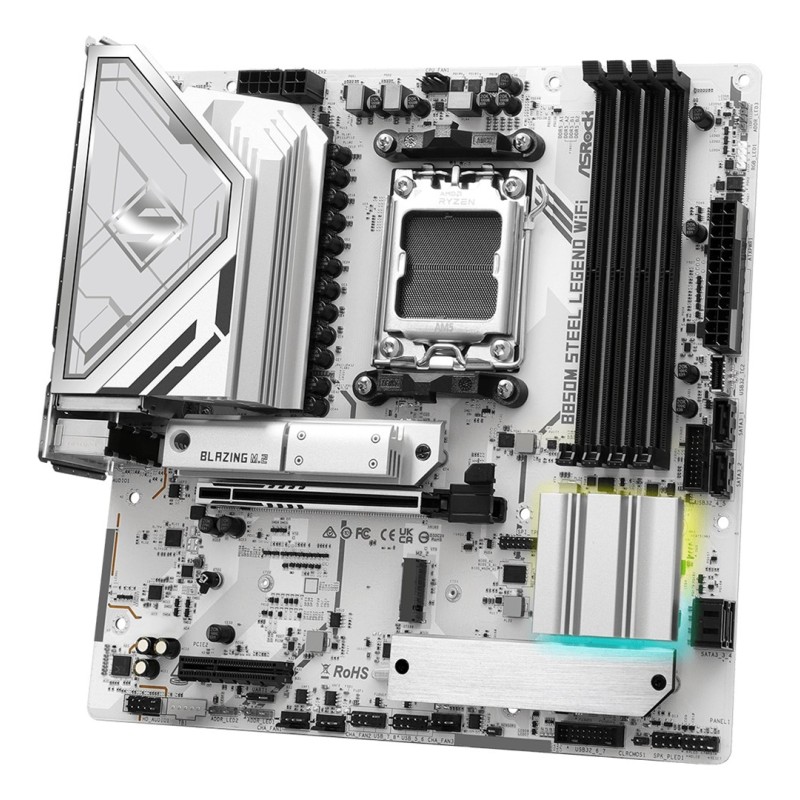

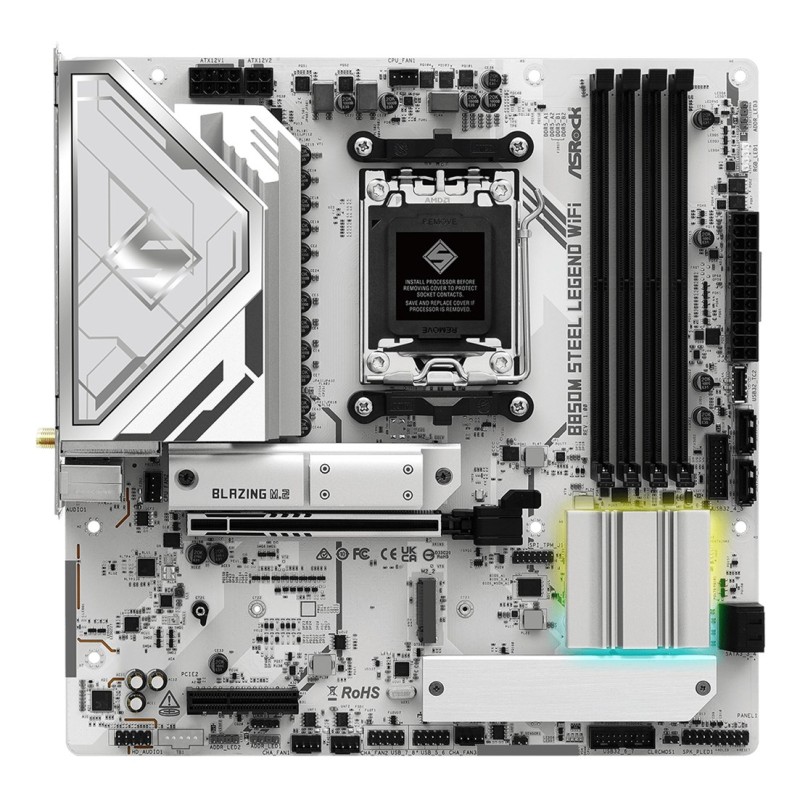

Asrock B850M Steel Legend WiFi AMD B850 Socket AM5 micro ATX

Περιγραφή

Processor

Supported processor sockets: Socket AM5

Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series

Processor manufacturer: AMD

Processor socket: Socket AM5

Graphics

Maximum resolution: 3840 x 2160 pixels

HDCP: Yes

Parallel processing technology support: Not supported

Features

Motherboard form factor: micro ATX

Audio output channels: 7.1 channels

Audio chip: Realtek ALC1220

Motherboard chipset family: AMD

Product colour: White

Motherboard chipset: AMD B850

Windows operating systems supported: Windows 11 x64, Windows 10 x64

Memory

Unbuffered memory: Yes

Maximum internal memory: 256 GB

Supported memory types: DDR5-SDRAM

Memory slots type: DIMM

Number of memory slots: 4

Memory channels: Dual-channel

ECC сompatibility: ECC & Non-ECC

Weight & dimensions

Width: 244 mm

Depth: 244 mm

Network

Bluetooth: Yes

LAN controller: Dragon RTL8125BG

Bluetooth version: 5.4

Wi-Fi standards: Wi-Fi 4 (802.11n), 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), Wi-Fi 6E (802.11ax), 802.11b, 802.11a, Wi-Fi 6 (802.11ax)

Ethernet LAN: Yes

Wi-Fi: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Internal I/O

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3

ATX Power connector (24-pin): Yes

Front panel audio connector: Yes

Number of SATA III connectors: 4

Number of chassis fan connectors: 3

CPU fan connector: Yes

TPM connector: Yes

12V power connector: Yes

RGB LED pin header: Yes

EPS power connector (8-pin): Yes

Number of CPU fan connectors: 2

Number of RGB LED pin headers: 1

Number of EPS power connectors (8-pin): 1

BIOS

BIOS type: UEFI AMI

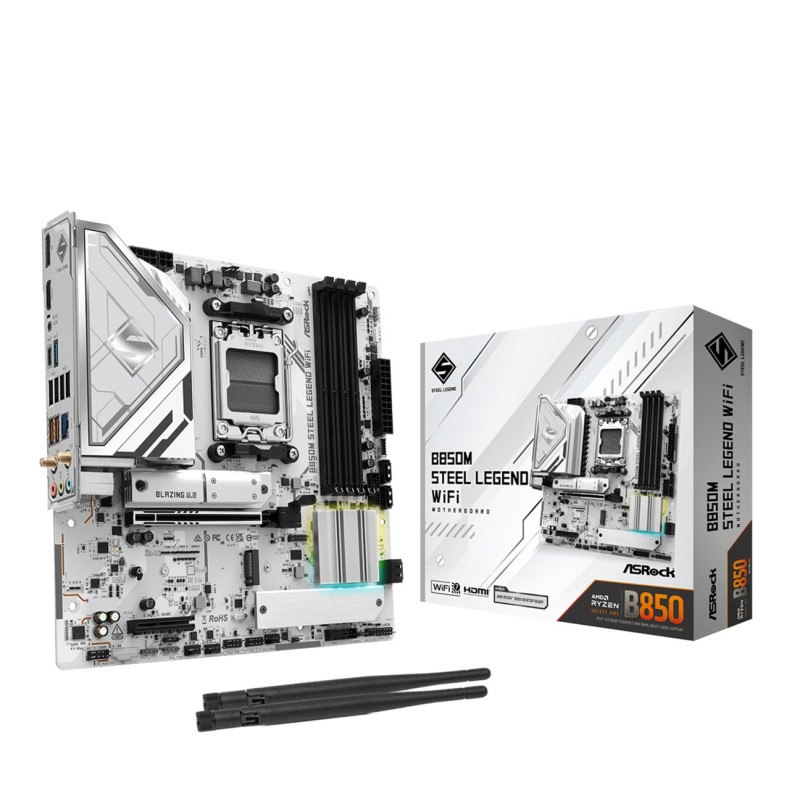

Packaging content

Antenna included: Yes

Cables included: SATA

Screws included: Yes

M.2 standoff included: Yes

Storage controllers

Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III

Supported storage drive types: HDD & SSD

RAID levels: 1, 10, 0

RAID support: Yes

Number of storage drives supported: 7

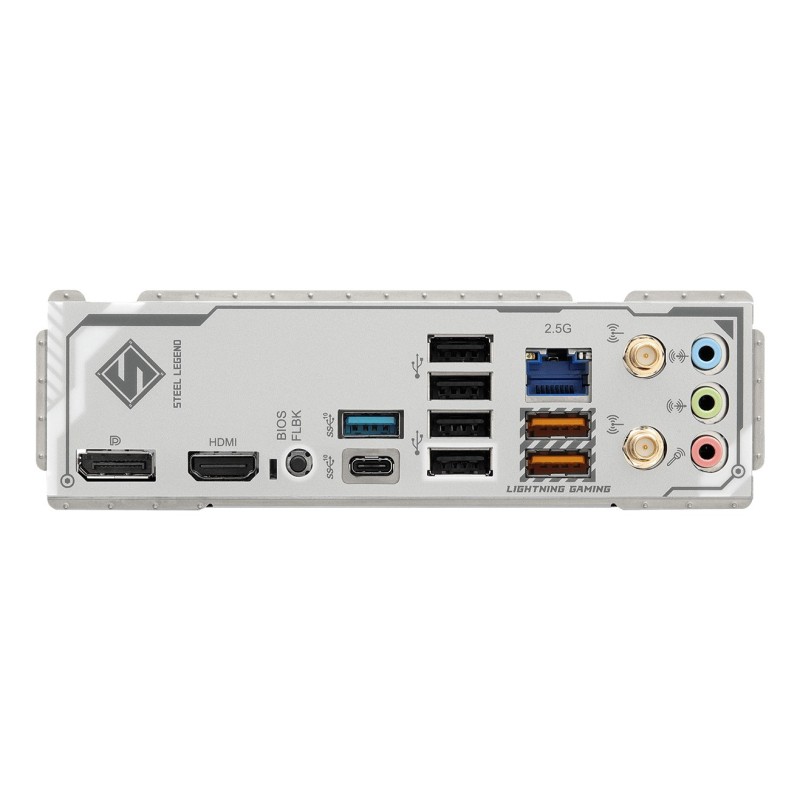

Rear panel I/O ports

USB connector type: USB Type-C, USB Type-A

Ethernet LAN (RJ-45) ports: 1

USB 2.0 ports quantity: 4

DisplayPort version: 1.4

DisplayPorts quantity: 1

HDMI ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Line-in: Yes

Microphone in: Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

WiFi-AP antenna jack: 2

HDMI version: 2.1

Headphone outputs: 3

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

Expansion slots

PCI Express x16 (Gen 5.x) slots: 1

PCI Express x4 (Gen 4.x) slots: 1

Number of M.2 (M) slots: 3

3rd M.2 largest key size: 2280

2nd M.2 largest key size: 2280

2nd M.2 highest PCI Express generation: 4.0

1st M.2 highest PCI Express generation: 5.0

1st M.2 largest key size: 2280

3rd M.2 highest PCI Express generation: 4.0

Safety warning

Warnings: Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty.
