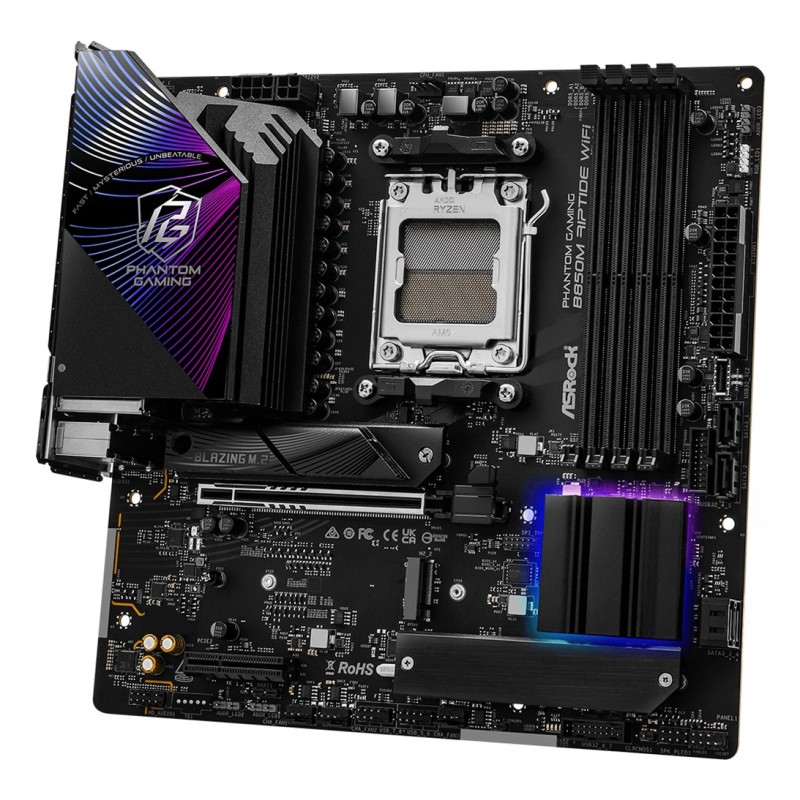

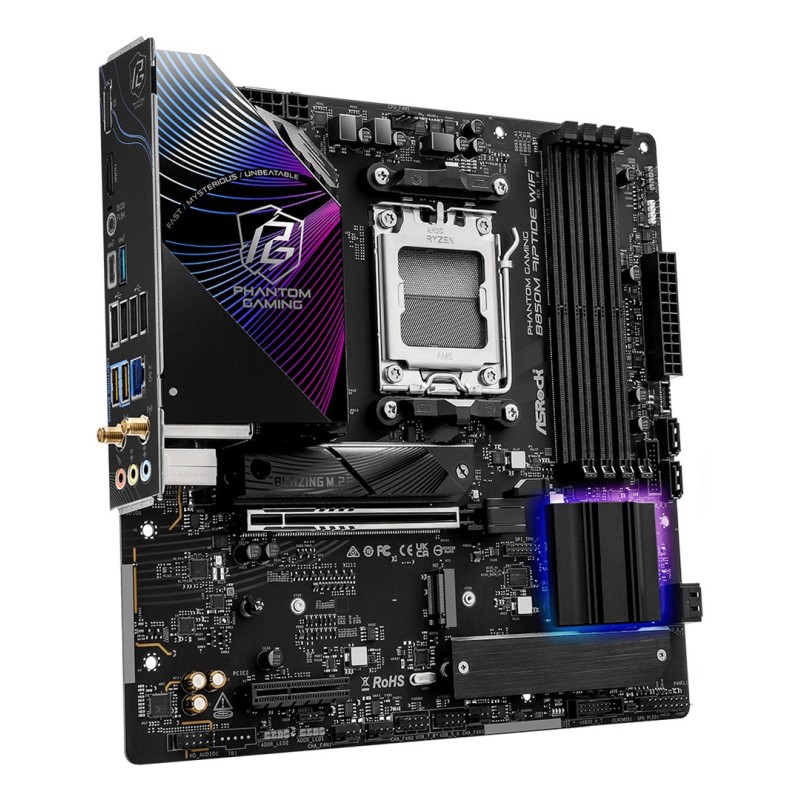

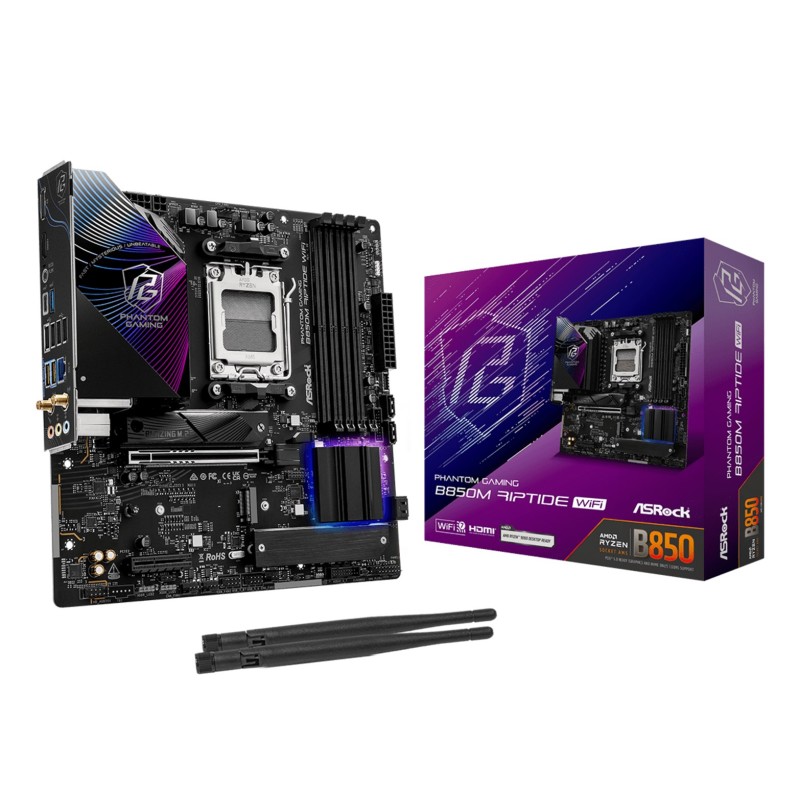

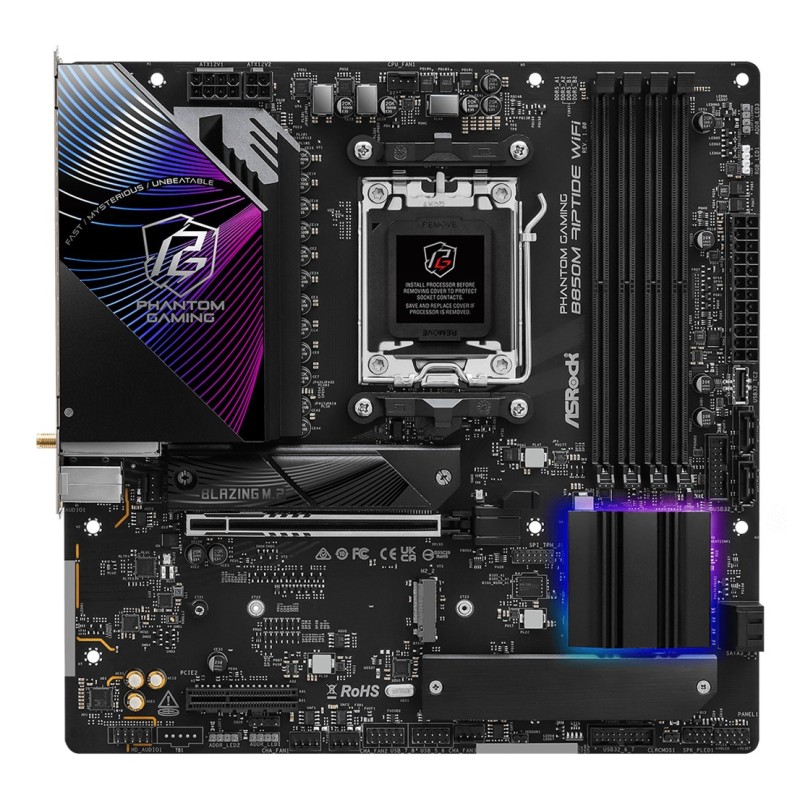

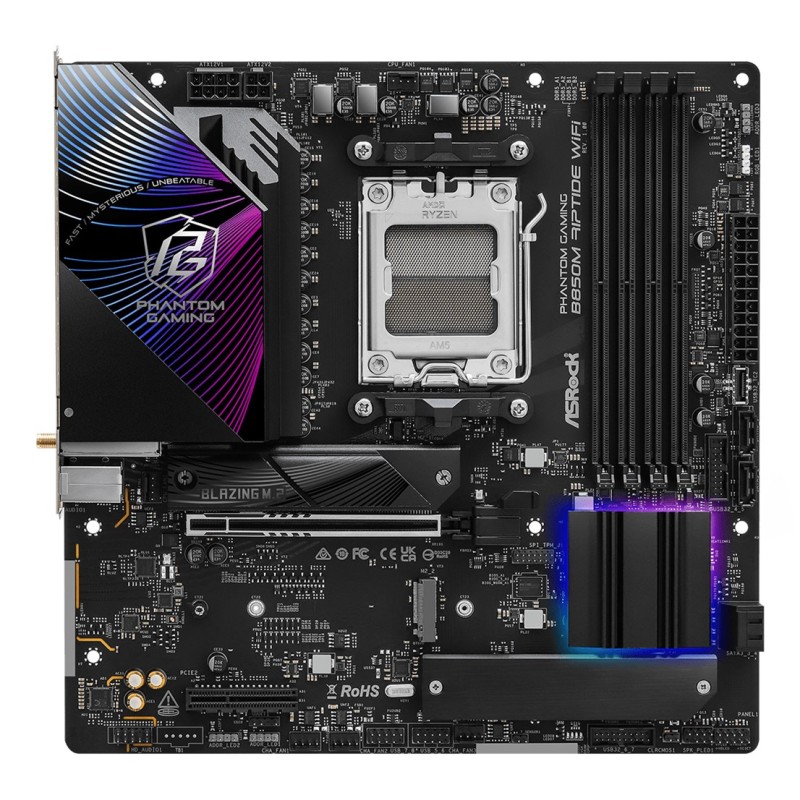

Asrock Phantom Gaming B850M Riptide WiFi AMD B850 Socket AM5 micro ATX

Περιγραφή

Processor

Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series

Processor manufacturer: AMD

Supported processor sockets: Socket AM5

Processor socket: Socket AM5

Graphics

HDCP: Yes

Parallel processing technology support: Not supported

Maximum resolution: 3840 x 2160 pixels

Features

Product colour: Black

Motherboard chipset family: AMD

Audio chip: Realtek ALC1220

Motherboard form factor: micro ATX

Audio output channels: 7.1 channels

Motherboard chipset: AMD B850

Windows operating systems supported: Windows 11 x64, Windows 10 x64

Memory

Unbuffered memory: Yes

Maximum internal memory: 256 GB

Memory channels: Dual-channel

Memory slots type: DIMM

Supported memory types: DDR5-SDRAM

Number of memory slots: 4

ECC сompatibility: ECC & Non-ECC

Weight & dimensions

Width: 244 mm

Depth: 244 mm

Network

LAN controller: Dragon RTL8125BG

Wi-Fi: Yes

Wi-Fi standards: Wi-Fi 6E (802.11ax), 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11g, 802.11a, Wi-Fi 6 (802.11ax)

Bluetooth: Yes

Ethernet LAN: Yes

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Bluetooth version: 5.4

Ethernet interface type: 2.5 Gigabit Ethernet

Internal I/O

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3

Number of SATA III connectors: 4

TPM connector: Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Number of chassis fan connectors: 3

12V power connector: Yes

Front panel audio connector: Yes

RGB LED pin header: Yes

USB 2.0 connectors: 2

Number of CPU fan connectors: 2

Number of RGB LED pin headers: 1

ATX Power connector (24-pin): Yes

Number of EPS power connectors (8-pin): 1

BIOS

BIOS type: UEFI AMI

Packaging content

Cables included: SATA

Antenna included: Yes

Screws included: Yes

M.2 standoff included: Yes

Storage controllers

Supported storage drive types: HDD & SSD

RAID support: Yes

Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III

RAID levels: 1, 0, 10

Number of storage drives supported: 7

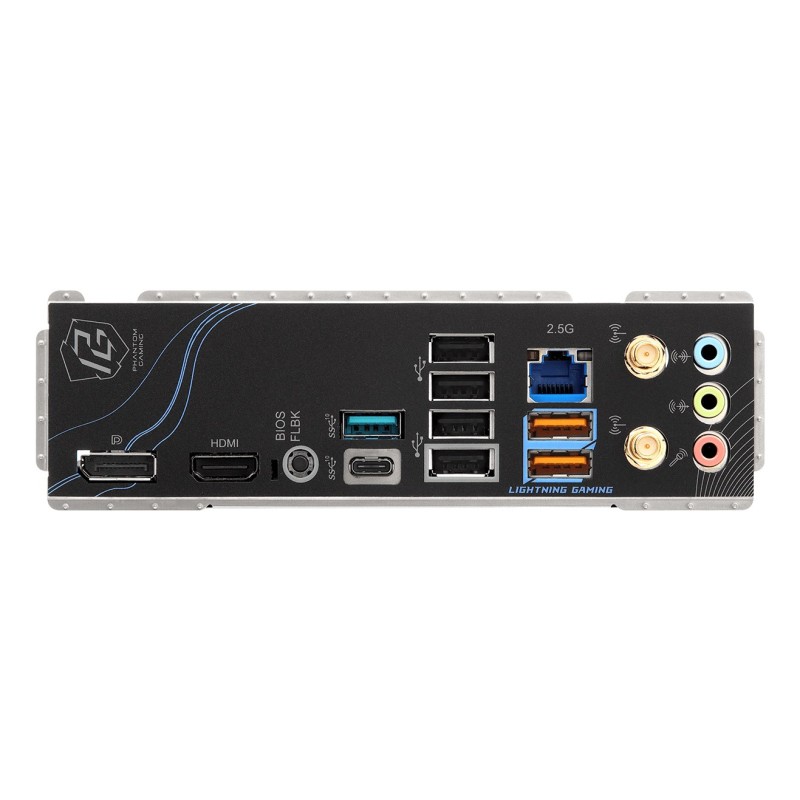

Rear panel I/O ports

USB connector type: USB Type-A, USB Type-C

HDMI ports quantity: 1

DisplayPorts quantity: 1

WiFi-AP antenna jack: 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Ethernet LAN (RJ-45) ports: 1

USB 2.0 ports quantity: 4

Line-in: Yes

Headphone outputs: 3

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

DisplayPort version: 1.4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

HDMI version: 2.1

Microphone in: Yes

Expansion slots

PCI Express x16 (Gen 5.x) slots: 1

PCI Express x8 (Gen 4.x) slots: 1

2nd M.2 largest key size: 2280

Number of M.2 (M) slots: 3

2nd M.2 highest PCI Express generation: 4.0

3rd M.2 highest PCI Express generation: 4.0

3rd M.2 largest key size: 2280

1st M.2 largest key size: 2580

1st M.2 highest PCI Express generation: 5.0

Safety warning

Warnings: Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty.
