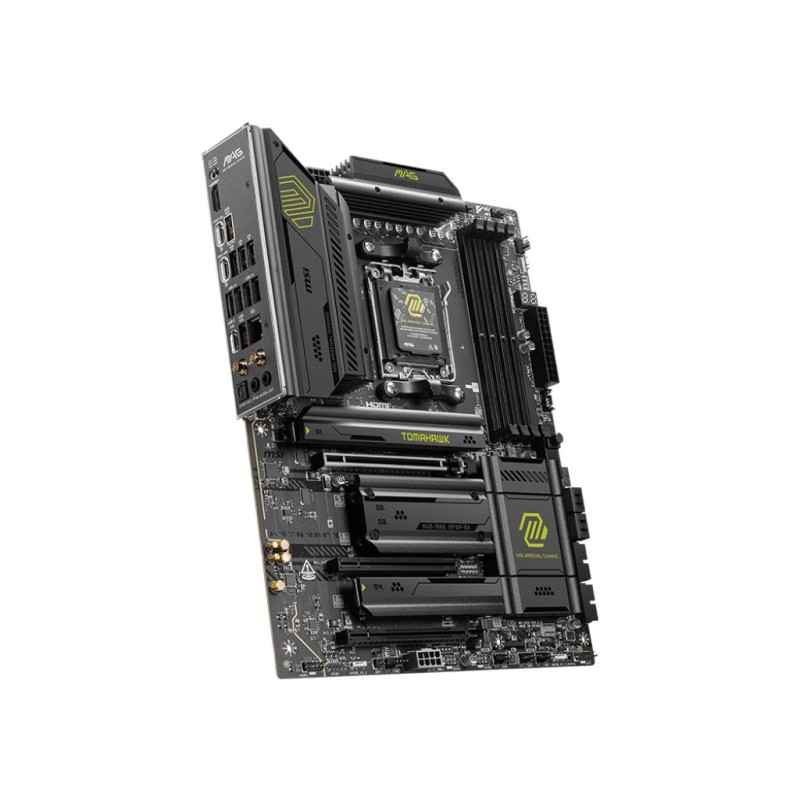

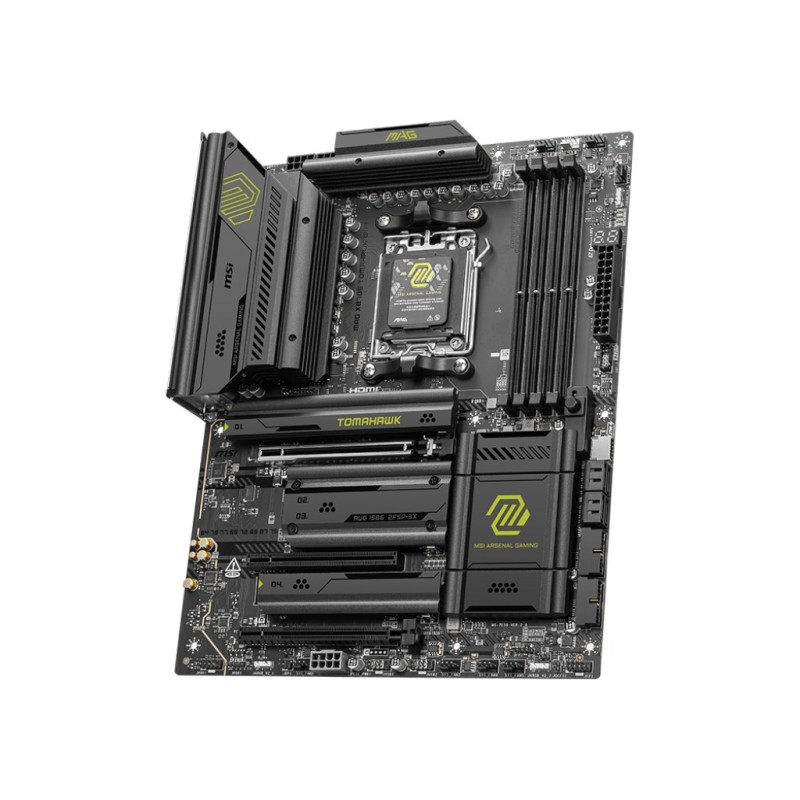

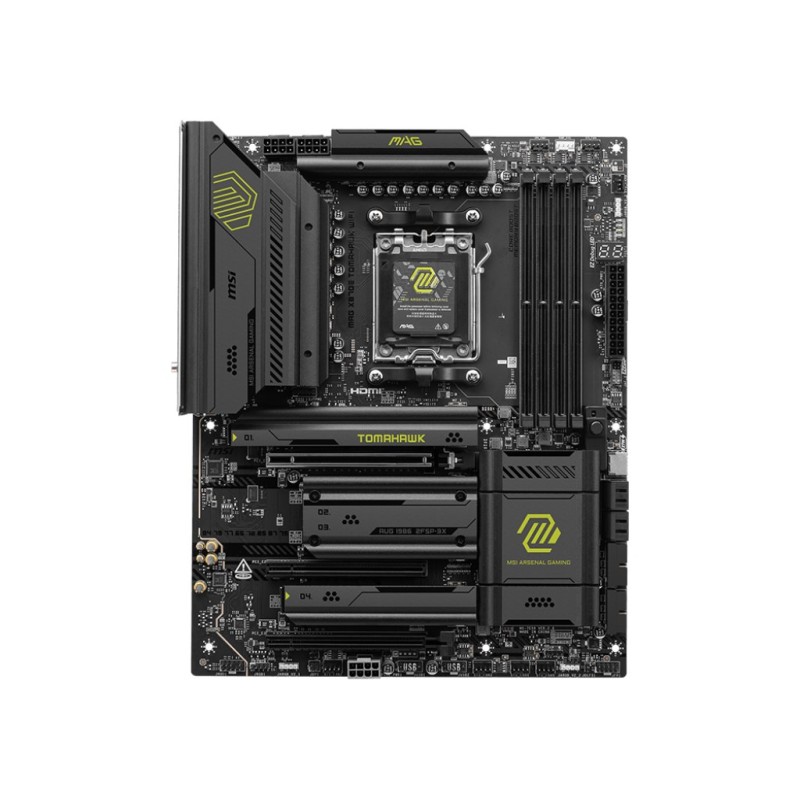

MSI MAG X870E TOMAHAWK WIFI motherboard AMD X870E Socket AM5 ATX

Περιγραφή

Processor

Compatible processor series: AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series

Processor socket: Socket AM5

Maximum internal memory supported by processor: 256 GB

Supported processor sockets: Socket AM5

Processor manufacturer: AMD

Graphics

On-board graphics card: No

Features

Motherboard chipset family: AMD

Product colour: Black

Motherboard chipset: AMD X870E

PC health monitoring: Temperature, Voltage, CPU, Fan

Motherboard form factor: ATX

Audio output channels: 7.1 channels

Memory

Supported memory clock speeds: 4800, 8400, 5600

Number of memory slots: 4

Maximum internal memory: 256 GB

Supported memory clock speed (max): 8400 MHz

Memory slots type: DIMM

Supported memory types: DDR5-SDRAM

Memory channels: Dual-channel

ECC сompatibility: Non-ECC

Weight & dimensions

Depth: 304.8 mm

Width: 243.8 mm

Network

Bluetooth: Yes

Wi-Fi standards: 802.11g, Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11b, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n)

LAN controller: Realtek RTL8126

Ethernet LAN: Yes

Ethernet interface type: 5 Gigabit Ethernet

Bluetooth version: 5.4

Wi-Fi: Yes

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Internal I/O

USB 2.0 connectors: 4

Number of SATA III connectors: 4

ATX Power connector (24-pin): Yes

Total number of SATA connectors: 4

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

CPU fan connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4

EPS power connector (8-pin): Yes

Storage controllers

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

Number of storage drives supported: 8

Number of HDDs supported: 4

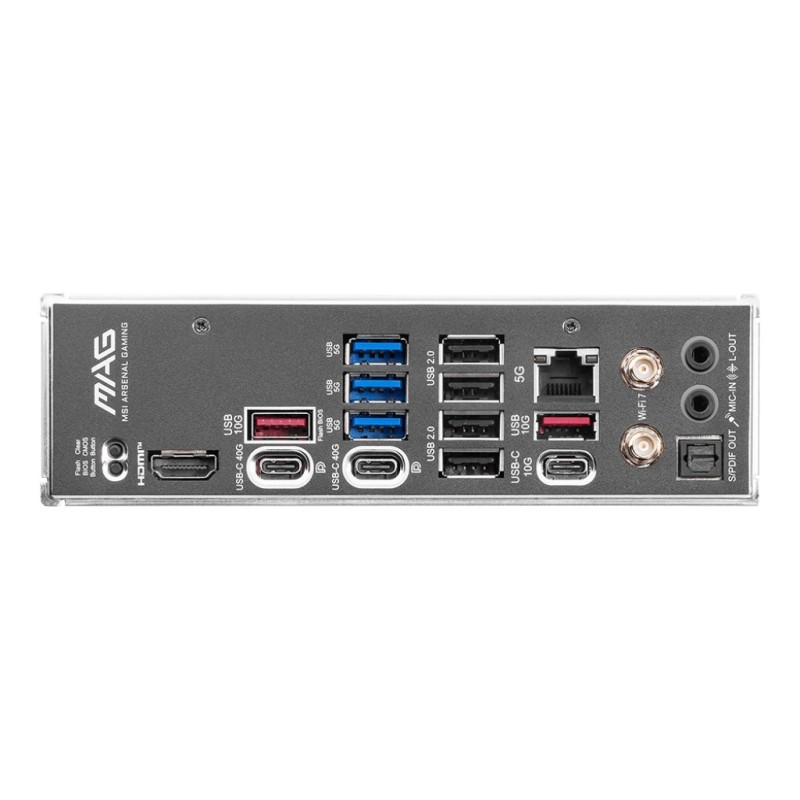

Rear panel I/O ports

Microphone in: Yes

HDMI version: 2.1

USB4 Gen 2x2 ports quantity: 1

DisplayPort version: 1.4

S/PDIF out port: Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

Ethernet LAN (RJ-45) ports: 1

USB 2.0 ports quantity: 4

DisplayPorts quantity: 2

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

Expansion slots

PCI Express x16 (Gen 3.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x16 (Gen 5.x) slots: 1

Number of M.2 (M) slots: 4

1st M.2 largest key size: 22110

3rd M.2 highest PCI Express generation: 4.0

4th M.2 largest key size: 2280

3rd M.2 largest key size: 2280

4th M.2 highest PCI Express generation: 4.0

1st M.2 highest PCI Express generation: 5.0

2nd M.2 highest PCI Express generation: 5.0

2nd M.2 largest key size: 2280

Safety warning

Warnings: Do not disassemble to avoid damage to internal components and loss of warranty., Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste.
