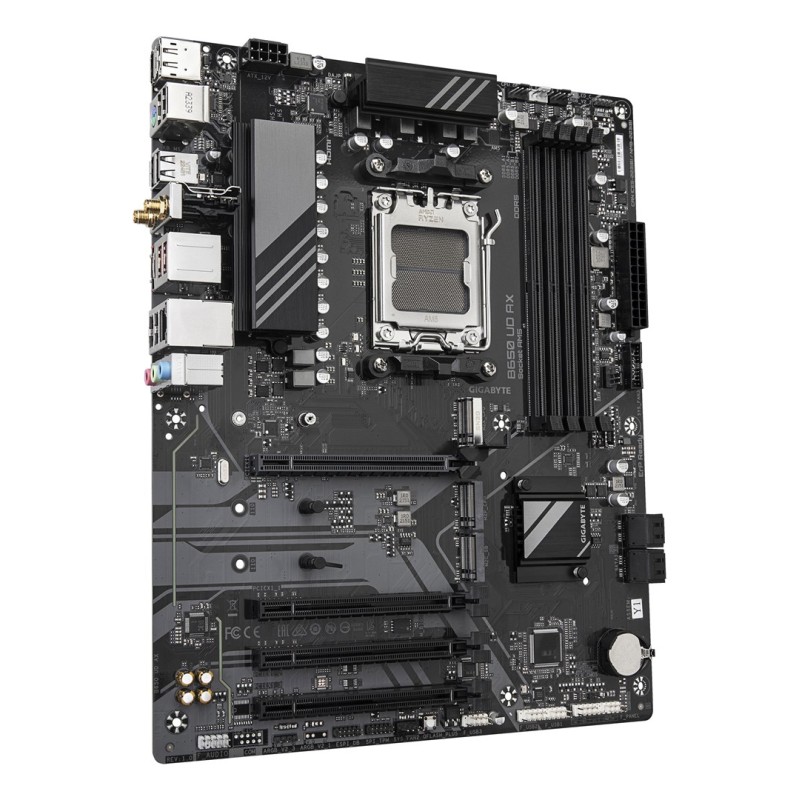

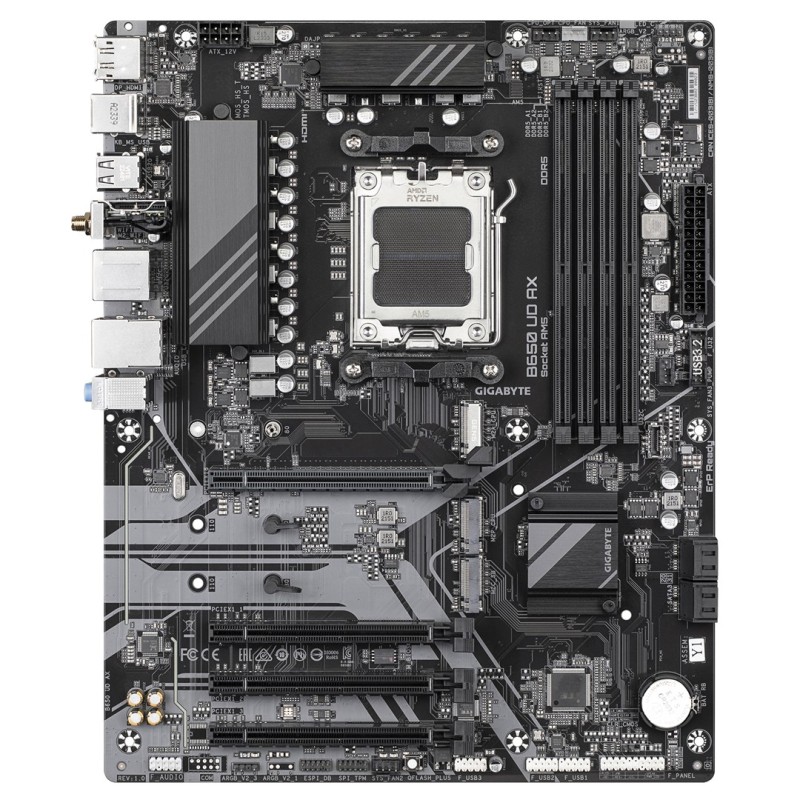

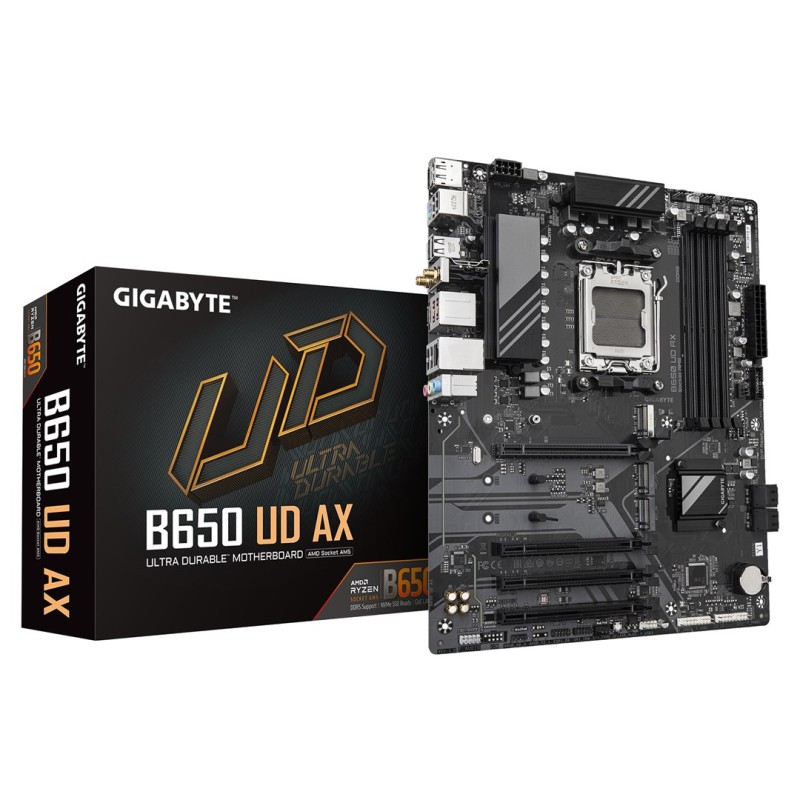

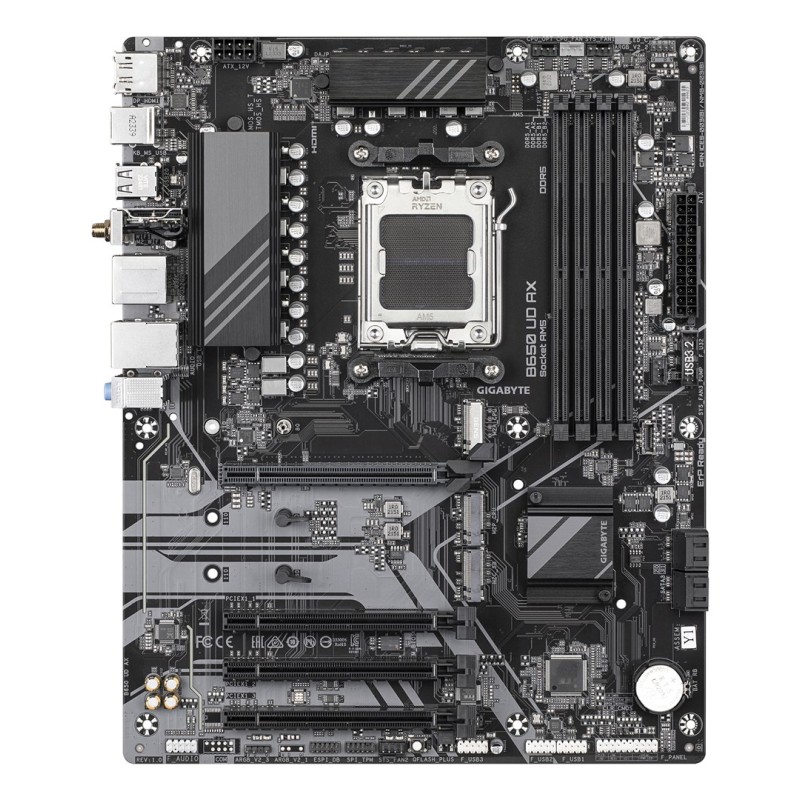

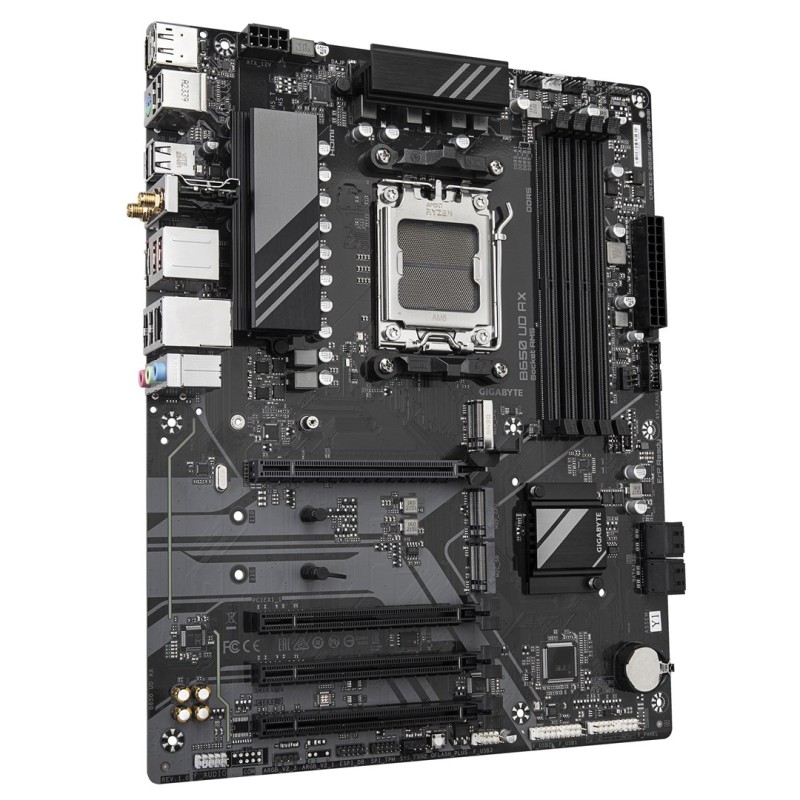

GIGABYTE B650 UD AX Motherboard - AMD Ryzen 9000 Series CPUs, 6+2+2 Phases VRM, up to 7600MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, GbE LAN, WIFI 6, USB 3.2 Gen 2

Περιγραφή

Technical details

Warranty period: 3 year(s)

Processor

Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series

Supported processor sockets: Socket AM5

Processor manufacturer: AMD

Processor socket: Socket AM5

Graphics

Parallel processing technology support: Not supported

HDCP: Yes

DirectX version: 12.0

Maximum resolution: 4096 x 2160 pixels

Features

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Motherboard form factor: ATX

Motherboard chipset: AMD B650

Product colour: Bronze

Audio output channels: 7.1 channels

Motherboard chipset family: AMD

Power source type: ATX

PC health monitoring: Fan, Water cooling, Temperature, Voltage

Audio chip: Realtek ALC897

Memory

Supported memory clock speeds: 4800, 6200, 5200, 6400 MHz, 6000, 5600, 7600, 7200, 7000, 6600, 6800

Number of memory slots: 4

Memory channels: Dual-channel

Supported memory types: DDR5-SDRAM

Memory slots type: DIMM

ECC сompatibility: Non-ECC

Supported memory clock speed (max): 7600 MHz

Maximum internal memory per slot: 64 GB

Unbuffered memory: Yes

Maximum internal memory: 256 GB

Weight & dimensions

Width: 305 mm

Depth: 244 mm

Height: 35 mm

Network

LAN controller: Realtek RTL8111H

Top Wi-Fi standard: Wi-Fi 6 (802.11ax)

Wi-Fi standards: 802.11g, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), 802.11b, Wi-Fi 5 (802.11ac)

Wi-Fi: Yes

Ethernet interface type: Gigabit Ethernet

WLAN controller model: Realtek RTL8851BE

Ethernet LAN: Yes

Internal I/O

Number of EPS power connectors (8-pin): 1

Number of water pump connectors: 2

Number of RGB LED pin headers: 4

Number of chassis fan connectors: 3

12V power connector: Yes

EPS power connector (8-pin): Yes

TPM connector: Yes

CPU fan connector: Yes

RGB LED pin header: Yes

Serial port headers: 1

Front panel connector: Yes

Number of CPU fan connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

USB 2.0 connectors: 3

ATX Power connector (24-pin): Yes

Number of SATA III connectors: 4

Front panel audio connector: Yes

BIOS

Clear CMOS button: Yes

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

Desktop Management Interface (DMI) version: 2.7

Packaging data

Package weight: 2.2 kg

Package depth: 270 mm

Package width: 335 mm

Package height: 80 mm

Packaging content

Screws included: Yes

Batteries included: Yes

Antenna included: Yes

Storage controllers

RAID levels: 1, 10, 0

Number of HDDs supported: 4

Number of storage drives supported: 7

Supported storage drive types: HDD & SSD

RAID support: Yes

Supported storage drive interfaces: M.2, SATA III

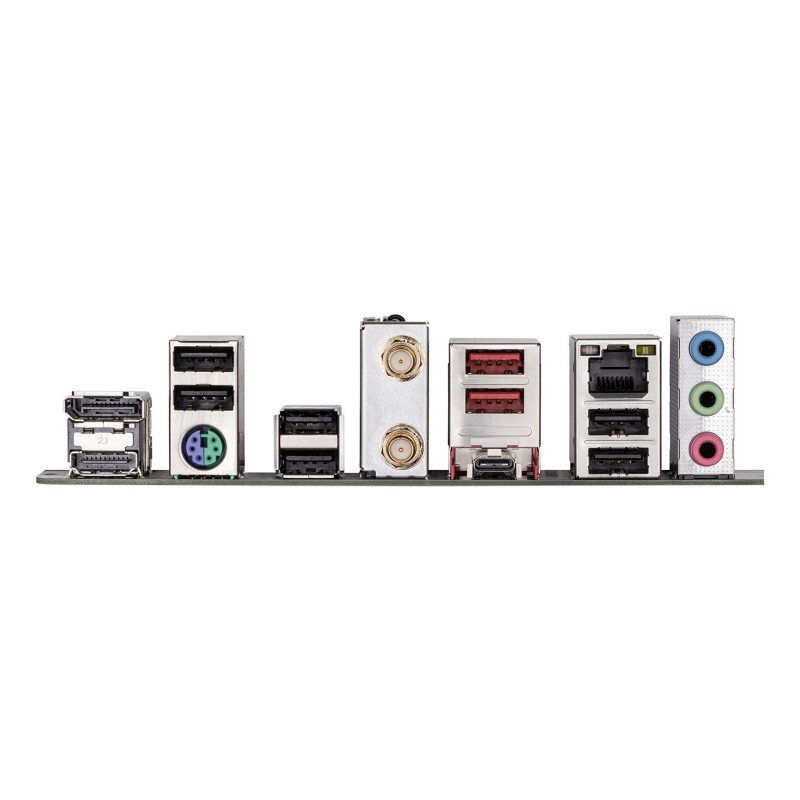

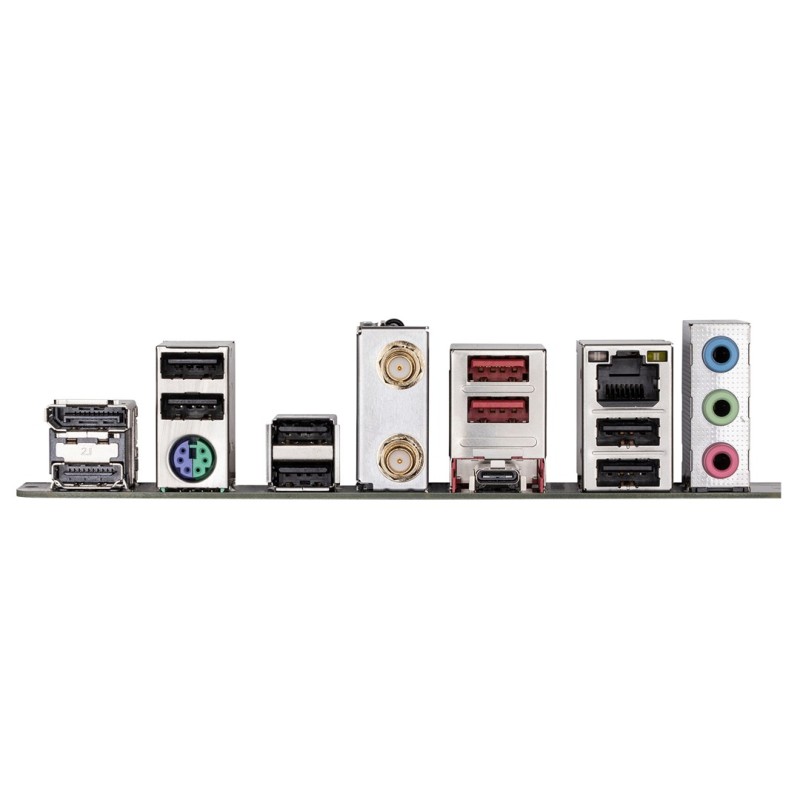

Rear panel I/O ports

HDMI version: 2.1

Headphone outputs: 1

HDMI ports quantity: 1

WiFi-AP antenna jack: 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

Microphone in: Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

Ethernet LAN (RJ-45) ports: 1

DisplayPorts quantity: 1

DisplayPort version: 1.4

USB 2.0 ports quantity: 6

Expansion slots

3rd M.2 highest PCI Express generation: 4.0

2nd M.2 largest key size: 22110

1st M.2 highest PCI Express generation: 5.0

2nd M.2 highest PCI Express generation: 4.0

1st M.2 largest key size: 25110

3rd M.2 largest key size: 22110

Number of M.2 (M) slots: 3

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x16 (Gen 3.x) slots: 2

Battery

Number of battery cells: 1

Battery type: CR2032

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery weight: 3 g

Lithium weight per battery: 0.07 g

Other features

Weight: 1.95 kg

Logistics data

Products per shipping (inner) case: 1 pc(s)

Country of origin: China

Safety warning

Warnings: Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty.
