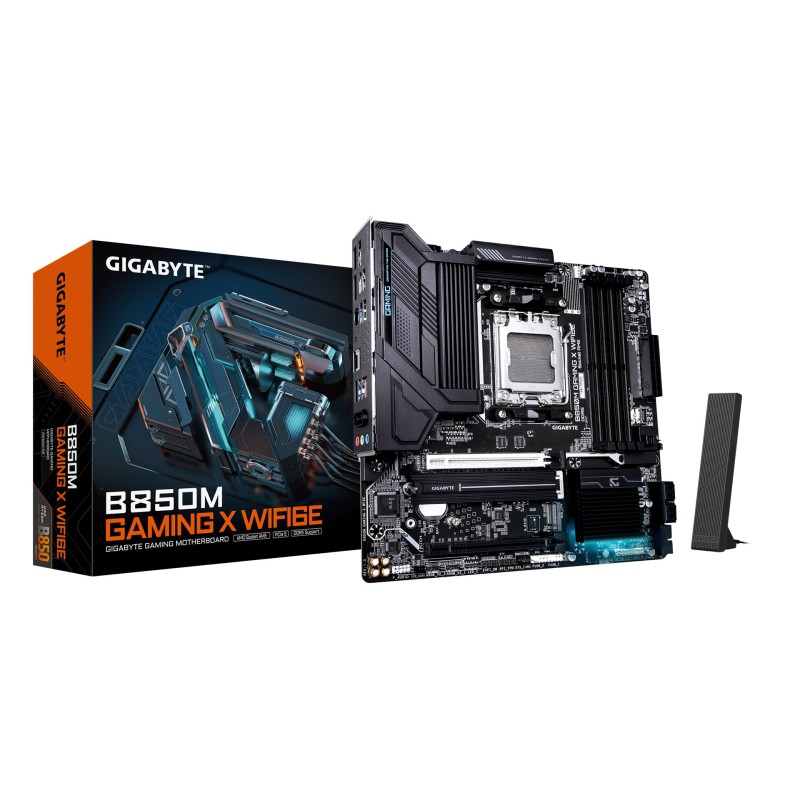

GIGABYTE B850M GAMING X WIFI6E Motherboard - AMD Ryzen 9000 Series CPUs, 10+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5LAN, WIFI 6E, USB 3.2 Gen 2

Περιγραφή

Technical details

Warranty period: 3 year(s)

Processor

Processor socket: Socket AM5

Supported processor sockets: Socket AM5

Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series

Processor manufacturer: AMD

Graphics

HDCP: Yes

Maximum resolution: 4096 x 2160 pixels

Parallel processing technology support: Not supported

DirectX version: 12.0

On-board graphics card: No

Features

PC health monitoring: Water cooling, Voltage, Fan, Temperature

Product colour: Bronze

Audio output channels: 7.1 channels

Motherboard chipset family: AMD

Audio chip: Realtek ALC897

Power source type: ATX

Motherboard chipset: AMD B850

Motherboard form factor: micro ATX

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Memory

Supported memory clock speeds: 4800, 8000, 6600, 6000, 4400, 7950, 7900, 7600, 7800, 5200, 6800, 5800, 6400, 7400, 5600, 7000, 8200 MHz, 7200

Maximum internal memory: 256 GB

Unbuffered memory: Yes

Maximum internal memory per slot: 64 GB

Number of memory slots: 4

Supported memory clock speed (max): 8200 MHz

Memory slots type: DIMM

Supported memory types: DDR5-SDRAM

Memory channels: Dual-channel

ECC сompatibility: Non-ECC

Weight & dimensions

Width: 244 mm

Depth: 244 mm

Height: 35 mm

Network

Bluetooth: Yes

Wi-Fi standards: 802.11b, Wi-Fi 5 (802.11ac), 802.11g, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n)

Ethernet interface type: 2.5 Gigabit Ethernet

Wi-Fi: Yes

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Bluetooth version: 5.3

WLAN controller model: Realtek RTL8852CE

Ethernet LAN: Yes

Internal I/O

Serial port headers: 1

Front panel audio connector: Yes

Number of SATA III connectors: 4

ATX Power connector (24-pin): Yes

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Number of water pump connectors: 2

Number of EPS power connectors (8-pin): 1

Number of RGB LED pin headers: 4

Number of CPU fan connectors: 2

TPM connector: Yes

CPU fan connector: Yes

Front panel connector: Yes

Peripheral (Molex) power connectors (4-pin): 1

12V power connector: Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

RGB LED pin header: Yes

EPS power connector (8-pin): Yes

BIOS

Desktop Management Interface (DMI) version: 2.7

BIOS type: UEFI AMI

Clear CMOS button: Yes

Clear CMOS jumper: Yes

Packaging data

Package weight: 1.75 kg

Package height: 68 mm

Package depth: 268 mm

Package width: 270 mm

Packaging content

Screws included: Yes

Antenna included: Yes

Batteries included: Yes

Storage controllers

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

RAID support: Yes

RAID levels: 10, 0, 1

Number of storage drives supported: 6

Number of HDDs supported: 4

Rear panel I/O ports

DisplayPort version: 2.1

Ethernet LAN (RJ-45) ports: 1

DisplayPorts quantity: 1

USB 2.0 ports quantity: 4

Microphone in: Yes

Headphone outputs: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

HDMI ports quantity: 1

WiFi-AP antenna jack: 2

HDMI version: 2.1

Expansion slots

Number of M.2 (M) slots: 2

PCI Express x16 (Gen 3.x) slots: 1

2nd M.2 largest key size: 22110

1st M.2 largest key size: 25110

2nd M.2 highest PCI Express generation: 4.0

1st M.2 highest PCI Express generation: 5.0

PCI Express x16 (Gen 5.x) slots: 1

Battery

Battery weight: 3 g

Battery type: CR2032

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Lithium weight per battery: 0.07 g

Other features

Weight: 1.54 kg

Logistics data

Country of origin: China

Products per shipping (inner) case: 1 pc(s)

Safety warning

Warnings: Do not disassemble to avoid damage to internal components and loss of warranty.
