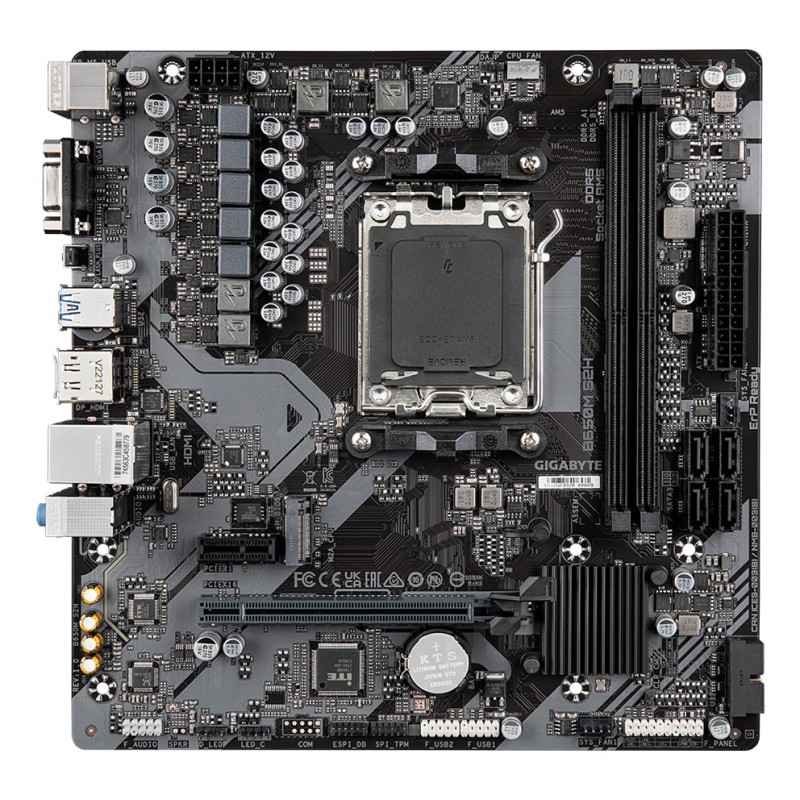

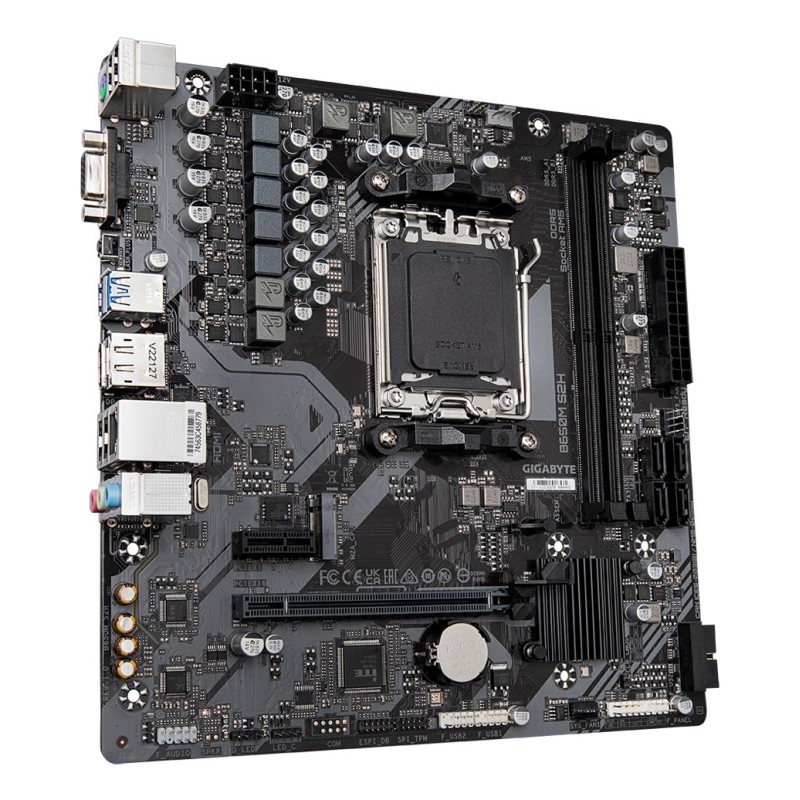

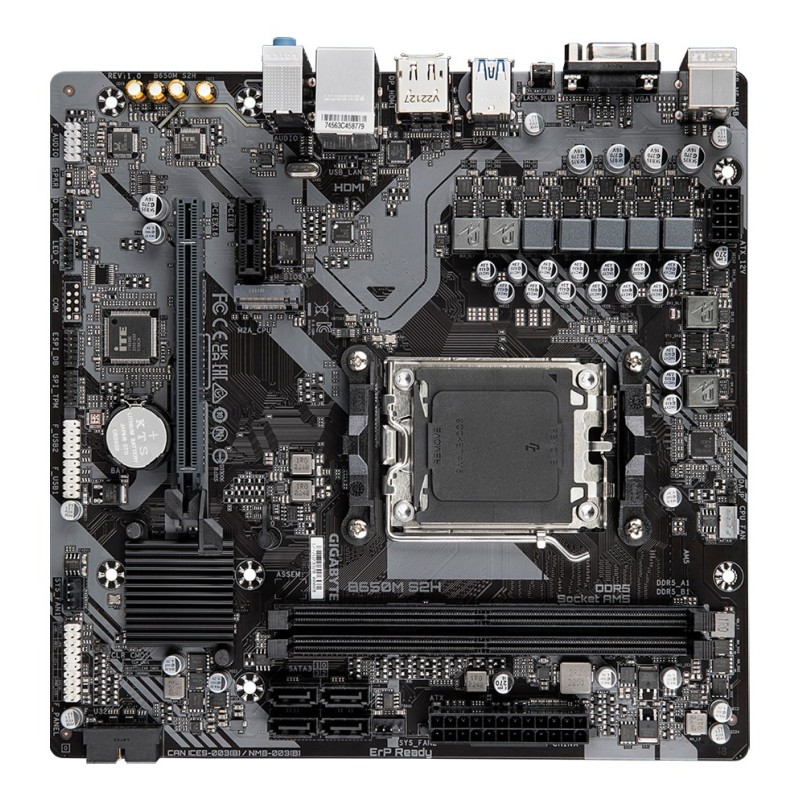

GIGABYTE B650M S2H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 6400MHz DDR5, 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1

Περιγραφή

Technical details

Warranty period: 3 year(s)

Processor

Processor socket: Socket AM5

Supported processor sockets: Socket AM5

Processor manufacturer: AMD

Compatible processor series: AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD Ryzen 7000 Series

Graphics

HDCP: Yes

DirectX version: 12.0

Parallel processing technology support: Not supported

Maximum resolution: 4096 x 2160 pixels

Features

Motherboard chipset family: AMD

Windows operating systems supported: Windows 11 x64, Windows 10 x64

Audio output channels: 7.1 channels

Motherboard form factor: micro ATX

Power source type: ATX

Motherboard chipset: AMD B650

PC health monitoring: Fan, Temperature, Voltage

Product colour: Bronze

Cooling type: Passive

Audio chip: Realtek ALC897

Memory

Memory slots type: DIMM

Number of memory slots: 2

Supported memory types: DDR5-SDRAM

Supported memory clock speed (max): 6400 MHz

Maximum internal memory per slot: 64 GB

ECC сompatibility: Non-ECC

Maximum internal memory: 128 GB

Supported memory clock speeds: 4800, 4400, 6400, 5600 MHz, 6000, 5200, 6200

Unbuffered memory: Yes

Memory channels: Dual-channel

Weight & dimensions

Height: 35 mm

Depth: 225 mm

Width: 230 mm

Network

Ethernet interface type: Gigabit Ethernet

Ethernet LAN: Yes

LAN controller: Realtek RTL8111H

Wi-Fi: No

Internal I/O

RGB LED pin header: Yes

12V power connector: Yes

Number of CPU fan connectors: 1

Number of EPS power connectors (8-pin): 1

Number of chassis fan connectors: 2

Number of SATA III connectors: 4

Front panel audio connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Number of RGB LED pin headers: 2

EPS power connector (8-pin): Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

TPM connector: Yes

Front panel connector: Yes

USB 2.0 connectors: 2

BIOS

Desktop Management Interface (DMI) version: 2.7

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

Packaging data

Package weight: 917 g

Package height: 54 mm

Package depth: 265 mm

Package width: 265 mm

Packaging content

Screws included: Yes

Batteries included: Yes

Storage controllers

Number of HDDs supported: 4

Supported storage drive types: HDD & SSD

RAID levels: 0, 1, 10

Number of storage drives supported: 5

RAID support: Yes

Supported storage drive interfaces: M.2, SATA III

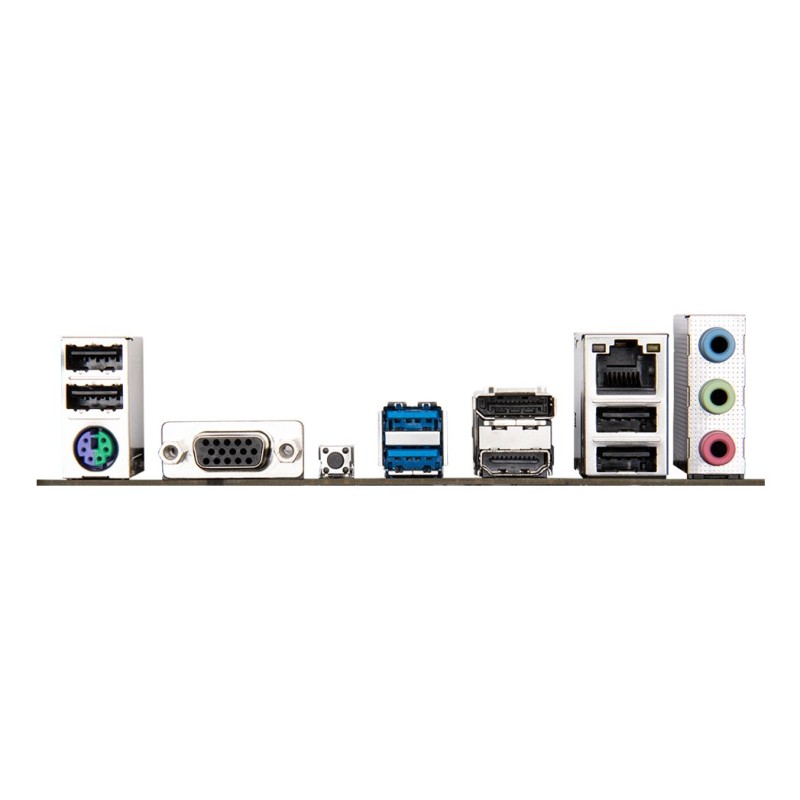

Rear panel I/O ports

Headphone outputs: 1

Line-in: Yes

VGA (D-Sub) ports quantity: 1

DisplayPorts quantity: 1

HDMI version: 2.1

HDMI ports quantity: 1

DisplayPort version: 1.4

Microphone in: Yes

PS/2 ports quantity: 1

USB 2.0 ports quantity: 4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Ethernet LAN (RJ-45) ports: 1

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1

1st M.2 highest PCI Express generation: 4.0

PCI Express x1 (Gen 3.x) slots: 1

Number of M.2 (M) slots: 1

1st M.2 largest key size: 2580

Battery

Battery weight: 3 g

Number of battery cells: 1

Lithium weight per battery: 0.07 g

Battery type: CR2032

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Logistics data

Products per shipping (inner) case: 1 pc(s)

Country of origin: China

Safety warning

Warnings: Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste.
