ASUS TUF GAMING X870-PLUS WIFI AMD X870 Socket AM5 ATX

Περιγραφή

Processor

Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Processor manufacturer: AMD

Processor socket: Socket AM5

Graphics

Parallel processing technology support: Not supported

On-board graphics card: No

Features

Audio output channels: 7.1 channels

Windows operating systems supported: Windows 11

Motherboard chipset: AMD X870

Motherboard form factor: ATX

Motherboard chipset family: AMD

Audio chip: Realtek ALC1220P

Product colour: Black

Memory

ECC сompatibility: ECC & Non-ECC

Supported memory clock speed (max): 8000 MHz

Maximum internal memory: 192 GB

Number of memory slots: 4

Memory channels: Dual-channel

Unbuffered memory: Yes

Memory slots type: DIMM

Supported memory types: DDR5-SDRAM

Weight & dimensions

Depth: 244 mm

Width: 305 mm

Network

Ethernet interface type: Gigabit Ethernet, Fast Ethernet, 2.5 Gigabit Ethernet

Bluetooth version: 5.4

Wi-Fi: Yes

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Ethernet LAN: Yes

Bluetooth: Yes

Wi-Fi standards: Wi-Fi 7 (802.11be)

Internal I/O

USB 3.2 Gen 2x2 connectors: 1

12V power connector: Yes

Front panel audio connector: Yes

Number of chassis fan connectors: 4

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Number of COM connectors: 1

ATX Power connector (24-pin): Yes

EPS power connector (8-pin): Yes

Number of SATA III connectors: 2

USB 2.0 connectors: 2

CPU fan connector: Yes

BIOS

BIOS type: UEFI AMI

Storage controllers

Number of storage drives supported: 6

RAID levels: 10, 0, 1, 5

RAID support: Yes

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

Number of HDDs supported: 2

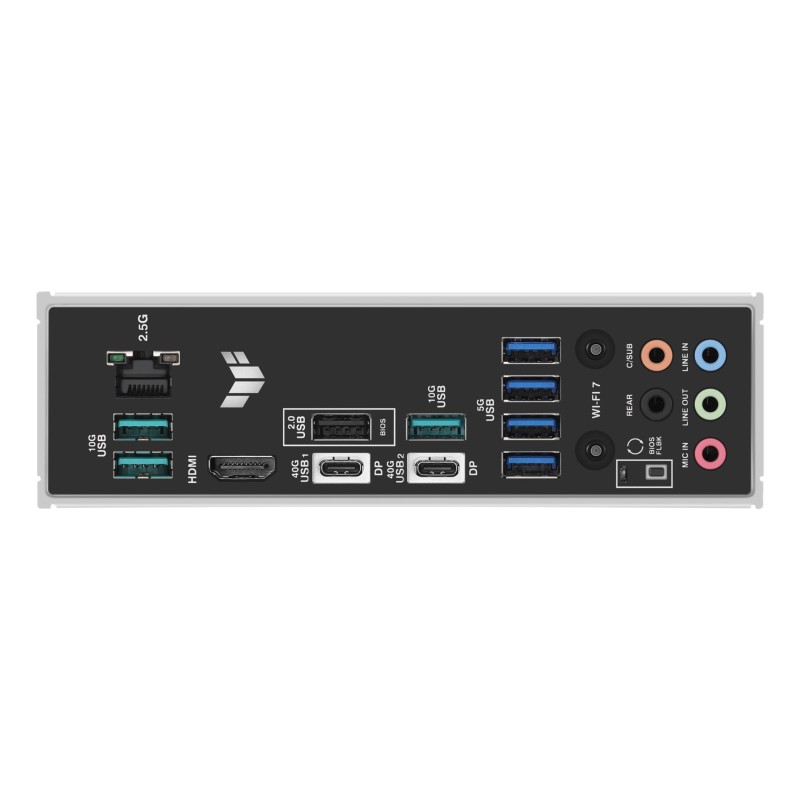

Rear panel I/O ports

USB4 Gen 3x2 ports quantity: 2

USB 2.0 ports quantity: 1

USB connector type: USB Type-C, USB Type-A

Ethernet LAN (RJ-45) ports: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3

HDMI ports quantity: 1

Microphone in: Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1

Number of M.2 (M) slots: 4
