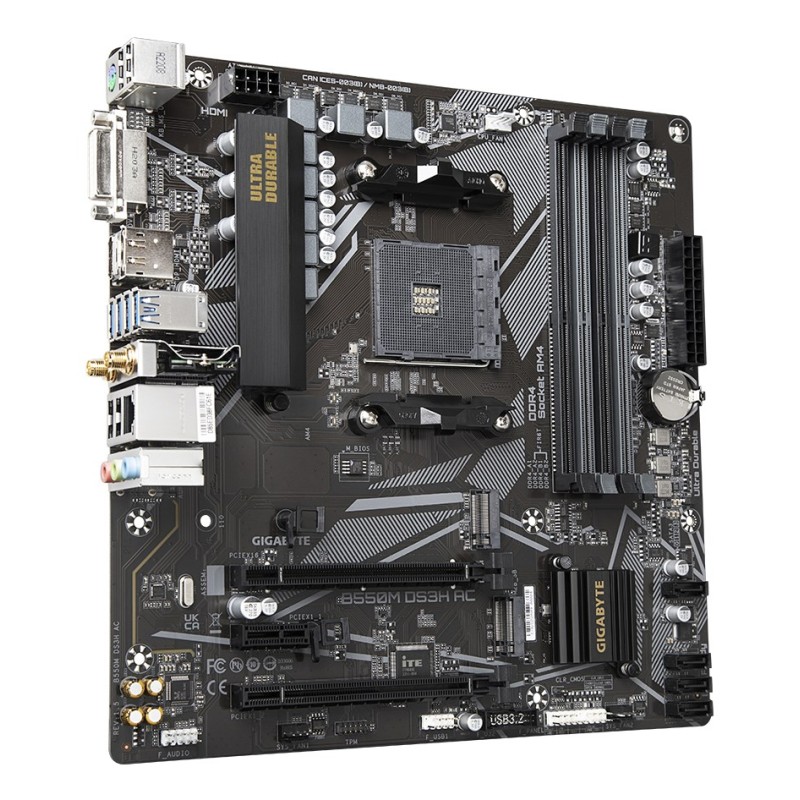

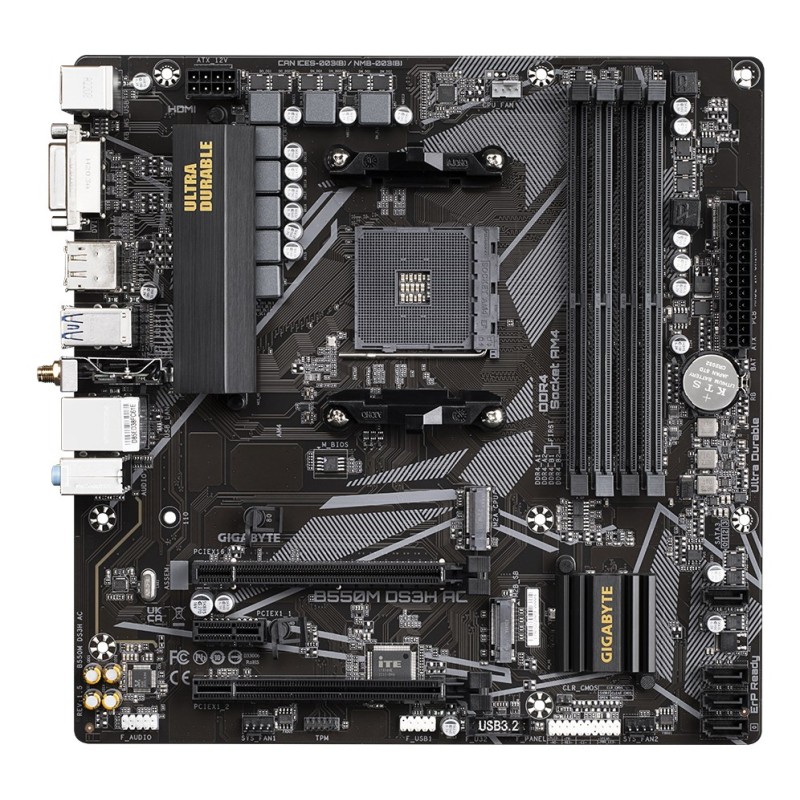

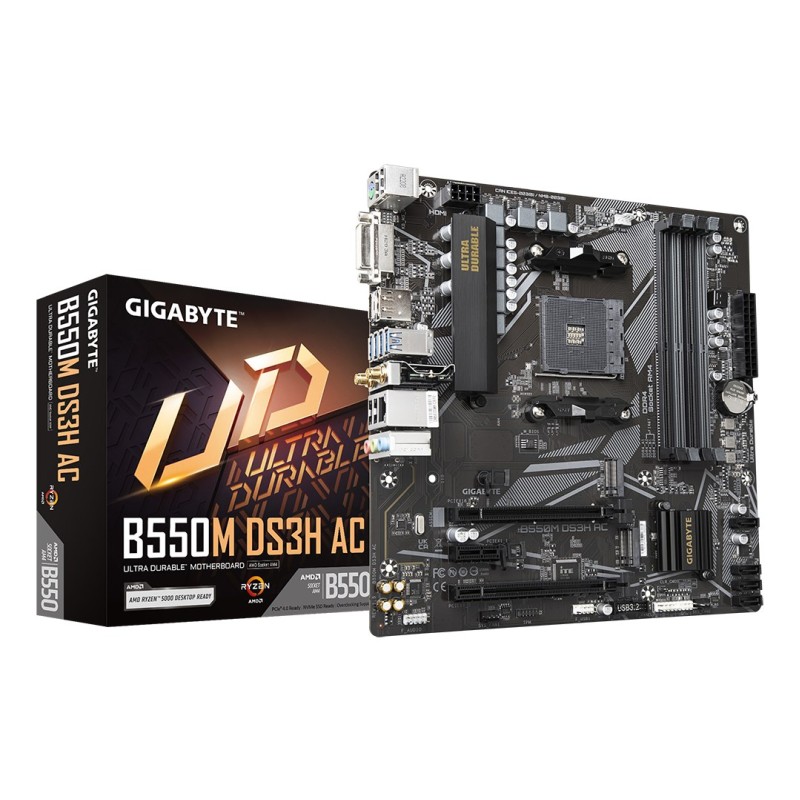

Gigabyte B550M DS3H Socket AM4 micro ATX AMD B550

Περιγραφή

Technical details

Warranty period: 3 year(s)

Processor

Processor manufacturer: AMD

Processor socket: Socket AM4

Compatible processor series: AMD Ryzen 5000 Series, AMD Ryzen 4000 Series, AMD Ryzen 3000 Series

Supported processor sockets: Socket AM4

Graphics

Maximum resolution: 4096 x 2160 pixels

Parallel processing technology support: Not supported

DirectX version: 12.0

HDCP: Yes

Features

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Audio output channels: 7.1 channels

Power source type: ATX

Audio chip: Realtek ALC897

PC health monitoring: Voltage, Temperature, Fan

Motherboard form factor: micro ATX

Product colour: Bronze

Motherboard chipset family: AMD

Motherboard chipset: AMD B550

Cooling type: Passive

Memory

Memory slots type: DIMM

Supported memory types: DDR4-SDRAM

Memory channels: Dual-channel

Supported memory clock speed (max): 4733 MHz

Number of memory slots: 4

Maximum internal memory per slot: 32 GB

ECC сompatibility: ECC & Non-ECC

Supported memory clock speeds: 3200 MHz, 4266, 3400, 4133, 4000 MHz, 3466, 2400, 3866, 2667, 3733, 4400, 4600, 2933, 3600, 4733, 2133

Unbuffered memory: Yes

Maximum internal memory: 128 GB

Weight & dimensions

Height: 35 mm

Depth: 244 mm

Width: 244 mm

Network

Wi-Fi standards: Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 5 (802.11ac), 802.11g, 802.11b

Ethernet interface type: Gigabit Ethernet

Top Wi-Fi standard: Wi-Fi 5 (802.11ac)

Wi-Fi: Yes

WLAN controller model: Realtek RTL8821CE

Ethernet LAN: Yes

Bluetooth version: 4.2

Bluetooth: Yes

LAN controller: Realtek RTL8111H

Internal I/O

12V power connector: Yes

EPS power connector (8-pin): Yes

TPM connector: Yes

Audio connector: Yes

RGB LED pin header: Yes

Number of CPU fan connectors: 1

Serial port headers: 1

Number of chassis fan connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

CPU fan connector: Yes

Number of water pump connectors: 2

USB 2.0 connectors: 1

ATX Power connector (24-pin): Yes

Number of SATA III connectors: 4

Number of EPS power connectors (8-pin): 1

Number of RGB LED pin headers: 5

Front panel audio connector: Yes

BIOS

Clear CMOS jumper: Yes

Desktop Management Interface (DMI) version: 2.7

BIOS type: UEFI AMI

Packaging data

Package depth: 268 mm

Package width: 270 mm

Package height: 68 mm

Package weight: 1.09 kg

Packaging content

Antenna included: Yes

Batteries included: Yes

Screws included: Yes

Storage controllers

Number of storage drives supported: 6

Number of HDDs supported: 4

RAID levels: 0, 10, 1

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

RAID support: Yes

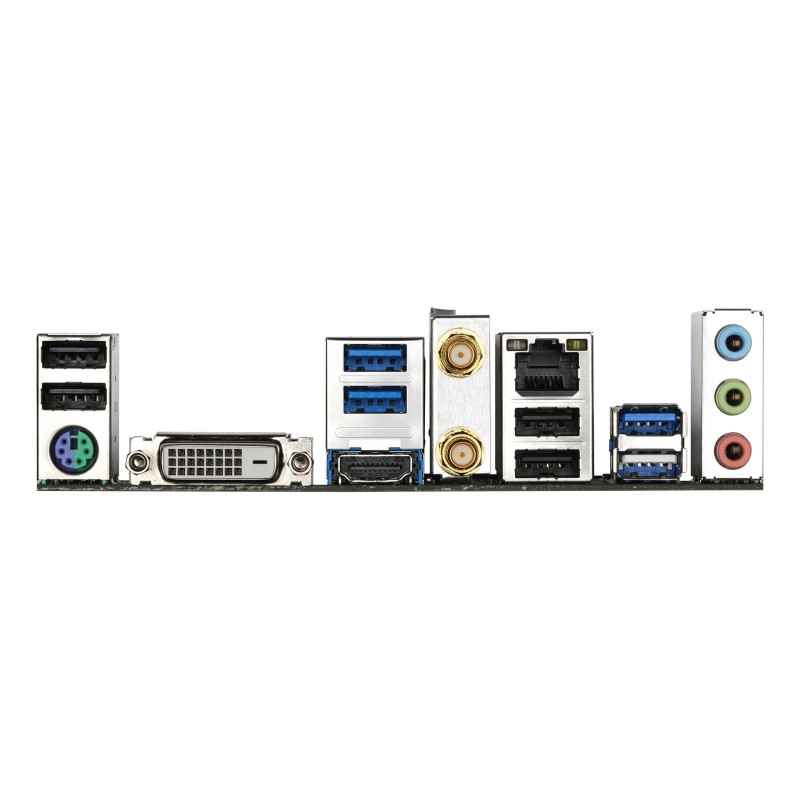

Rear panel I/O ports

HDMI version: 2.1

WiFi-AP antenna jack: 2

Headphone outputs: 1

HDMI ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

DVI-D ports quantity: 1

PS/2 ports quantity: 1

Microphone in: Yes

Line-in: Yes

Ethernet LAN (RJ-45) ports: 1

USB 2.0 ports quantity: 4

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1

2nd M.2 highest PCI Express generation: 3.0

1st M.2 highest PCI Express generation: 4.0

PCI Express x1 (Gen 3.x) slots: 1

2nd M.2 largest key size: 2280

1st M.2 largest key size: 22110

PCI Express x16 (Gen 3.x) slots: 1

Number of M.2 (M) slots: 2

Battery

Battery type: CR2032

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery weight: 3 g

Number of battery cells: 1

Lithium weight per battery: 0.07 g

Logistics data

Products per shipping (inner) case: 1 pc(s)

Country of origin: China

Safety warning

Warnings: Avoid direct contact with sensitive electronic components., Dispose of according to local electro-waste regulations., Store away from water and sources of moisture.
