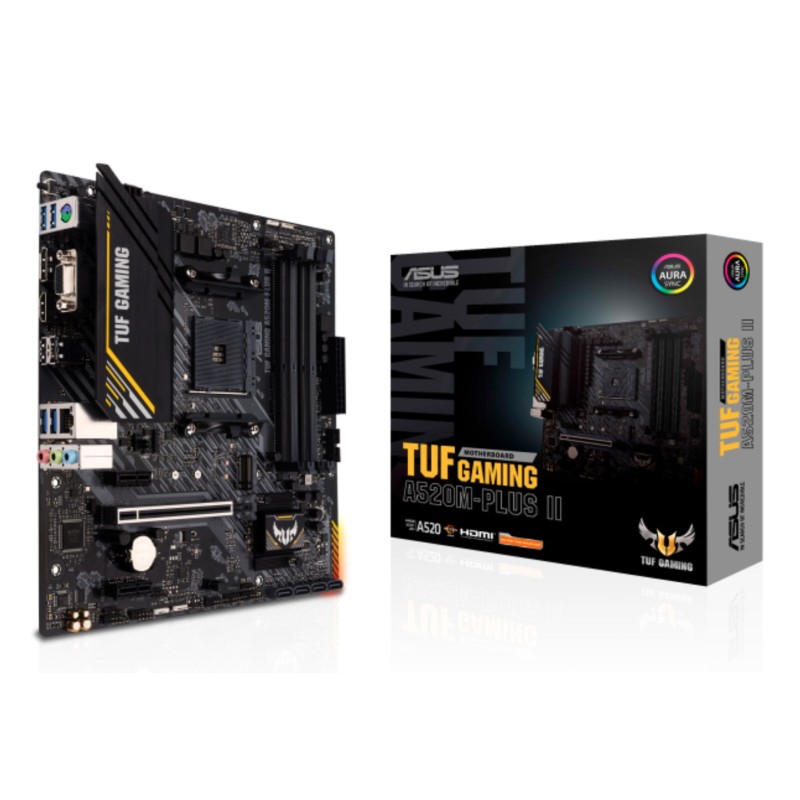

ASUS TUF GAMING A520M-PLUS II AMD A520 Socket AM4 micro ATX

Περιγραφή

Processor

Supported processor sockets: Socket AM4

Compatible processor series: AMD Ryzen 5000 Series, AMD Ryzen 3000 Series

Processor manufacturer: AMD

Processor socket: Socket AM4

Graphics

Maximum resolution: 3840 x 2160 pixels

Parallel processing technology support: Not supported

Features

Audio chip: Realtek ALC887 / Realtek ALC897

Audio output channels: 7.1 channels

Motherboard chipset family: AMD

Windows operating systems supported: Windows 10 x64

Motherboard chipset: AMD A520

Motherboard form factor: micro ATX

Memory

Unbuffered memory: Yes

Supported memory clock speeds: 3866, 3200 MHz, 2666, 4266, 3333, 4466, 4600, 2400, 2133, 3466, 3600, 3733, 4400, 4133, 4000, 4800, 2800, 3000

Maximum internal memory: 128 GB

ECC сompatibility: ECC

Memory channels: Dual-channel

Memory slots type: DIMM

Supported memory types: DDR4-SDRAM

Number of memory slots: 4

Weight & dimensions

Height: 67 mm

Depth: 244 mm

Width: 244 mm

Network

Wake-on-LAN ready: Yes

Wi-Fi: No

Ethernet interface type: Gigabit Ethernet

Ethernet LAN: Yes

Internal I/O

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Number of SATA III connectors: 4

Number of chassis fan connectors: 2

CPU fan connector: Yes

TPM connector: Yes

EPS power connector (8-pin): Yes

S/PDIF out connector: Yes

ATX Power connector (24-pin): Yes

Front panel audio connector: Yes

Number of COM connectors: 1

USB 2.0 connectors: 2

RGB LED pin header: Yes

12V power connector: Yes

BIOS

Clear CMOS jumper: Yes

BIOS type: UEFI AMI

Packaging content

Cables included: SATA

Drivers included: Yes

Storage controllers

RAID levels: 0, 10, 1

Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III

Supported storage drive types: HDD & SSD

Number of storage drives supported: 5

Rear panel I/O ports

DisplayPort version: 1.2

DisplayPorts quantity: 1

HDMI ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

USB 2.0 ports quantity: 2

USB connector type: USB Type-A

Ethernet LAN (RJ-45) ports: 1

PS/2 ports quantity: 1

Microphone in: Yes

VGA (D-Sub) ports quantity: 1

Headphone outputs: 3

HDMI version: 2.1

Expansion slots

PCI Express x16 (Gen 3.x) slots: 1

Number of M.2 (M) slots: 1

PCI Express x1 (Gen 3.x) slots: 2

Other features

Weight: 900 g

Logistics data

Harmonized System (HS) code: 84733020

Safety warning

Warnings: Dispose of according to local electro-waste regulations., Avoid direct contact with sensitive electronic components., Store away from water and sources of moisture.
