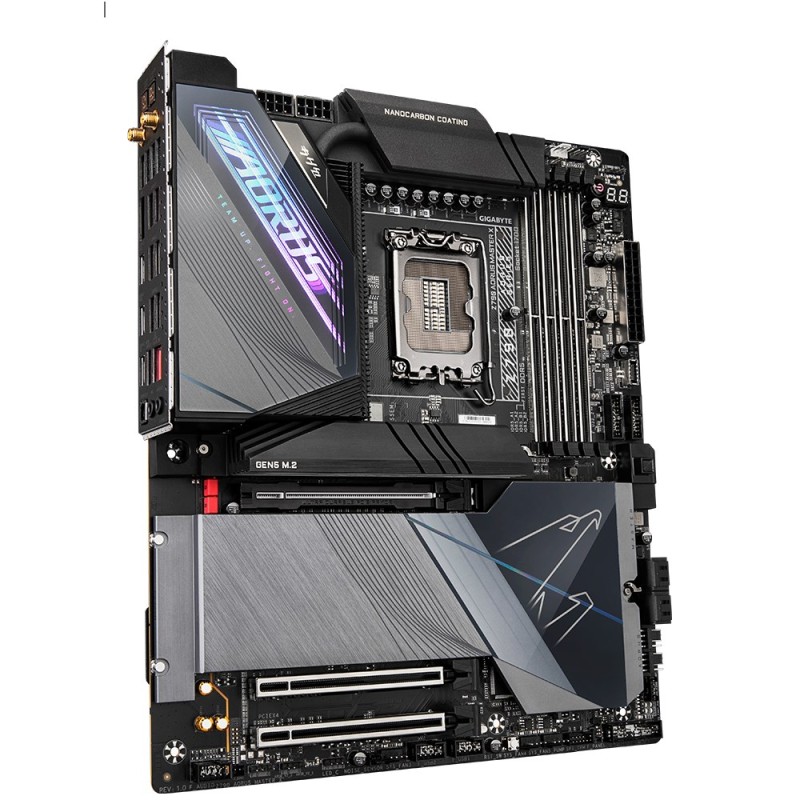

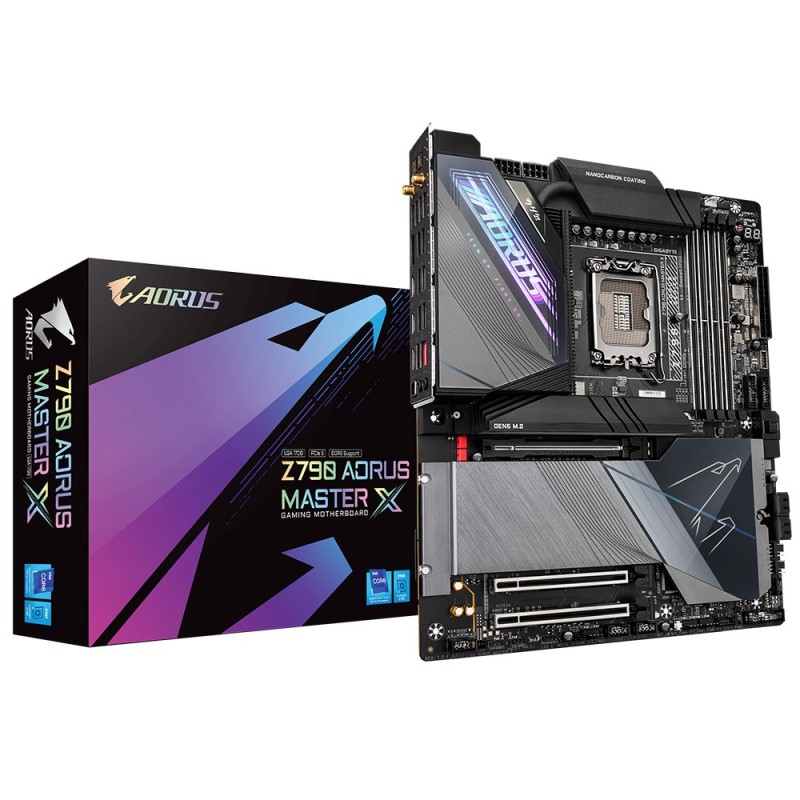

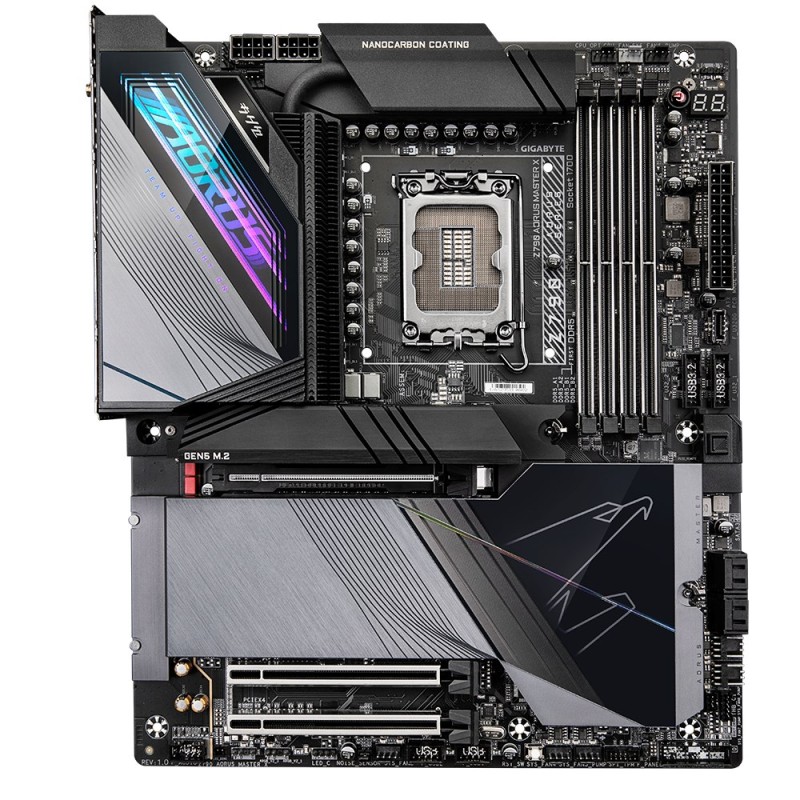

GIGABYTE Z790 AORUS MASTER X Motherboard- Supports Intel 13th Gen CPUs, 20+1+2 phases VRM, up to 8266MHz DDR5 (OC), 1x PCIe 5.0 + 4x PCIe 4.0 M2, 10GbE LAN, Wi-Fi 7, USB 3.2 Gen 2x2

Περιγραφή

Technical details

Warranty period: 3 year(s)

Processor

Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®

Maximum internal memory supported by processor: 192 GB

Processor manufacturer: Intel

Maximum number of SMP processors: 1

Processor socket: LGA 1700

Supported processor sockets: LGA 1700

Graphics

Maximum resolution: 4096 x 2304 pixels

HDCP: Yes

Parallel processing technology support: Not supported

DirectX version: 12.0

Features

Audio output channels: 7.1 channels

PC health monitoring: Voltage, Noise, Water cooling, Temperature, Fan

Product colour: Black

Motherboard chipset: Intel Z790 Express

Audio chip: Realtek ALC1220-VB

Motherboard form factor: Extended ATX

Motherboard chipset family: Intel

Windows operating systems supported: Windows 11 x64

Memory

ECC сompatibility: ECC & Non-ECC

Memory slots type: DIMM

Memory channels: Dual-channel

Supported memory types: DDR5-SDRAM

Supported memory clock speeds: 6000, 6800, 4000, 4800, 6200, 8000, 7400, 5200, 8266, 6400, 7000, 8200, 7600, 7800, 6600, 7950, 7900, 5800, 5400, 5600 MHz, 7200

Maximum internal memory: 192 GB

Number of memory slots: 4

Unbuffered memory: Yes

Supported memory clock speed (max): 8266 MHz

Weight & dimensions

Width: 305 mm

Depth: 260 mm

Height: 35 mm

Network

LAN controller: Marvell AQtion AQC113C

Bluetooth: Yes

Ethernet LAN: Yes

Wi-Fi: Yes

Ethernet interface type: 10 Gigabit Ethernet

Bluetooth version: 5.3

Wi-Fi standards: Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), 802.11g, 802.11b

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Internal I/O

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

RGB LED pin header: Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

12V power connector: Yes

Number of chassis fan connectors: 8

Number of SATA III connectors: 4

CPU fan connector: Yes

USB 2.0 connectors: 2

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

Thunderbolt headers: 2

Front panel connector: Yes

TPM connector: Yes

EPS power connector (8-pin): Yes

BIOS

Desktop Management Interface (DMI) version: 2.7

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

Clear CMOS button: Yes

Packaging data

Package weight: 3.46 kg

Package depth: 294 mm

Package height: 80 mm

Package width: 345 mm

Packaging content

Batteries included: Yes

Antenna included: Yes

Cables included: SATA

Storage controllers

Number of HDDs supported: 4

Supported storage drive interfaces: M.2, SATA III

RAID levels: 1, 0, 5, 10

RAID support: Yes

Supported storage drive types: HDD & SSD

Number of storage drives supported: 9

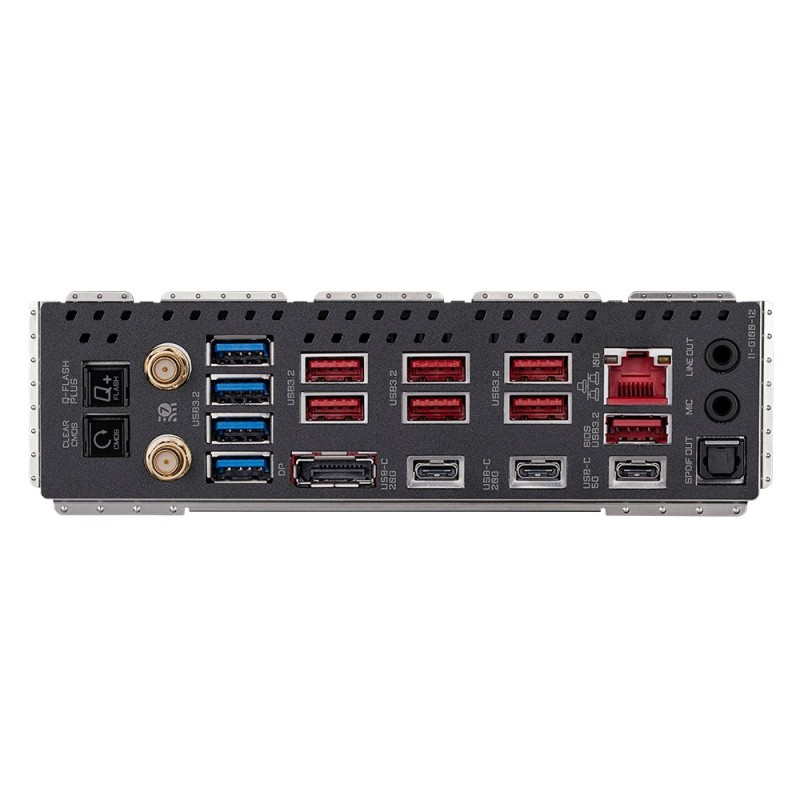

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

WiFi-AP antenna jack: 2

Headphone outputs: 1

DisplayPorts quantity: 1

USB connector type: USB Type-C, USB Type-A

Ethernet LAN (RJ-45) ports: 1

DisplayPort version: 1.2

S/PDIF out port: Yes

Microphone in: Yes

Digital audio optical out: 1

USB 3.2 Gen 2x2 Type-C ports quantity: 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 7

Expansion slots

PCI Express x16 (Gen 3.x) slots: 2

Number of M.2 (M) slots: 5

PCI Express x16 (Gen 5.x) slots: 1

Battery

Lithium weight per battery: 0.07 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery weight: 3 g

Battery type: CR2032

Logistics data

Products per shipping (inner) case: 1 pc(s)

Country of origin: Taiwan

Safety warning

Warnings: Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
