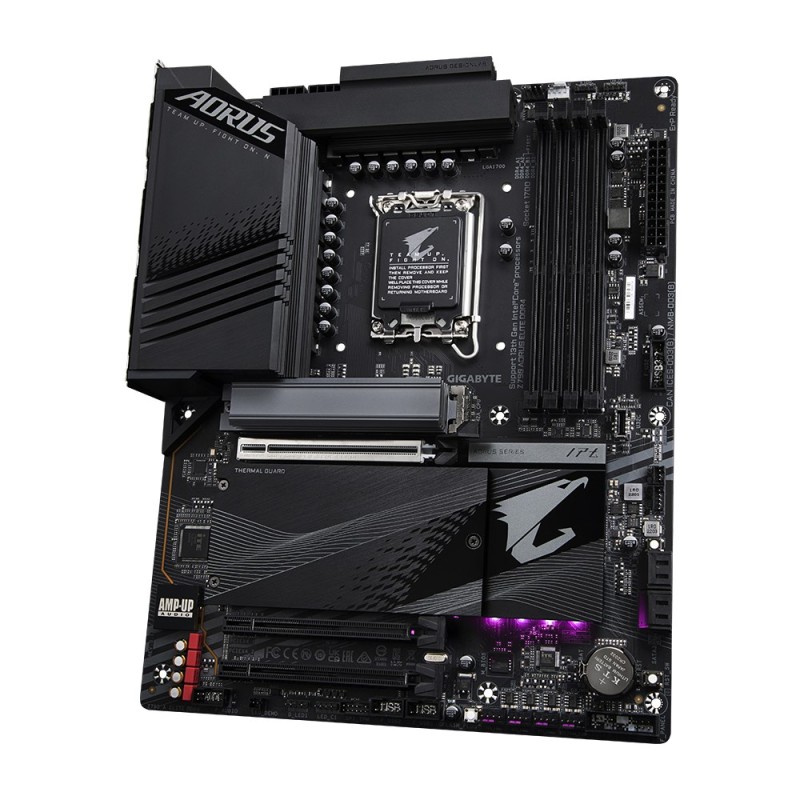

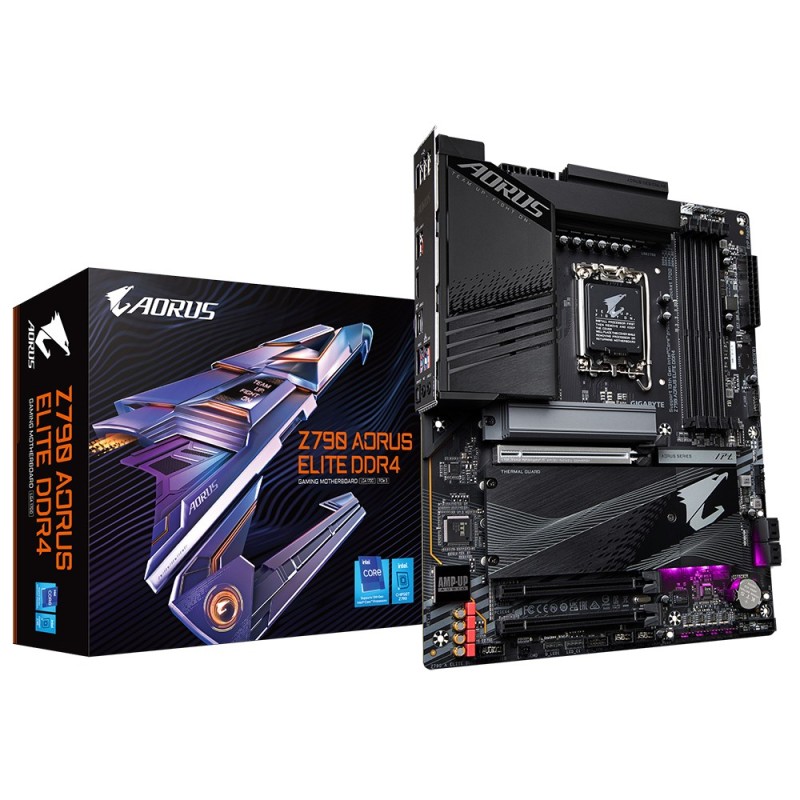

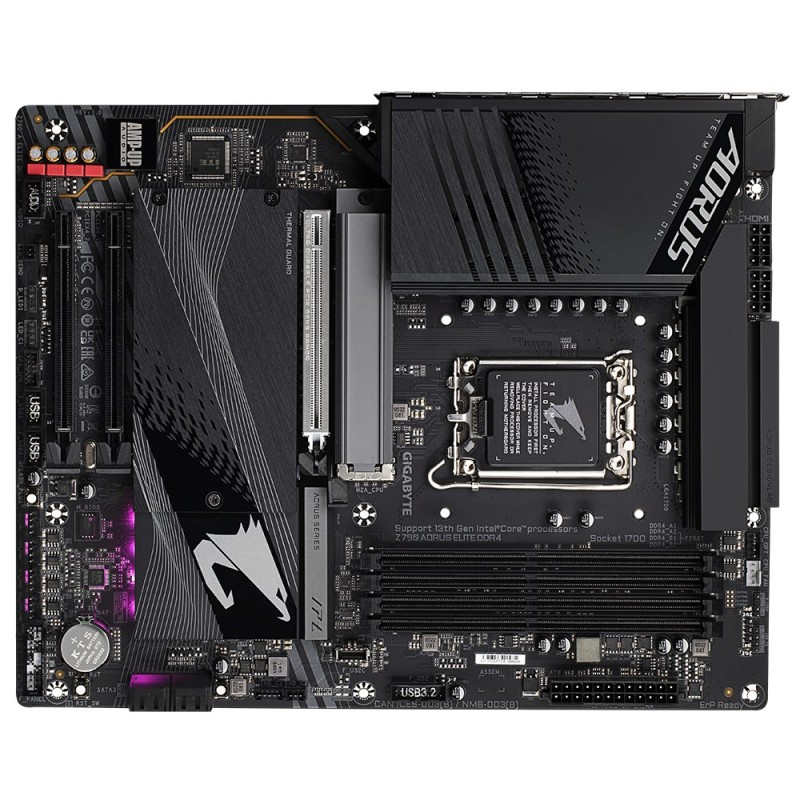

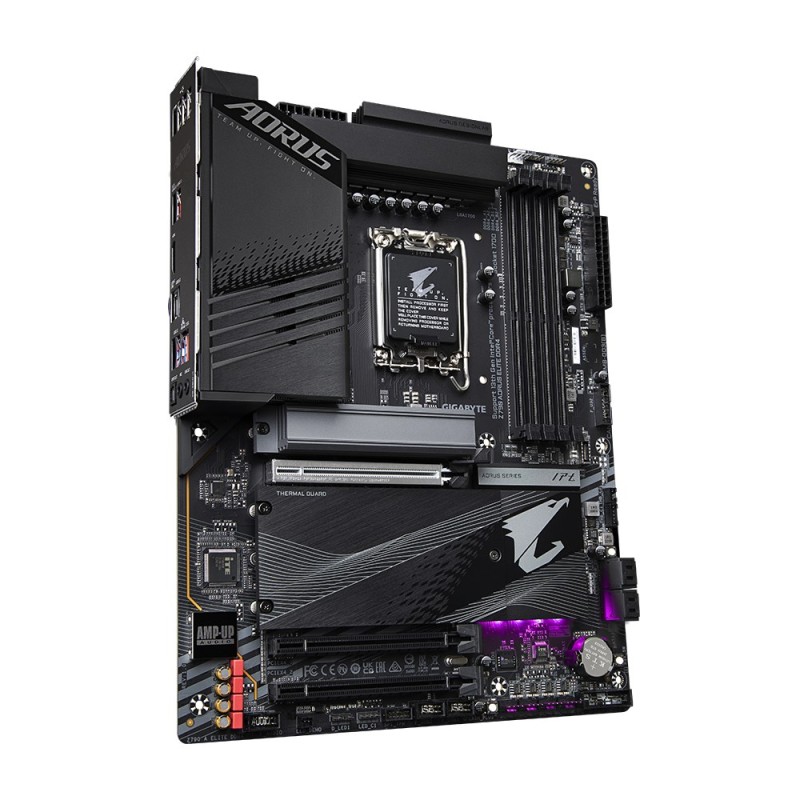

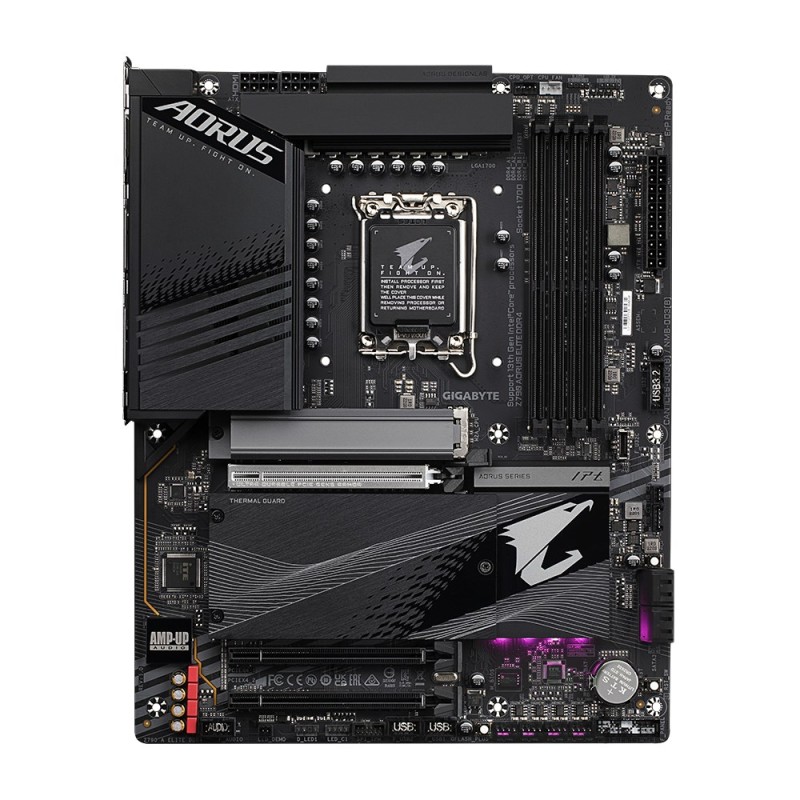

GIGABYTE Z790 AORUS ELITE DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 16*+1+2 Phases Digital VRM, up to 5333MHz DDR4 (OC), 4xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2

Περιγραφή

Technical details

Warranty period: 3 year(s)

Processor

Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®

Processor socket: LGA 1700

Processor manufacturer: Intel

Maximum internal memory supported by processor: 128 GB

Supported processor sockets: LGA 1700

Graphics

HDCP: Yes

Parallel processing technology support: Crossfire

Maximum resolution: 4096 x 2304 pixels

DirectX version: 12.0

Features

Motherboard chipset family: Intel

Motherboard form factor: ATX

Windows operating systems supported: Windows 11 x64, Windows 10 x64

PC health monitoring: Water cooling, Voltage, Fan, Temperature

Audio output channels: 7.1 channels

Product colour: Black

Motherboard chipset: Intel Z790 Express

Memory

Memory slots type: DIMM

Supported memory types: DDR4-SDRAM

Supported memory clock speed (max): 5333 MHz

Memory channels: Dual-channel

Number of memory slots: 4

Supported memory module capacities: 8GB, 2GB, 4GB, 12GB, 1GB, 16GB, 32GB

ECC сompatibility: ECC & Non-ECC

Unbuffered memory: Yes

Supported memory clock speeds: 3400, 3866, 3466, 2400, 2800, 4700, 2133, 3800, 3333, 3000, 5333 MHz, 4500, 4133, 4000 MHz, 3666, 4800, 4933, 3733, 4300, 4400, 5000, 4600, 3200 MHz, 2666, 4266, 2933, 3600, 3300, 5133

Maximum internal memory: 128 GB

Weight & dimensions

Height: 35 mm

Width: 305 mm

Depth: 244 mm

Network

Wi-Fi: No

Ethernet LAN: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Internal I/O

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Front panel connector: Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

Front panel audio connector: Yes

Thunderbolt headers: 2

EPS power connector (8-pin): Yes

ATX Power connector (24-pin): Yes

12V power connector: Yes

Number of SATA III connectors: 4

TPM connector: Yes

Total number of SATA connectors: 4

CPU fan connector: Yes

RGB LED pin header: Yes

USB 2.0 connectors: 2

BIOS

BIOS type: UEFI AMI

Desktop Management Interface (DMI) version: 2.7

Clear CMOS jumper: Yes

Clear CMOS button: Yes

Packaging data

Package depth: 270 mm

Package width: 335 mm

Package weight: 2.22 kg

Package height: 80 mm

Packaging content

Cables included: SATA

Batteries included: Yes

Storage controllers

RAID levels: 10, 1, 5, 0

Number of storage drives supported: 8

Number of HDDs supported: 4

RAID support: Yes

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

Rear panel I/O ports

DisplayPort version: 1.2

USB connector type: USB Type-C, USB Type-A

Ethernet LAN (RJ-45) ports: 1

WiFi-AP antenna jack: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

USB 2.0 ports quantity: 4

HDMI version: 2.0

Headphone outputs: 2

DisplayPorts quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

USB 3.2 Gen 2x2 Type-C ports quantity: 1

HDMI ports quantity: 1

Microphone in: Yes

S/PDIF out port: Yes

Expansion slots

Number of M.2 (M) slots: 4

PCI Express x16 slots: 2

Battery

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

Battery weight: 3 g

Lithium weight per battery: 0.07 g

Logistics data

Products per shipping (inner) case: 1 pc(s)

Country of origin: China

Safety warning

Warnings: Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
