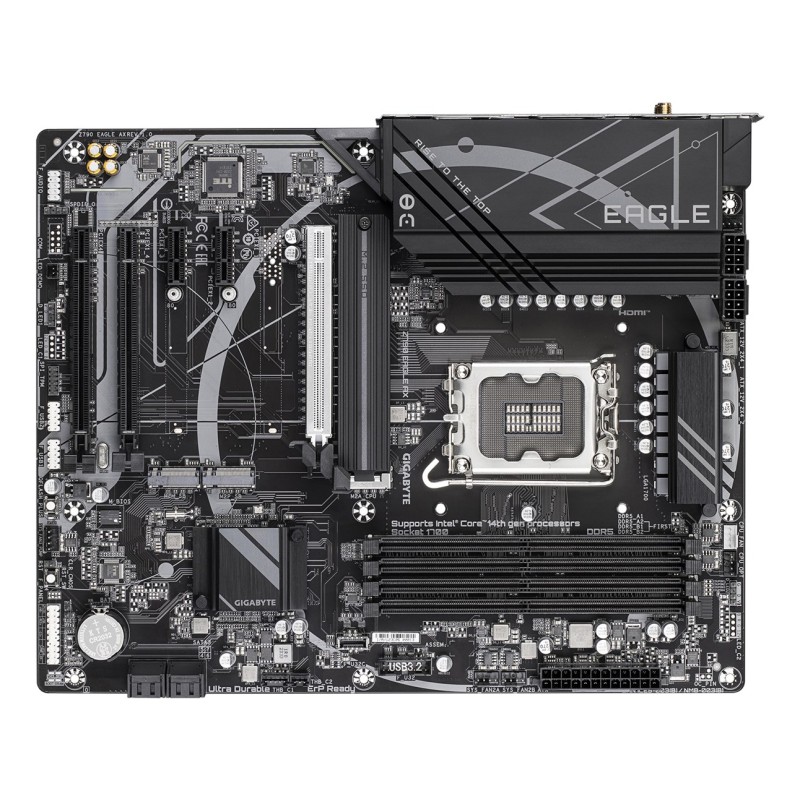

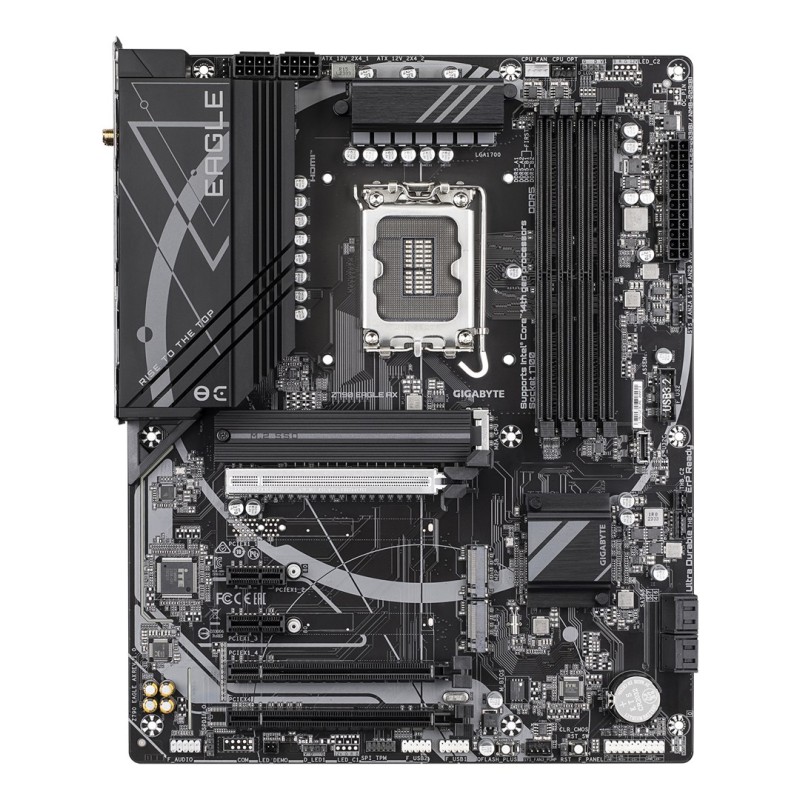

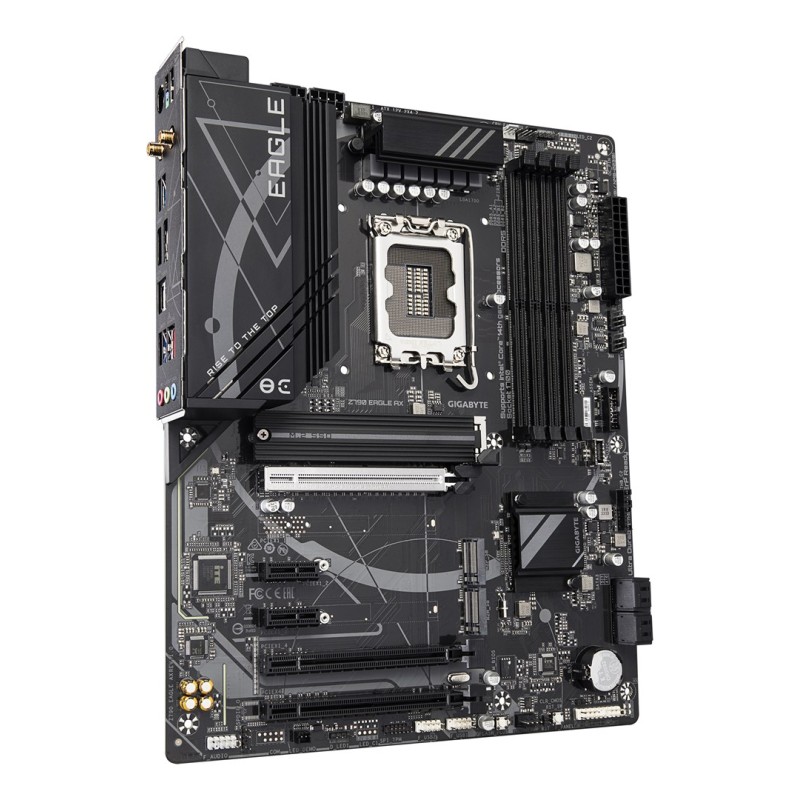

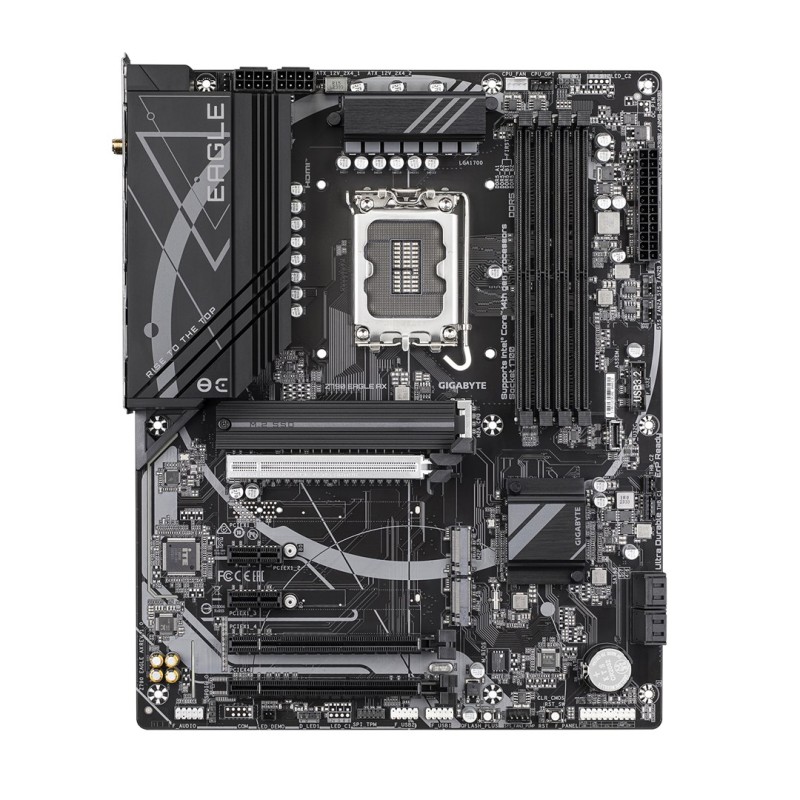

GIGABYTE Z790 EAGLE AX Motherboard - Supports Intel Core 14th Gen CPUs, 12+1+１Phases Digital VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2

Περιγραφή

Technical details

Warranty period: 3 year(s)

Processor

Supported processor sockets: LGA 1700

Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3

Maximum internal memory supported by processor: 192 GB

Maximum number of SMP processors: 1

Processor manufacturer: Intel

Processor socket: LGA 1700

Graphics

On-board graphics card: No

HDCP: Yes

Parallel processing technology support: Not supported

Maximum resolution: 4096 x 2304 pixels

Features

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Motherboard form factor: ATX

Motherboard chipset family: Intel

Product colour: Bronze

PC health monitoring: Temperature, Fan, Voltage, Water cooling

Power source type: ATX

Audio output channels: 7.1 channels

Audio chip: Realtek ALC897

Motherboard chipset: Intel Z790 Express

Memory

Memory channels: Dual-channel

Memory slots type: DIMM

Supported memory types: DDR5-SDRAM

Number of memory slots: 4

Supported memory clock speed (max): 7600 MHz

ECC сompatibility: ECC & Non-ECC

Supported memory clock speeds: 7600, 6000, 5800, 5400, 7400, 6800, 4400, 6400, 7000, 5200, 6200, 6600, 5600 MHz, 7200, 4800

Supported memory module capacities: 2GB, 32GB, 16GB, 8GB, 1GB, 48GB, 12GB, 4GB

Unbuffered memory: Yes

Maximum internal memory: 192 GB

Weight & dimensions

Width: 305 mm

Height: 35 mm

Depth: 244 mm

Network

Ethernet LAN: Yes

Wi-Fi standards: Wi-Fi 6E (802.11ax), 802.11b, Wi-Fi 4 (802.11n), 802.11g, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac)

Ethernet interface type: 2.5 Gigabit Ethernet

Bluetooth version: 5.3

Wi-Fi: Yes

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

WLAN controller model: Intel Wi-Fi 6E AX211

Bluetooth: Yes

Internal I/O

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

EPS power connector (8-pin): Yes

12V power connector: Yes

Number of EATX power connectors: 2

TPM connector: Yes

RGB LED pin header: Yes

Front panel connector: Yes

CPU fan connector: Yes

Total number of SATA connectors: 4

Thunderbolt headers: 2

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

Number of SATA III connectors: 4

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

USB 2.0 connectors: 2

BIOS

BIOS type: UEFI AMI

Desktop Management Interface (DMI) version: 2.7

Clear CMOS jumper: Yes

Clear CMOS button: Yes

Packaging data

Package height: 80 mm

Package depth: 270 mm

Package width: 335 mm

Package weight: 1.81 kg

Packaging content

Cables included: SATA

Antenna included: Yes

Batteries included: Yes

Storage controllers

Number of HDDs supported: 4

RAID levels: 0, 1, 10, 5

Number of storage drives supported: 7

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

RAID support: Yes

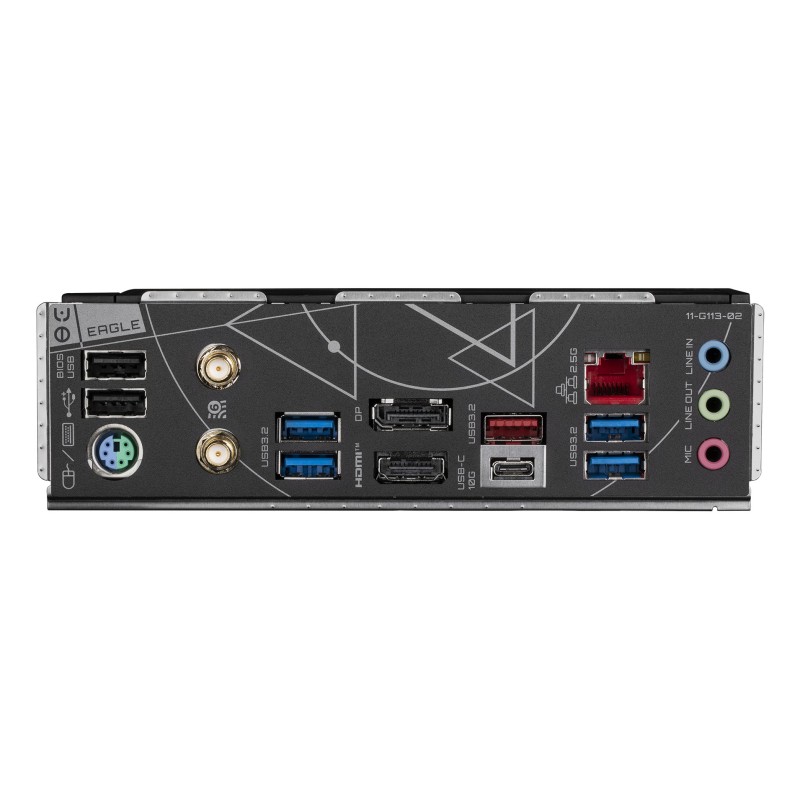

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

USB 3.2 Gen 2x2 Type-C ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

HDMI version: 2.1

PS/2 ports quantity: 1

USB connector type: USB Type-C, USB Type-A

WiFi-AP antenna jack: 2

HDMI ports quantity: 1

Headphone outputs: 1

Microphone in: Yes

S/PDIF out port: Yes

Ethernet LAN (RJ-45) ports: 1

USB 2.0 ports quantity: 2

DisplayPorts quantity: 1

DisplayPort version: 1.2

Expansion slots

PCI Express x16 (Gen 5.x) slots: 1

Number of M.2 (M) slots: 3

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x16 (Gen 3.x) slots: 1

PCI Express x1 (Gen 3.x) slots: 2

Battery

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

Number of battery cells: 1

Battery weight: 3 g

Lithium weight per battery: 0.07 g

Logistics data

Products per shipping (inner) case: 1 pc(s)

Country of origin: China

Safety warning

Warnings: Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
