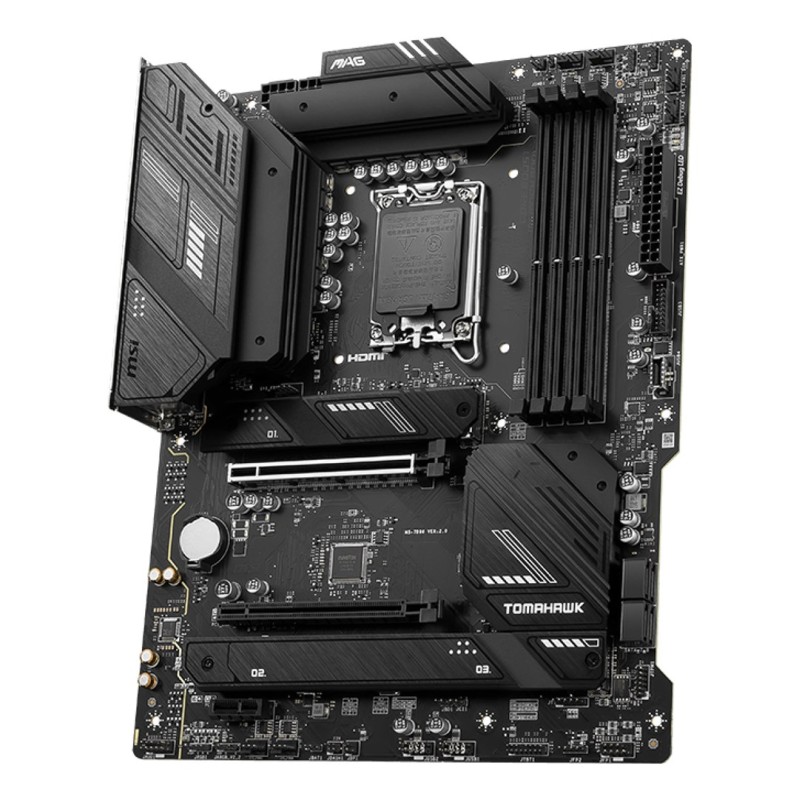

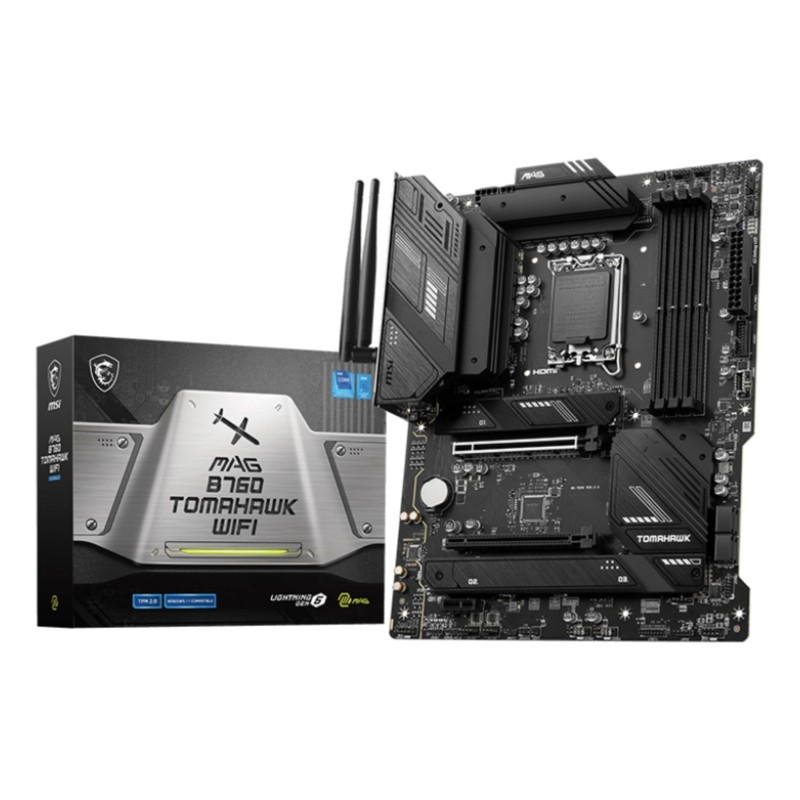

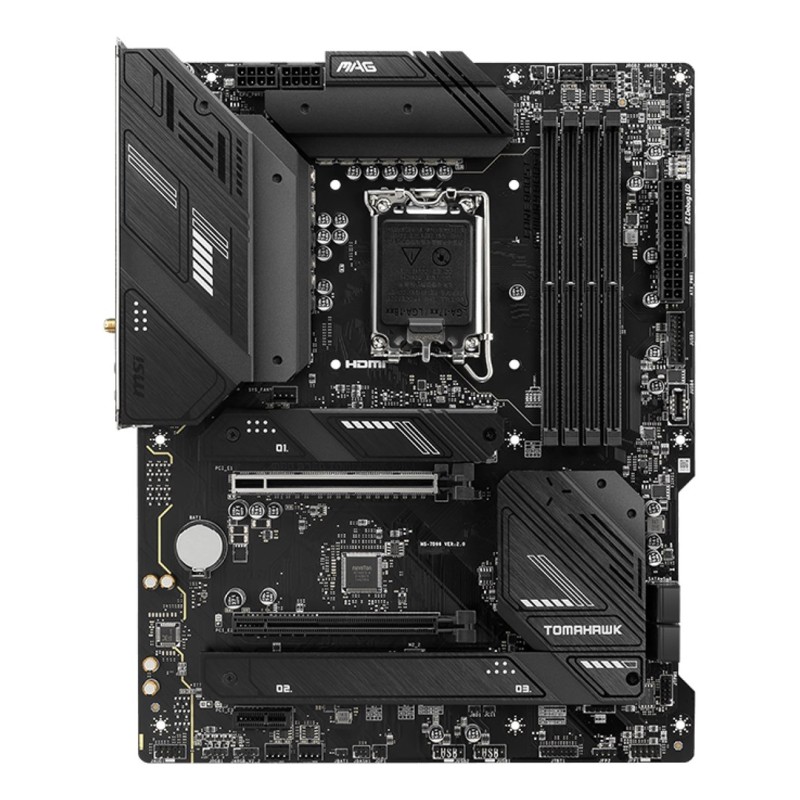

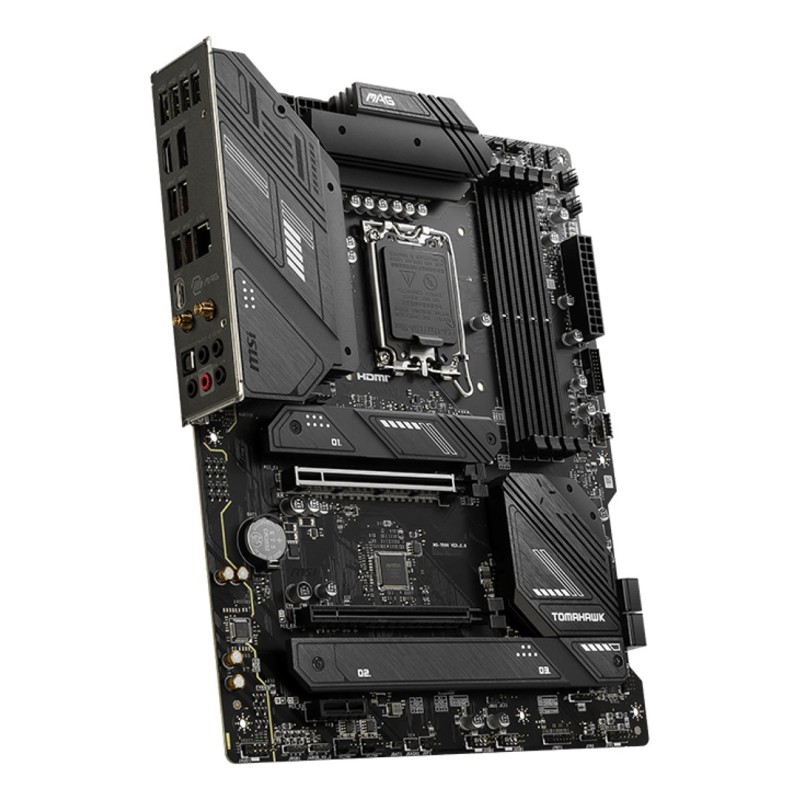

MSI MAG B760 TOMAHAWK WIFI motherboard LGA 1700 ATX

Περιγραφή

Processor

Processor manufacturer: Intel

Supported processor sockets: LGA 1700

Maximum number of SMP processors: 1

Compatible processor series: Intel® Pentium® Gold, Intel® Celeron®

Processor socket: LGA 1700

Graphics

On-board graphics card: No

Features

Audio output channels: 7.1 channels

Product colour: Black

Audio chip: Realtek ALC897

Motherboard chipset family: Intel

Motherboard form factor: ATX

Windows operating systems supported: Windows 11, Windows 10

Power source type: ATX

Memory

Supported memory clock speeds: 6200, 6400, 5600 MHz, 5800, 5400, 7000, 6000, 5000, 4800, 6800, 5200, 6600

Maximum internal memory: 128 GB

Memory channels: Dual-channel

ECC сompatibility: Non-ECC

Number of memory slots: 4

Memory slots type: DIMM

Supported memory types: DDR5-SDRAM

Supported memory clock speed (max): 7000 MHz

Weight & dimensions

Depth: 304.8 mm

Width: 243.8 mm

Network

Bluetooth: Yes

Wi-Fi standards: Wi-Fi 6E (802.11ax), 802.11b, 802.11g, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Ethernet interface type: 2.5 Gigabit Ethernet

Bluetooth version: 5.3

Ethernet LAN: Yes

Wi-Fi: Yes

Internal I/O

S/PDIF out connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

TPM connector: Yes

USB 2.0 connectors: 4

Number of SATA III connectors: 4

ATX Power connector (24-pin): Yes

Front panel audio connector: Yes

Front panel connector: Yes

CPU fan connector: Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

RGB LED pin header: Yes

BIOS

BIOS type: UEFI AMI

Storage controllers

Supported storage drive interfaces: M.2, SATA III

RAID support: Yes

RAID levels: 10, 5, 0, 1

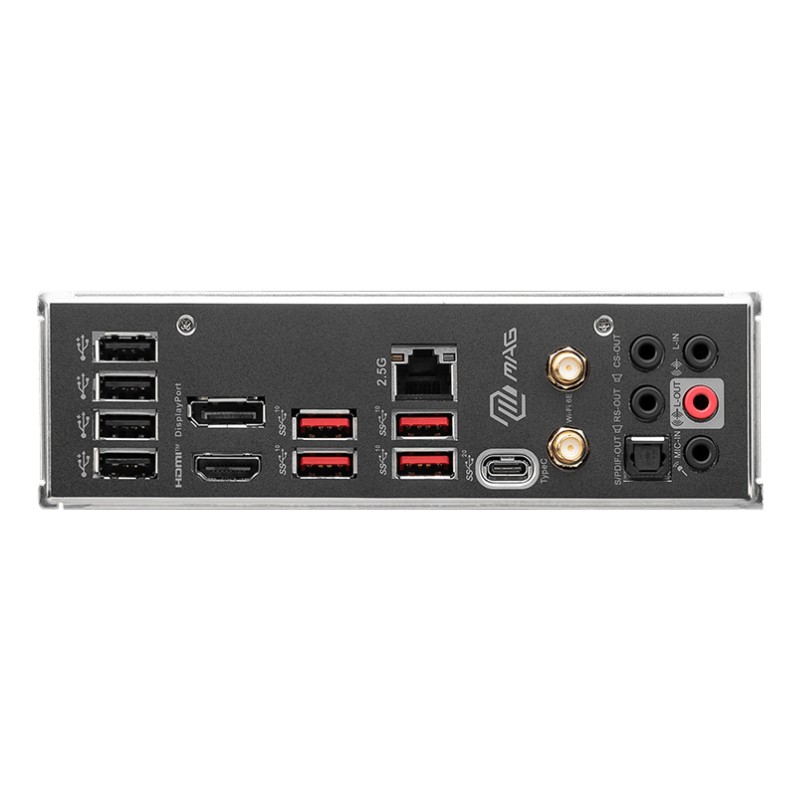

Rear panel I/O ports

DisplayPorts quantity: 1

Ethernet LAN (RJ-45) ports: 1

USB 2.0 ports quantity: 4

HDMI version: 2.1

DisplayPort version: 1.4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4

HDMI ports quantity: 1

USB 3.2 Gen 2x2 Type-C ports quantity: 1

Expansion slots

PCI Express x16 slots: 2

PCI Express x1 (Gen 3.x) slots: 1

Number of M.2 (M) slots: 3

Safety warning

Warnings: Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
