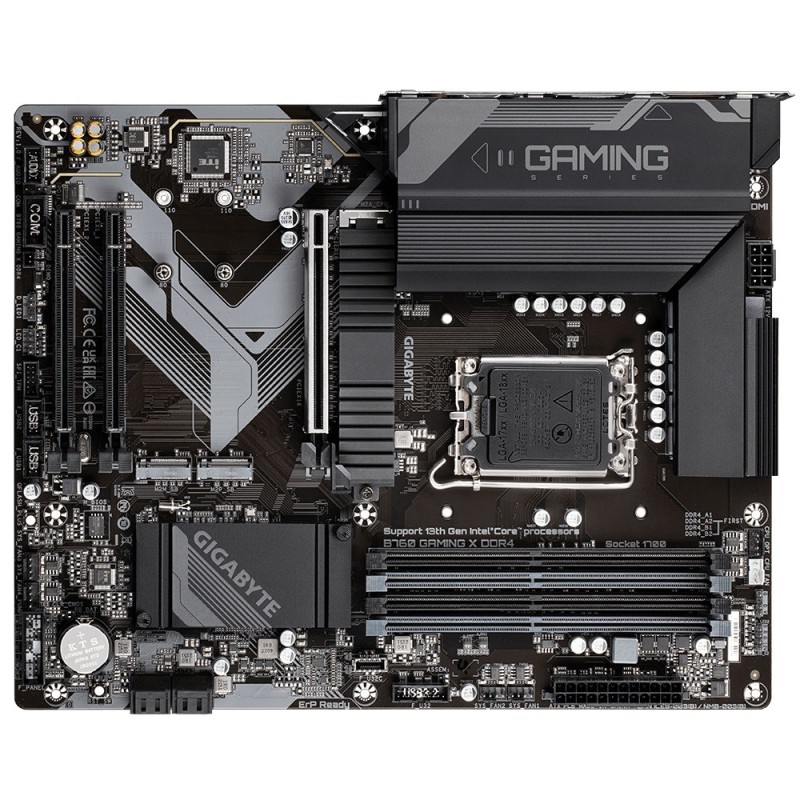

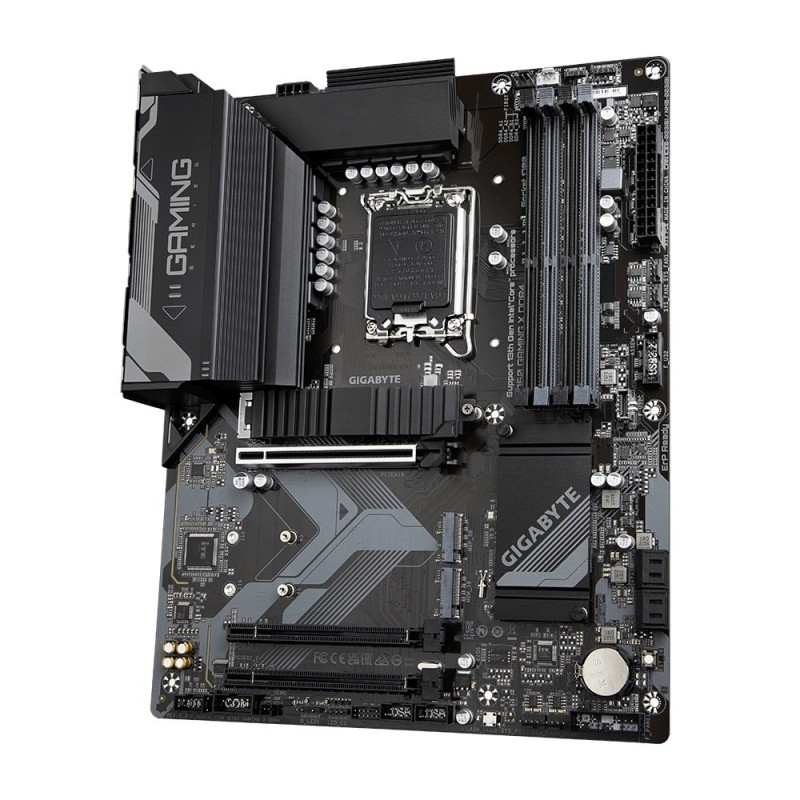

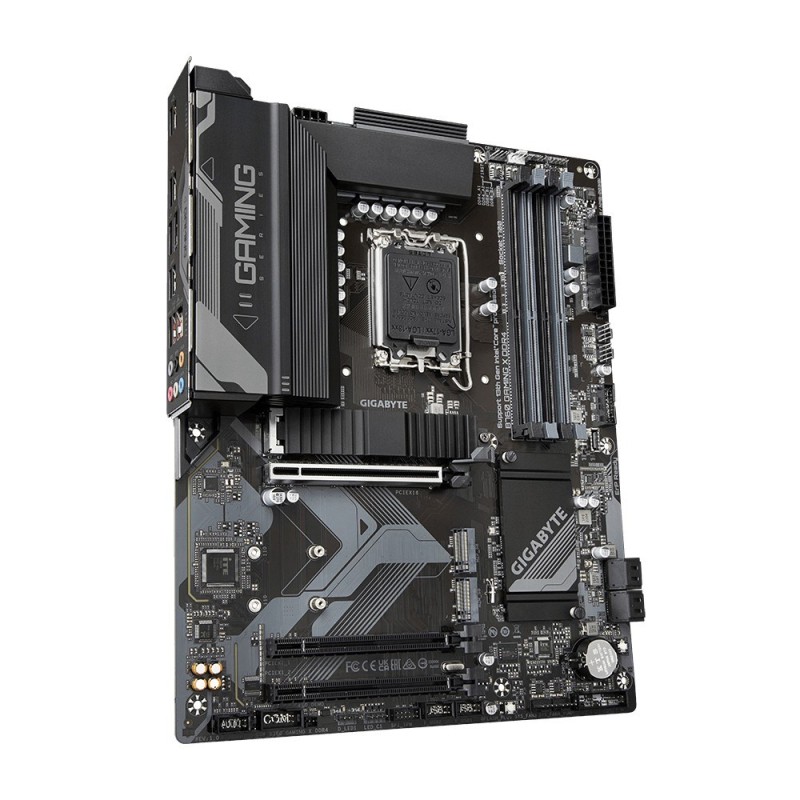

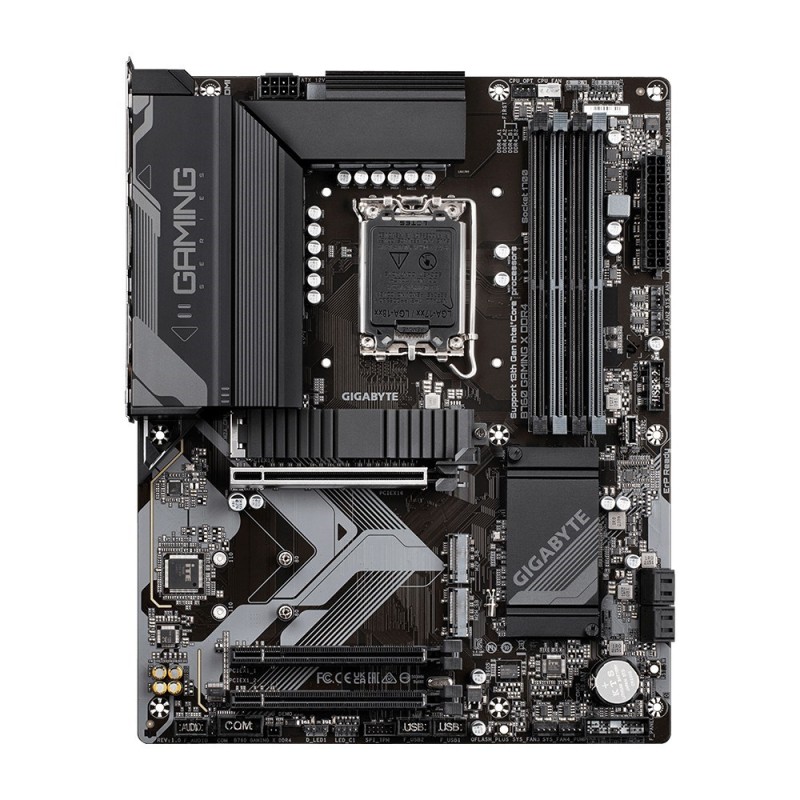

Gigabyte B760 GAMING X DDR4 1.0 motherboard

Περιγραφή

Processor

Supported processor sockets: LGA 1700

Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold

Processor manufacturer: Intel

Processor socket: LGA 1700

Graphics

Maximum resolution: 4096 x 2304 pixels

HDCP: Yes

Parallel processing technology support: Not supported

HDCP version: 2.3

Features

PC health monitoring: Voltage, Temperature, Water cooling, Fan

Power source type: ATX

Motherboard form factor: ATX

Windows operating systems supported: Windows 11, Windows 10

Audio output channels: 7.1 channels

Motherboard chipset family: Intel

Memory

Supported memory clock speeds: 3200, 2666, 2933, 3600, 2400, 2133 MHz, 4133, 4000, 3733, 4300, 4400, 5000, 4600, 3466, 3000, 5333 MHz, 4500, 3800, 3333, 4700, 3666, 4800, 4933, 3400, 3866, 3300, 5133, 4266

Unbuffered memory: Yes

Maximum internal memory: 128 GB

Supported memory clock speed (max): 5333 MHz

Memory slots type: DIMM

Memory channels: Dual-channel

Number of memory slots: 4

Supported memory types: DDR4-SDRAM

Weight & dimensions

Width: 305 mm

Depth: 244 mm

Network

Ethernet interface type: 2.5 Gigabit Ethernet

Ethernet LAN: Yes

Internal I/O

Front panel connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

USB 2.0 connectors: 2

TPM connector: Yes

CPU fan connector: Yes

S/PDIF out connector: Yes

Serial port headers: 1

ATX Power connector (24-pin): Yes

Front panel audio connector: Yes

EPS power connector (8-pin): Yes

Number of SATA III connectors: 4

Number of chassis fan connectors: 3

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

RGB LED pin header: Yes

BIOS

BIOS type: UEFI AMI

Desktop Management Interface (DMI) version: 2.7

Clear CMOS jumper: Yes

Storage controllers

Supported storage drive types: HDD & SSD

RAID support: Yes

RAID levels: 10, 1, 5, 0

Supported storage drive interfaces: M.2, SATA III

Number of storage drives supported: 6

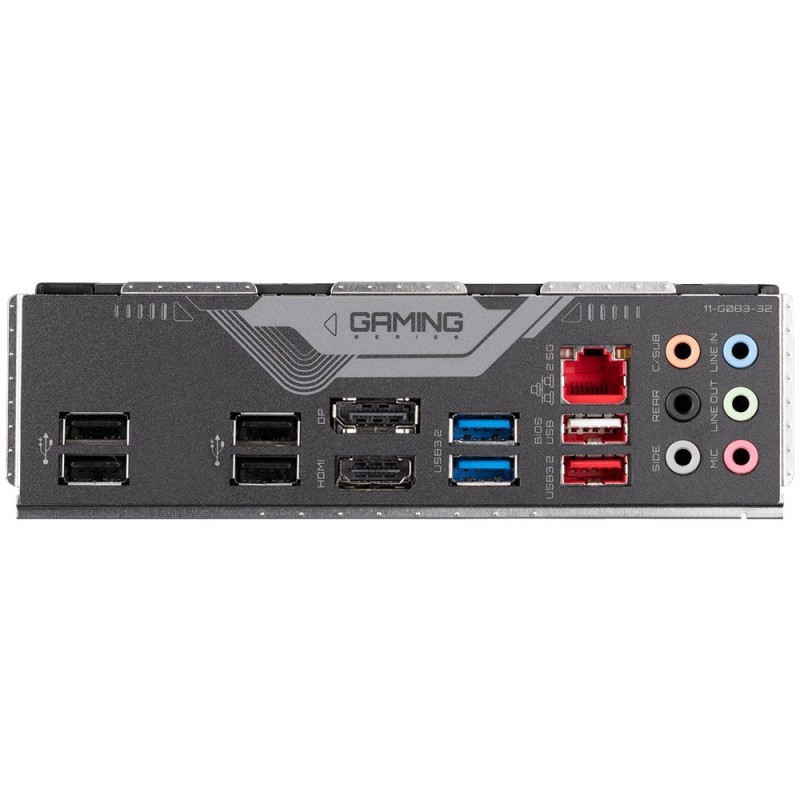

Rear panel I/O ports

Ethernet LAN (RJ-45) ports: 1

DisplayPorts quantity: 1

USB 2.0 ports quantity: 5

Number of USB 3.2 Gen 2 Type-A ports: 1

Headphone outputs: 1

Line-in: Yes

Microphone in: Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

HDMI ports quantity: 1

Expansion slots

Number of M.2 (M) slots: 3

PCI Express x16 (Gen 3.x) slots: 2

PCI Express x16 (Gen 4.x) slots: 1
