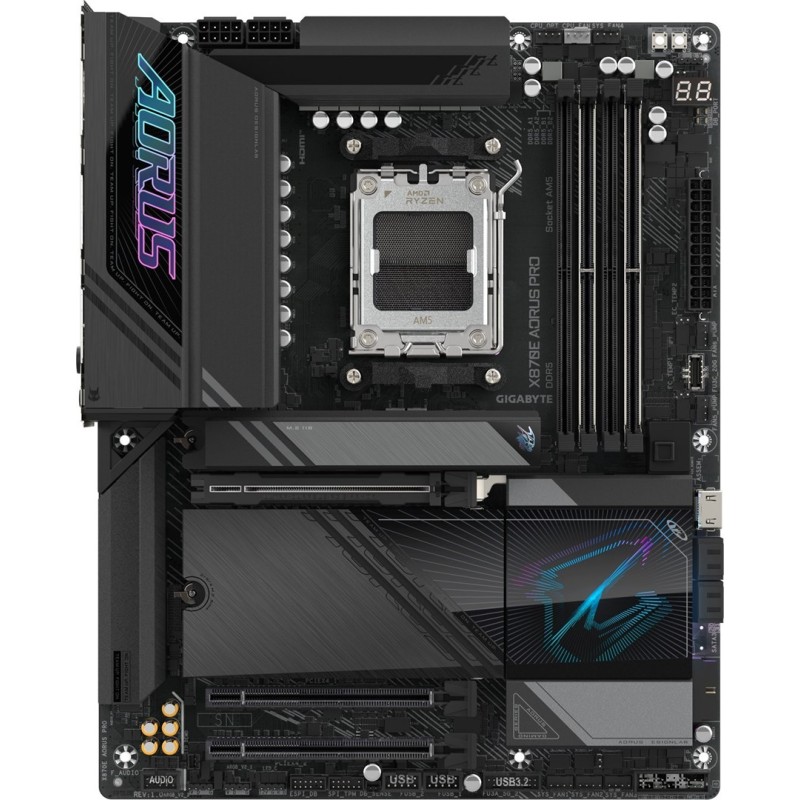

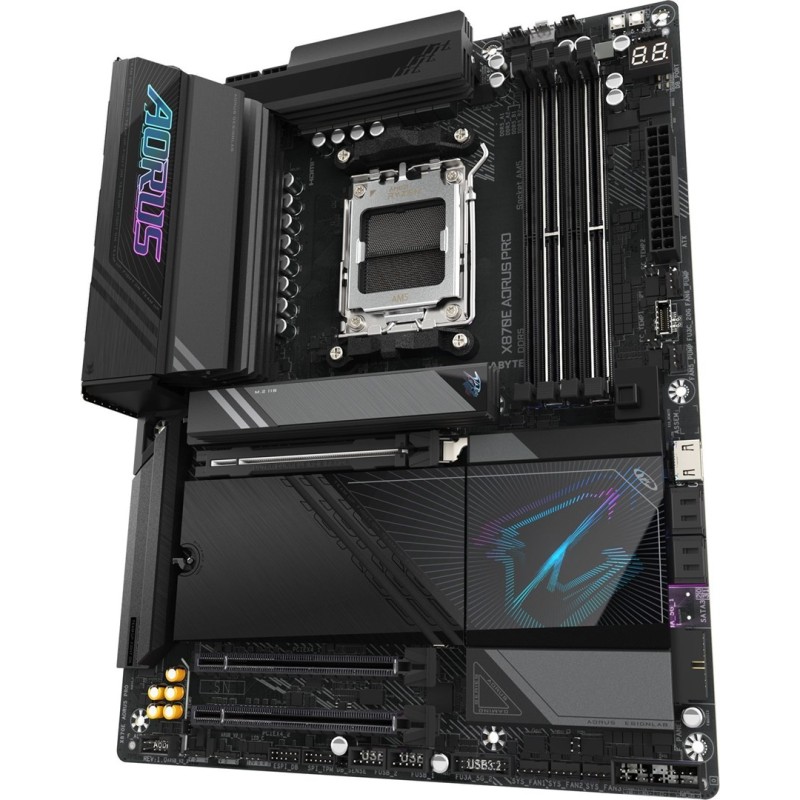

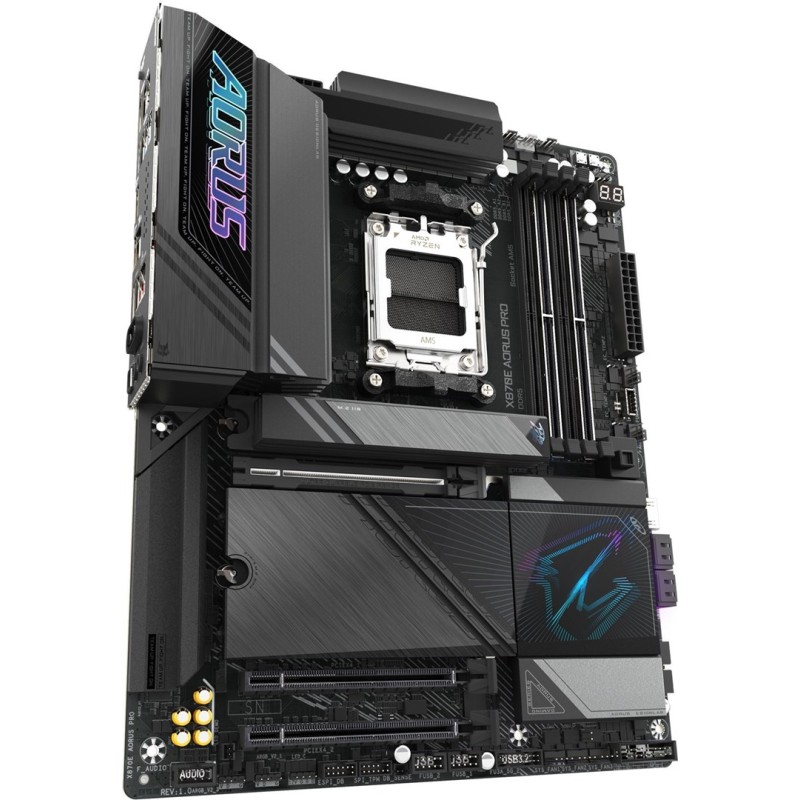

Gigabyte X870E AORUS PRO

Περιγραφή

Technical details

Warranty period: 3 year(s)

Processor

Processor socket: Socket AM5

Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series

Maximum internal memory supported by processor: 256 GB

Supported processor sockets: Socket AM5

Processor manufacturer: AMD

Graphics

Parallel processing technology support: Not supported

DirectX version: 12.0

On-board graphics card: No

Features

PC health monitoring: Fan, Voltage, Temperature

Motherboard form factor: ATX

Motherboard chipset: AMD X870E

Motherboard chipset family: AMD

Product colour: White

Audio output channels: 7.1 channels

Audio chip: Realtek ALC1220

Windows operating systems supported: Windows 11 x64

Memory

Supported memory clock speeds: 6800, 5600, 7600, 7800, 6600, 4400, 6000, 6400 MHz, 7000, 8200, 8000 MHz, 6200, 4800

Maximum internal memory: 256 GB

Supported memory module capacities: 1GB, 12GB, 8GB, 2GB, 4GB, 24GB, 32GB

Number of memory slots: 4

Unbuffered memory: Yes

Supported memory types: DDR5-SDRAM

Memory slots type: DIMM

Supported memory clock speed (max): 8200 MHz

Maximum internal memory per slot: 64 GB

Memory channels: Dual-channel

ECC сompatibility: Non-ECC

Weight & dimensions

Depth: 244 mm

Width: 305 mm

Height: 35 mm

Network

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Wi-Fi: Yes

Ethernet LAN: Yes

Wi-Fi standards: Wi-Fi 7 (802.11be)

Bluetooth: Yes

WLAN controller model: Qualcomm QCNCM865

Bluetooth version: 5.3

LAN controller: Realtek RTL8125

Ethernet interface type: 2.5 Gigabit Ethernet

Internal I/O

ATX Power connector (24-pin): Yes

USB 2.0 connectors: 2

Number of SATA III connectors: 4

RGB LED pin header: Yes

TPM connector: Yes

Number of chassis fan connectors: 6

Audio connector: Yes

Number of CPU fan connectors: 1

CPU fan connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Number of water pump connectors: 2

EPS power connector (8-pin): Yes

Front panel audio connector: Yes

Number of EPS power connectors (8-pin): 1

Number of RGB LED pin headers: 4

USB 3.2 Gen 2x2 connectors: 1

BIOS

Clear CMOS button: Yes

Desktop Management Interface (DMI) version: 2.7

Clear CMOS jumper: Yes

BIOS type: UEFI AMI

Packaging data

Package width: 345 mm

Package weight: 2.74 kg

Package depth: 294 mm

Package height: 80 mm

Packaging content

Screws included: Yes

Antenna included: Yes

Batteries included: Yes

Storage controllers

Supported storage drive interfaces: M.2, SATA III

RAID support: Yes

Number of HDDs supported: 4

Number of storage drives supported: 2

Supported storage drive types: HDD & SSD

RAID levels: 0, 10, 1

Rear panel I/O ports

WiFi-AP antenna jack: 2

S/PDIF out port: Yes

Microphone in: Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3

USB 2.0 ports quantity: 2

DisplayPort version: 1.4

Headphone outputs: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

USB4 Gen 2x2 ports quantity: 2

Ethernet LAN (RJ-45) ports: 1

HDMI ports quantity: 1

HDMI version: 2.1

Expansion slots

PCI Express x16 (Gen 5.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x16 (Gen 3.x) slots: 1

3rd M.2 highest PCI Express generation: 5.0

Number of M.2 (M) slots: 4

4th M.2 highest PCI Express generation: 4.0

PCI Express x4 slots: 2

2nd M.2 largest key size: 22110

4th M.2 largest key size: 22110

1st M.2 largest key size: 25110

1st M.2 highest PCI Express generation: 5.0

2nd M.2 highest PCI Express generation: 5.0

3rd M.2 largest key size: 22110

Battery

Battery weight: 3 g

Number of battery cells: 1

Battery type: CR2032

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Lithium weight per battery: 0.07 g

Other features

Weight: 2.4 kg

Logistics data

Country of origin: China

Products per shipping (inner) case: 1 pc(s)
