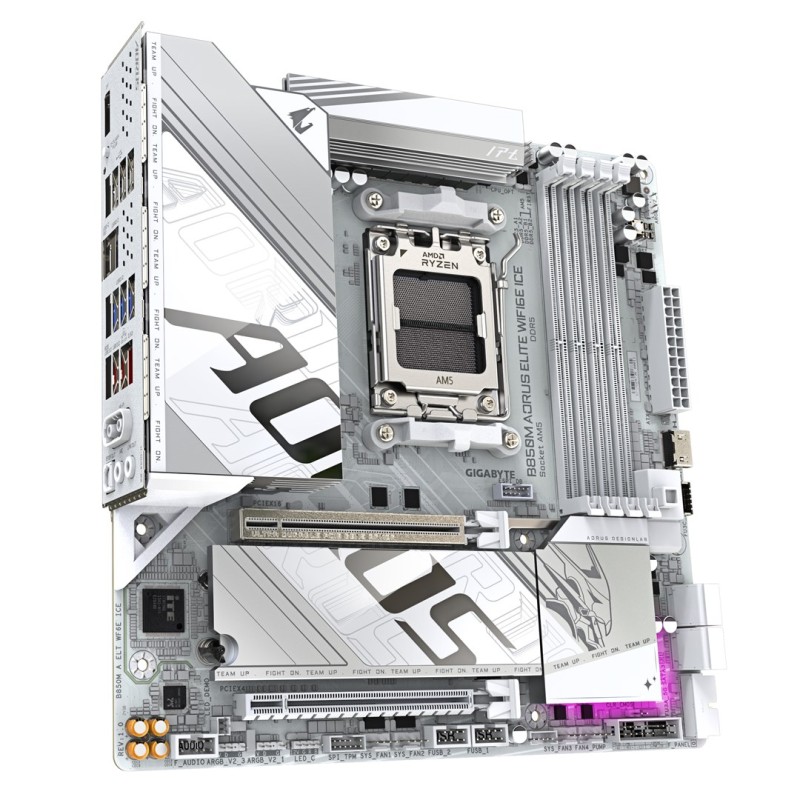

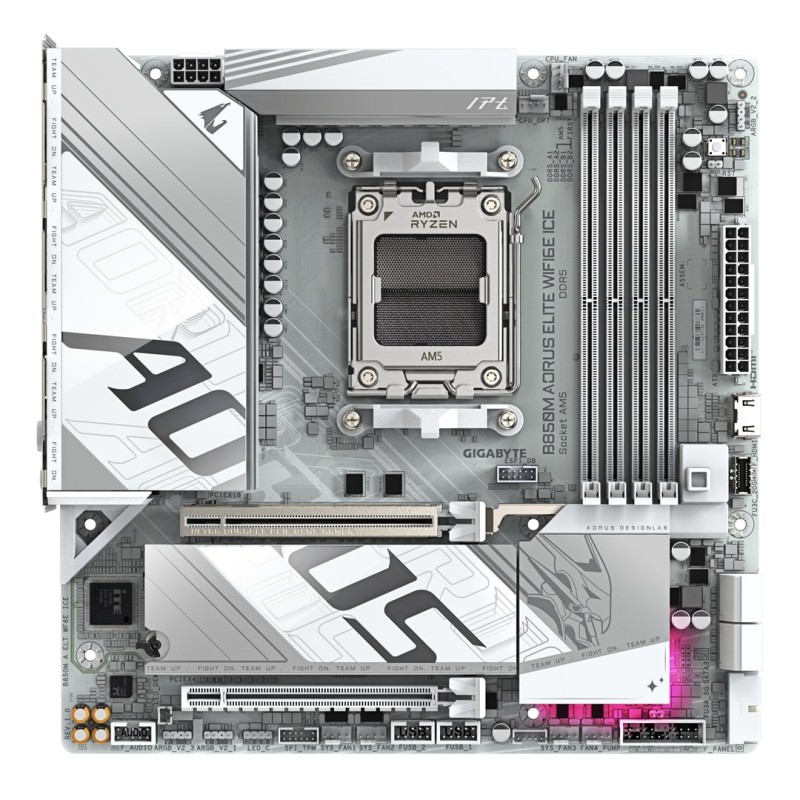

Płyta główna Gigabyte B850M A ELT WF6E ICE

Περιγραφή

Processor

Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series

Processor manufacturer: AMD

Supported processor sockets: Socket AM5

Processor socket: Socket AM5

Graphics

Parallel processing technology support: Not supported

On-board graphics card: No

DirectX version: 12.0

Maximum resolution: 3840 x 2160 pixels

HDCP: Yes

Features

Power source type: ATX

Windows operating systems supported: Windows 11 x64, Windows 10 x64

PC health monitoring: Temperature, Voltage, Water cooling, Fan

Audio output channels: 7.1 channels

Motherboard chipset: AMD B850

Motherboard form factor: micro ATX

Motherboard chipset family: AMD

Product colour: White

Audio chip: Realtek ALC897

Memory

Supported memory clock speed (max): 8200 MHz

Memory channels: Dual-channel

Memory slots type: DIMM

Number of memory slots: 4

Supported memory types: DDR5-SDRAM

ECC сompatibility: Non-ECC

Supported memory clock speeds: 6600, 6400, 5800, 6000, 7400, 6800, 5200, 4800, 8000, 5600 MHz, 7200, 6200, 7600, 7800, 4400, 7950, 7900, 7000, 8200

Maximum internal memory per slot: 64 GB

Unbuffered memory: Yes

Maximum internal memory: 256 GB

Weight & dimensions

Height: 35 mm

Width: 244 mm

Depth: 244 mm

Network

Wi-Fi standards: 802.11b, Wi-Fi 6E (802.11ax), 802.11g, Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n)

Ethernet interface type: 2.5 Gigabit Ethernet

Ethernet LAN: Yes

WLAN controller model: Realtek RTL8852CE

Wi-Fi: Yes

Bluetooth version: 5.3

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Bluetooth: Yes

Internal I/O

TPM connector: Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Front panel connector: Yes

Serial port headers: 1

Peripheral (Molex) power connectors (4-pin): 1

ATX Power connector (24-pin): Yes

RGB LED pin header: Yes

Front panel audio connector: Yes

Number of chassis fan connectors: 3

12V power connector: Yes

Number of EPS power connectors (8-pin): 1

Number of CPU fan connectors: 2

USB 3.2 Gen 2x2 connectors: 1

Number of RGB LED pin headers: 4

Number of SATA III connectors: 4

Number of water pump connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

USB 2.0 connectors: 2

BIOS

Clear CMOS jumper: Yes

Desktop Management Interface (DMI) version: 2.7

BIOS type: UEFI AMI

Clear CMOS button: Yes

Packaging data

Package width: 270 mm

Package weight: 1.97 kg

Package depth: 268 mm

Package height: 68 mm

Packaging content

Antenna included: Yes

Screws included: Yes

Batteries included: Yes

Storage controllers

Number of storage drives supported: 6

RAID levels: 0, 10, 1

Number of HDDs supported: 4

RAID support: Yes

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

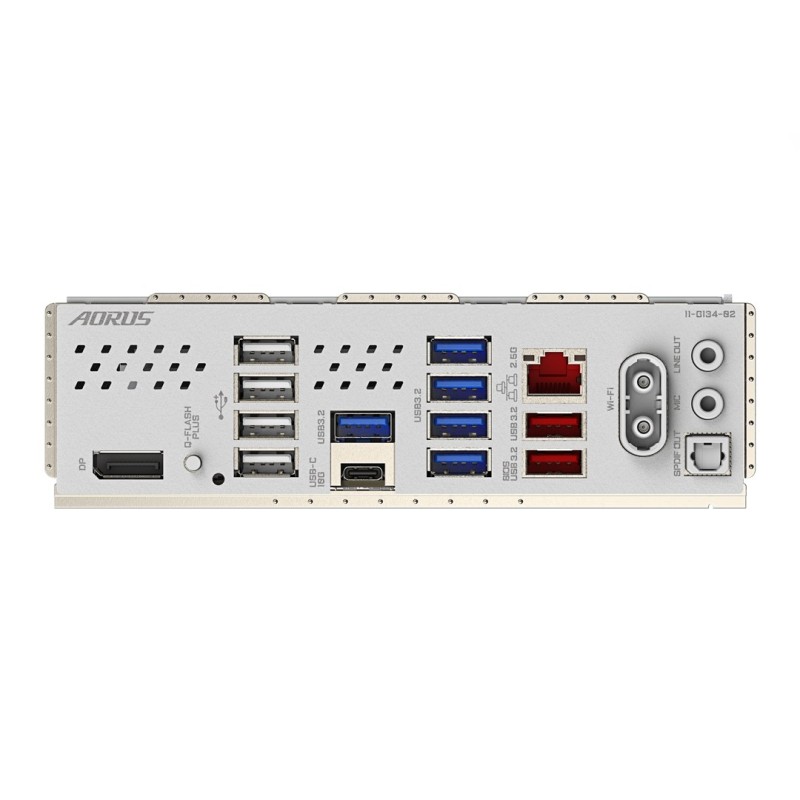

Rear panel I/O ports

Headphone outputs: 1

HDMI ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 5

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

USB 2.0 ports quantity: 4

Ethernet LAN (RJ-45) ports: 1

WiFi-AP antenna jack: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

Microphone in: Yes

HDMI version: 1.4

DisplayPorts quantity: 1

DisplayPort version: 1.4

Expansion slots

PCI Express x16 (Gen 5.x) slots: 1

PCI Express x16 (Gen 3.x) slots: 1

Number of M.2 (M) slots: 2

2nd M.2 highest PCI Express generation: 4.0

1st M.2 largest key size: 25110

1st M.2 highest PCI Express generation: 5.0

2nd M.2 largest key size: 22110

Battery

Battery type: CR2032

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Number of battery cells: 1

Battery weight: 3 g

Lithium weight per battery: 0.07 g

Other features

Weight: 1.77 kg
