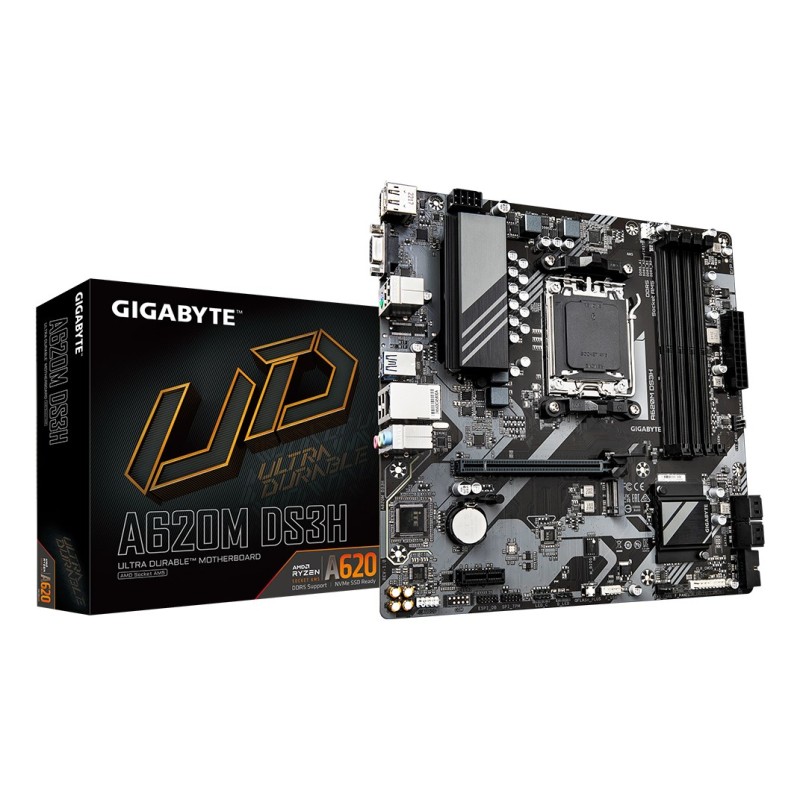

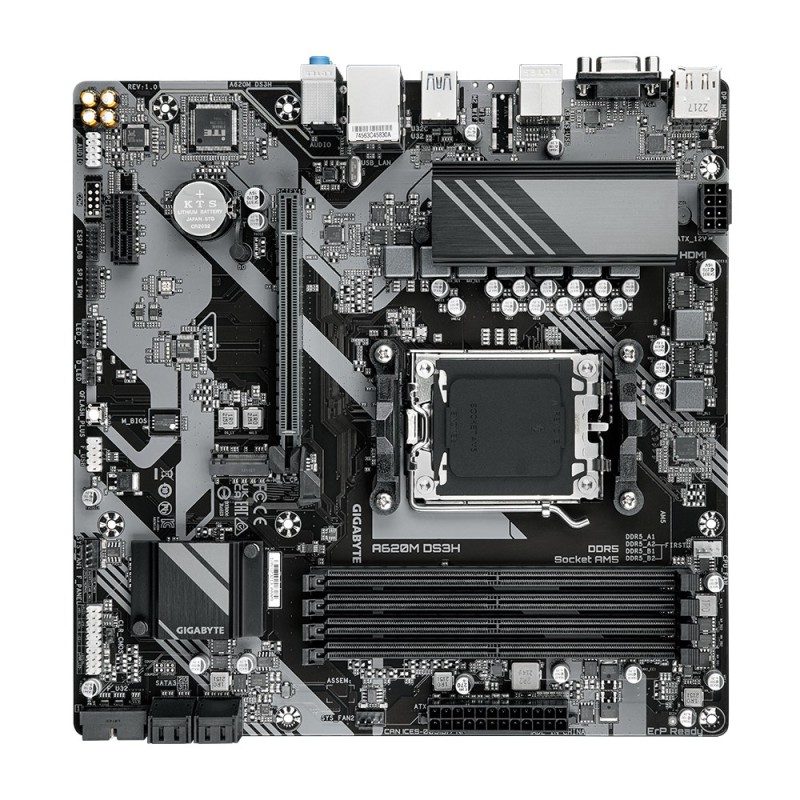

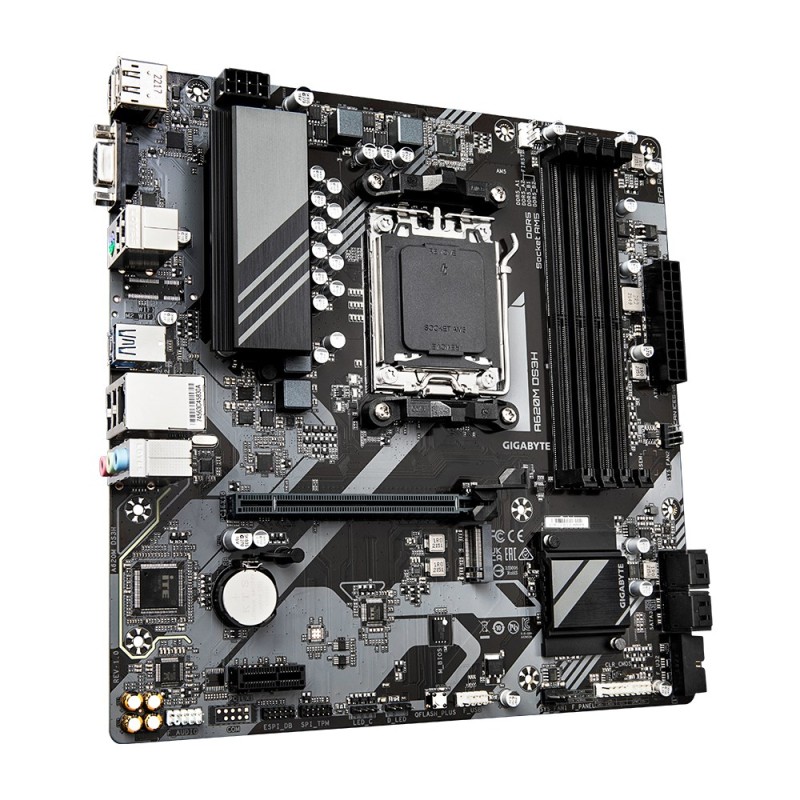

GIGABYTE A620M DS3H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7600MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1

Περιγραφή

Technical details

Warranty period: 3 year(s)

Processor

Processor manufacturer: AMD

Processor socket: Socket AM5

Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series

Supported processor sockets: Socket AM5

Maximum internal memory supported by processor: 256 GB

Graphics

HDCP version: 2.3

HDCP: Yes

Features

Audio output channels: 7.1 channels

Motherboard form factor: micro ATX

Motherboard chipset: AMD A620

Windows operating systems supported: Windows 10 x64, Windows 11 x64

PC health monitoring: Voltage, Temperature, Fan

Motherboard chipset family: AMD

Memory

Supported memory clock speeds: 6000, 6600, 5600 MHz, 7200, 6400, 7000, 7600, 6800, 6200, 4800, 5200

Unbuffered memory: Yes

Memory slots type: DIMM

Maximum internal memory: 256 GB

Memory channels: Dual-channel

Supported memory clock speed (max): 7600 MHz

Number of memory slots: 4

Supported memory types: DDR5-SDRAM

ECC сompatibility: Non-ECC

Weight & dimensions

Depth: 174 mm

Width: 244 mm

Network

Ethernet LAN data rates: 1000 Mbit/s, 100, 10

Ethernet LAN: Yes

Ethernet interface type: Gigabit Ethernet

Internal I/O

USB 2.0 connectors: 1

Number of SATA III connectors: 4

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

RGB LED pin header: Yes

ATX Power connector (24-pin): Yes

Front panel connector: Yes

Total number of SATA connectors: 4

EPS power connector (8-pin): Yes

CPU fan connector: Yes

Front panel audio connector: Yes

12V power connector: Yes

TPM connector: Yes

BIOS

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

Desktop Management Interface (DMI) version: 2.7

Storage controllers

RAID levels: 10, 0, 1

Supported storage drive interfaces: M.2, SATA III

RAID support: Yes

Supported storage drive types: HDD & SSD

Number of storage drives supported: 4

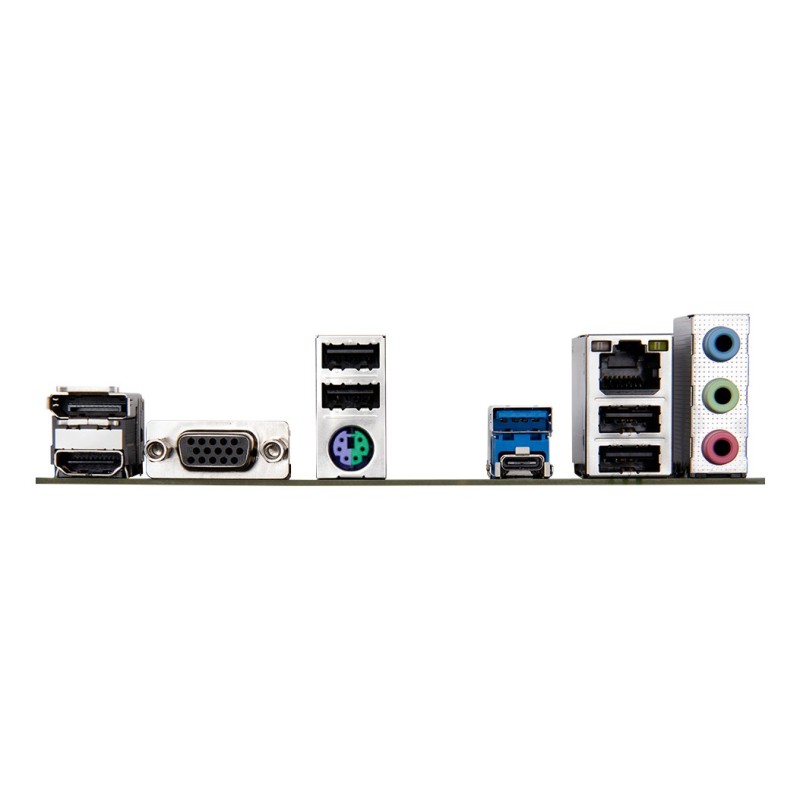

Rear panel I/O ports

DisplayPorts quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

DisplayPort version: 1.4

HDMI version: 2.1

Number of audio jack connectors: 3

USB connector type: USB Type-A, USB Type-C

HDMI ports quantity: 1

USB 2.0 ports quantity: 4

Ethernet LAN (RJ-45) ports: 1

VGA (D-Sub) ports quantity: 1

PS/2 ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1

Headphone outputs: 3

Expansion slots

PCI Express x16 slots: 1

Number of M.2 (M) slots: 1

PCI Express x1 slots: 1

Battery

Battery weight: 3 g

Battery type: CR2032

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Lithium weight per battery: 0.07 g
