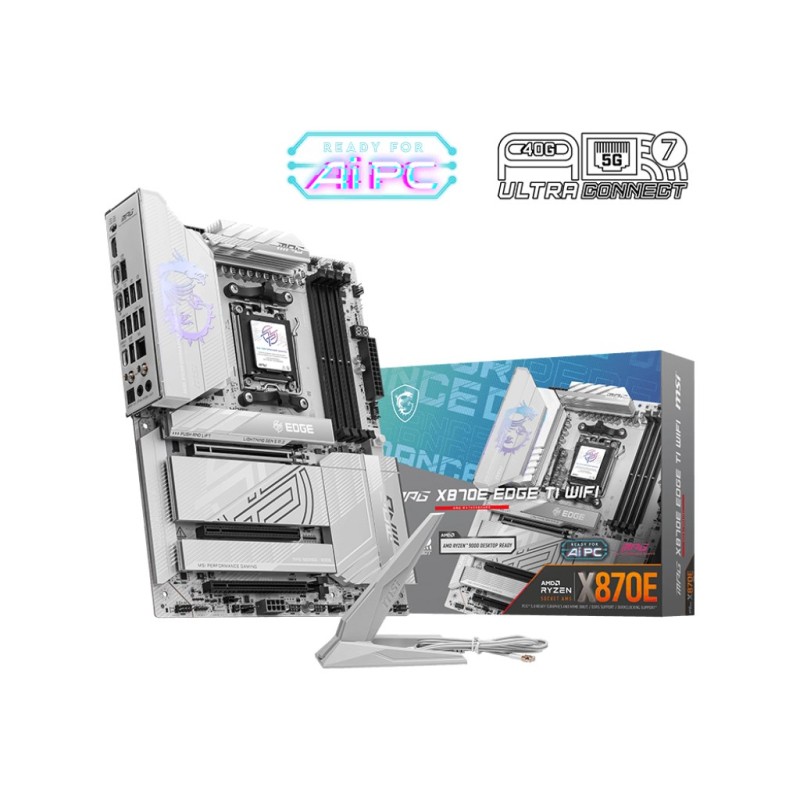

MSI MPG X870E EDGE TI WIFI motherboard AMD X870E Socket AM5 ATX

Περιγραφή

Processor

Processor socket: Socket AM5

Maximum internal memory supported by processor: 256 GB

Compatible processor series: AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD Ryzen 7000 Series

Supported processor sockets: Socket AM5

Processor manufacturer: AMD

Graphics

On-board graphics card: No

Features

Motherboard chipset: AMD X870E

PC health monitoring: Fan, Voltage, CPU, Temperature

Motherboard form factor: ATX

Audio output channels: 7.1 channels

Motherboard chipset family: AMD

Product colour: White

Memory

Maximum internal memory: 256 GB

Memory slots type: DIMM

Memory channels: Dual-channel

Supported memory clock speeds: 5600, 8400, 4800

Number of memory slots: 4

Supported memory types: DDR5-SDRAM

Supported memory clock speed (max): 8400 MHz

ECC сompatibility: Non-ECC

Weight & dimensions

Depth: 304.8 mm

Width: 243.8 mm

Network

Wi-Fi standards: Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11b, 802.11g

Wi-Fi: Yes

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Bluetooth version: 5.4

Ethernet LAN: Yes

Ethernet interface type: 5 Gigabit Ethernet

LAN controller: Realtek RTL8126

Bluetooth: Yes

Internal I/O

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

EPS power connector (8-pin): Yes

Number of SATA III connectors: 4

USB 2.0 connectors: 4

ATX Power connector (24-pin): Yes

Total number of SATA connectors: 4

CPU fan connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4

Storage controllers

RAID levels: 10, 1, 5, 0

Number of HDDs supported: 4

RAID support: Yes

Supported storage drive types: HDD & SSD

Number of storage drives supported: 8

Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports

HDMI version: 2.1

DisplayPort version: 1.4

S/PDIF out port: Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 5

Ethernet LAN (RJ-45) ports: 1

USB 2.0 ports quantity: 4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

DisplayPorts quantity: 2

Microphone in: Yes

USB4 Gen 2x2 ports quantity: 1

HDMI ports quantity: 1

Expansion slots

PCI Express x16 (Gen 3.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

Number of M.2 (M) slots: 4

PCI Express x16 (Gen 5.x) slots: 1

1st M.2 highest PCI Express generation: 5.0

1st M.2 largest key size: 22110

2nd M.2 largest key size: 2280

3rd M.2 highest PCI Express generation: 4.0

3rd M.2 largest key size: 2280

4th M.2 largest key size: 2280

4th M.2 highest PCI Express generation: 4.0

2nd M.2 highest PCI Express generation: 5.0

Safety warning

Warnings: Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste.
