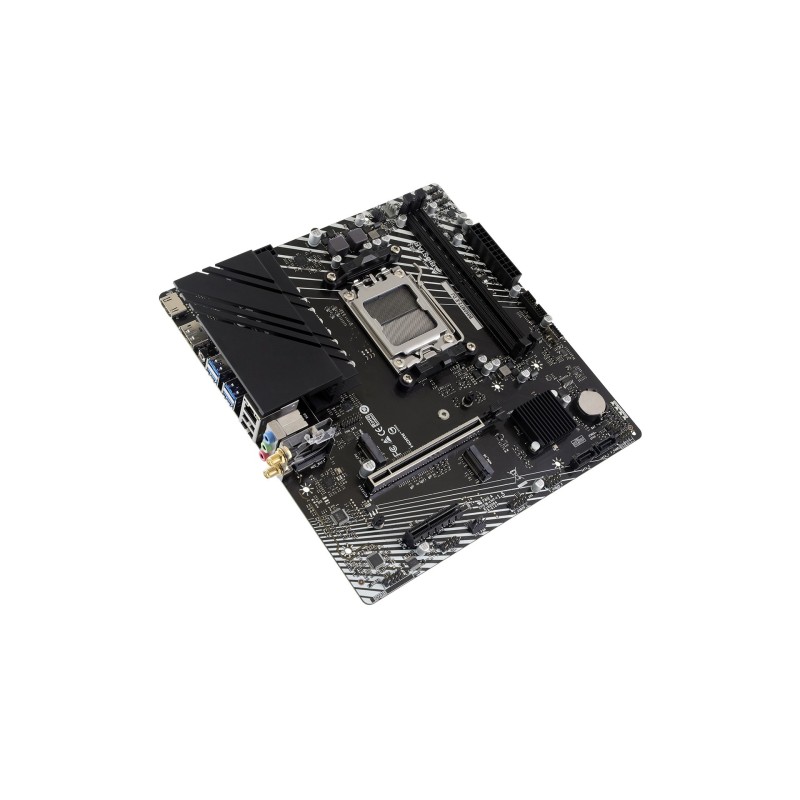

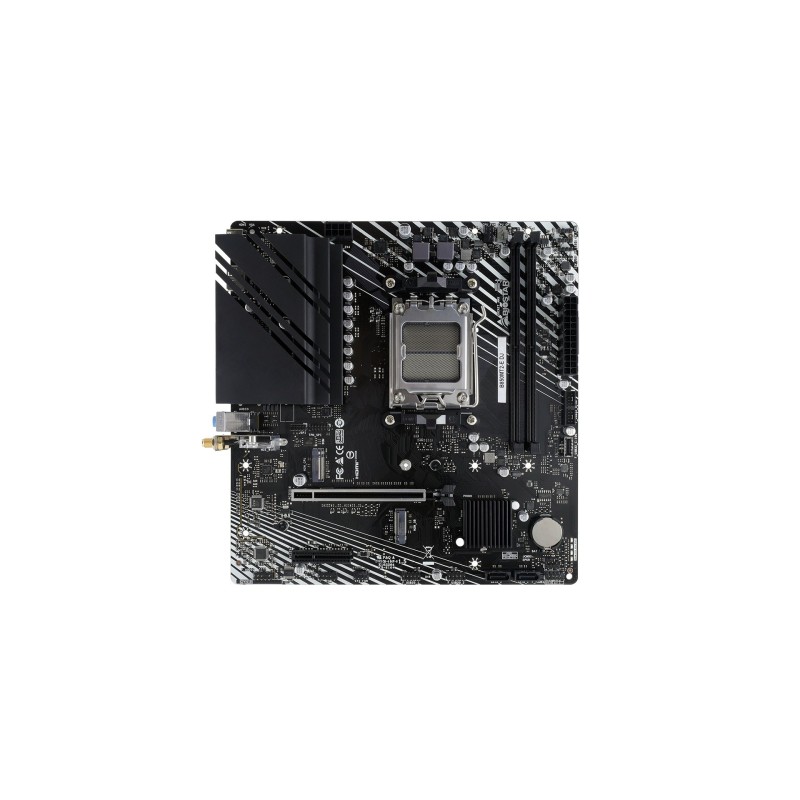

Płyta główna Biostar B850MT2-E DJ

Περιγραφή

Processor

Supported processor sockets: Socket AM5

Processor socket: Socket AM5

Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series

Processor manufacturer: AMD

Graphics

DirectX version: 12.0

HDCP: Yes

Features

Windows operating systems supported: Windows 11 x64, Windows 10 x64

Motherboard chipset: AMD B850

Audio output channels: 7.1 channels

Motherboard form factor: micro ATX

Motherboard chipset family: AMD

Audio chip: Realtek ALC897

Memory

Supported memory types: DDR5-SDRAM

Number of memory slots: 2

Memory slots type: DIMM

ECC сompatibility: Non-ECC

Memory channels: Dual-channel

Supported memory clock speeds: 8000

Maximum internal memory: 128 GB

Weight & dimensions

Depth: 244 mm

Width: 235 mm

Network

Ethernet interface type: 2.5 Gigabit Ethernet

Ethernet LAN: Yes

LAN controller: Realtek RTL8125D

Internal I/O

LED connector: Y

12V power connector: Yes

Number of USB 3.2 Gen 2 Type-C ports : 1

Number of COM connectors: 1

Audio connector: Yes

TPM connector: Yes

CPU fan connector: Yes

Front panel connector: Yes

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

Number of SATA III connectors: 2

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

BIOS

Clear CMOS jumper: Yes

Packaging content

Cables included: SATA

Wi-Fi antenna: Yes

Storage controllers

2nd M.2 highest PCI Express generation: 4.0

1st M.2 highest PCI Express generation: 4.0

1st M.2 largest key size: 2280

2nd M.2 largest key size: 2280

RAID levels: 0, 10, 1

Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III

Number of SATA III connectors: 2

Number of M.2 (M) slots: 2

Supported storage drive types: HDD & SSD

RAID support: Yes

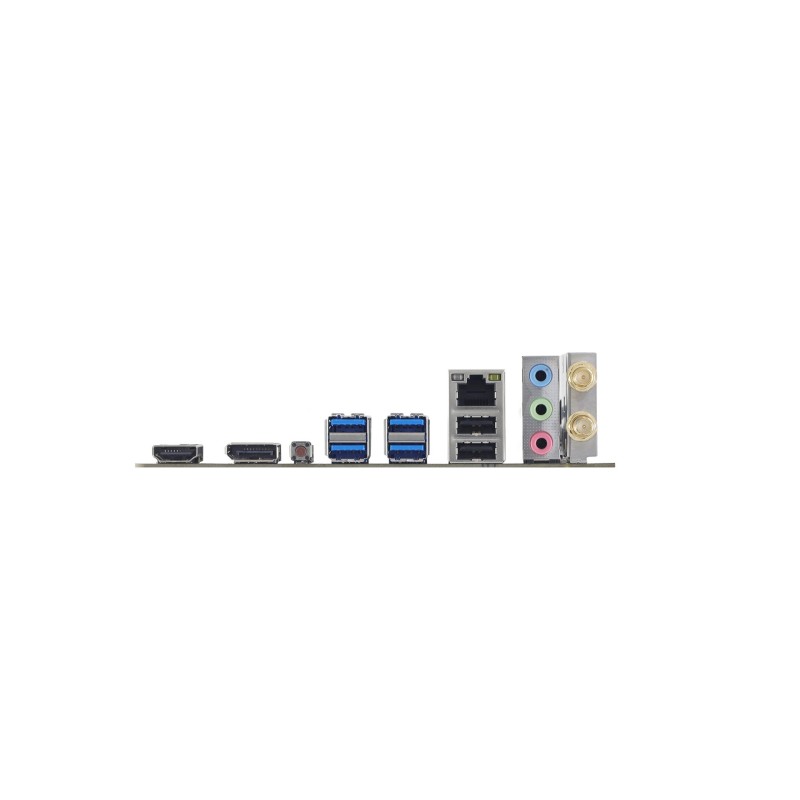

Rear panel I/O ports

Number of audio jack connectors: 3

HDMI version: 2.1

HDMI ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

Number of Wi-Fi antenna ports: 2

DisplayPorts quantity: 1

DisplayPort version: 1.2

Ethernet LAN (RJ-45) ports: 1

USB 2.0 ports quantity: 2

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x4 (Gen 4.x) slots: 1
