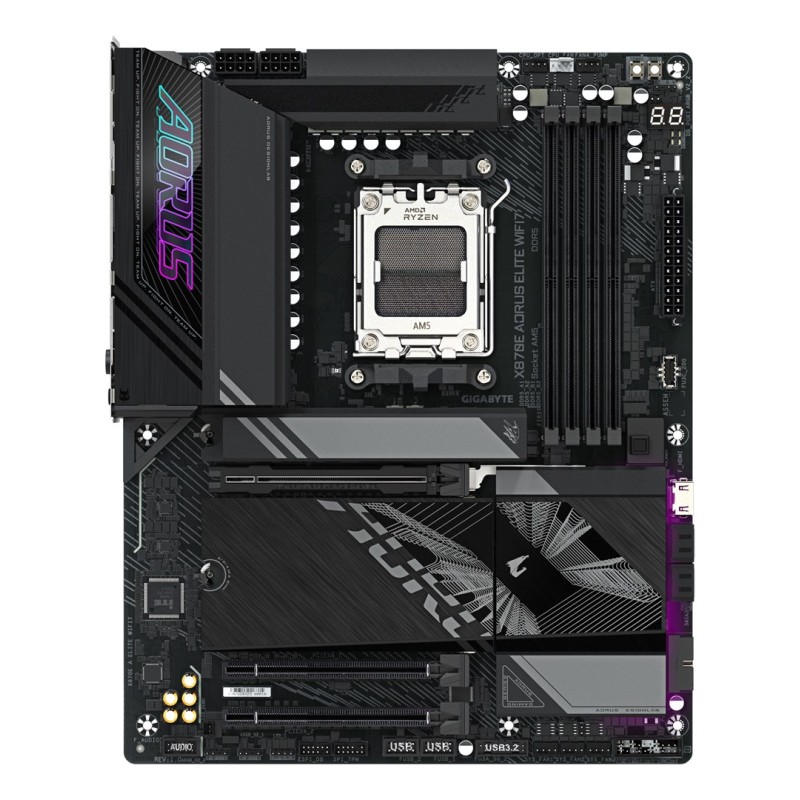

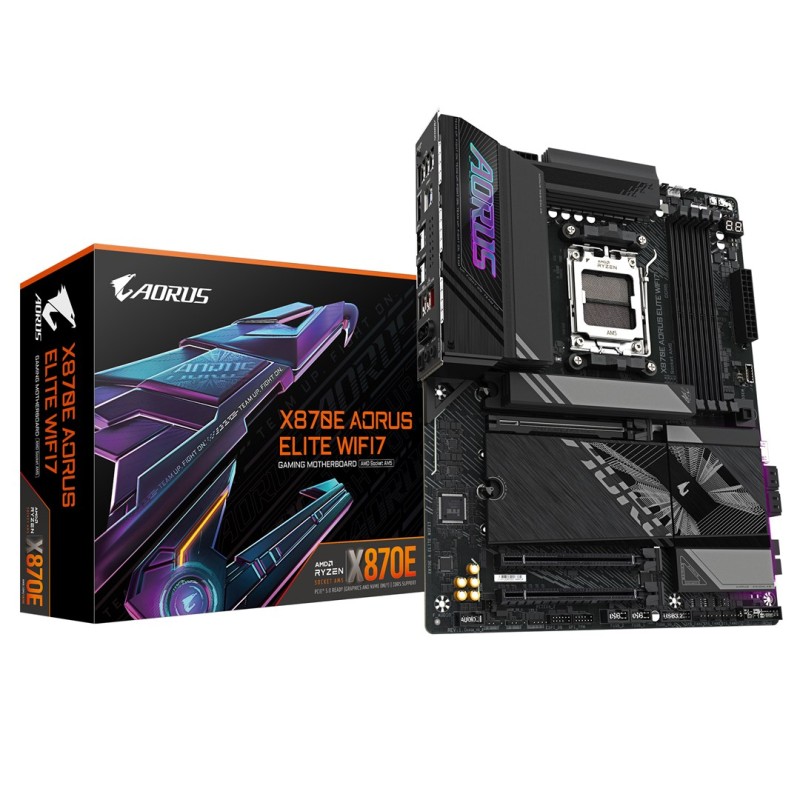

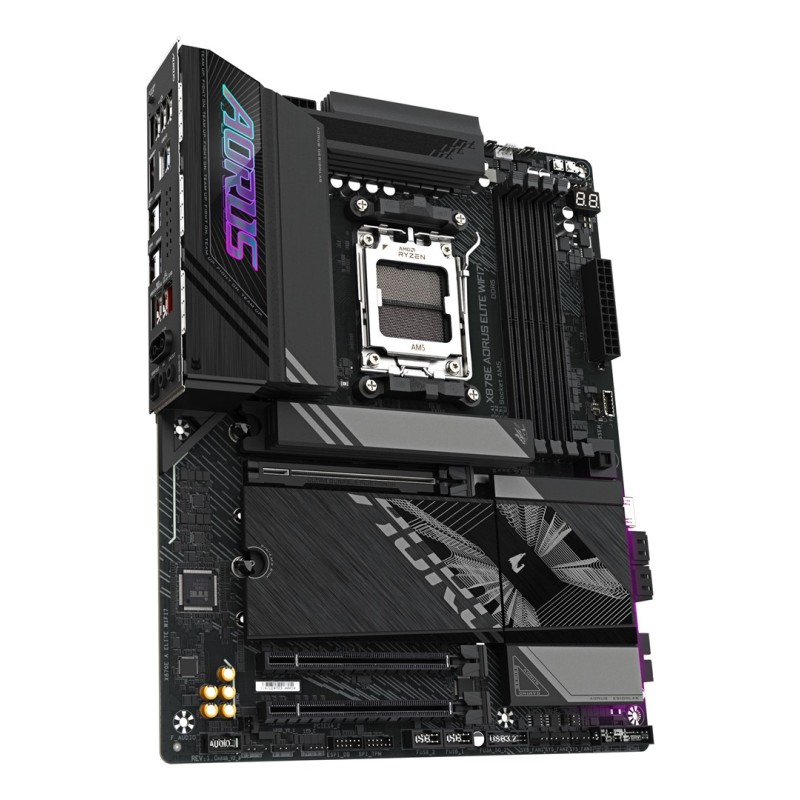

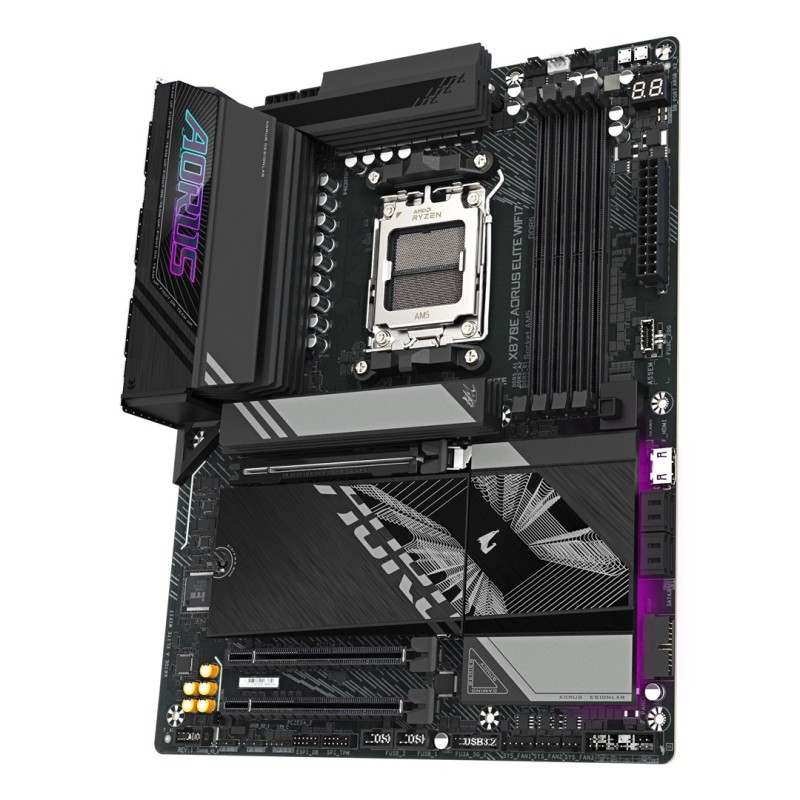

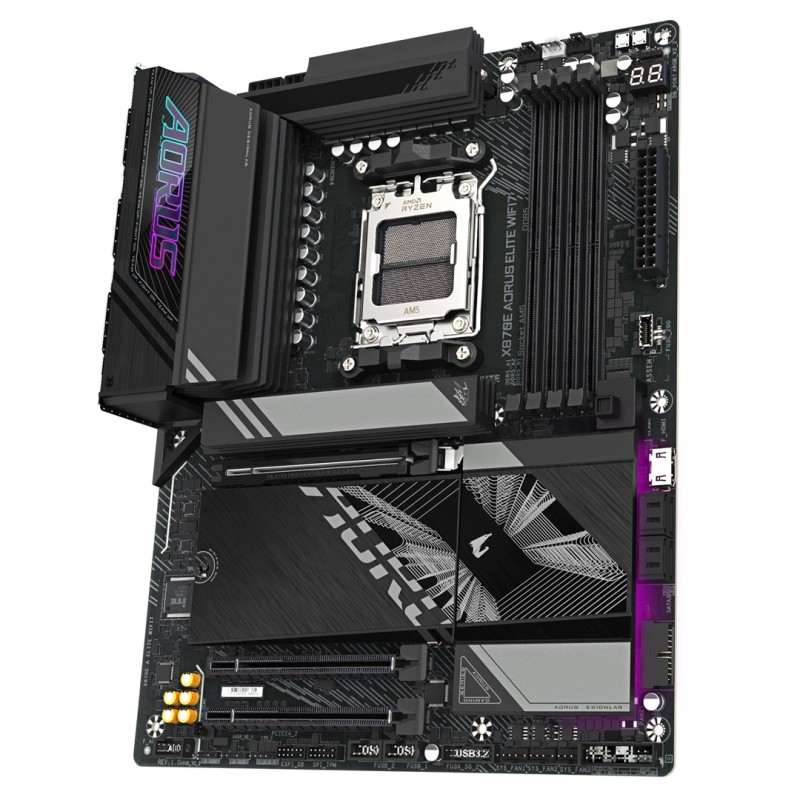

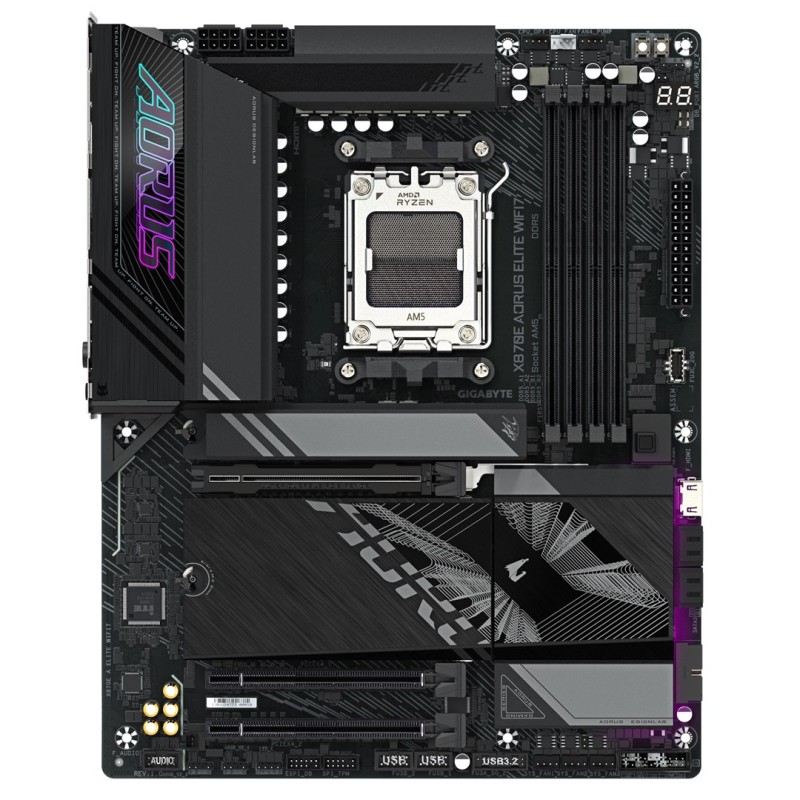

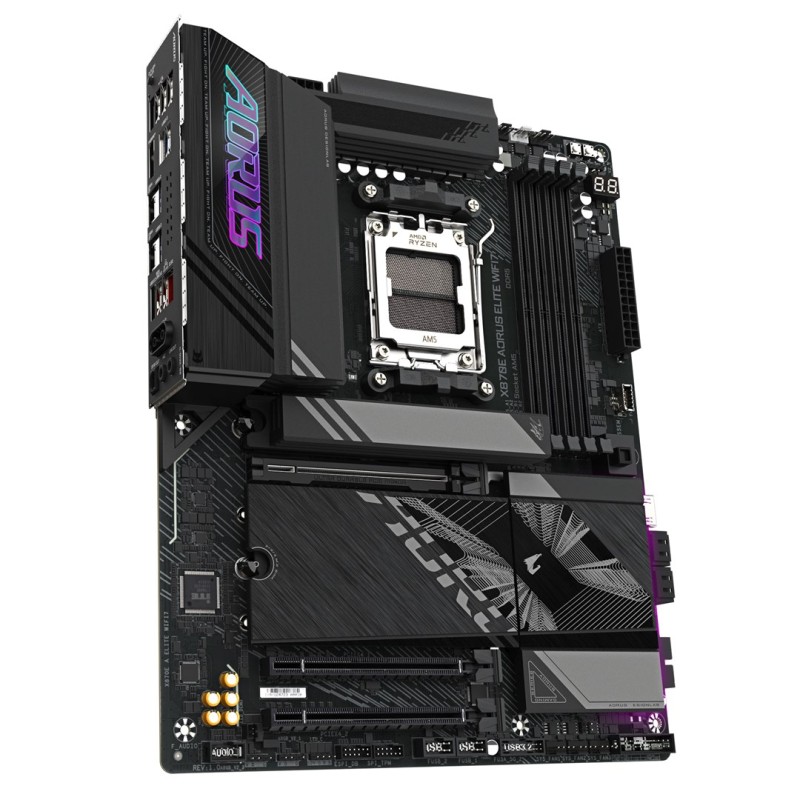

GIGABYTE X870E AORUS ELITE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8000Hz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4

Περιγραφή

Technical details

Warranty period: 3 year(s)

Processor

Supported processor sockets: Socket AM5

Maximum internal memory supported by processor: 256 GB

Compatible processor series: AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD Ryzen 7000 Series

Processor manufacturer: AMD

Processor socket: Socket AM5

Graphics

Parallel processing technology support: Not supported

On-board graphics card: No

DirectX version: 12.0

Features

Audio output channels: 7.1 channels

Motherboard form factor: ATX

PC health monitoring: Fan, Voltage, CPU, Temperature

Windows operating systems supported: Windows 11 x64

Motherboard chipset family: AMD

Audio chip: Realtek ALC1220

Product colour: Black

Motherboard chipset: AMD X870E

Memory

Memory slots type: DIMM

Supported memory types: DDR5-SDRAM

Memory channels: Dual-channel

Number of memory slots: 4

Supported memory clock speeds: 6200, 6000, 4400, 4800, 6400, 5600 MHz, 5200, 6800, 6666, 8000, 7200, 6600, 7600, 7800, 7000, 8200

Unbuffered memory: Yes

Maximum internal memory: 256 GB

Supported memory module capacities: 1GB, 2GB, 4GB, 16GB, 32GB, 8GB, 24GB

ECC сompatibility: Non-ECC

Supported memory clock speed (max): 8200 MHz

Maximum internal memory per slot: 64 GB

Weight & dimensions

Height: 35 mm

Width: 305 mm

Depth: 244 mm

Network

Wi-Fi: Yes

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Wi-Fi standards: Wi-Fi 7 (802.11be)

Ethernet interface type: 2.5 Gigabit Ethernet

Ethernet LAN: Yes

Bluetooth version: 5.4

LAN controller: Realtek RTL8125

Bluetooth: Yes

WLAN controller model: MediaTek MT7925

Internal I/O

CPU fan connector: Yes

Front panel audio connector: Yes

Number of SATA III connectors: 4

ATX Power connector (24-pin): Yes

Front panel connector: Yes

TPM connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

EPS power connector (8-pin): Yes

Number of chassis fan connectors: 4

USB 2.0 connectors: 2

RGB LED pin header: Yes

USB 3.2 Gen 2x2 connectors: 1

Number of EPS power connectors (8-pin): 2

Number of water pump connectors: 2

Number of RGB LED pin headers: 4

Number of CPU fan connectors: 2

BIOS

Clear CMOS button: Yes

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

Desktop Management Interface (DMI) version: 2.7

Packaging data

Package width: 345 mm

Package depth: 294 mm

Package weight: 2.74 kg

Package height: 80 mm

Packaging content

Screws included: Yes

Batteries included: Yes

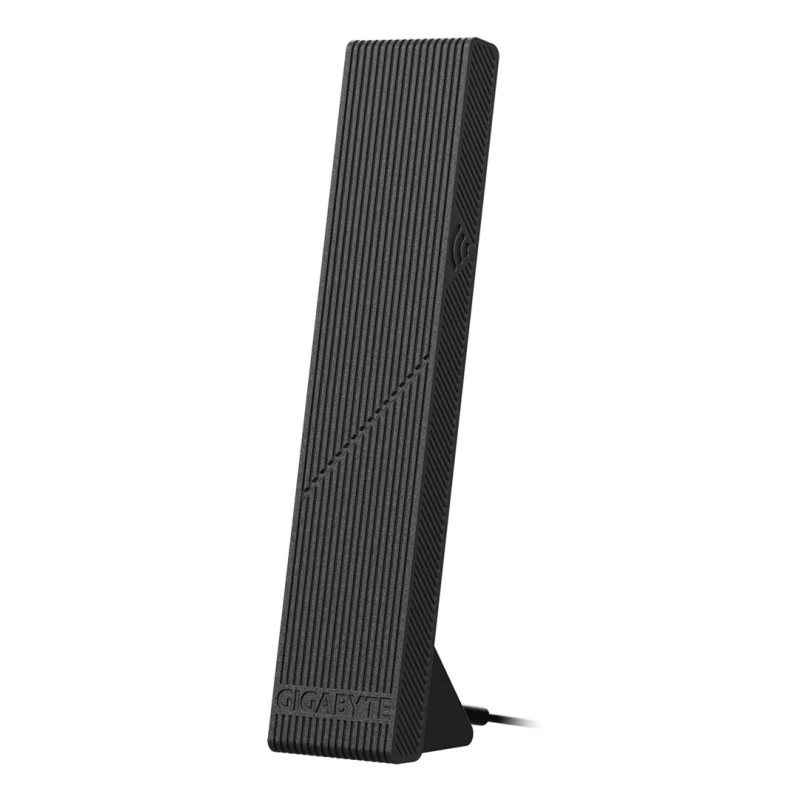

Antenna included: Yes

Storage controllers

RAID levels: 0, 1, 10

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

RAID support: Yes

Number of storage drives supported: 8

Number of HDDs supported: 4

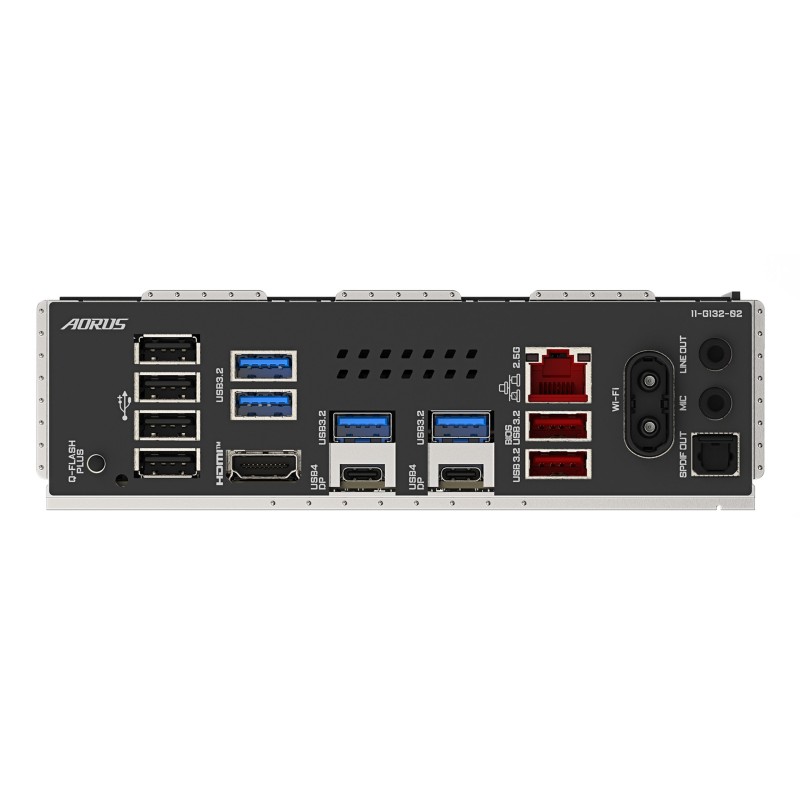

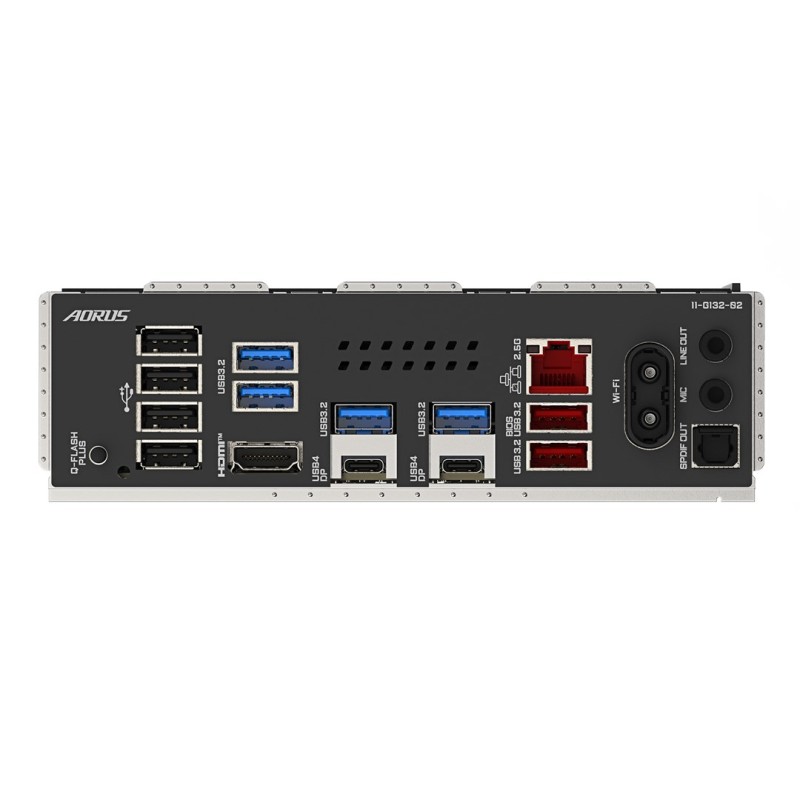

Rear panel I/O ports

USB 2.0 ports quantity: 4

Ethernet LAN (RJ-45) ports: 1

DisplayPort version: 1.4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

HDMI version: 2.1

Headphone outputs: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

S/PDIF out port: Yes

Microphone in: Yes

HDMI ports quantity: 1

WiFi-AP antenna jack: 2

USB4 Gen 2x2 ports quantity: 2

Expansion slots

PCI Express x16 (Gen 3.x) slots: 1

Number of M.2 (M) slots: 4

PCI Express x4 slots: 2

PCI Express x16 (Gen 5.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

1st M.2 largest key size: 25110

4th M.2 highest PCI Express generation: 4.0

4th M.2 largest key size: 22110

2nd M.2 largest key size: 22110

2nd M.2 highest PCI Express generation: 5.0

3rd M.2 largest key size: 22110

1st M.2 highest PCI Express generation: 5.0

3rd M.2 highest PCI Express generation: 5.0

Battery

Number of battery cells: 1

Battery type: CR2032

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery weight: 3 g

Lithium weight per battery: 0.07 g

Other features

Weight: 2.4 kg

Logistics data

Country of origin: China

Products per shipping (inner) case: 1 pc(s)

Safety warning

Warnings: Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage.
